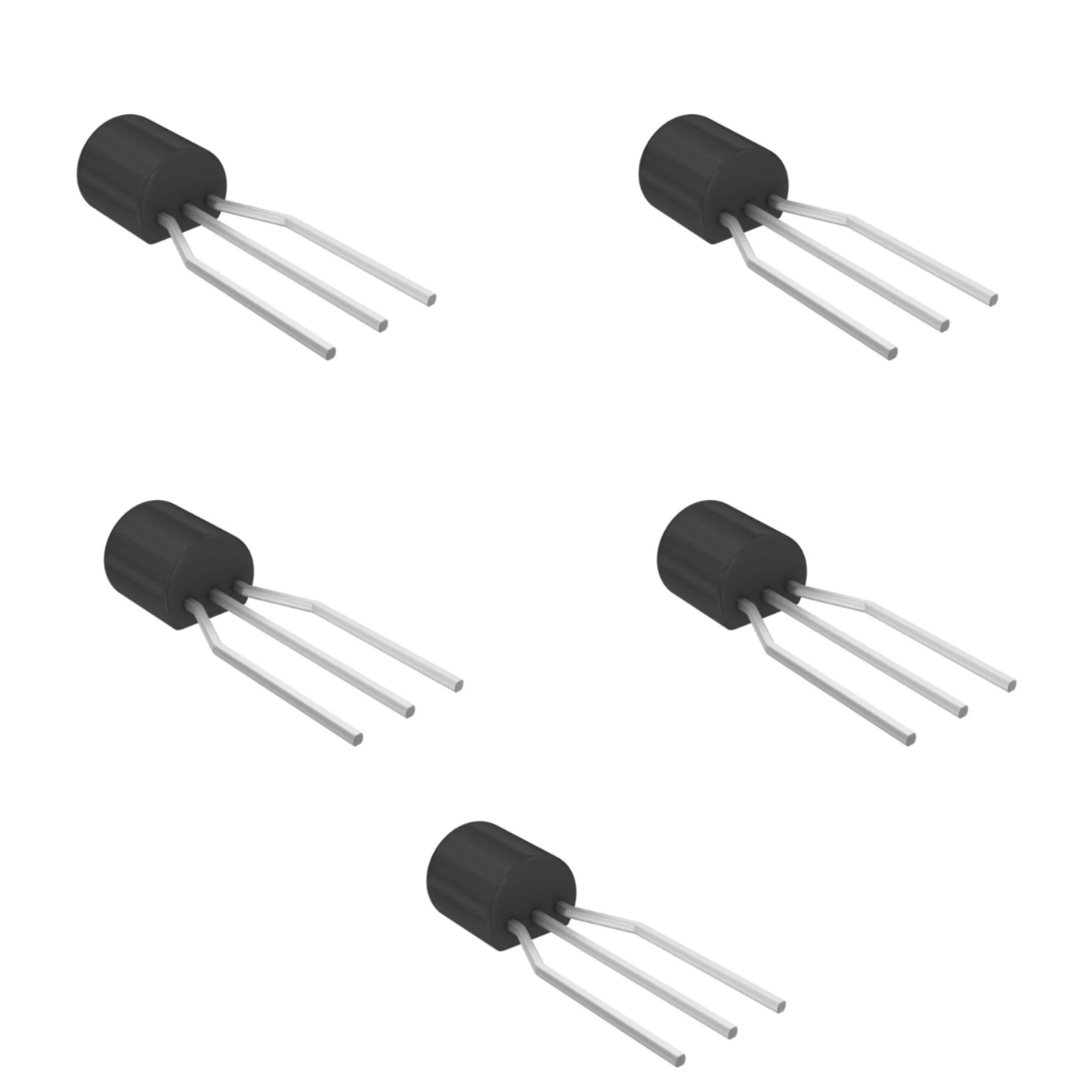

2N4403 PNP TO92 BJT Switching Transistor-Pack of 5
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

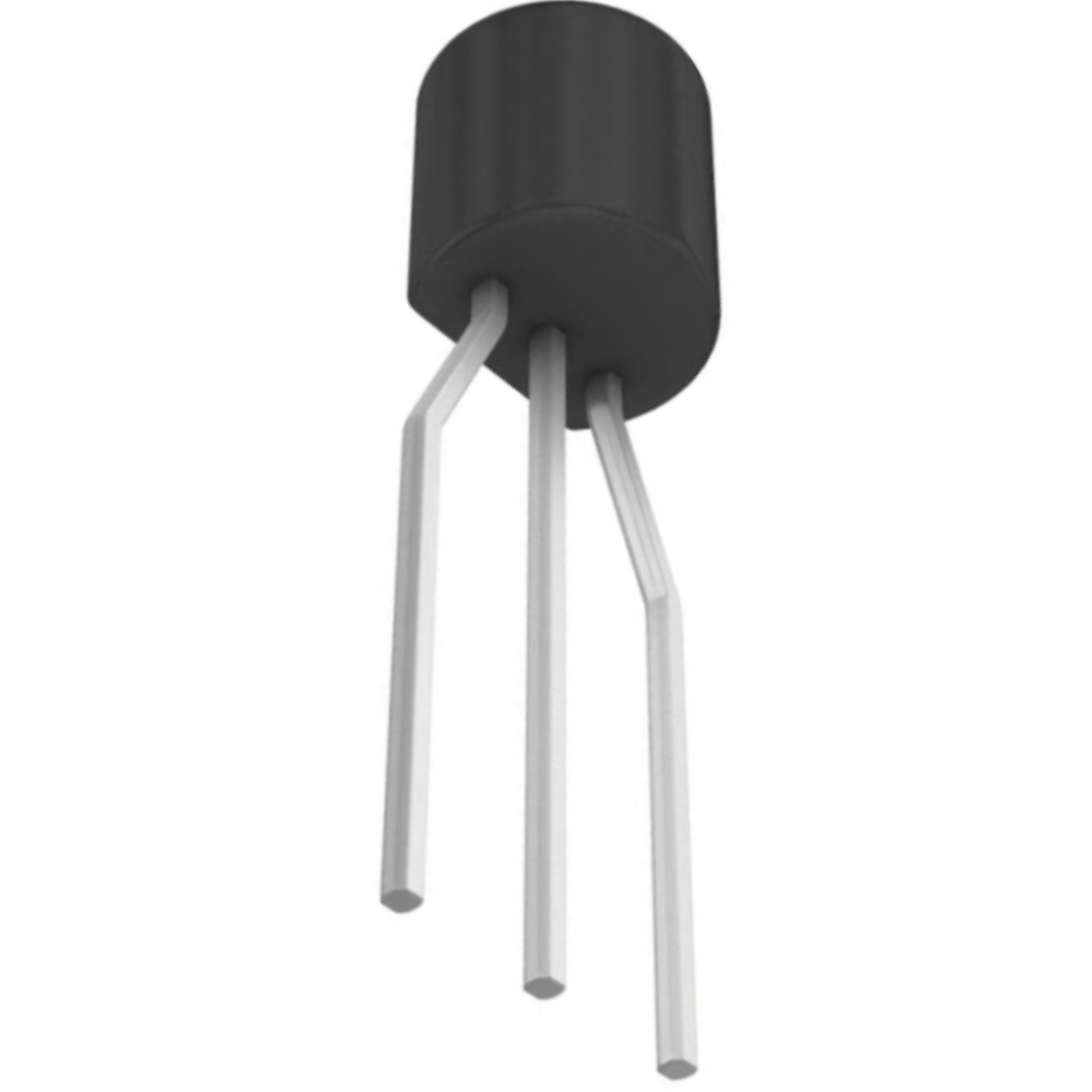

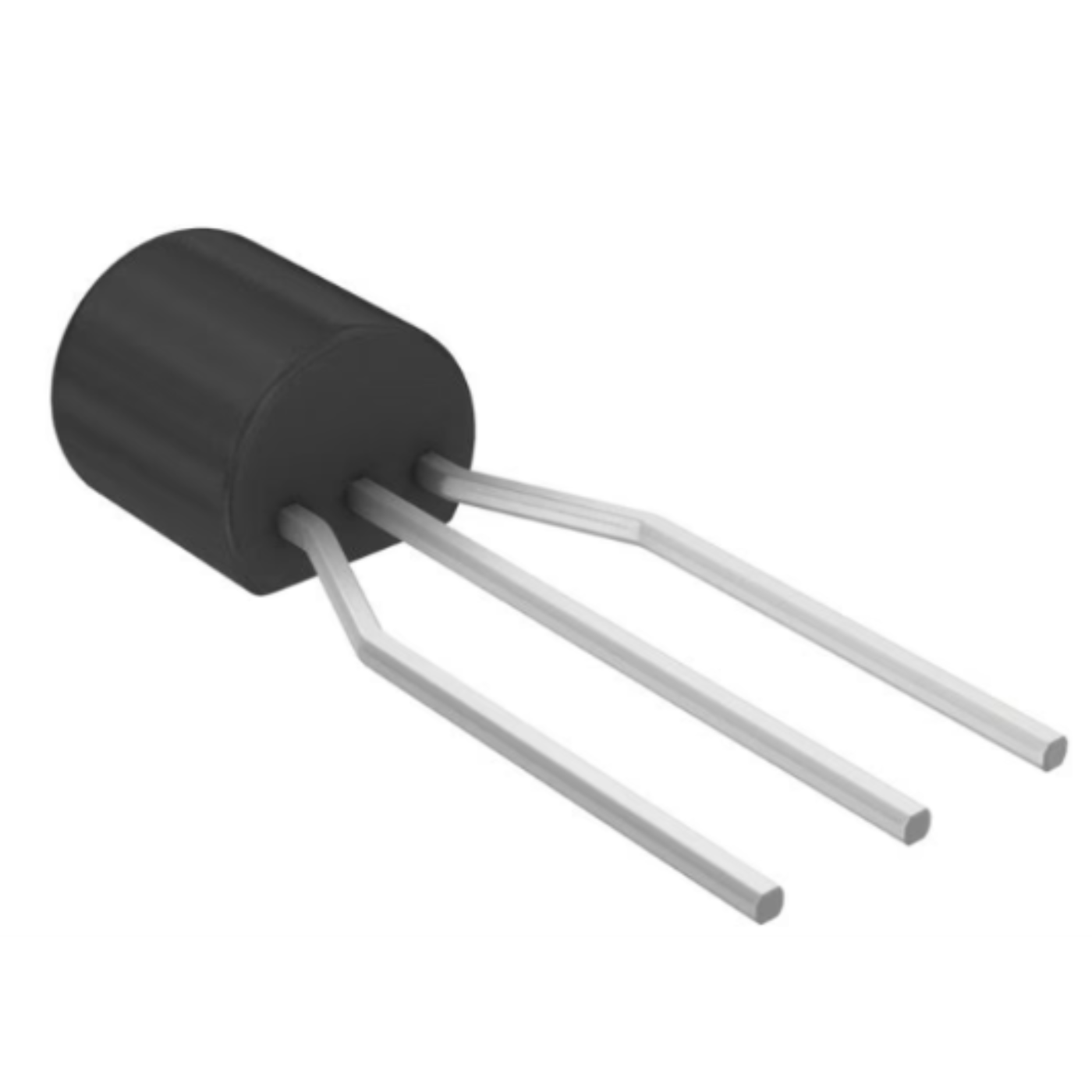

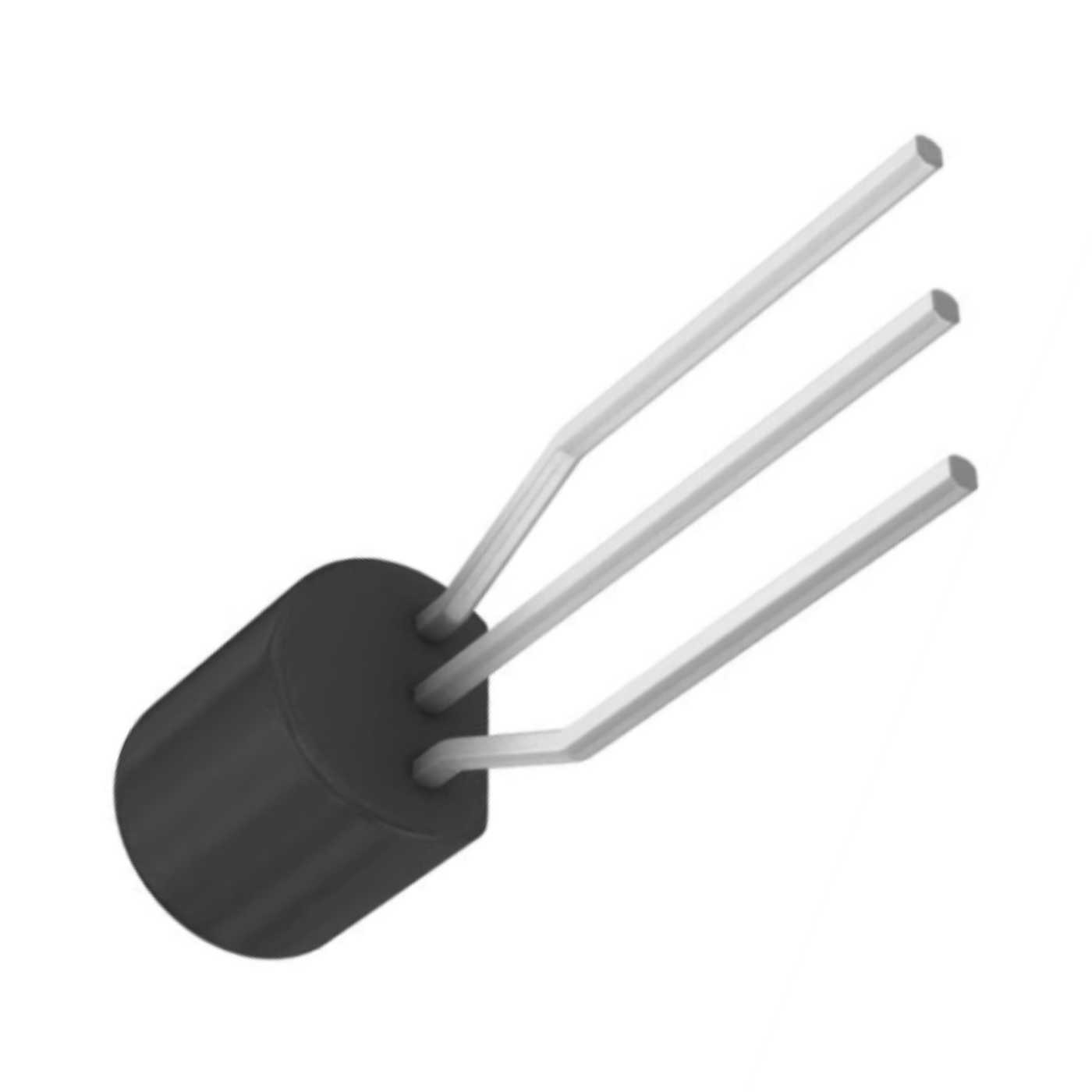

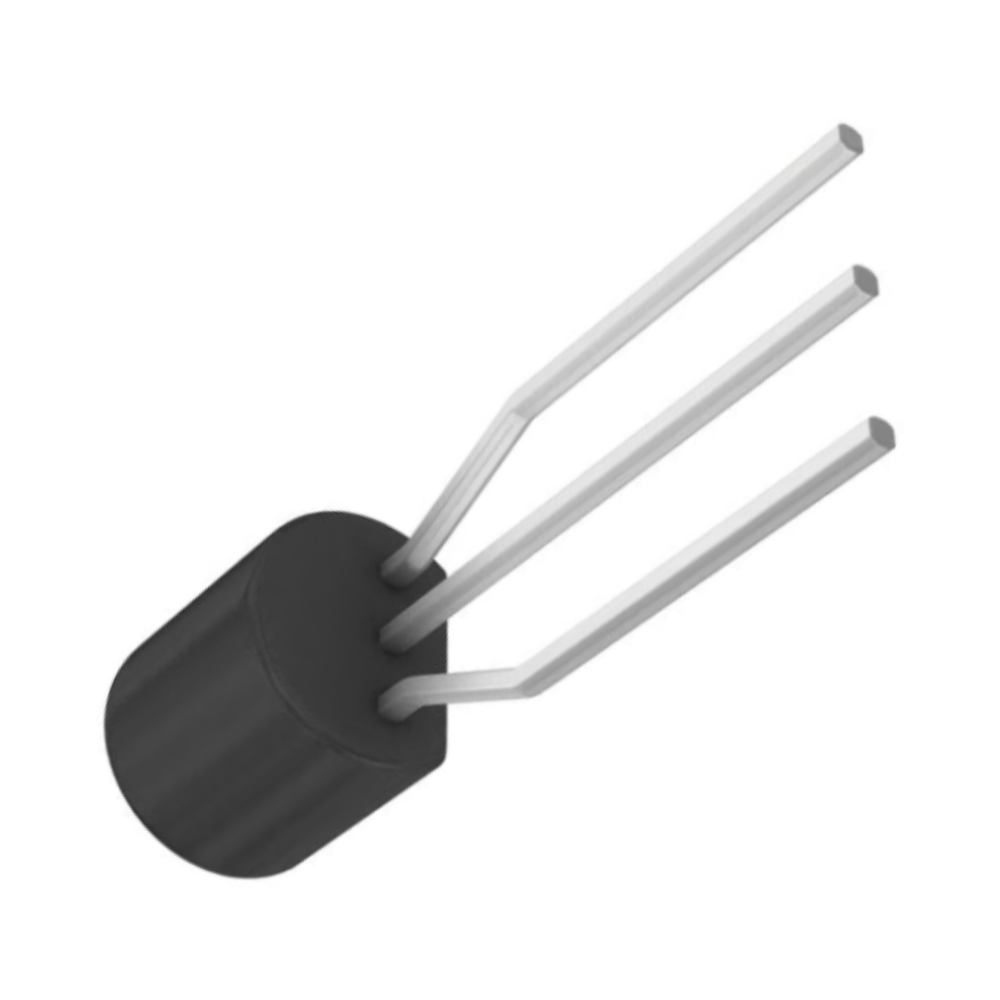

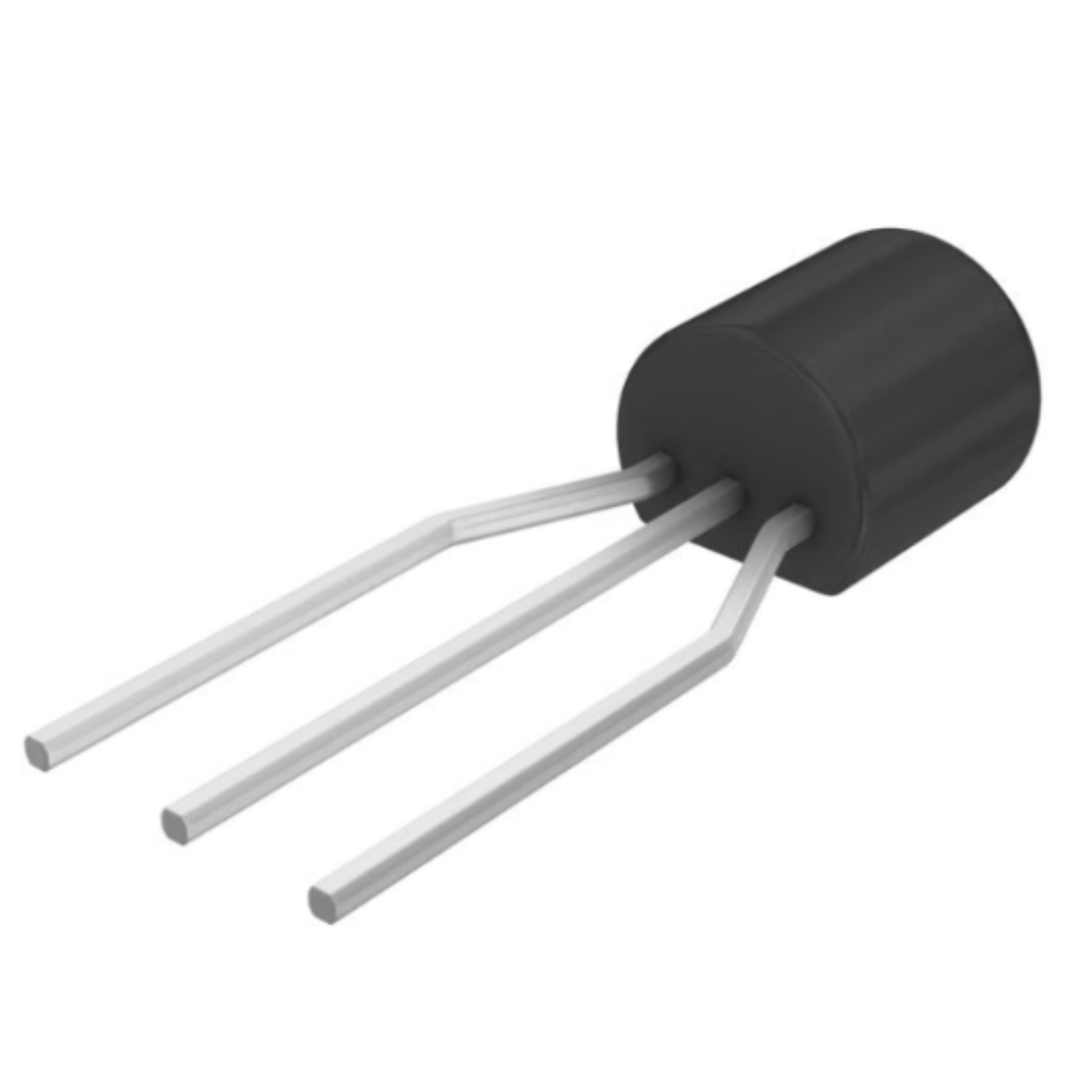

The 2N4403 is a PNP Bipolar Junction Transistor (BJT) designed for general-purpose switching and amplification applications. Housed in a compact TO-92 package, it is suitable for use in electronic circuits requiring reliable transistor performance in a through-hole mounting format. The device complies with RoHS standards, making it suitable for modern electronic designs.
This transistor features a collector-emitter voltage of -40V and supports a continuous collector current of up to -600mA. With a DC current gain (hFE) ranging from 100 to 300, the 2N4403 is suitable for signal amplification, switching circuits, control systems, and general-purpose electronic applications.
The TO-92 package offers convenient handling and soldering for prototyping, educational projects, and production assemblies. The 2N4403 is commonly used in analog and digital electronic circuits where a dependable PNP transistor is required.
| Specification | Details |
|---|---|
| Product Name | 2N4403 Transistor |
| Transistor Type | PNP Bipolar Junction Transistor (BJT) |
| Package | TO-92 |
| Collector-Emitter Voltage (VCEO) | -40 V |
| Collector Current (IC) | -600 mA |
| DC Current Gain (hFE) | 100 to 300 |
| Mounting Type | Through Hole |
| RoHS Compliant | Yes |
