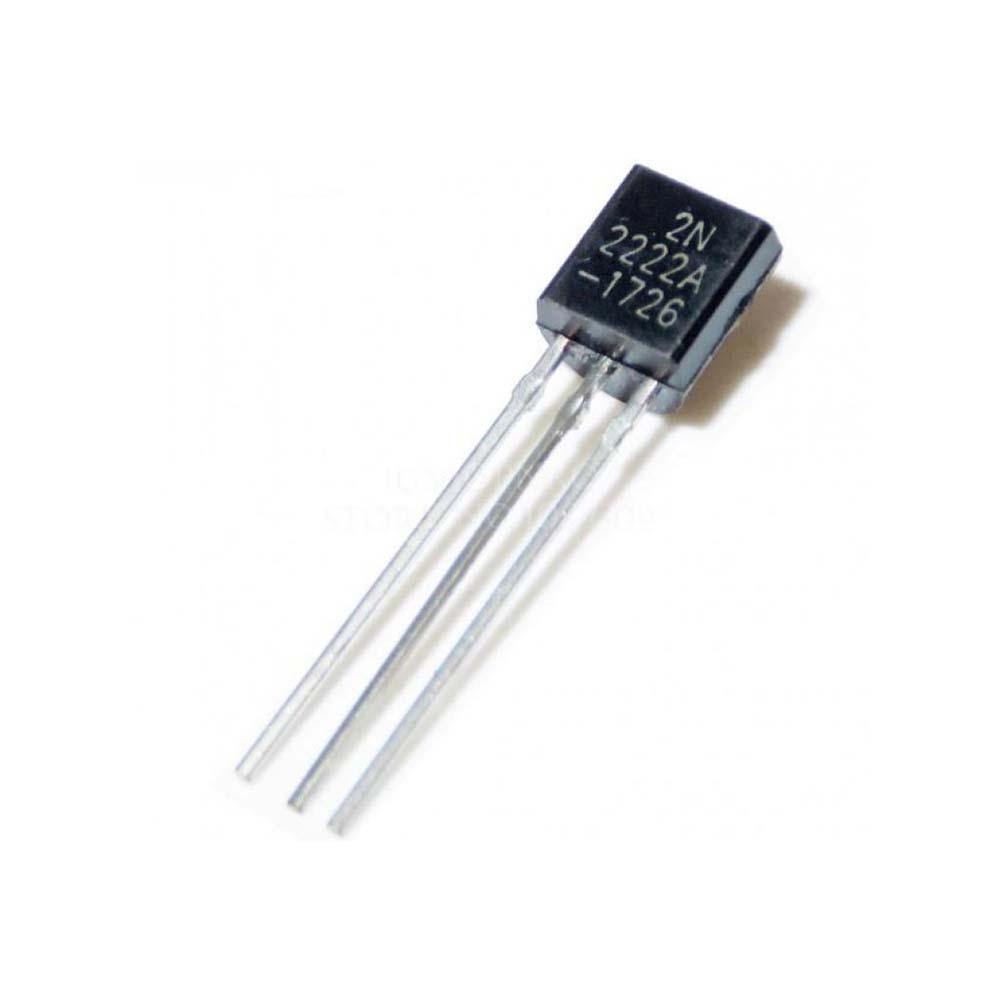

2N2222A NPN Transistor (Pack of 5)
2N2222A NPN Transistor (Pack of 5)
Regular price
Rs. 76
Regular price
Rs. 106
Sale price
Rs. 76
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 2 hours and 39 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- 2N2222A is a semiconductor device used to amplify or switch electronic signals and electrical power.
- It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.
- A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals.
- Linear amplification and switching with high power and current handling capability
2N2222A NPN Transistor (Pack of 5)
The PN2222A is a common NPN BJT used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, and medium voltage, and can operate at moderately high speeds.
2N2222A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.
The 2N2222 NPN Transistor is made in the TO-18 metal can as shown in the picture. Replacements are commonly available now in the cheaper TO-92 packaging, where it is known as the PN2222 or P2N2222, which has similar specifications except for the lower maximum collector current.
read more : What is a 2N2222A Transistor & Its Working
Applications:
- This transistor can be used as a switch for automatically switch ON/OFF any appliances.
- It is used for PWM due to its quick response
- Because of its fast response time, it can be used for pulse width modulation.
- Home automation & embedded projects.
- Audio Preamplifiers
- Audio Amplifier Stages
- Used to switch several loads simultaneously
- Darlington Pairs
- These transistors are used in Motor drive circuits like VFD or variable frequency drives.
- Used in Rectifier Circuits & DC Inverters
- It is used as an amplifier to amplify voltage, current & power.
Package Includes:

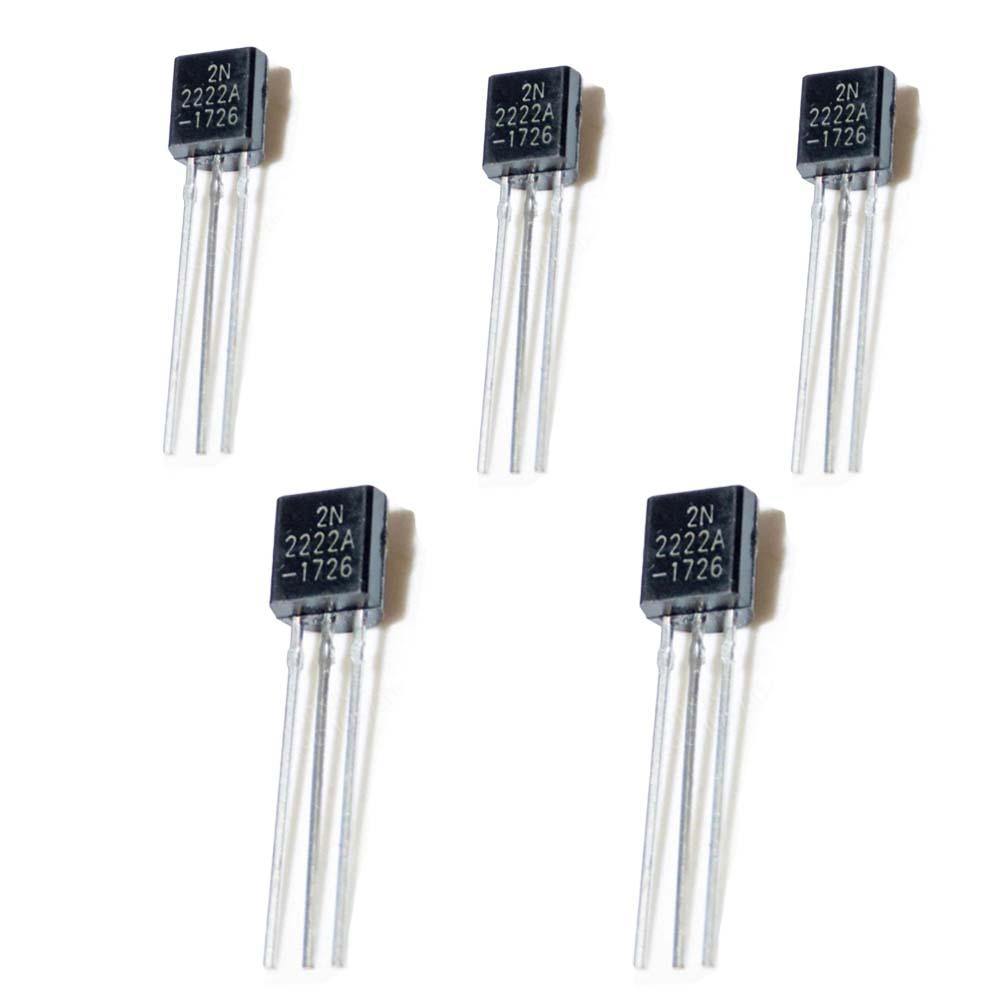

- 5 x 2N2222 NPN Transistor
Specifications:
| Transistor Polarity | NPN |
| Collector-Base Voltage (VCBO) | 75V |
| Collector-Emitter Voltage (VCEO) | 40V |
| Transition Frequency (fT) | 300MHz |
| Power Dissipation (PD) | 1.8W |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is 2N2222A transistor?
- The 2N2222 is a common NPN bipolar junction transistor (BJT) used for low-power amplifying and switching applications. It is intended for low to medium current, low power, medium voltage, and moderately high speeds.
2. In which device 2N2222 transistor is used?
- The NPN transistor 2N2222 has been widely used in switching and very high frequency (VHF) amplifier applications. It is constructed of silicon and is intended for low voltage, low to medium current, and low power amplifier applications.
3. How much voltage can a 2N2222A transistor handle?
- The transistor 2N2222 or 2N2222A are NPN types. With the emitters open, the device's maximum voltage tolerance (breakdown voltage) across its collector and base is 75 volts for 2N2222 or 2N2222A.
