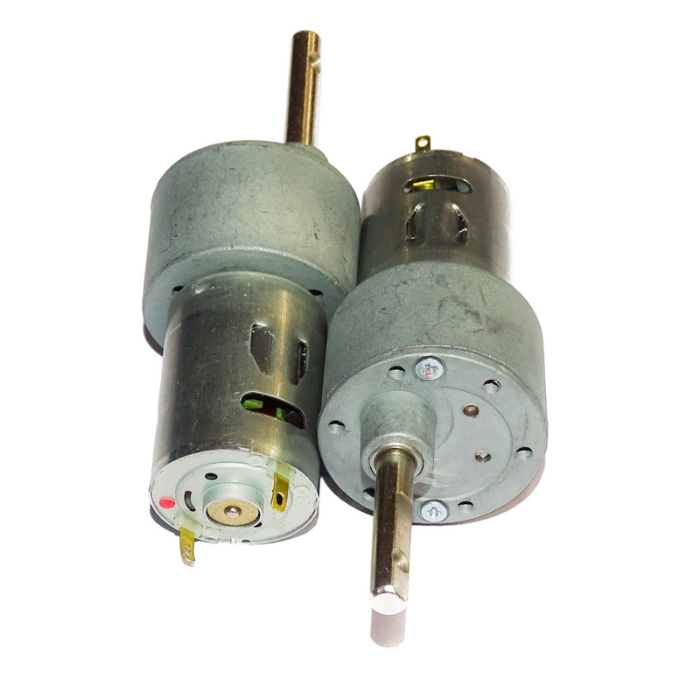

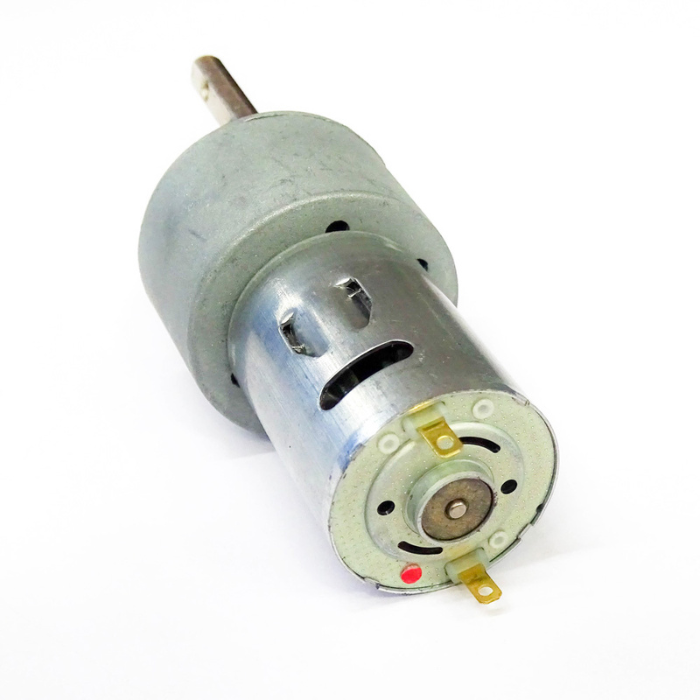

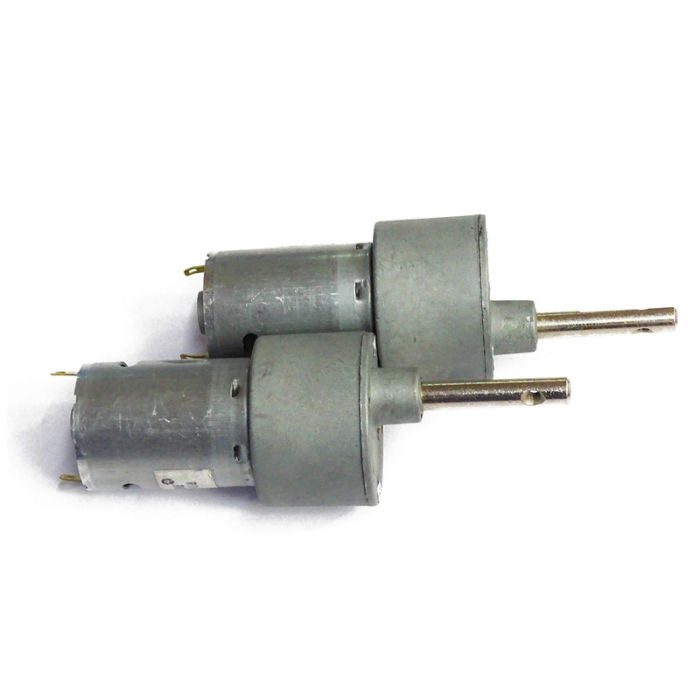

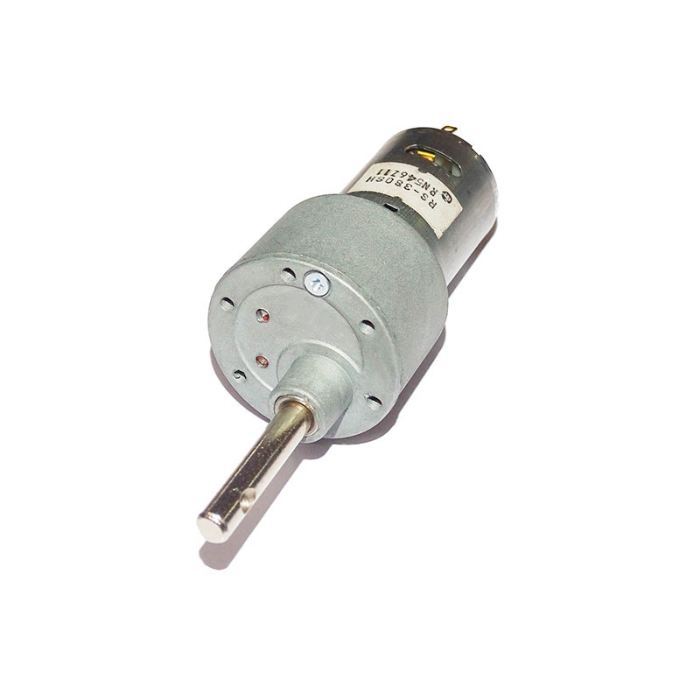

200 RPM DC Johnson Geared Motor 12V (Grade B)
Couldn't load pickup availability
The 200 RPM DC Johnson Geared Motor 12V (Grade B) is a high-performance yet cost-effective solution for a variety of robotic and mechanical applications.
This DC motor features a sturdy metal gearbox and an off-centered (side) shaft, designed to deliver optimal performance in tight spaces.
Operating at 12V DC, this Johnson motor produces 200 RPM speed with a torque output of 3.9 kg-cm, making it ideal for medium-load applications like small robots, conveyor belts, or DIY machinery.
As a Grade B variant, it offers excellent value by providing reliable functionality at a more affordable price compared to premium Grade A Johnson motors.
The shaft is equipped with metal bushes to ensure wear resistance and longer operational life. With six M3 mounting holes and a shaft hole for better coupling, this 200 rpm gear motor ensures secure and hassle-free installation.
Whether you're building a custom bot or automating a mechanism, this Johnson geared motor is a perfect choice for efficient and compact motion control.
| Specification | Details |
|---|---|
| Item Type | Johnson Geared Motor |
| Rated Torque | 3.9 kg-cm |
| Operating Voltage | 6 ~ 18 VDC |
| Rated Speed | 200 RPM |
| No-Load Current | 300 mA |
| Stall Torque | 15.6 kg-cm |
| Nominal Voltage | 12 V |
| Load Current (Max) | 900 mA |
| Shaft Diameter | 6 mm |
| Shaft Length | 30 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length | 62 mm |
| Weight | 162 g |
