2.4GHz PCB Antenna with IPEX U.FL Connector for Wireless Modules

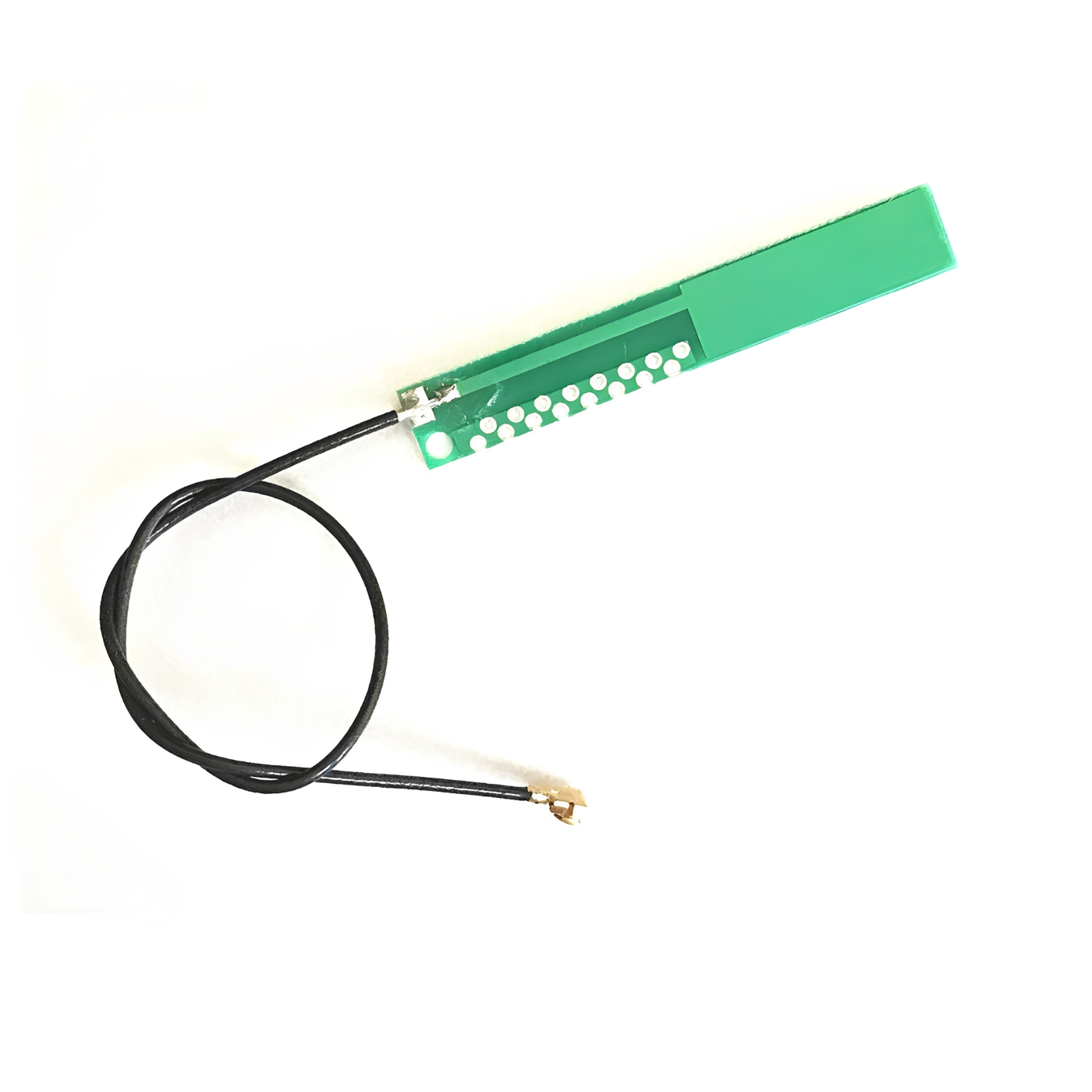

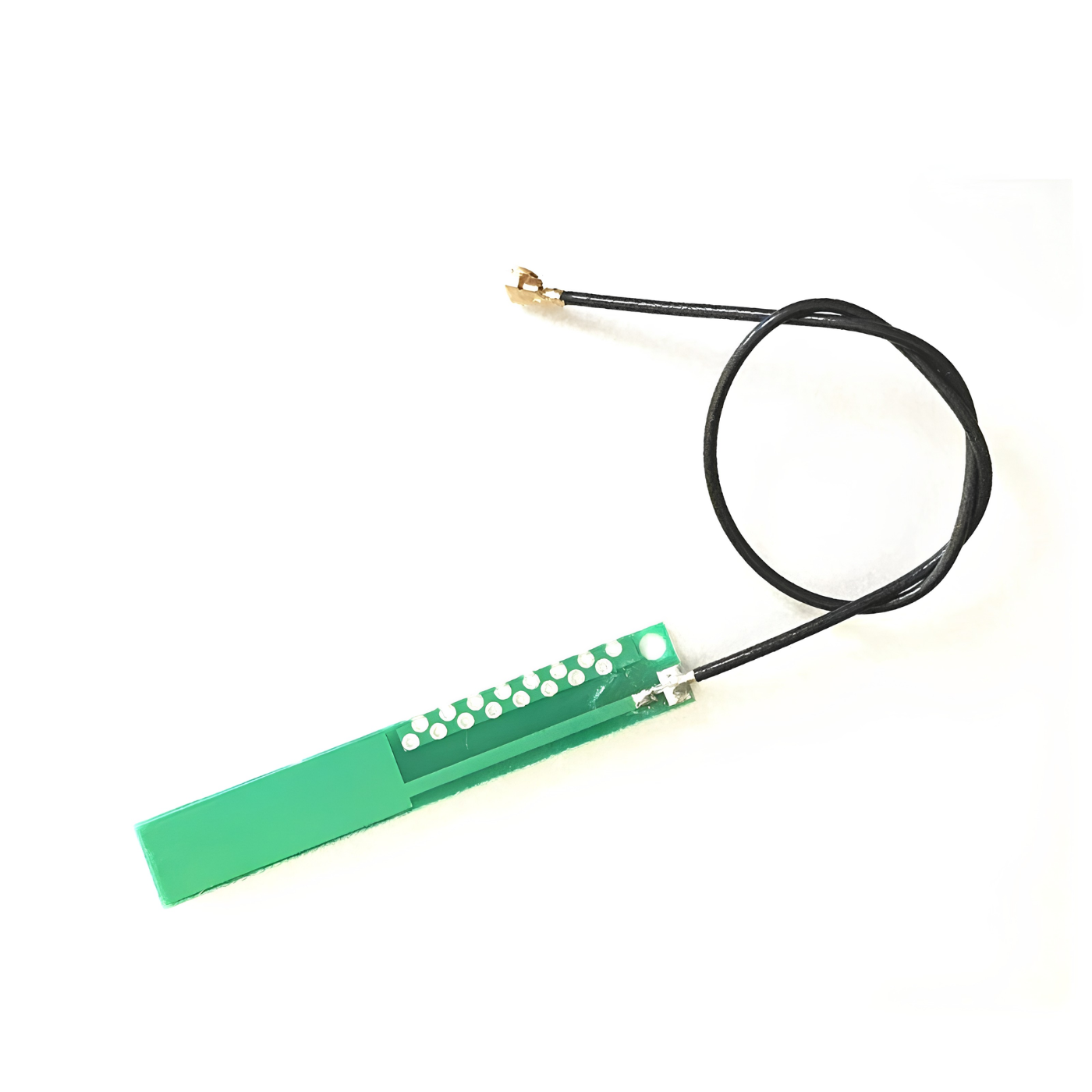

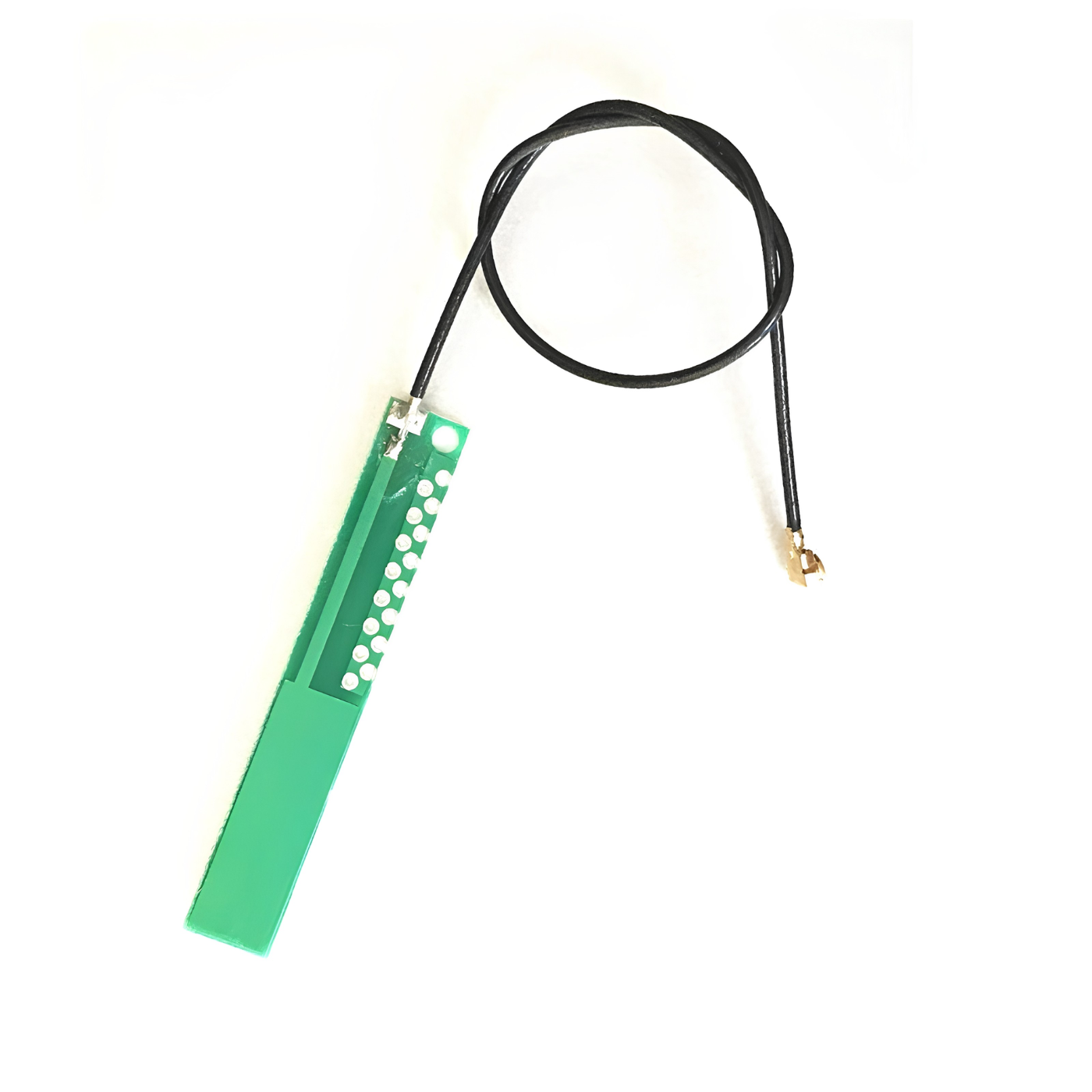

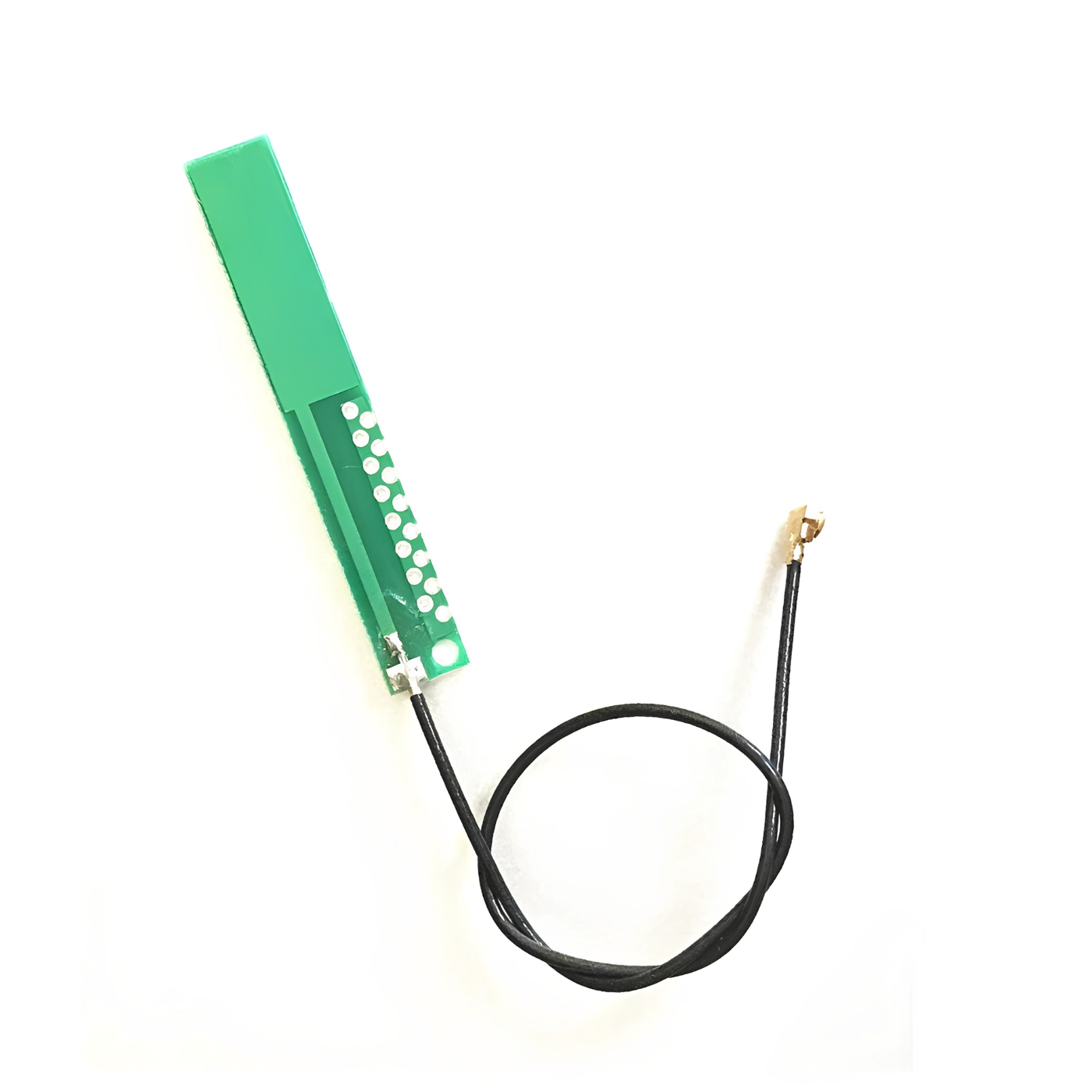

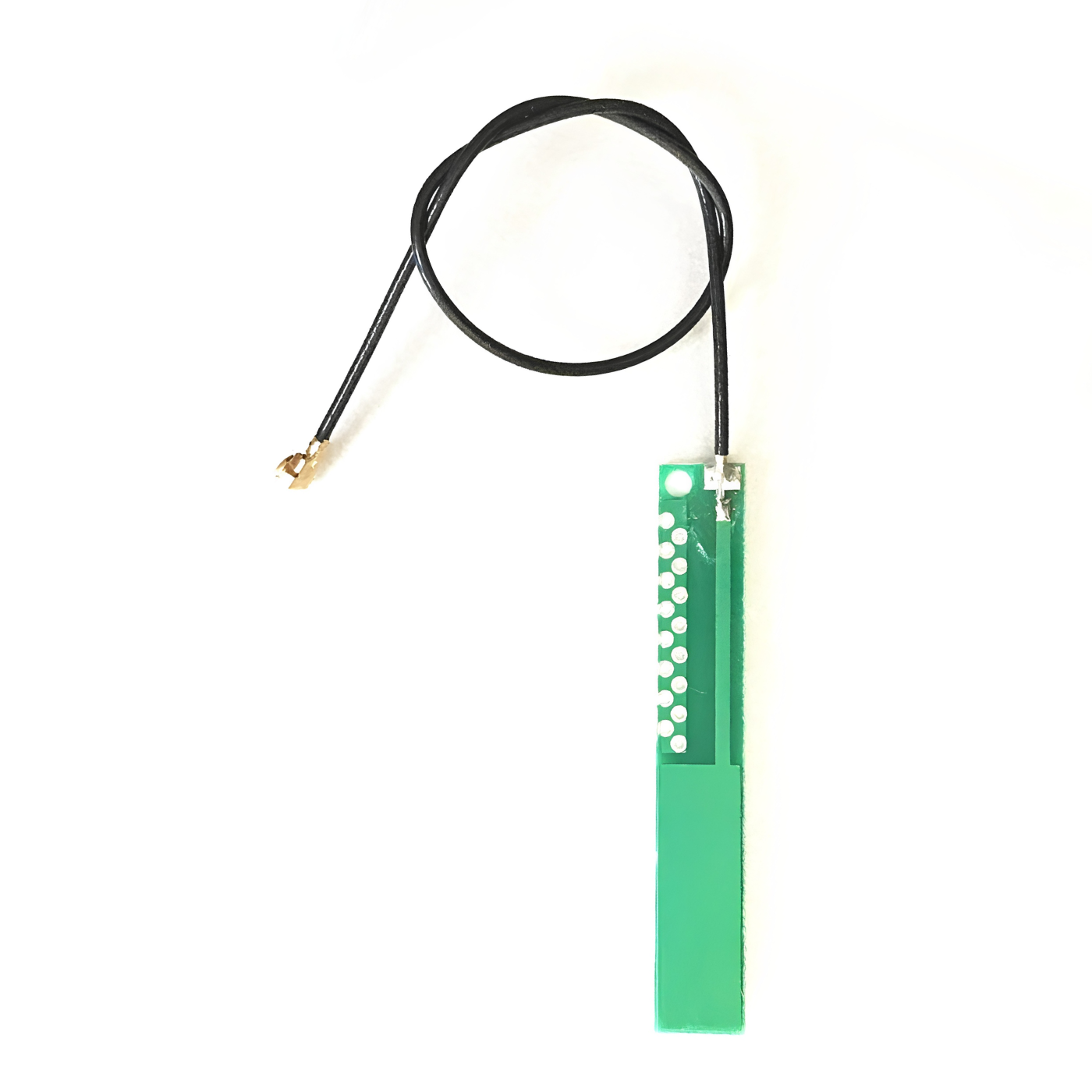

The 2.4GHz WiFi PCB Antenna is a compact internal antenna designed to deliver reliable wireless connectivity for embedded electronics, IoT devices, and WiFi-enabled applications. Operating across the 2400–2490MHz frequency range, this PCB antenna supports IEEE 802.11 b/g/n wireless standards, making it suitable for a wide variety of development boards, wireless communication modules, smart devices, and custom electronic projects. Its slim profile allows for easy installation inside enclosures where space is limited without compromising wireless performance.

Designed with a 4dBi antenna gain, the antenna helps provide efficient signal transmission and reception for compatible 2.4GHz wireless systems. It features a 50Ω impedance and an SWR of less than 1.5, supporting stable RF performance for wireless communication applications. The antenna is equipped with a pre-installed 15cm cable terminated with an IPEX U.FL connector, enabling quick and convenient integration with compatible WiFi modules and RF devices that utilize U.FL connections.

Measuring just 48 × 7.4 × 1.0mm, the PCB antenna is well suited for compact electronic assemblies where internal mounting is preferred. Whether used in IoT devices, embedded systems, wireless controllers, industrial electronics, or custom RF designs, this 2.4GHz WiFi antenna offers a practical solution for achieving dependable wireless connectivity while maintaining a lightweight and space-efficient design.

Features:

• Designed to operate within the 2400–2490MHz frequency range, making the antenna suitable for 2.4GHz WiFi communication across embedded systems and wireless electronic devices.
• Supports IEEE 802.11 b/g/n wireless standards, allowing integration with compatible WiFi modules used in IoT projects, development boards, and custom electronics.
• Delivers a 4dBi antenna gain to support improved wireless signal transmission and reception while maintaining a compact internal antenna design.
• Features a PCB antenna construction that offers a lightweight, space-saving solution for devices where external antennas are not preferred.
• Equipped with a factory-installed 15cm RF cable, simplifying installation and reducing the need for additional cable assemblies.
• Uses an IPEX U.FL connector for secure and reliable connection with compatible RF modules and embedded WiFi hardware.
• Designed with a 50Ω impedance to ensure compatibility with standard RF communication systems and wireless modules.
• Offers an SWR of less than 1.5, supporting efficient signal transfer and minimizing signal reflection during operation.
• Supports a maximum input power of 30dBm, making it suitable for a wide range of low-power wireless communication applications.
• Compact dimensions of 48 × 7.4 × 1.0mm make the antenna ideal for installation inside compact electronic enclosures and embedded devices.
• Suitable for wireless communication projects requiring an internal antenna for reliable WiFi connectivity in a compact form factor.
• An excellent choice for IoT devices, smart home products, industrial electronics, development kits, automation systems, and custom RF applications.
