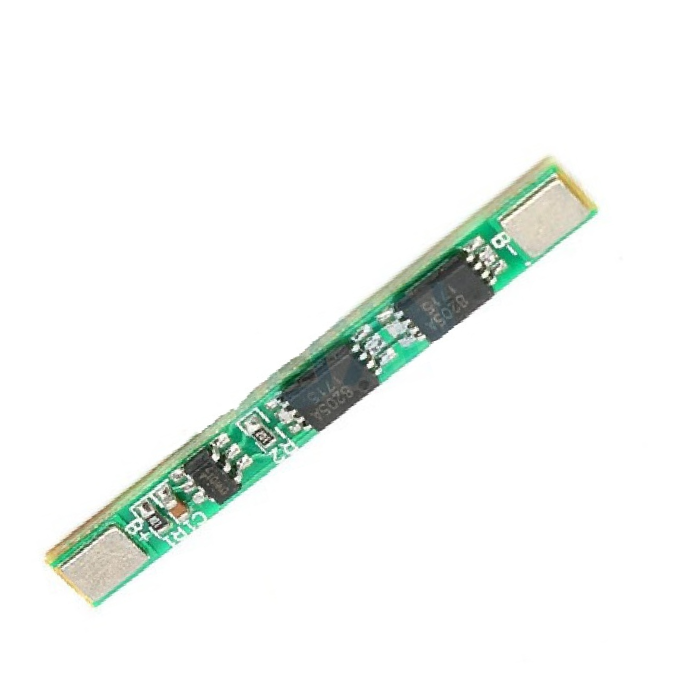

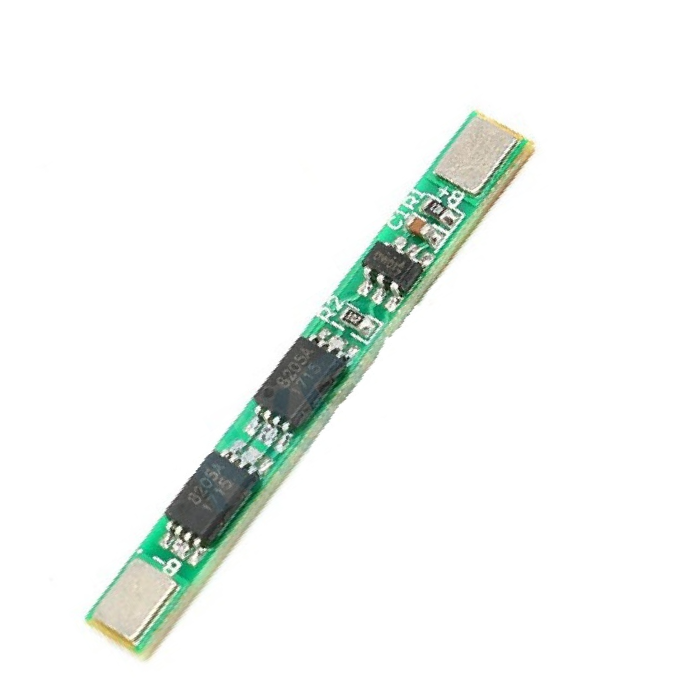

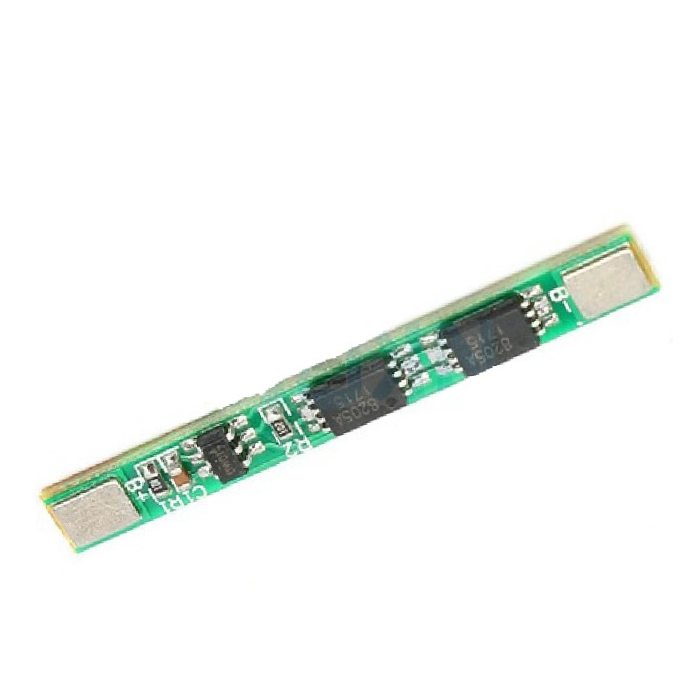

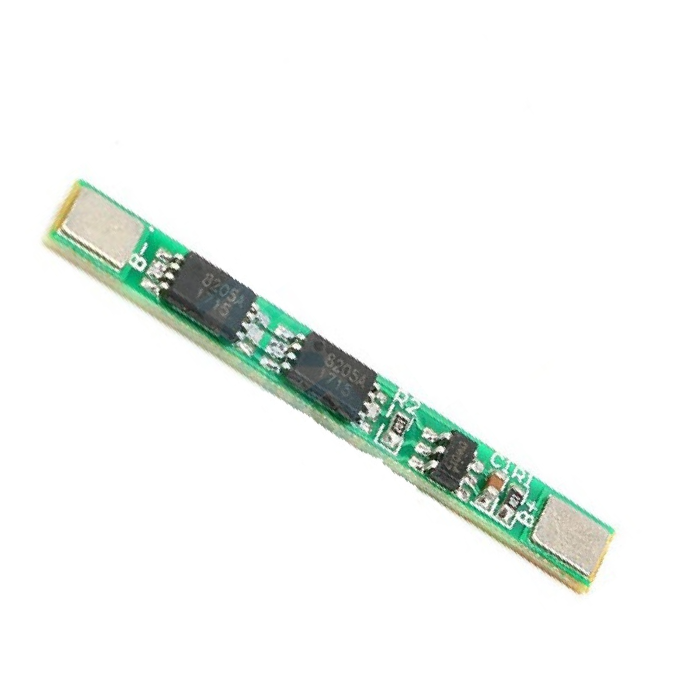

1S 18650 Li-ion Battery BMS Charger Protection Module 3.7V 3A
1S 18650 Li-ion Battery BMS Charger Protection Module 3.7V 3A
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Compatible with Li-ION 3.7V batteries (18650, 14500)
- Overcharge detection at 4.25 ± 0.05V and over-discharge detection at 2.54 ± 0.1V
- Built-in overcurrent protection (3A)
- Working current of 1A for stable performance
- Compact design with a size of 3.2 × 0.4 × 0.2 cm
- Lightweight at only 1 gram for easy integration
1S 18650 Li-ion Battery BMS Charger Protection Module 3.7V 3A
The 1S 18650 Li-ion Battery BMS Charger Protection Module is made for 3.7V Li-ion batteries like 18650 and 14500. It helps protect your battery by carefully checking the voltage, ensuring it doesn’t overcharge or over-discharge. The module also has protection against overcurrent and short circuits. It controls the charging and discharging of the battery safely. This module is perfect for keeping your batteries safe and lasting longer.
Protections:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Over-current protection
Pins description
- P-: negative of input or output power
- P : positive of input or output power
- B-: negative of the battery
- B : positive of the battery
Package Includes
1 x 1S 18650 Li-ion Battery BMS Charger Protection Module 3.7V 3A
Specifications
| Specification | Details |
|---|---|
| Compatibility | Li-ION 3.7V Batteries (18650, 14500) |
| Overcharge detection voltage | 4.25 ± 0.05V |
| Overcharge lift the voltage | 4.23 ± 0.05V |
| Over-discharge detection voltage | 2.54 ± 0.1V |
| Over-current detection current | 3A |
| Working current | 1A |
| Weight | 1g |
| Dimensions | 3.2 × 0.4 × 0.2 cm |
