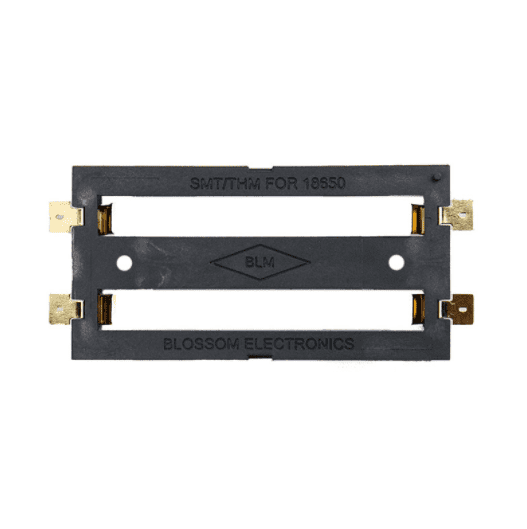

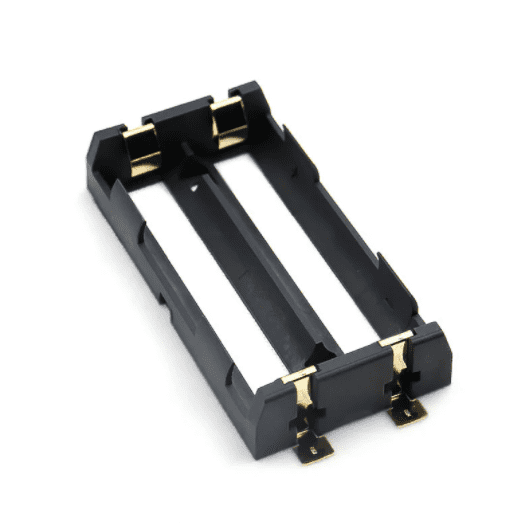

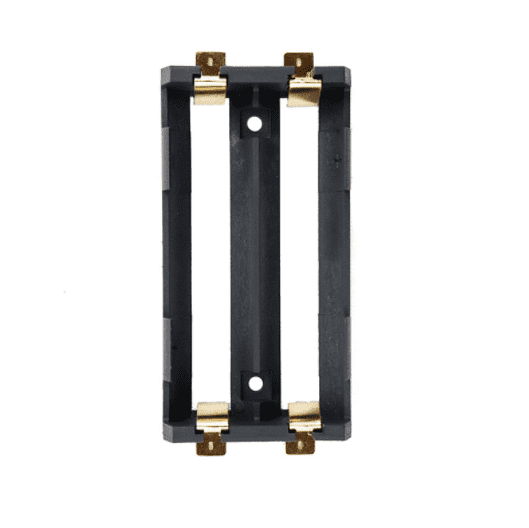

18650 SMD/SMT Dual Battery Holder
Couldn't load pickup availability
The all-new 18650 Dual SMD/SMT High-Quality DUAL Battery Holder is made to handle the higher lithium battery supply voltage with long service life. With the compact size SMD pins, you can mount the holder on your project PCB and power your project without any loose wiring.
This battery Holder can hold two 18650 cylinders shaped cells to provide separate supplies from both cells as slots are not interconnected, It means that the holder can be taken into use as a SINGLE battery Holder also. Additionally, you can easily combine two battery power by doing a series or parallel combination connection simply by soldering the contact points of the Holder from outside as per your project needs
It has High-quality ABS external / PC material, insert material is bronze pin environmental protection material. The ABS plastic can handle bearable heat which normal plastic can’t and Stainless steel rustproof shrapnel screens with gold plating will hold the batteries tightly, the installation is very convenient to replace the battery, it will not damage the battery and other parts, convenient and fast, safe and reliable.
1 x 18650 SMD/SMT Dual Battery Holder
| Contact Material |
Stainless Steel |
| Plating on Contact Point |
Gold |
| Body Material |
ABS |
| No. of Cells |
2 |
| Color |
Black |
| Mounting Type |
SMD |
| Operating Temperature Range (°C) |
-40 to 180 |
| Dimensions in mm (LxWxH) |
78 x 40 x 15 |
| Weight(gm) |
18 |
| Shipment Weight |
20 gm |
| Shipment Dimensions |
80 x 50 x 20 mm |
Stainless Steel
Gold
ABS
2
Black
SMD
-40 to 180
78 x 40 x 15
18
20 gm
80 x 50 x 20 mm
