14.8 V 2200mah 4S 40C-80C Lithium Polymer Battery

Regular price
Rs. 2,099
Sale price
Rs. 2,099
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • Battery voltage: 14.8 V
  • Battery capacity: 2200mAh
  • Number of cells: 4
  • Balance plug type: JST-XH
  • Discharge plug type: XT-60
  • Applications: RC Cars, Quadcopters RC Airplanes

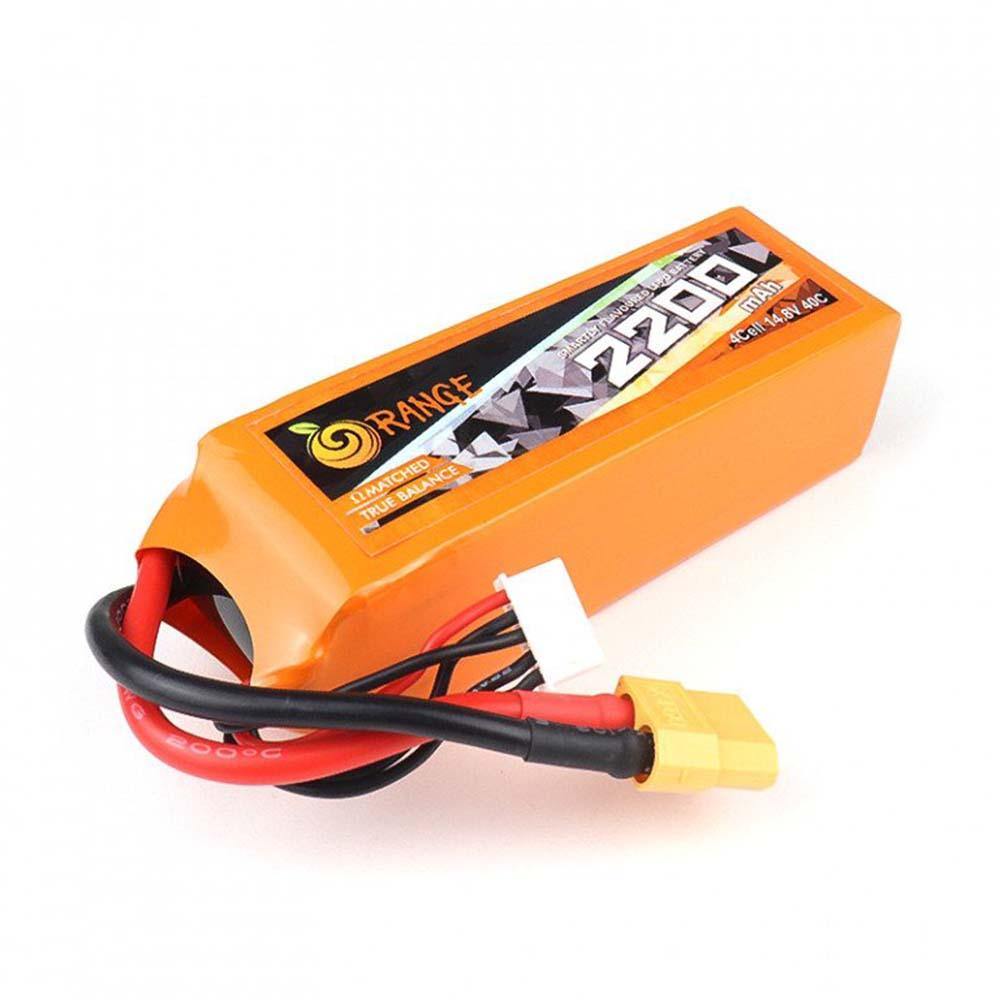

14.8 V 2200mah 4S 40C/80C Lithium Polymer Battery

The 2200mAh Lithium Battery Pack from Orange is a low cost high power density lithium polymer battery that provide high performance with great reliability. These LiPo battery packs find great use in powering DIY drones, quadcopters, RC cars, and other DIY kits.

These batteries use the JST-XH style balance connector and the XT-60 type discharge connector. IR matched cells are used in these LiPo batteries. They are equipped with heavy-duty discharge leads that are important to minimize resistance and sustain high current loads.



Safety Precautions:

  1. In order to maintain the efficiency and battery life of the LiPo batteries, avoid overcharging or over-discharging them.
  2. LiPo batteries must not be kept near hot devices, surfaces, or substances. This can lead to severe damage and/or fire.
  3. To avoid environmental damage, do not throw the Lithium Polymer batteries into water or fire.



Technical Specifications:

Model

ORANGE 2200mAh/4S-40C

Capacity

2200mAh

Max. Continuous Discharge

40C

Max. Burst Discharge

80C

Balance Plug

JST-XH

Discharge Plug

XT-60

Dimensions

103mmx34mmx33mm (LxWxH)

Weight

234gm

Datasheet/User manual

https://robocraze.com/pub/media/documents/Orange_Lipo_Battery_Manual.pdf



Additional Resources:

How to charge your LiPo battery using the IMAX B6 charger: https://youtu.be/nV90KWLptVo

Blog on charging LiPo batteries: https://robocraze.com/blog/post/tutorial-li-po-battery-imax-b6-multifunction-charger



Applications for this product:

LiPo batteries can be used in RC Cars, Quadcopters, RC airplanes. Smaller single-cell LiPo batteries can also be used to power various small low-powered embedded devices.
