12V DC Johnson Geared Motor 60 RPM (Grade B)

Low stock: 9 left

Regular price Rs. 444
Regular price Rs. 599 Sale price Rs. 444
Sale Sold out 26% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • 60 RPM DC gear motor 12V with robust metal gearbox
  • High torque output: 7.5 kg-cm at 12V
  • Compact and reliable Johnson geared motor
  • Side shaft (off-centered) design with metal bushes for durability
  • Operates smoothly from a 6V to 18V DC supply
  • Ideal for robotics and DIY projects
  • Economical Grade B Johnson motor alternative

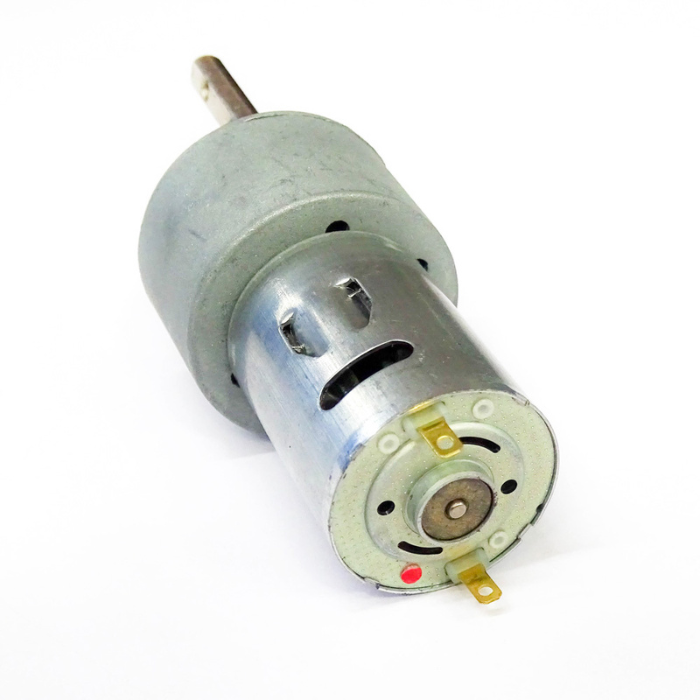

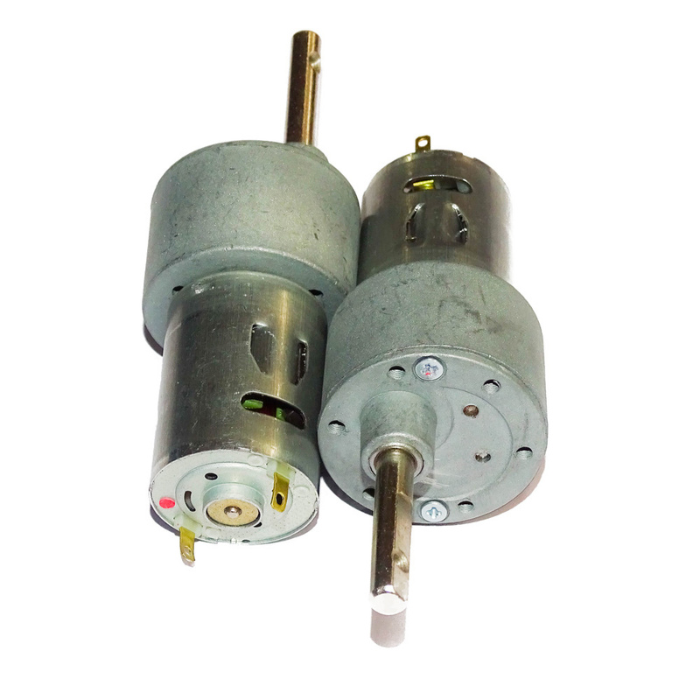

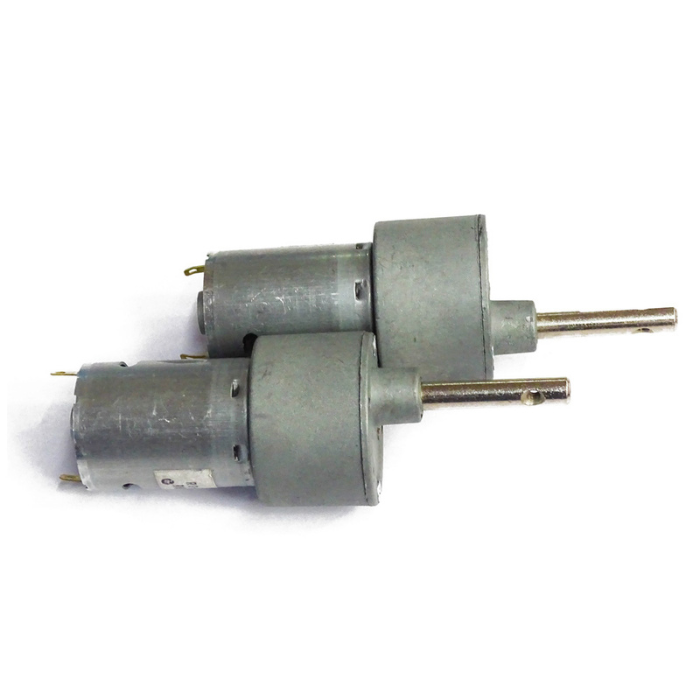

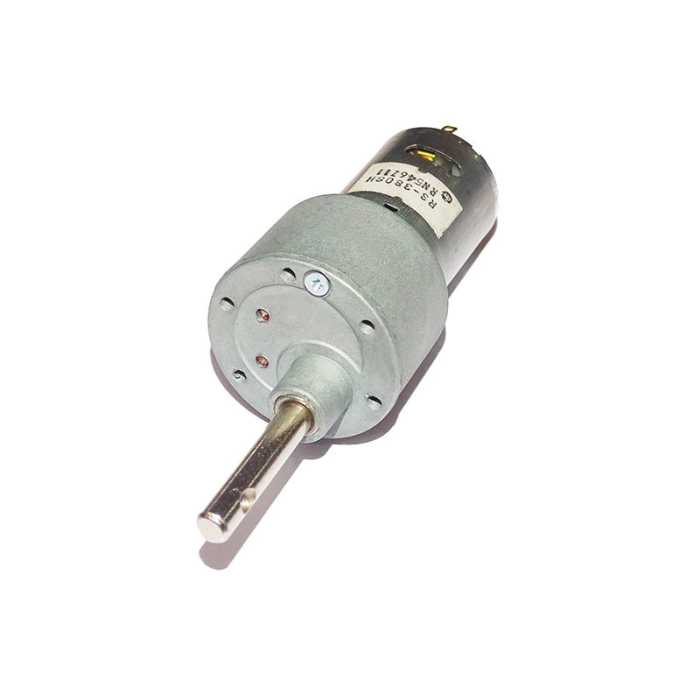

12V DC Johnson Geared Motor 60 RPM (Grade B)

The 60 RPM 12V DC Johnson Geared Motor (Grade B) is a reliable and affordable solution for various hobbyist and industrial applications.

Known for its excellent performance, this Johnson geared motor offers a balanced torque output that falls between typical center-shaft and side-shaft gear motors.

Operating at 12V, the DC motor delivers a torque of 7.5 kg-cm with a rotation speed of 60 RPM, making it ideal for medium-load projects such as robotics and automation.

Equipped with a sturdy metal gearbox and side-mounted shaft, the motor is both durable and efficient. The metal bushes enhance the lifespan of the shaft by providing wear resistance, and the shaft hole simplifies coupling with other components.

As a Grade B Johnson motor, it delivers great value for cost-conscious users while maintaining reliable functionality. Whether you're building a DIY bot or upgrading your project, this 60 rpm gear motor is a dependable choice.

Applications:

  • Pan/Tilt camera
  • auto shutter
  • welding machines
  • water meter IC card
  • towel disposal
  • lighting coin refund devices
  • peristaltic pump

Features:

  • The motor is built to last.
  • Metal bushes are equipped with shafts for long-term use.
  • High-quality gear is included.
  • A hole in the shaft allows for improved connection.

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

Package Includes:

  • 1 x 60 RPM 12V DC Johnson Geared Motor (Grade B)

Specifications:

Specification Details
Item Type Johnson Geared Motor
Rated Torque (kg-cm) 7.5
Operating Voltage (VDC) 6 ~ 18
Rated Speed (RPM) 60
Material Metal
Nominal Voltage (V) 12
Base Motor Rated RPM 18000
Stall Torque (kg-cm) 30
No-Load Current (mA) 300
Load Current Max (mA) 900
Shaft Diameter (mm) 6
Shaft Length (mm) 30
Gearbox Diameter (mm) 37
Motor Diameter (mm) 27
Motor Length (mm) 65
Weight (g) 164
