- 12V DC gear motor with 6 RPM output speed
- Center shaft design for easy mounting on robotic chassis
- Ideal low RPM DC motor for robotics and DIY projects
- Compatible with Arduino and L298N motor driver
- Durable, cost-effective, and easy to integrate
- Internal threaded shaft for direct wheel attachment

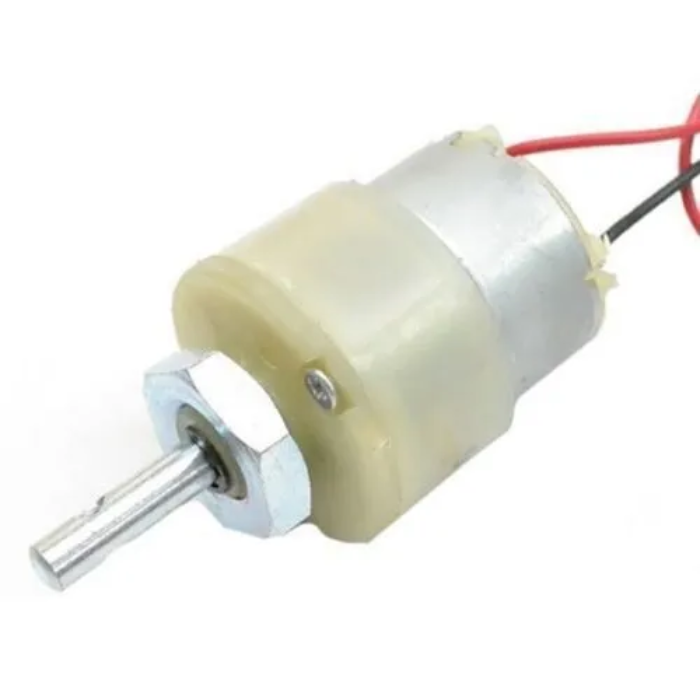

12V 6 RPM Center Shaft DC Gear Motor
The 12V 6 RPM Center Shaft DC Gear Motor is a high-quality, low-cost solution perfect for robotics enthusiasts and DIY makers. As a low RPM DC motor, it delivers high torque at low speeds, making it ideal for precise movement in robotic applications.
The center shaft comes with a nut and thread design, allowing effortless mounting to chassis or fixtures, while the internal threaded hole offers a convenient way to attach wheels directly.
This 12V DC gear motor is compatible with popular motor drivers like the L298N H-bridge module, which supports a wide voltage range of 5V to 35V.
Whether you’re building a line-following robot or an automation project, this motor provides a reliable and affordable choice for controlled, low-speed motion.
Features:
- Simple to mount and operate,
- All RPMs have the same size.
- Many different RPMs are available.
- Extended durability
- incredibly reasonably priced for the characteristics.
- You have a lot of options for wheels and chassis.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 12V 6 RPM Center Shaft DC Gear Motor
Specifications:
| Specification | Details |
|---|---|
| Gear Material | Metal |
| Rated RPM | 6 |
| Operating Voltage (VDC) | 12 |
| Rated Torque (kg-cm) | 12 |
| Stall Torque (kg-cm) | 20 |
| Load Current (A) | 0.3 |
| No-Load Current | 60mA |
