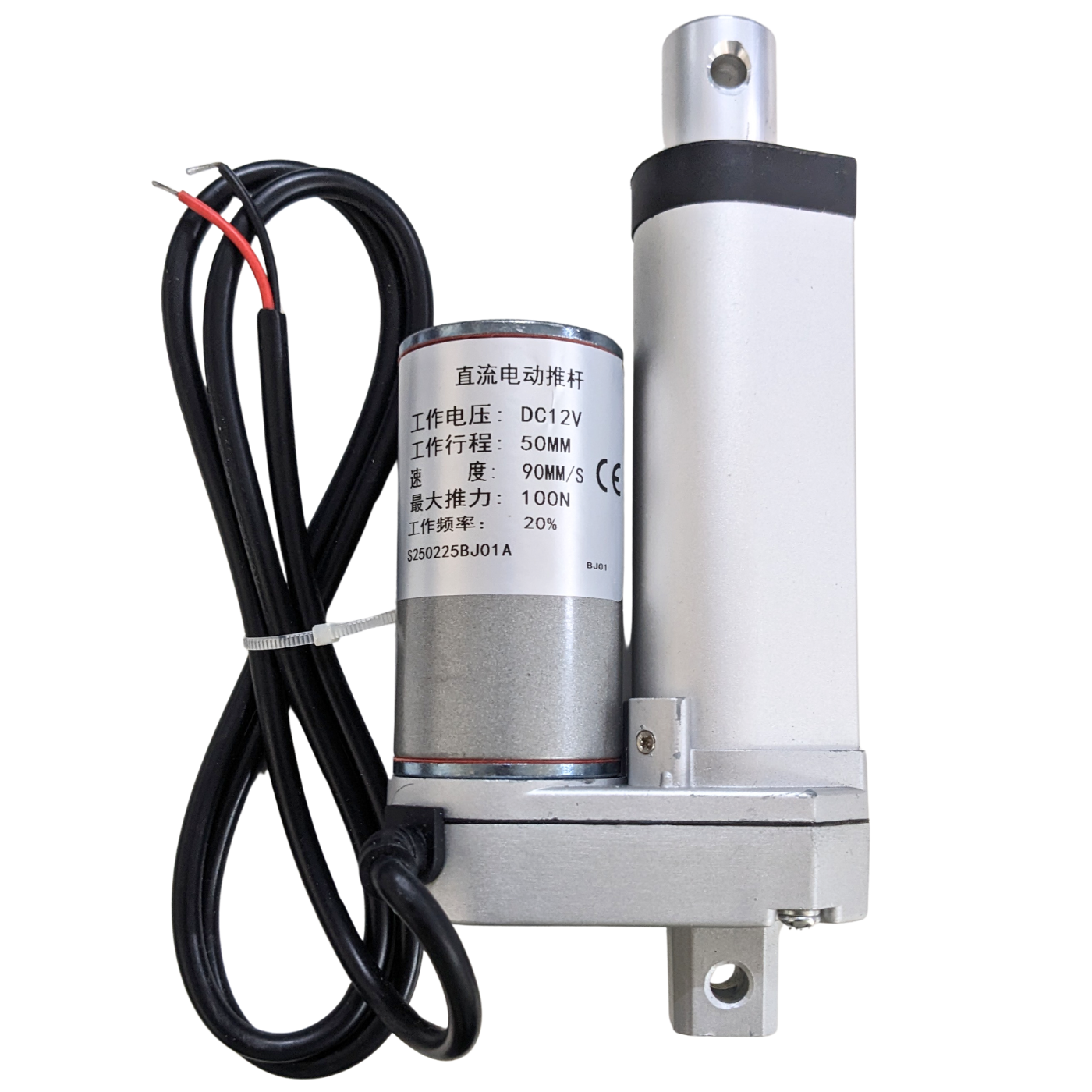

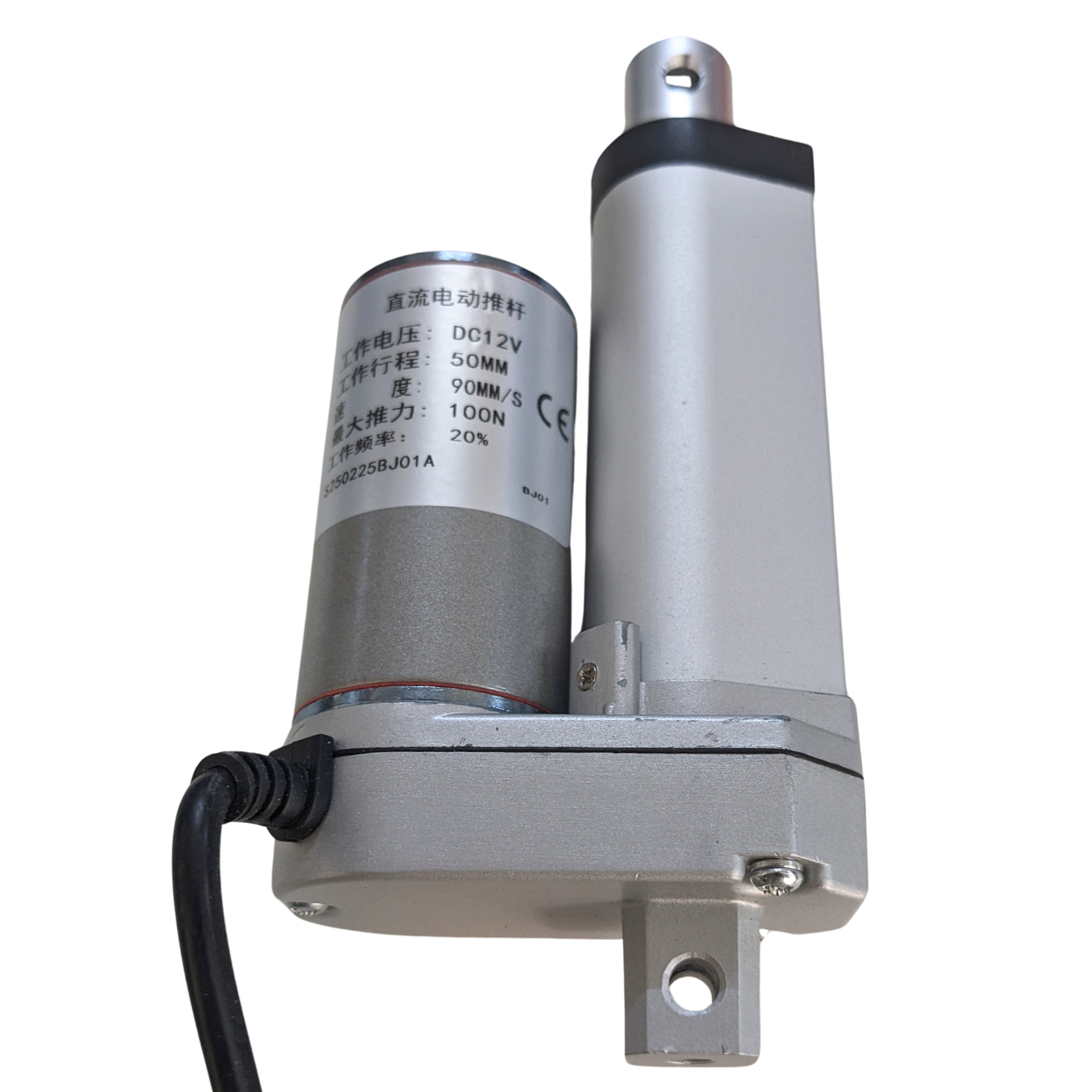

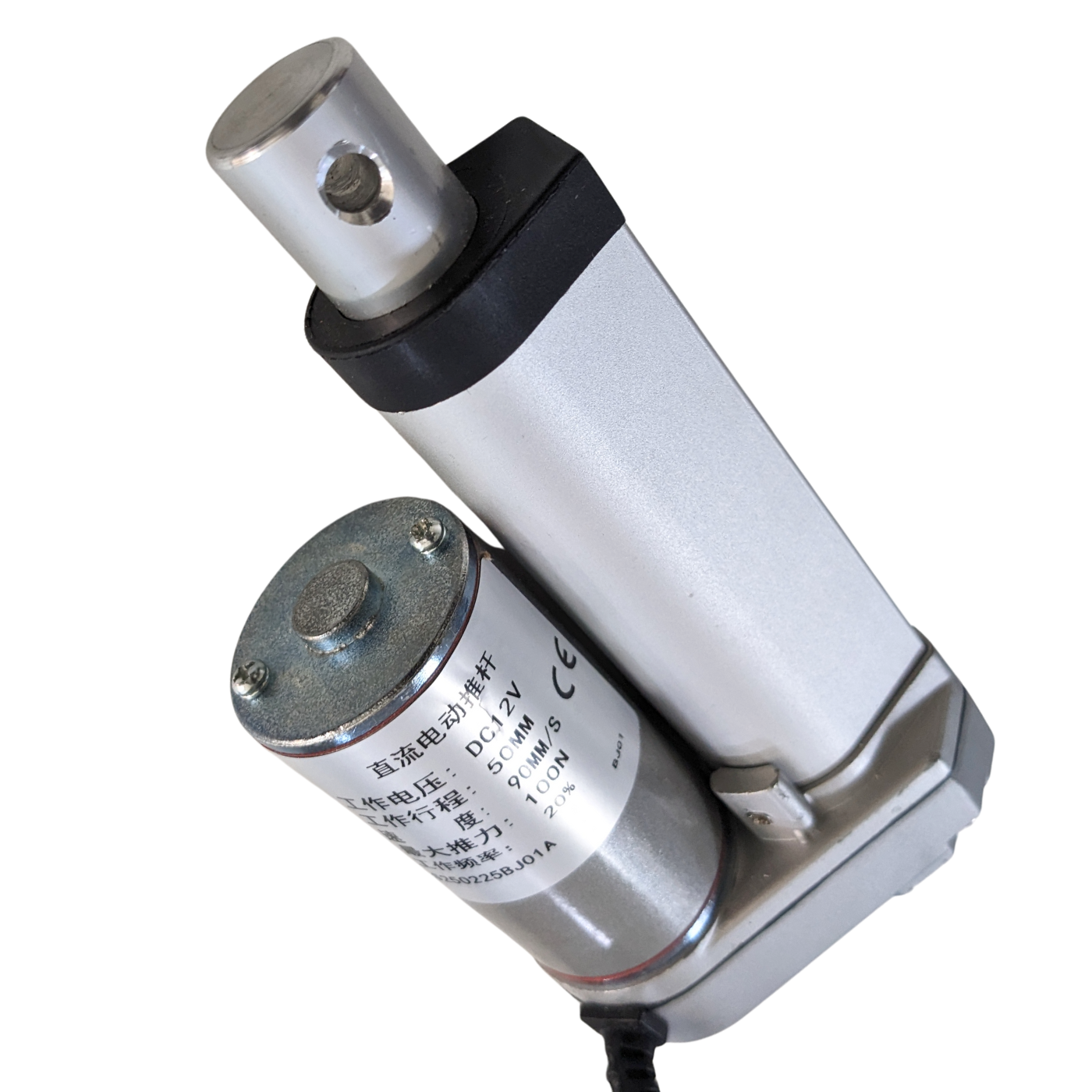

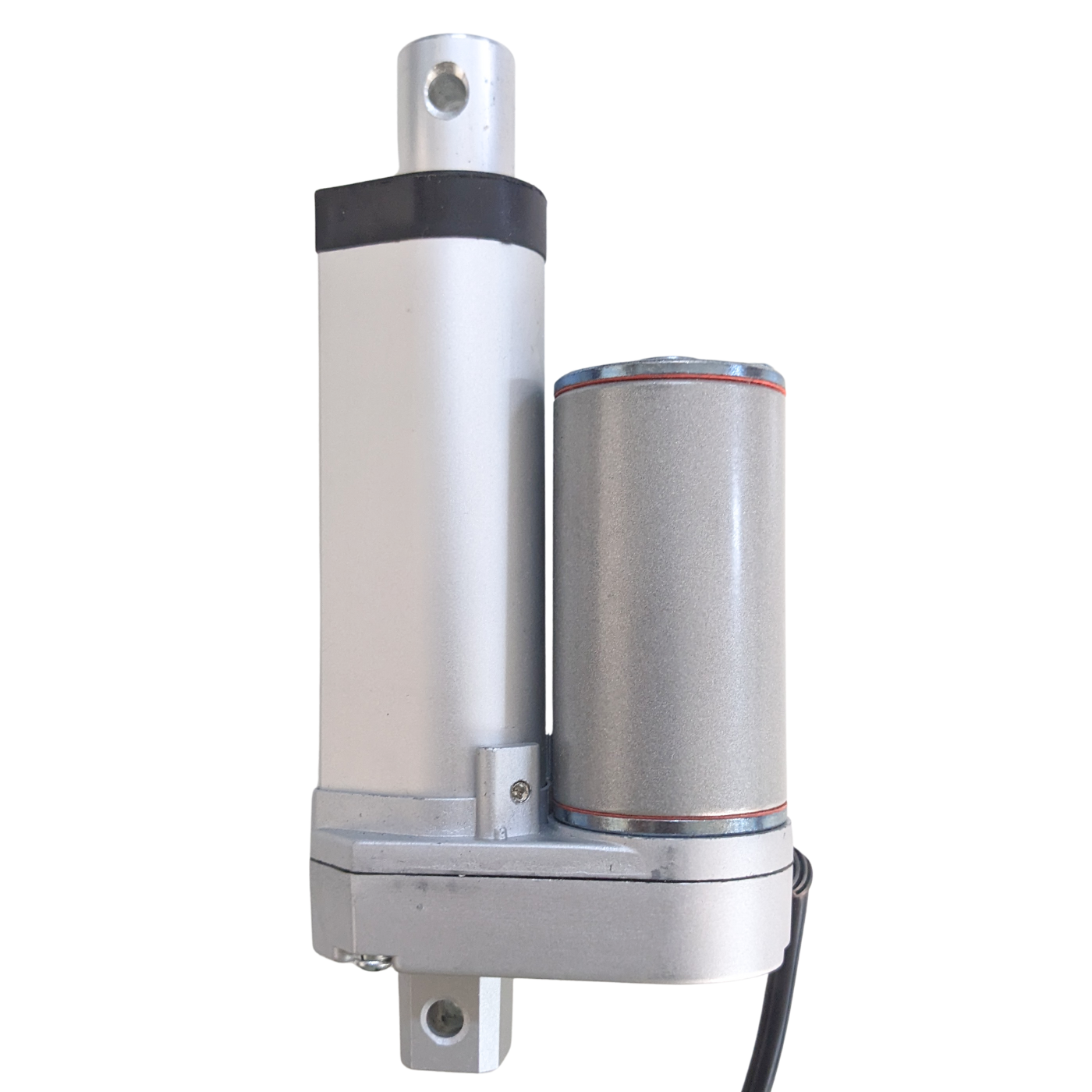

12V 50MM Stroke Length 90MM/S 100N Linear Actuator for Industrial Applications
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
This 12V 50mm Linear Actuator is a compact and powerful electric linear actuator designed for industrial automation and machinery applications.
With a stroke length of 50mm, a load capacity of 100N, and a speed of 90mm/s, it offers smooth and efficient performance for lifting, pushing, and pulling operations.
The actuator converts the rotary motion of a motor into linear motion, making it ideal for use in industrial equipment, agricultural machinery, construction systems, cleaning vehicles, and marine applications.
Built with a robust drive motor, reduction gear, screw mechanism, and control switch, this linear actuator 12V ensures precise, reliable, and remotely controllable movement for both simple and complex automation systems.
| Specification | Details |
|---|---|
| Motor Type | Permanent Magnet DC Motor |
| Operating Voltage | 12V DC |
| Stroke Length | 50mm (Approx. 4 inches) |
| Maximum Static Load | 100 Newtons |
| Noise Level | 40 dB (Low Noise) |
| Working Temperature | -20°C to +63°C |
| Body Material | Aluminium Alloy |
| Frame & Extension Tube | Aluminium Construction |
| Design | Compact Design |
| Limit Switch | Built-in Limit Switch |
| Surface Treatment | Moisture-proof Surface |
| Service Life | Over 50,000 cycles |
