- The Maximum Resistance is 100K Ohm.
- These Trimpots can be used to Adjust, Tune, and Calibrate Circuits.
- The Variable resistors are used for variating voltage as per the need in a circuit.
- The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.

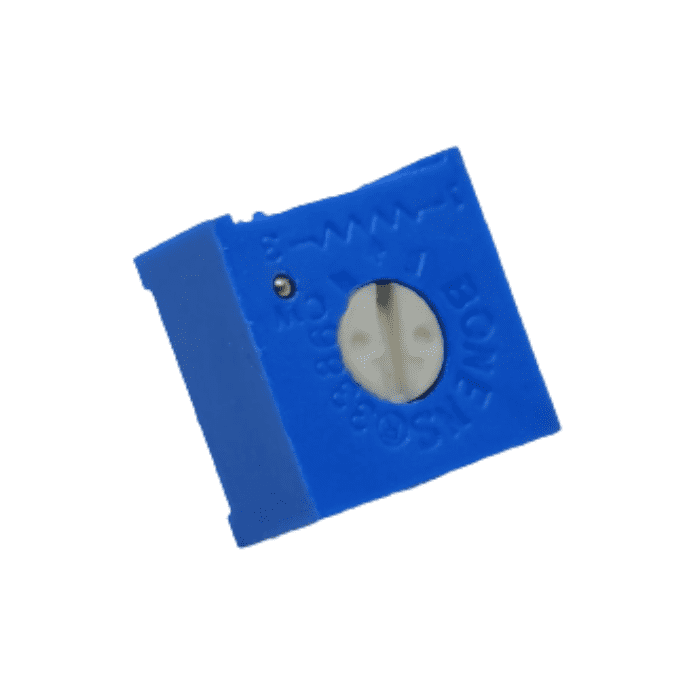

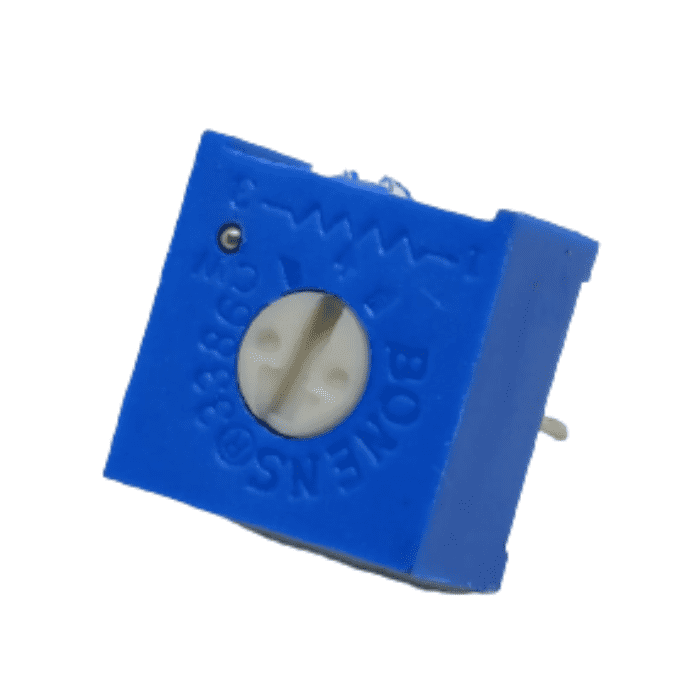

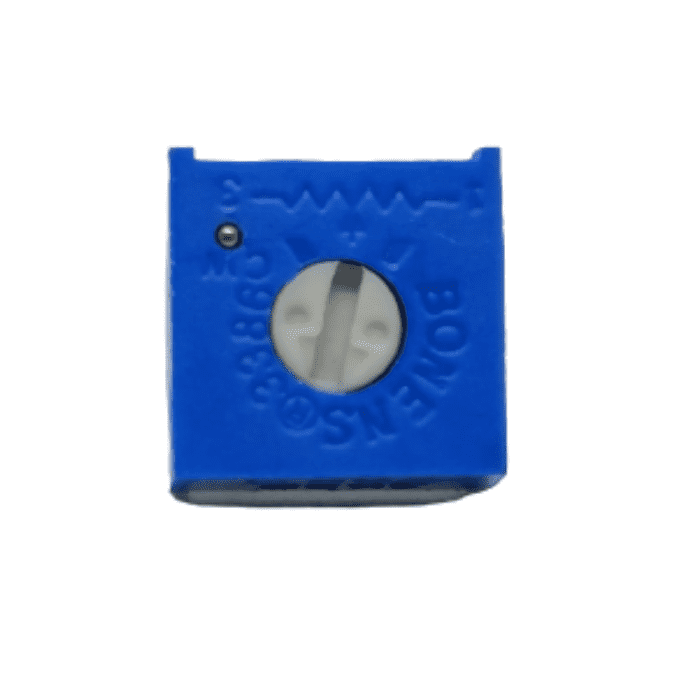

100K 3386P Trimpot Trimmer Potentiometer (Pack of 5)
100K 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit.
The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Applications
- Can be used to adjust the voltage drop in the circuit
- Measurement and Test of electronic circuits
- Can be used to control the intensity of led lights in DIY projects.
Also check the 50K 3386P Trimpot Trimmer Potentiometer (Pack of 5) available on Robocraze. It is a high-accuracy variable resistor with a resistance of 50K Ohms and is PCB mountable with 3 terminal pins.
Also check 500K 3386P Trimpot(Pack of 5). The 500K 3386P Trimpot is a small variable resistor that can be used to adjust voltage in a circuit. It is easy to mount on a PCB and can be adjusted with a screwdriver

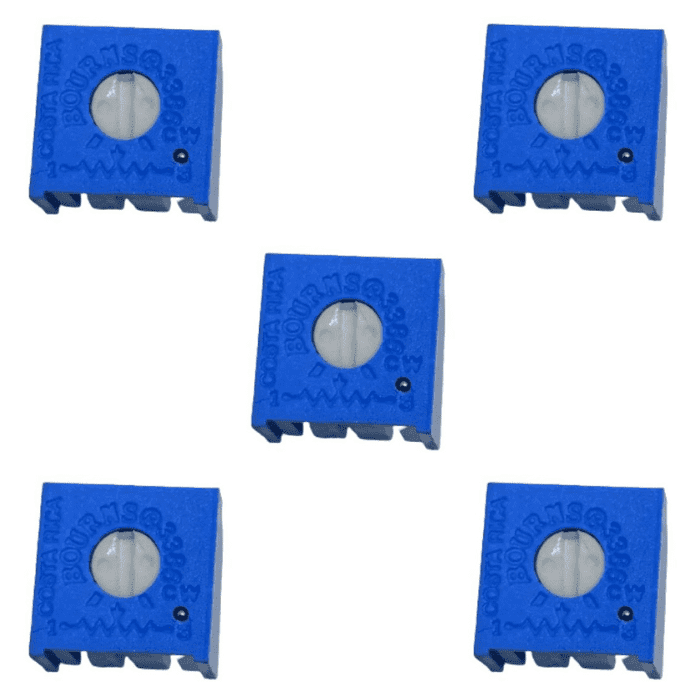

Package Includes:
- 5 x 100K 3386P Trimpot Trimmer Potentiometer
Specification:
|
Type |
Trimmer Resistors - Through Hole |
|
Series: |
3386P |
|
Mounting Style: |
PCB Mount |
|
Resistance: |
100K Ohms |
