- Streamlined Connectivity: The 100A Multirotor ESC Power Distribution Board simplifies your quadcopter's power distribution, ensuring hassle-free connectivity.
- Lightweight Build: Crafted from durable glass fiber, this board weighs only 8g, making it perfect for smaller multirotor builds without compromising on strength.
- Versatile Compatibility: Compatible with MK KK flight control systems, it can connect 1-8 ESCs, offering flexibility for different configurations.
- Powerful Output: With the ability to handle up to 20A per output for quadcopters, it's a robust choice. Adjust to 10A each for octocopters, showcasing its versatility.
- Easy Installation: Board dimensions of 50x50x2mm with hole spacing of 45mm square and 35mm square, ensuring easy installation compatible with KK 45mm spacing.
- Optional Pre-soldered Connectors: Choose the version with pre-soldered 3.5mm bullet connectors for added convenience in your setup.

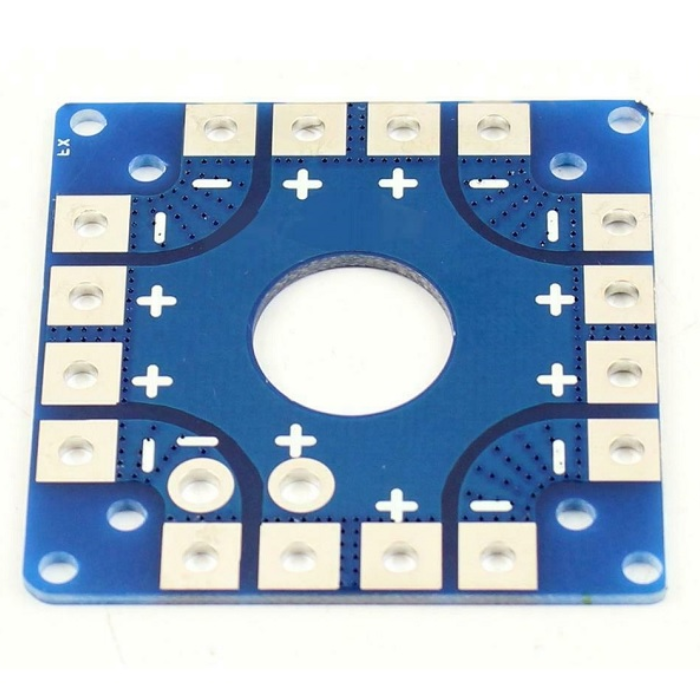

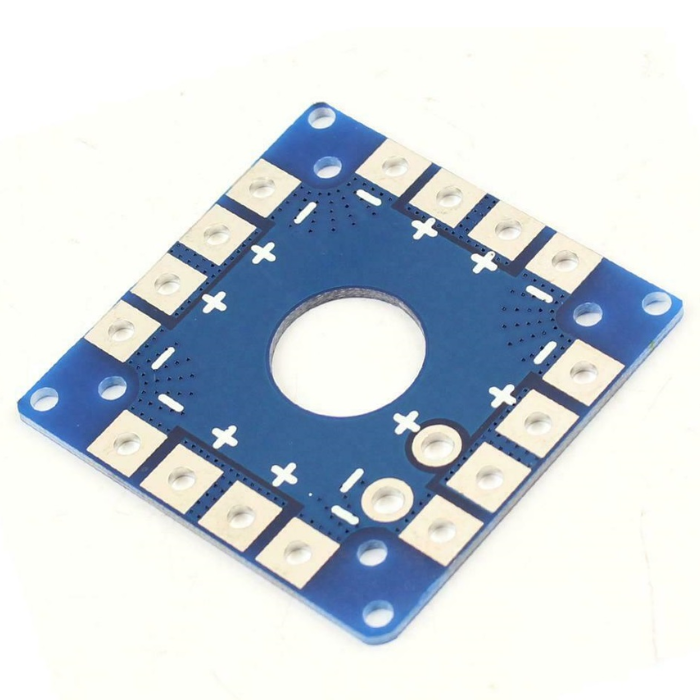

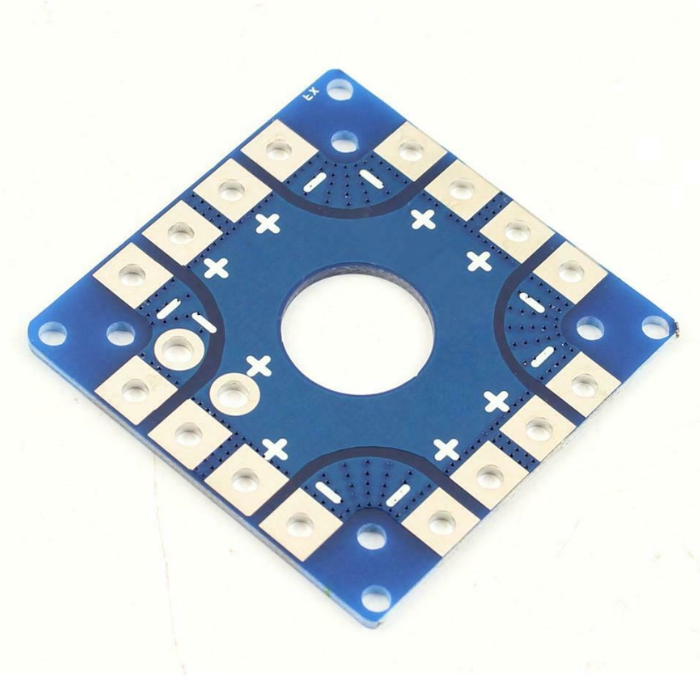

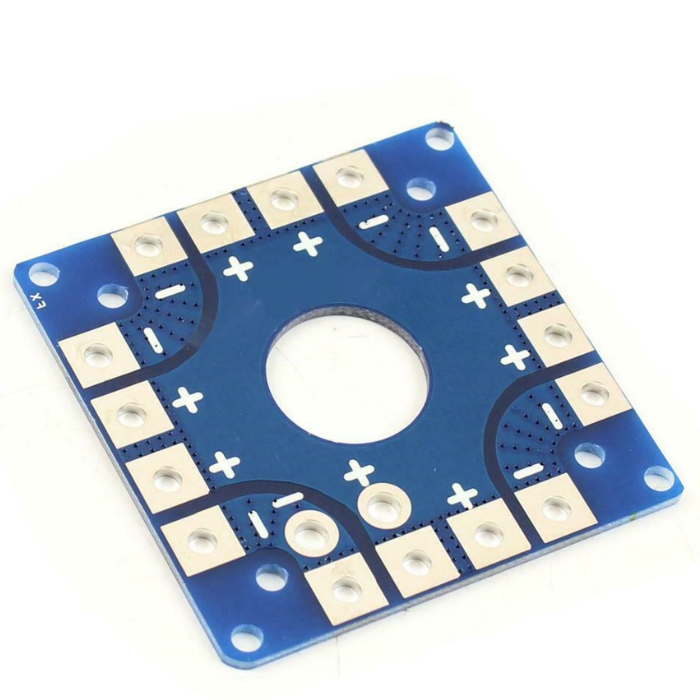

100A Multirotor ESC Power Distribution Battery Board For Quadcopter
The 100A Multirotor ESC Power Distribution Battery Board For Quadcopter simplifies power distribution for your drone, ensuring a streamlined and efficient connection. Crafted from lightweight glass fiber, this board is designed for smaller multirotor builds without compromising on strength.
Its compatibility with MK KK flight control systems allows seamless integration with 1-8 ESCs, offering versatility for different configurations. Featuring a robust design, this distribution board can handle up to 20A per output for quadcopters or be adjusted to 10A each for octocopters, showcasing its adaptability. The easy installation, with dimensions of 50x50x2mm and hole spacing compatible with KK 45mm spacing, makes it a convenient choice for drone enthusiasts.
Opt for the version with pre-soldered 3.5mm bullet connectors for added ease in your setup. With wide applications, it's perfect for quadcopters, hexacopters, and octocopters, providing a reliable power distribution solution for various drone builds.
Features:
- Compatible with MK KK flight control installment pitch of holes
- Compatible with MK KK flight control system
- Can connect 1-8 ESC.
- Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
Applications:
- Powers multi-rotor aircraft efficiently
- Lightweight distribution board
- Suitable for quadcopters
Package Includes:
1 x 100A Multirotor ESC Power Distribution Battery Board For Quadcopter
Specifications:
| Material | Glass Fiber |
| Compatibility with Flight Control Systems | MK KK flight control systems |
| ESC Connections | Can connect 1-8 ESC |
| Board Dimensions | 50 x 50 x 2 mm |
| Weight | 8 gm |
| Hole Spacing | 45mm Square and 35mm Square (Compatible with KK 45mm spacing) |
| Output Current (Quadcopter) | Up to 20A per output |
| Output Current (Octocopter) | Adjustable to 10A each |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Matek Systems PDB-XT60 Power Distribution Board
A2212 1400KV BLDC Motor and Simonk 30A ESC for RC Drones
A2212 1400KV BLDC Brushless Motor
Found a better price?
Let us know!
We'll try to match the price for you
1. Is the board compatible with MK KK flight control systems?
Yes, it is compatible with MK KK flight control systems, allowing seamless integration with 1-8 ESCs for various configurations.
2. Can I use the board for smaller multirotor builds?
Absolutely, the lightweight design and dimensions of 50x50x2mm make it perfect for smaller multirotor builds.
3. Are pre-soldered connectors available for convenience?
Yes, you can choose the version with pre-soldered 3.5mm bullet connectors for added convenience in your setup.
4. What is the hole spacing of the board?
The hole spacing is 45mm square and 35mm square, compatible with KK 45mm spacing, ensuring easy installation.
5. Can the board be used for hexacopters and octocopters?
Yes, the board's versatility makes it suitable for quadcopters, hexacopters, and octocopters, providing reliable power distribution.
