Arduino Nano BLE Sense Rev2 with Headers
Arduino Nano BLE Sense Rev2 with Headers
Low stock: 7 left
12
Regular price
Rs. 3,665
Regular price
Rs. 3,999
Sale price
Rs. 3665
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 16 people are actively viewing.
Same Day Shipping
If Ordered within 2 Hours and 27 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC200
FLAT ₹ 200/- OFF
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- AI-Enabled Board: The Arduino Nano BLE Sense Rev2 is an AI-enabled board with powerful capabilities.
- 9-Axis IMU: Equipped with a 9-axis inertial sensor, it can sense motion and orientation.
- TinyML Support: Run machine learning models using TensorFlow Lite and upload them to the board.
- Advanced Sensors: It includes humidity, temperature, barometric, and more sensors for data collection.
- Compact Design: The smallest form factor makes it ideal for various applications.
- Genuine Product: Robocraze is the authorized seller of Arduino products in India.
- Versatile Usage: Suitable for AI, IoT, and sensor-based projects.

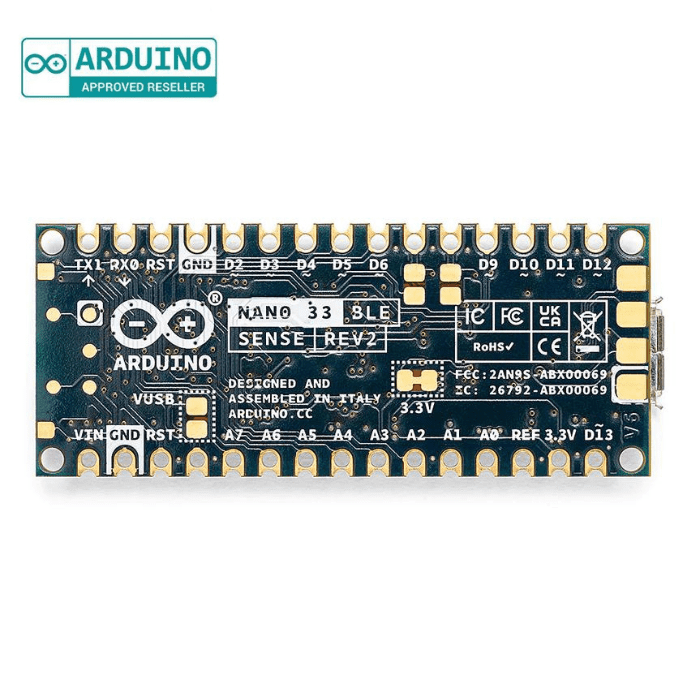

Arduino Nano BLE Sense Rev2 with Headers

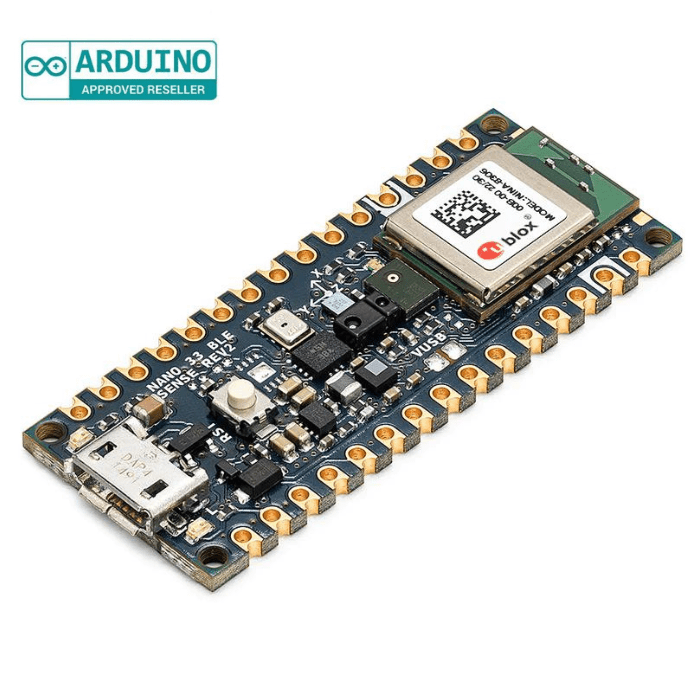

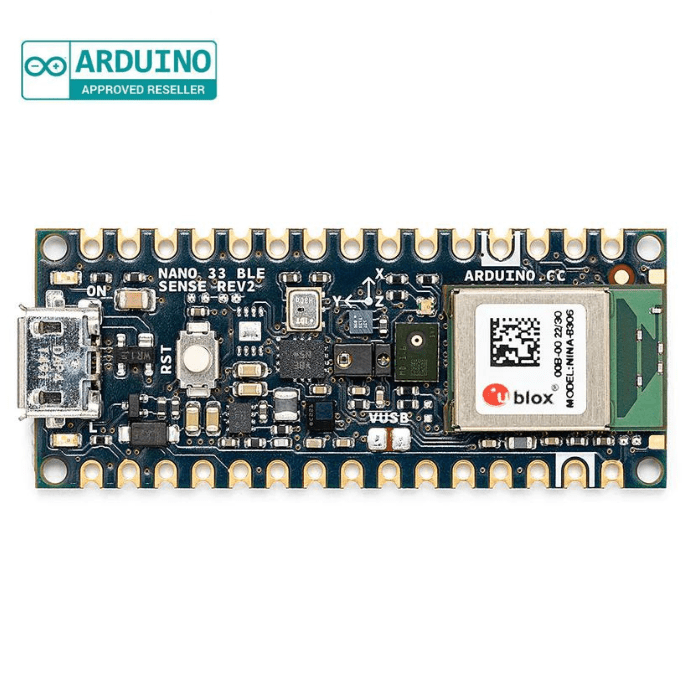

The Arduino Nano BLE sense Rev 2 is a completely new Arduino AI-enabled board in the smallest form factor. The Arduino Nano 33 BLE Sense Rev2 is a miniature-sized module containing a NINA B306 module, based on Nordic nRF52840 and containing a Cortex M4F.

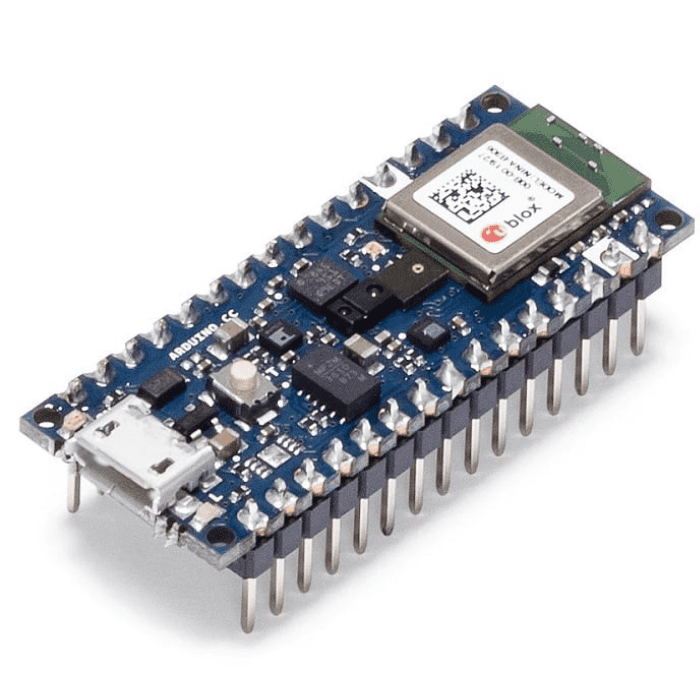

The BMI270 and BMM150 jointly provide a 9-axis IMU. The Arduino Nano 33 BLE Sense Rev2 can either be mounted as a DIP component (when mounting pin headers) or as an SMT component, directly soldering it via the castellated pads.
This innovative product offers maximum flexibility when connecting other devices due to its compatibility with most major operating systems like Windows 10 S/IoT Core Operating System plus Android 7+ OS support via USB OTG Host mode.
It also runs on CircuitPython so custom firmware development is possible during prototyping stages and then easily transferred onto production ready hardware at a later stage if needed!
Furthermore, thanks to its low power consumption you don't have to worry about battery life being compromised either - making your project both energy efficient AND cost-effective – what more could you want?
Pinout Of Arduino Nano BLE Sense (Rev-2)
What is the main feature of the Arduino Nano BLE sense Rev2 board?
The main feature of the Arduino Nano 33 BLE Sense Rev2 board is the possibility of running Edge Computing applications (AI) on it using TinyML. You can create your machine learning models using TensorFlow Lite and upload them to your board using the Arduino IDE.
Note: Robocraze is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy the Arduino Nano 33 BLE Sense Rev2 board online from the comfort of your home.
Visit our official Arduino Board page for original Arduino Boards.
Key Features:
- Features the nRF52840 from Nordic Semiconductors.
- Offers 1MB of program memory and 128 times larger RAM.
- Ensures efficient operation and longer battery life.
- Includes 9-axis inertial sensor, humidity, temperature, barometric, microphone, and gesture/proximity/light sensors.
- Enables Edge Computing applications using TinyML.
- Supports Bluetooth pairing via NFC.
- Can function as both a BLE and Bluetooth client and host device.
- Humidity, temperature, and barometric sensors provide highly accurate measurements.
- Gesture, proximity, light color, and light intensity sensors provide information about luminosity and movement.
- Microphone allows for capturing and analyzing sound in real time.
Pinout:
Pinout of Arduino Nano BLE Sense (Rev-2)
Arduino Nano 33 BLE Sense Explained:
Package Includes:

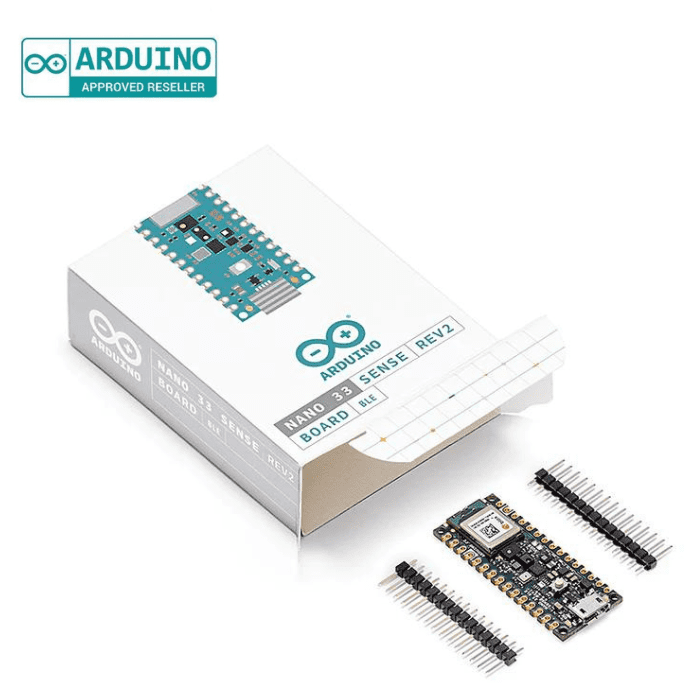

- 1 x Arduino Nano BLE Sense (Rev-2) with Headers

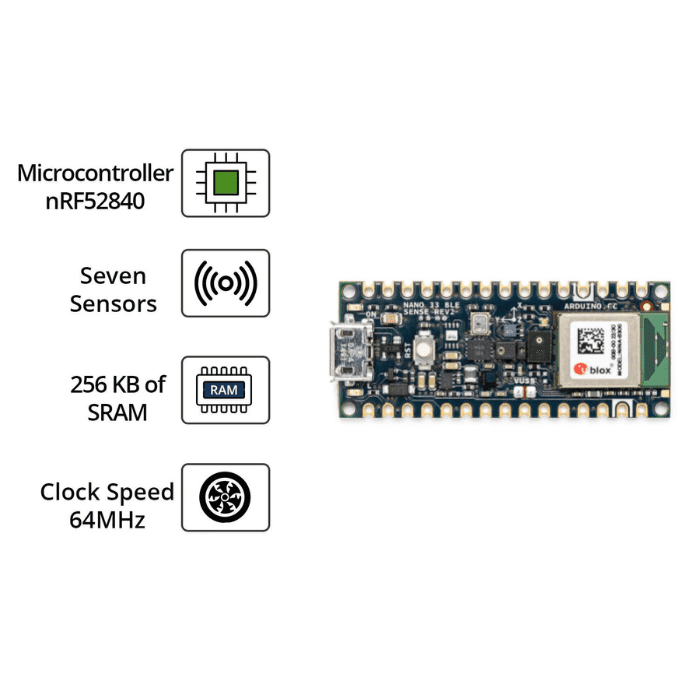

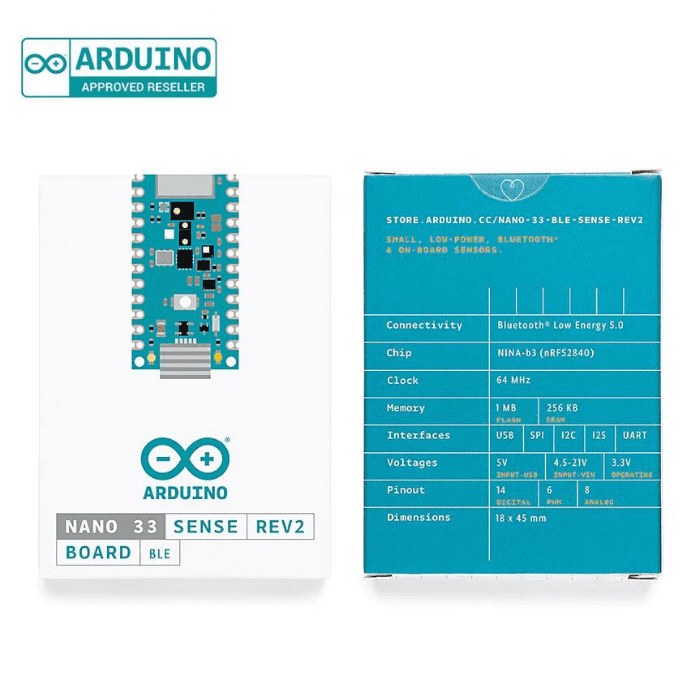

Specifications:
| Brand | Arduino |
| Model | Arduino Nano BLE Sense (Rev-2) |
| Microcontroller | nRF52840 |
| Operating Voltage | 3.3V |
| Input Voltage (limit) | 21V |
| DC Current per I/O Pin | 15 mA |
| Clock Speed | 64MHz |
| CPU Flash Memory | 1MB |
| SRAM | 256KB |
| Digital Input / Output Pins | 14 |
| PWM Pins | All digital pins |
| IMU | BMI270 and BMM150 |
| Temperature, humidity | HS3003 |
| Gesture, light, proximity, color | APDS9960 |
| Dimensions | 45 x 18mm |
| Weight | 25gm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Original Arduino UNO R4 WIFI
5
Regular price
Rs. 2,299
Regular price
Rs. 2,999
Sale price
Rs. 2299
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Arduino Uno R3 Original
27
Regular price
Rs. 1,860
Regular price
Rs. 2,199
Sale price
Rs. 1860
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino Due Original
4
Regular price
Rs. 4,008
Regular price
Rs. 4,799
Sale price
Rs. 4008
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. How is the Arduino Nano BLE Sense Rev2 different from other models?
- The main difference between the Arduino Nano BLE sense Rev2 and the classic Arduino Nano is a better processor, a micro-USB connector, and all of the sensors like humidity temperature sensor, barometric sensor, microphone, gesture, proximity, light color, and light intensity sensor. The Arduino Nano BLE sense Rev2 board comes with tessellated connectors and no components on the B-side. These features allow you to solder the board directly onto your own design, minimizing the height of your whole prototype.
2.What is Arduino Nano BLE sense rev2?
- The Arduino Nano BLE Sense Rev2 is a development board created by Arduino that includes a number of built-in sensors that allow you to begin programming your next project without the need for additional hardware. The board is AI-enabled and runs on a 3.3V power supply. A 6-axis BMI270 Inertial Measurement Unit (IMU), a 3-axis BMM150 IMU, a colour sensor, proximity sensor, temperature sensor, humidity sensor, and microphone are among the sensors on the board.
3. Does Arduino Nano 33 BLE sense have WiFi?
- No, WiFi is not available with the Arduino Nano 33 BLE Sense. It does not have integrated WiFi, but it does include Bluetooth Low Energy (BLE) and a number of sensors for Internet of Things applications. An external WiFi module or an alternative Arduino board with WiFi capabilities would be needed if WiFi functionality was required.
4. What is the power of Arduino BLE sense?
- There should never be more voltage than 3.3V connected to the digital and analog pins of the Arduino Nano 33 BLE Sense because it operates on 3.3V. It is important to take measures to ensure that this voltage limit is never exceeded while connecting sensors and actuators. The Arduino Nano 33 BLE Sense may become damaged when signals with higher voltages, such as the often used 5V, are connected to other Arduino boards.
5. Does Arduino Nano 33 BLE have EEPROM?
- No, the Arduino Nano 33 BLE does not have EEPROM. It uses flash memory for non-volatile data storage instead.
6. What is the architecture of Arduino Nano 33 BLE?
- The architecture of the Arduino Nano 33 BLE is completely compatible with the Arduino IDE Online and Offline. It has a 9-axis Inertial Measurement Unit (IMU) and uses less power than other boards of a comparable size. Because of this, it is a good fit for projects involving wearable technology, movement detection, and automation that calls for close-quarters connection with other devices. Its multiprotocol Bluetooth 5.0 radio further increases its adaptability for a range of uses.
7. How can I develop machine learning models for the Arduino Nano BLE Sense Rev2?
- TensorFlow Lite can be used to develop machine learning models, which can then be uploaded via the Arduino IDE to the Arduino Nano BLE Sense Rev2 board. This enables a variety of applications, like gesture recognition and predictive maintenance, and more by allowing you to directly build AI capabilities on the board.
