Arduino IOT Bundle

Arduino IOT Bundle

The Arduino IoT Bundle is the best way to start exploring the world of connected devices using the Arduino Nano RP2040 Connect. Arduino IoT Bundle allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud-compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world.

The kit consists of a powerful board equipped with a microcontroller and a wide variety of sensors (Arduino Nano RP2040 Connect). The board can sense movement, acceleration, rotation, temperature, humidity, barometric pressure, sounds, gestures, proximity, color, and light intensity.

The kit also includes a camera module (OV7675) and a custom Arduino shield to make it easy to attach your components and create your very own unique TinyML project. You will be able to explore practical ML use cases using classical algorithms as well as deep neural networks powered by TensorFlow Lite Micro. The possibilities are limited only by your imagination!

With this kit combined with the power of Tiny Machine Learning (TinyML) you can build a small intelligent device that reacts to sounds like a keyword being spoken, recognizes gestures like waving a magic wand, or even recognize faces.

Also check Grove Starter IoT Kit. The kit includes many sensors and other components that can be used to create Internet of Things (IoT) projects.

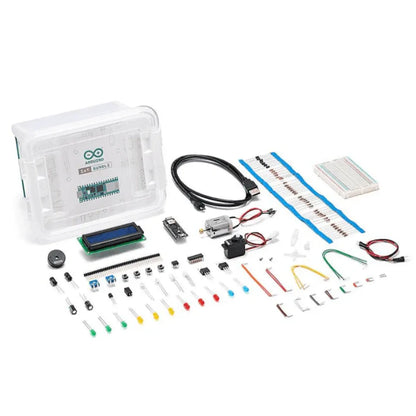

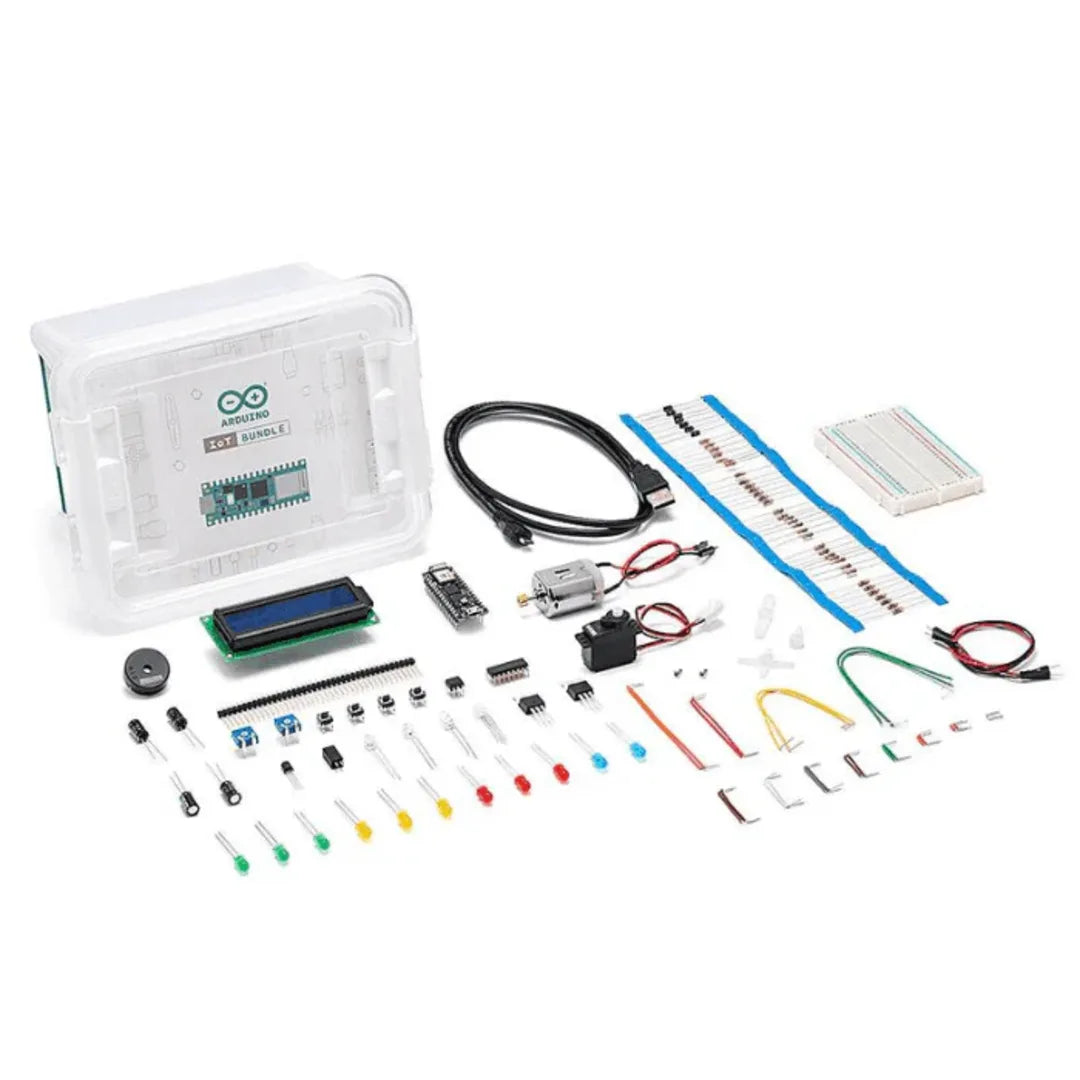

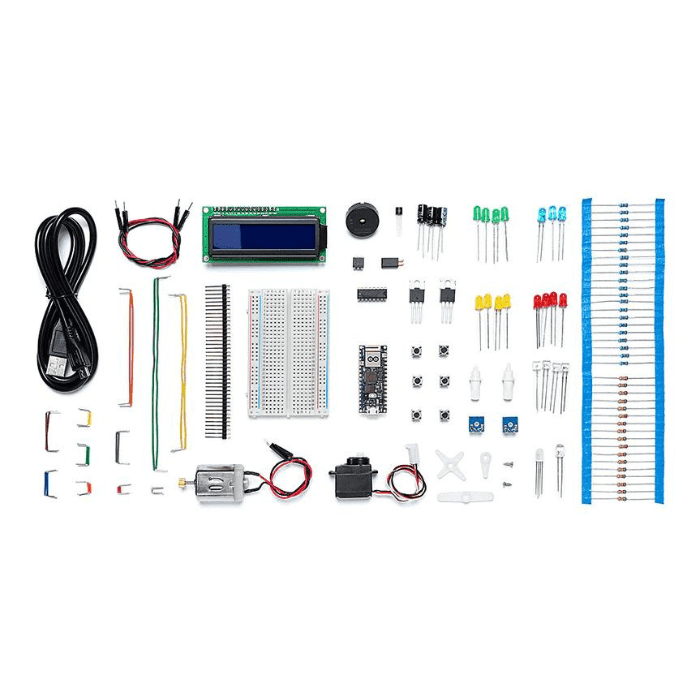

Package Includes:

• 1 Arduino Nano RP2040 Connect
• 1 micro USB cable
• 1 400-point breadboard
• 70 solid-core jumper wires
• 2 stranded jumper wire
• 6 phototransistors
• 3 potentiometers (10k ohm)
• 10 pushbuttons
• 1 temperature sensor (TMP36)
• 1 tilt sensor
• 1 alphanumeric LCD (16 x 2 characters)
• 1 bright white
• 28 LEDs (1 RGB, 8 red, 8 green, 8 yellow, 3 blue)
• 1 small DC motor (6/9V)
• 1 small servo motor
• 1 piezo capsule (PKM17EPP-4001-B0)
• 1 H-bridge motor driver (L293D)
• 1 optocouplers (4N35)
• 2 MOSFET transistors (IRF520)
• 5 capacitors (100uF)
• 5 diodes (1N4007)
• 1 male pin strip (40 x 1)
• 20 resistors (220 ohm)
• 5 resistors (560 ohm)
• 5 resistors (1k ohm)
• 5 resistors (4.7k ohm)
• 20 resistors (10k ohm)
• 5 resistors (1M ohm)
• 5 resistors (10M ohm)
