Working perfectly, Love it.
This module makes stepper motors move smoothly and accurately. It's essential for anyone who wants to control motors efficiently.
Robocraze

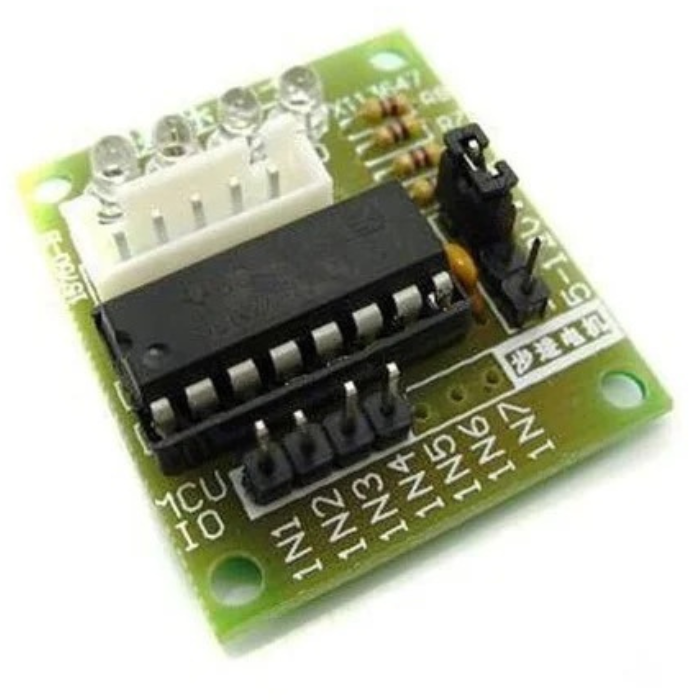

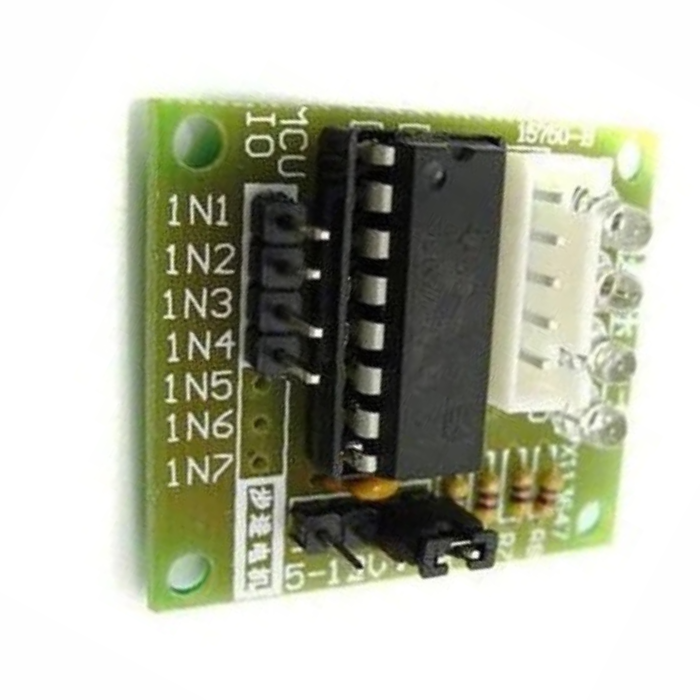

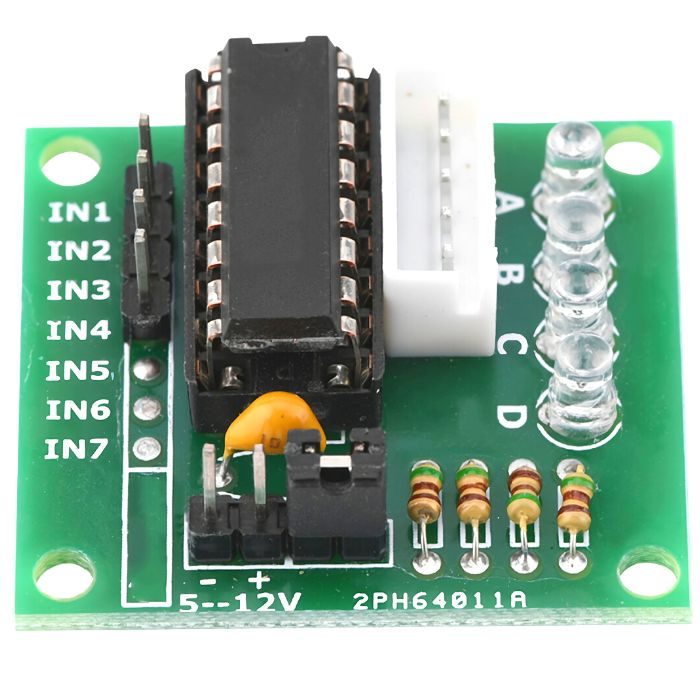

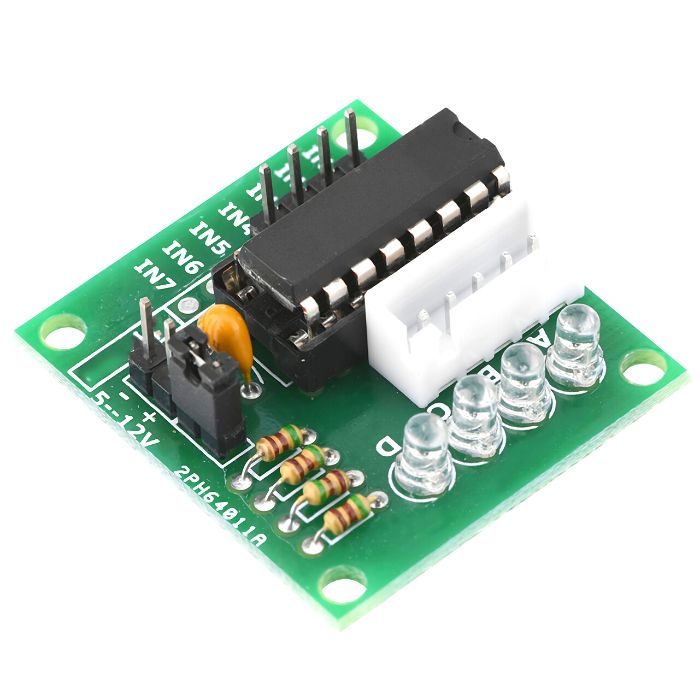

ULN2003 Stepper Motor Driver Module
ULN2003 Stepper Motor Driver Module
Regular price
Rs. 39
Regular price
Rs. 64
Sale price
Rs. 39
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 7 hours and 17 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is the ULN2003 Stepper Motor Driver Module
- The power supply of this module is 5-12V

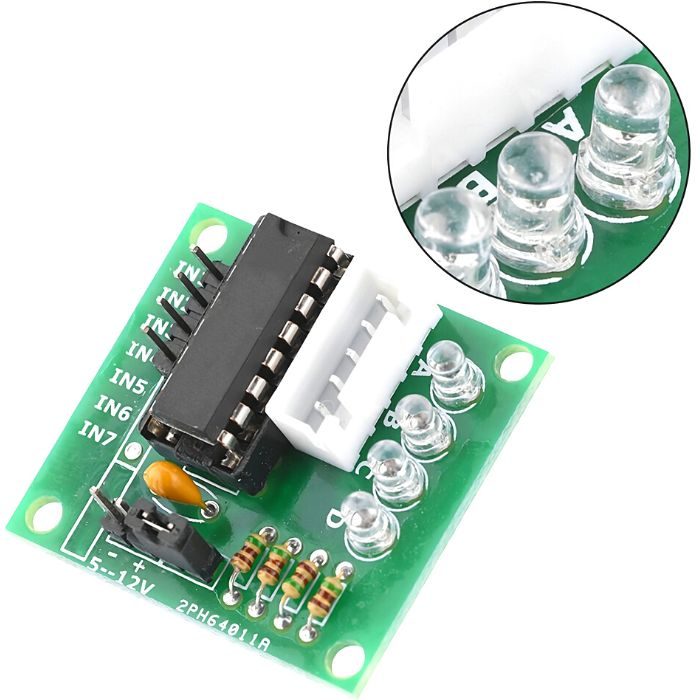

- This has a 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
- The Weight of this ULN2003 Stepper Motor Driver Module is 3 gm
ULN2003 Stepper Motor Driver Module
This is ULN2003 Driver Module Stepper Motor Driver, small in size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option is commonly used to run and control stepper motors.
If you want to use this Stepper Motor Driver in your projects, for that you will need a few essential components like Arduino, jumper wires, stepper motors, and a power supply.
Note: The colour of the PCB may vary according to the Manufacturer
HOW TO CONTROL STEPPER MOTOR
The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive stepper motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.
The following picture is the control signal to drive a 28BYJ48 stepper to rotate 1/4096 circle.

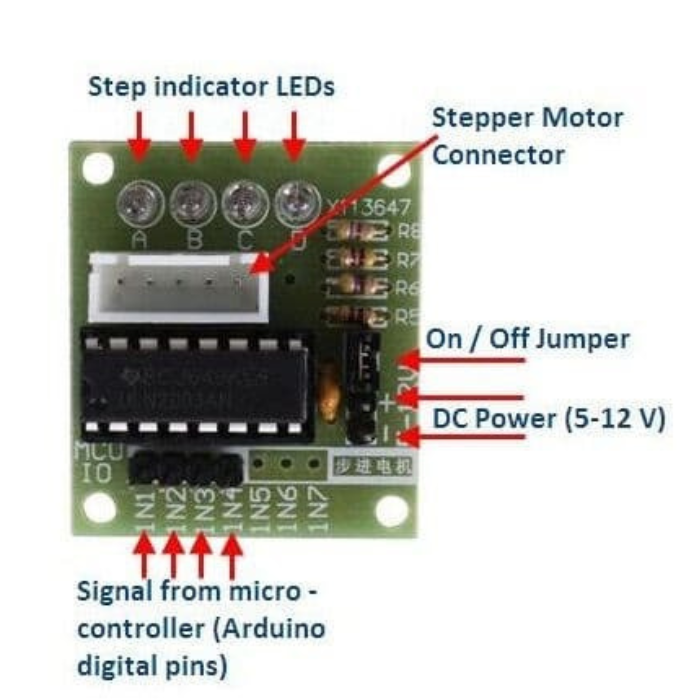

Pin Diagram of ULN2003 Stepper Motor Driver:
Fig: Pin Diagram
| Lines | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| red | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| orange | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 1 |
| yellow | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 0 |
| pink | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 |
| blue | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 |
Features:

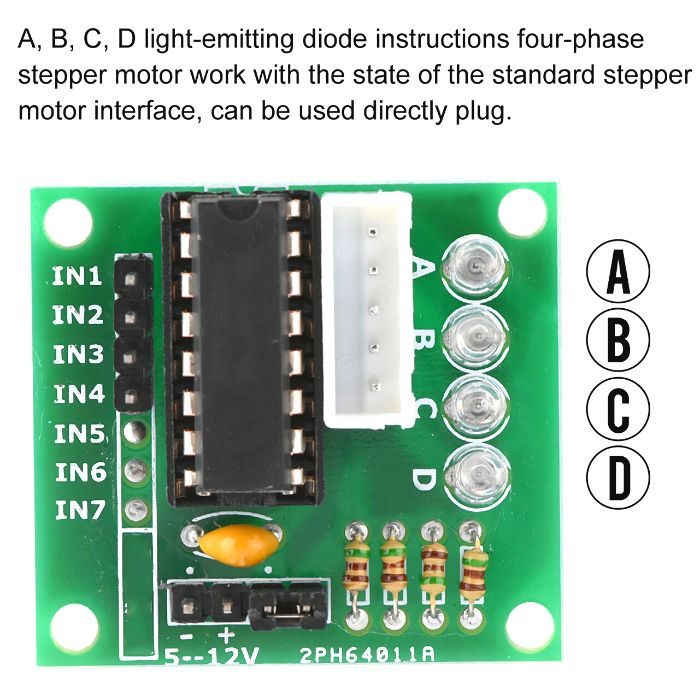

- 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
Package Includes:
- 1 x ULN2003 Driver Module Stepper Motor Driver(Blue)
Specifications:
| Step Angle |
5.625°/64 |
| Reduction ratio |
1/64 |
| Phase |
4 |
| Current/Phase |
5V |
| Dimensions in mm (LxWxH) |
35x32x10 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

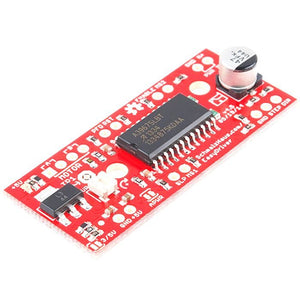

A3967 Stepper Motor Driver
Regular price
Rs. 194
Regular price
Rs. 289
Sale price
Rs. 194
Unit price
per
Incl. GST (No Hidden Charges)
Sale

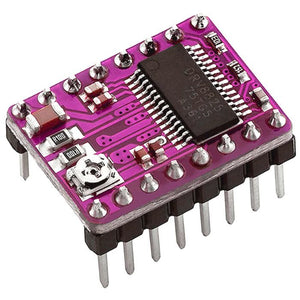

DRV8825 Stepper Motor Driver Module
Regular price
Rs. 107
Regular price
Rs. 199
Sale price
Rs. 107
Unit price
per
Incl. GST (No Hidden Charges)
Sale

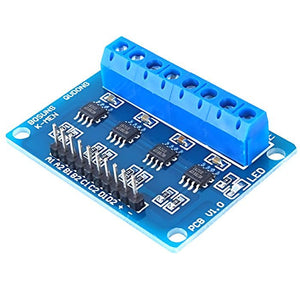

HG7881 H-Bridge 4CH DC - 2CH Stepper Motor Driver Board
Regular price
Rs. 195
Regular price
Rs. 346
Sale price
Rs. 195
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is ULN2003 motor driver?
- The ULN2003 is a popular motor driver IC that consists of an array of seven Darlington transistor pairs, each of which can drive loads of up to 500mA and 50V. On this board, four of the seven pairs are used.
2. What is the purpose of ULN2003?
- The ULN2003 IC is a popular motor driver IC that is used when we need to drive high current loads with digital logic circuits such as Op-maps, Timers, Gates, Arduino, PIC, ARM, and so on.
3. What is the difference between ULN2003 and ULN2004?
- The main distinction between the ULN2003 and the ULN2004 is the value of the resistor between the darlington transistor's input and base.
