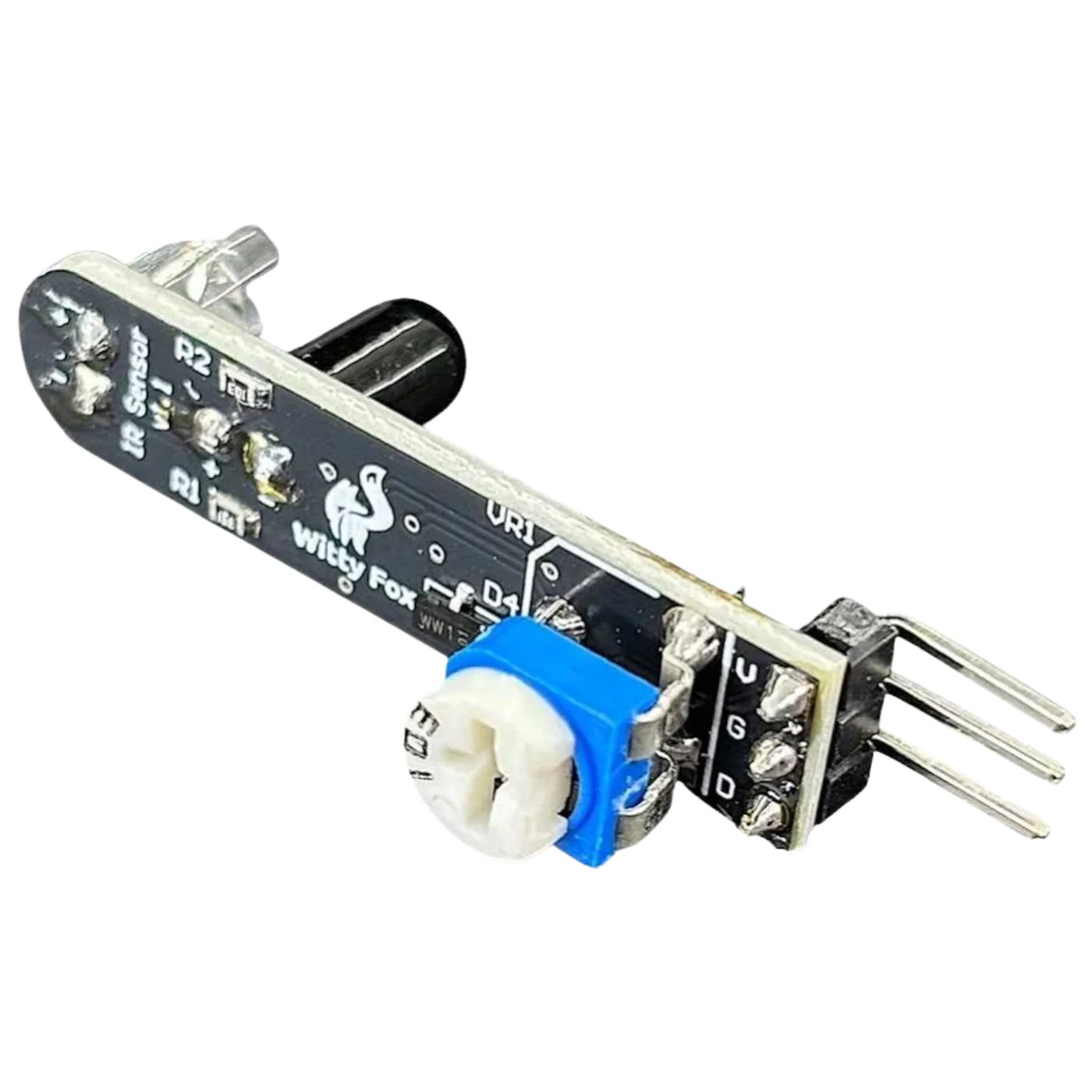

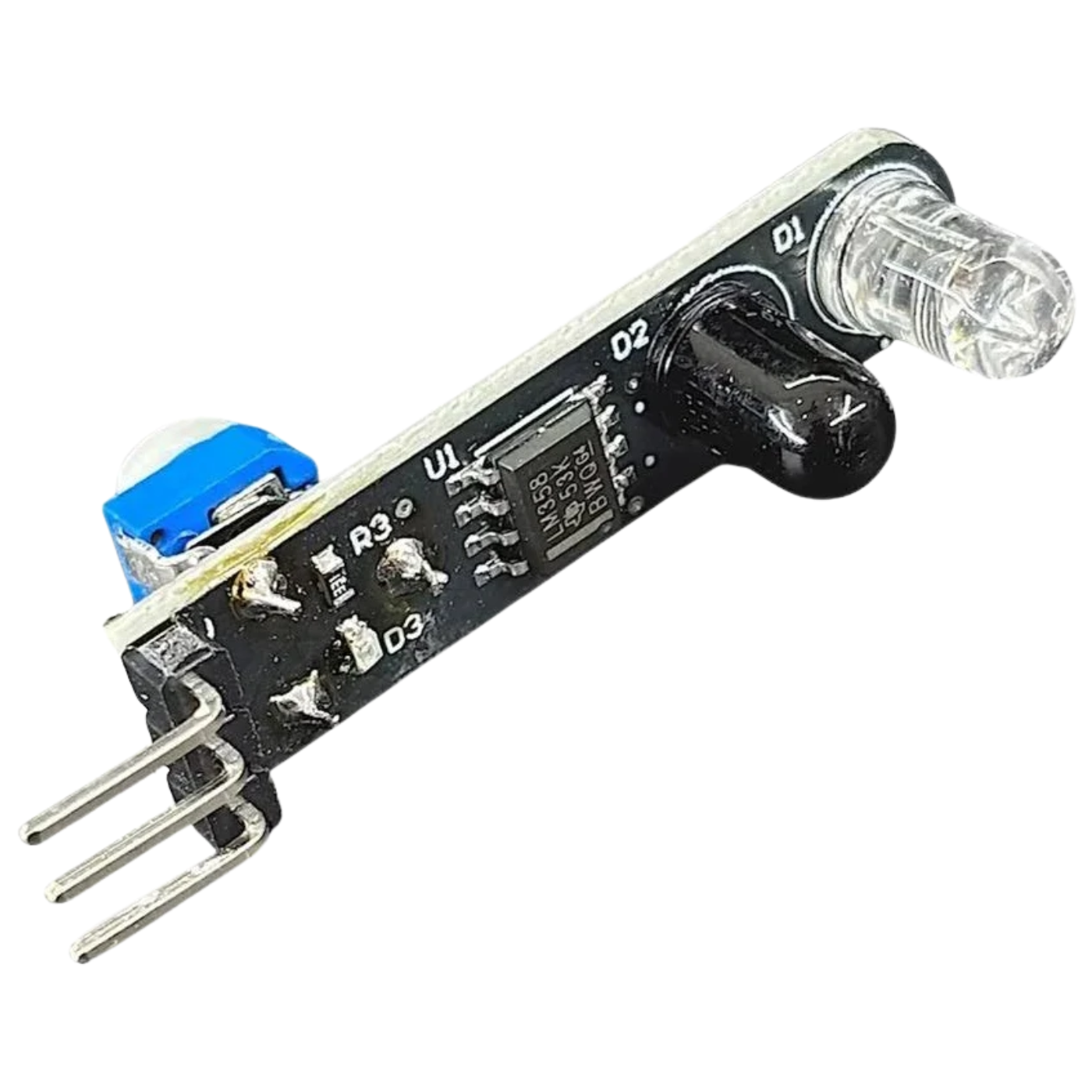

Eye Blink Sensor

Rs. 130
Rs. 214
Rs. 130
Save Rs. 84
(-39%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: TIFSS0035
  • This is Eye Blink Sensor
  • Outputs a digital signal (High 5V or low 0V) which can be fed to the input pin of the microcontroller directly.
  • Sensor designed in-house to detect eye blinks.
  • Instant output digital signal for directly Connecting to the microcontroller.

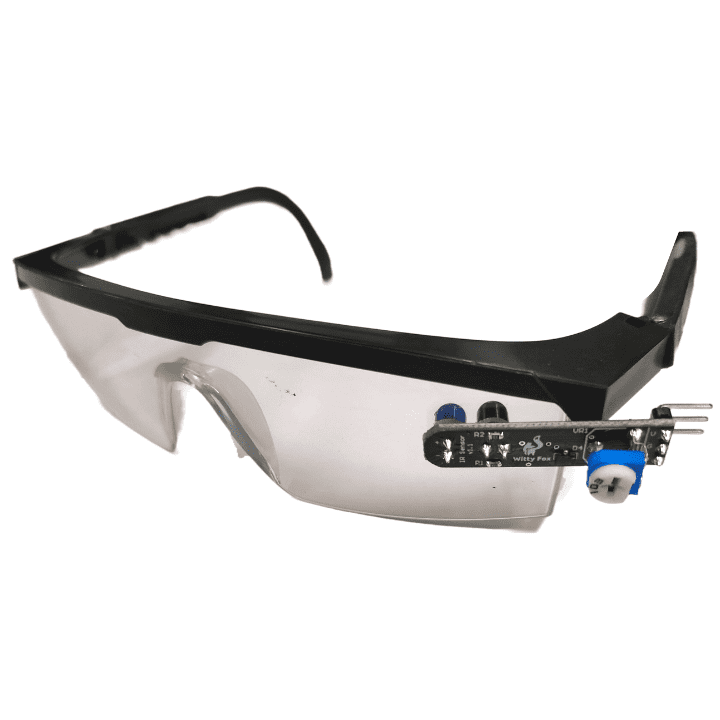

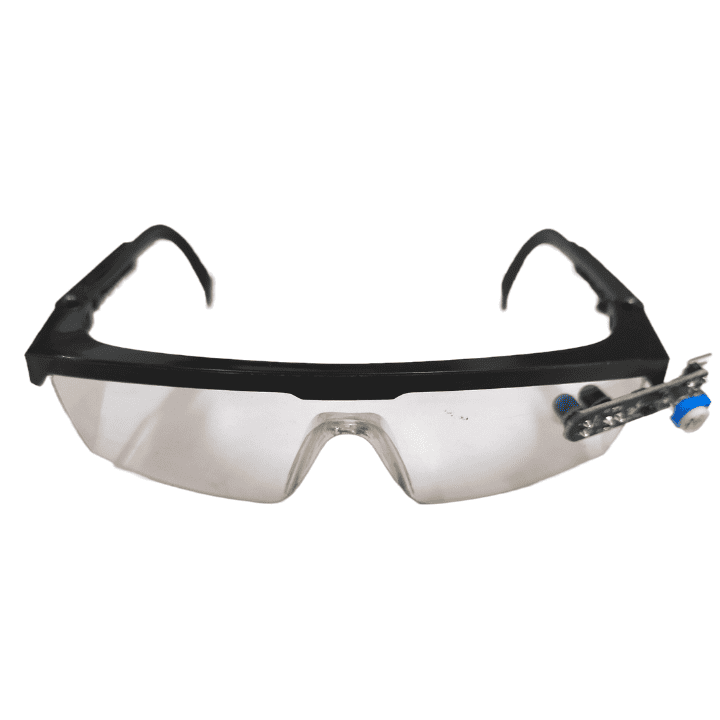

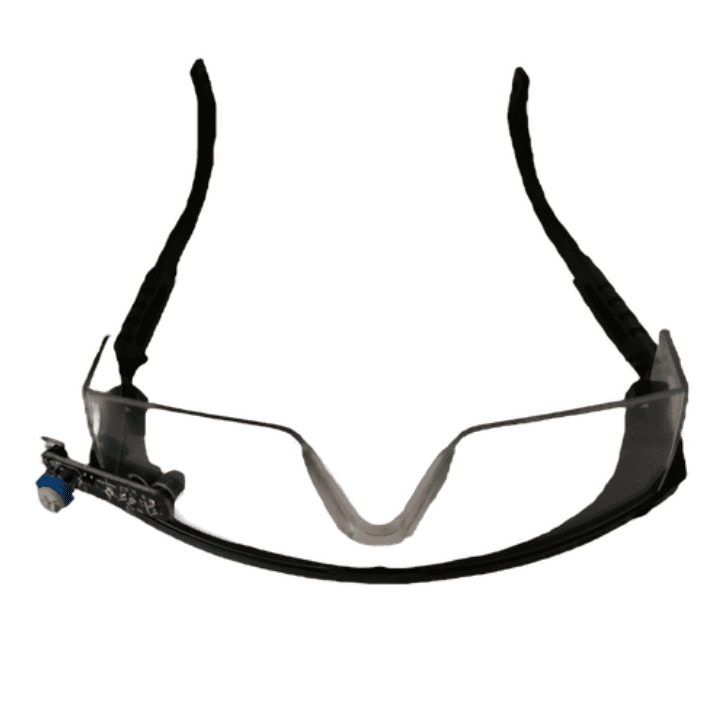

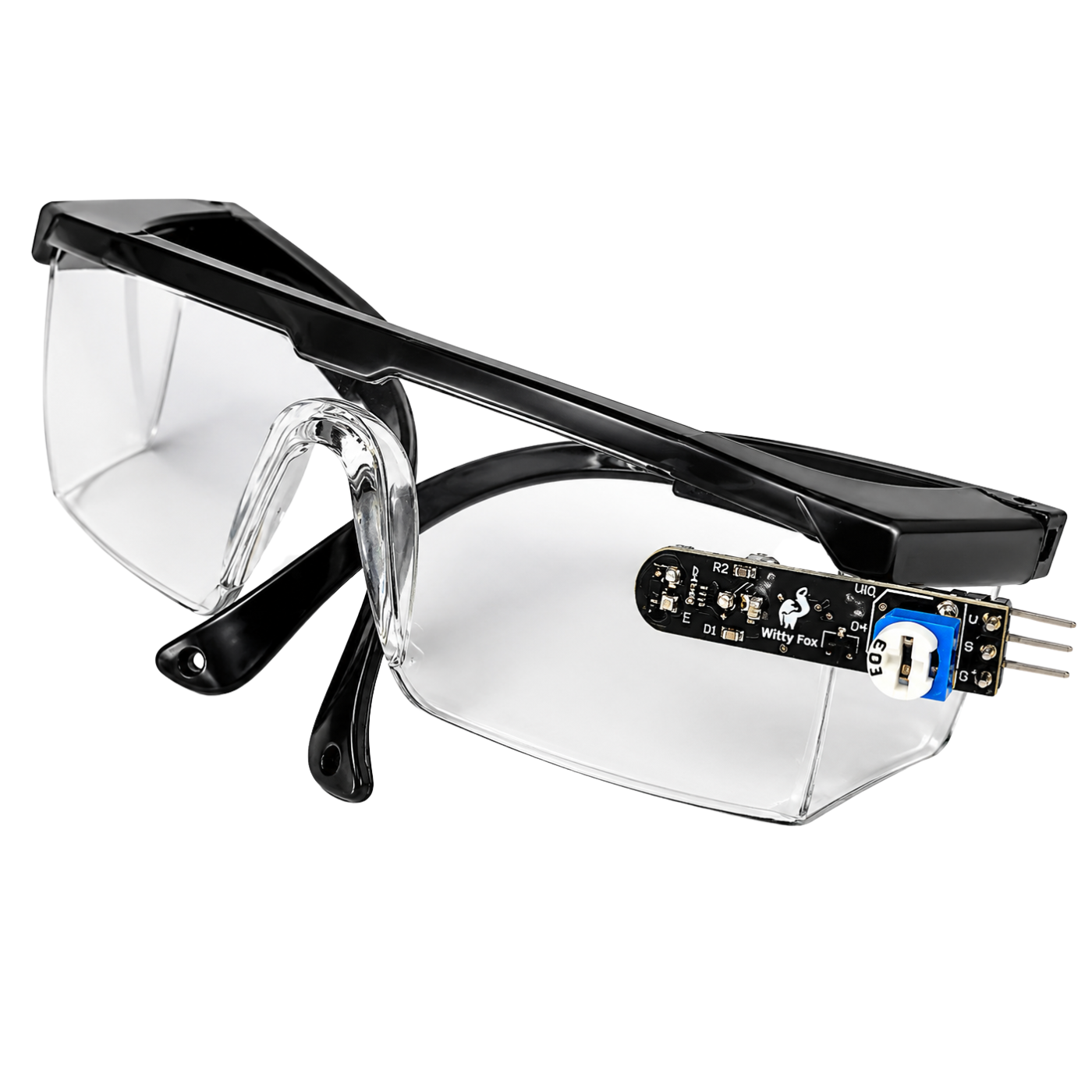

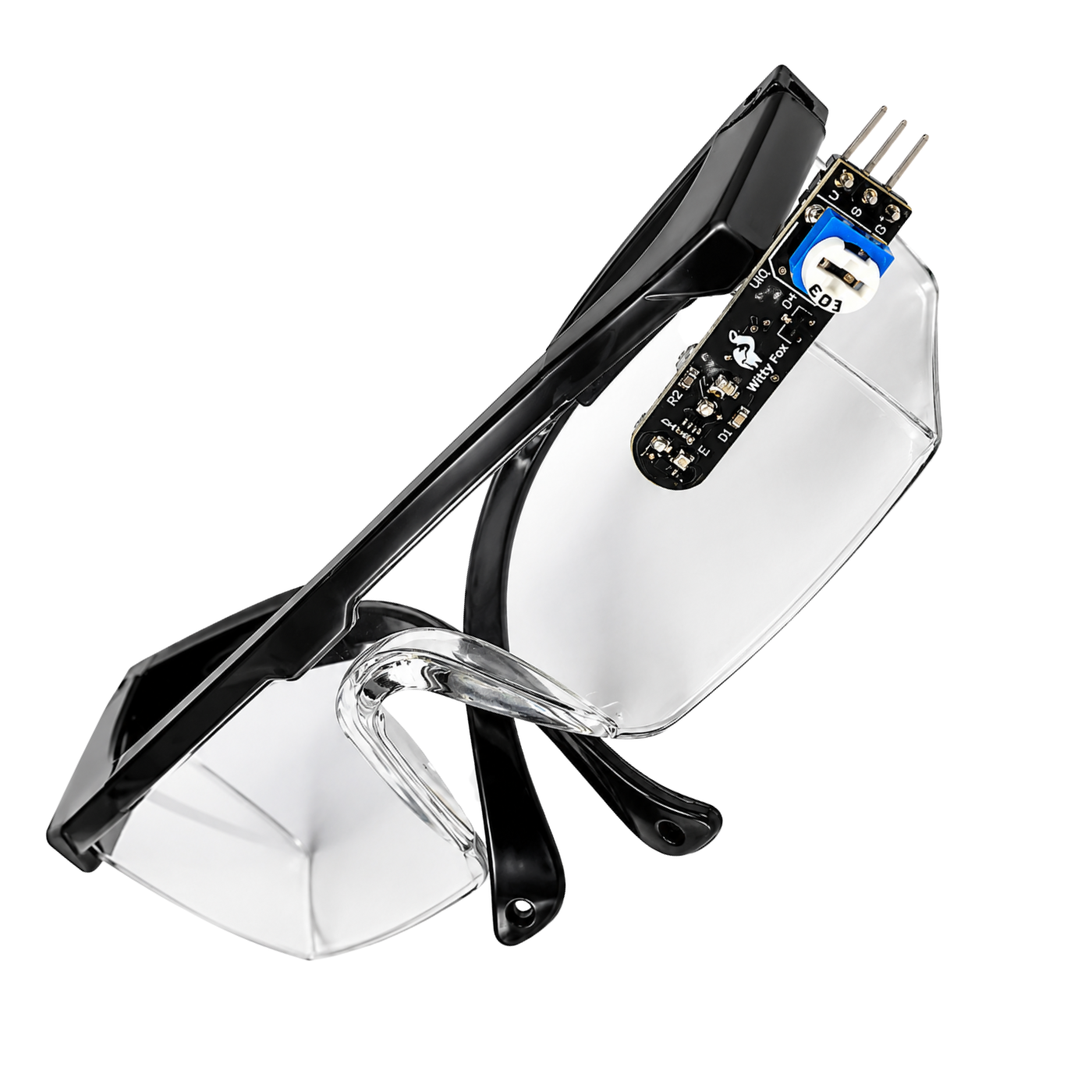

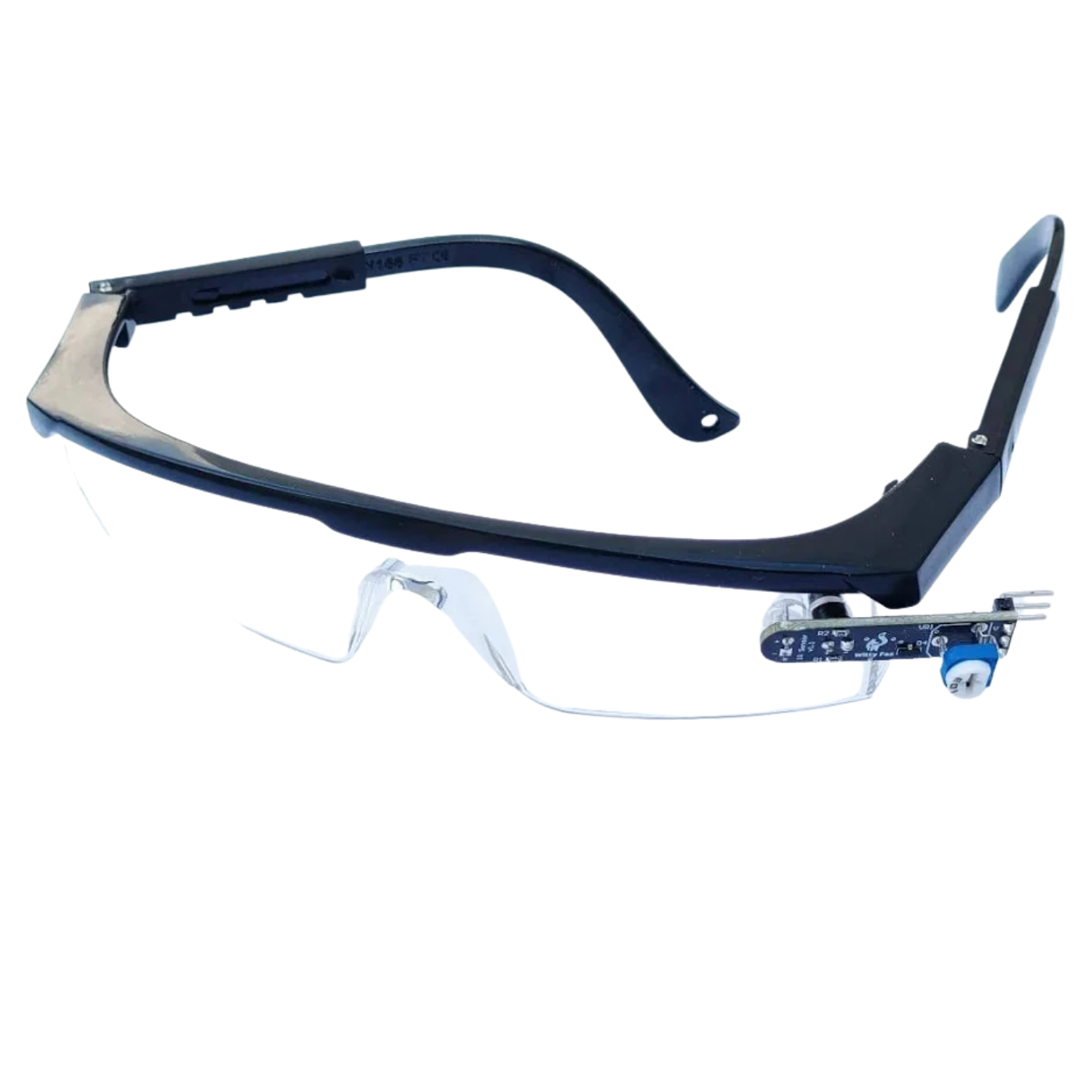

  • Comes with glasses to mount the eyeblink sensor and contains an onboard indication LED to detect eye blink.
  • On board 3-pin header and Facility to interface microcontroller devices.
  • Compatible with Arduino, Raspberry Pi, AVR, PIC and Other MCUs.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Robocraze Academy Limited Time Offer
Eye Blink Sensor – Detects eye blinks for automation. -Eye Blink Sensor -Biomedical Sensor -Robocraze
Eye Blink Sensor
Rs. 214 Rs. 130

Eye Blink Sensor

Rs. 214 Rs. 130

Eye Blink Sensor

An eye blink sensor relies on infrared technology to detect if a person's eye is closed. The sensor is made up of two components: an infrared transmitter and an infrared receiver. The transmitter emits infrared waves onto the eye, while the receiver searches for changes in the reflected waves, indicating that the eye has blinked. The sensor's output is sent to a microcontroller board, such as Arduino, Raspberry Pi, AVR, PIC, or other microcontrollers.

To create an eye blink sensor with an Arduino, one requires an eye blink sensor, an Arduino board, and a switch between the power supply and the Arduino. The sensor has three pins: GND (ground), 5V, and OP (output). The sensor's output is transmitted to the Arduino board, which can be programmed to execute various tasks based on the output.



Note: This eye blink sensor is strictly restricted for hobby projects and not recommended for real-time use.

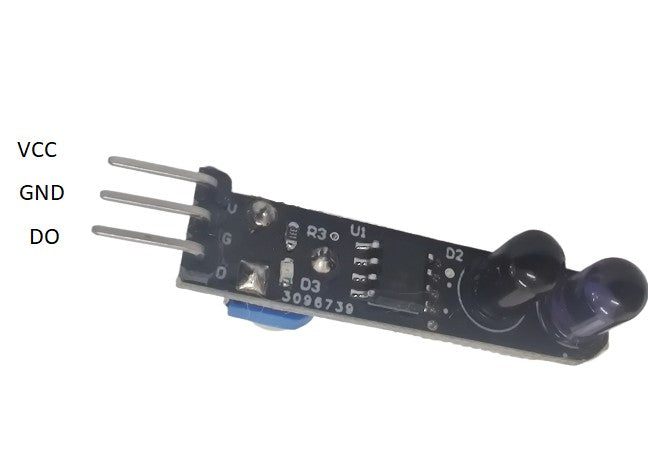

Pinouts:

Eye Blink Sensor Pin Diagram
  • VCC(Power)
  • GND(Ground)
  • DO(Digital Output)

Applications:

  • Digital Eye Blink Monitor
  • Vehicle Accident Prevention using eye blink sensor
  • Suite for real-time driving applications
  • Facility to interface microcontroller devices

Package Includes:

  • 1 x Eye Blink Sensor

Specifications

TTL output 5V or 0V
Sensor Type  IR Sensor
Dimensions  11 x 9 x 3cms
Weight  50 grams

1. What is the working principle of an eye blink sensor?

  • The eye blink sensor illuminates the eye with infrared light and monitors the changes in the reflected light. The results are calculated using infrared light reflected from the eye. The sensor output is active high for Eye close and can be given directly to the microcontroller for interfacing application

2. What is an Eye Blink Sensor?

  • This Eye Blink sensor senses the eye blink using infrared. The Variation Across the eye will vary as per eye blink. If the eye is closed the output is high otherwise the output is low.

3. Where can I use the Eye Blink Sensor?

  • It can be used as Digital Eye Blink Monitor, Vehicle Accident Prevention, Suite for real-time driving applications, and Facility to interface microcontroller devices
