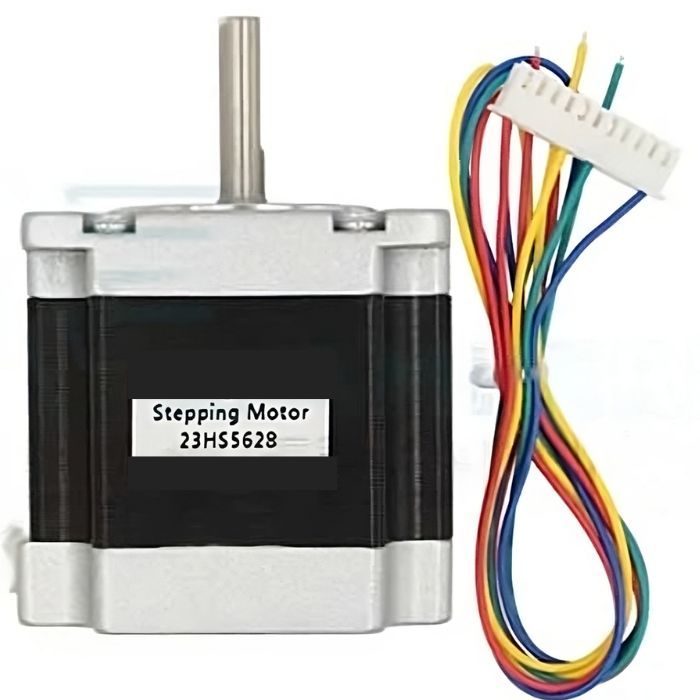

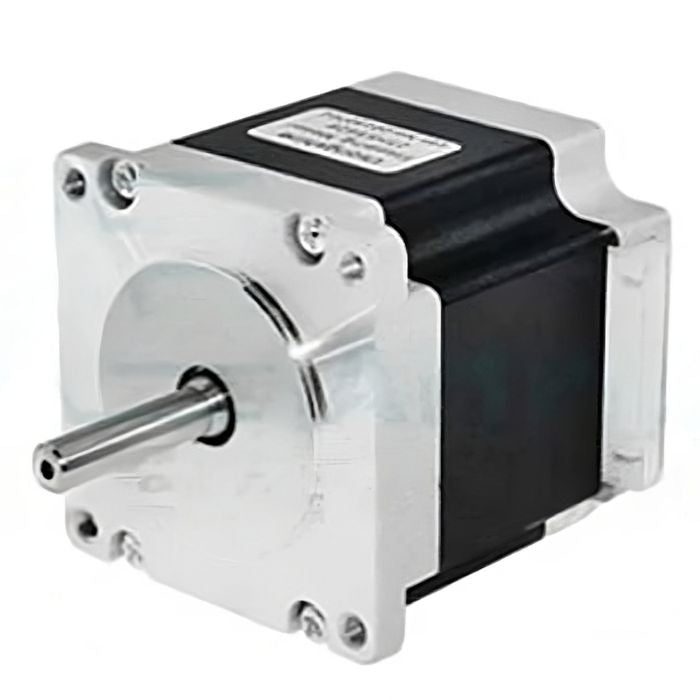

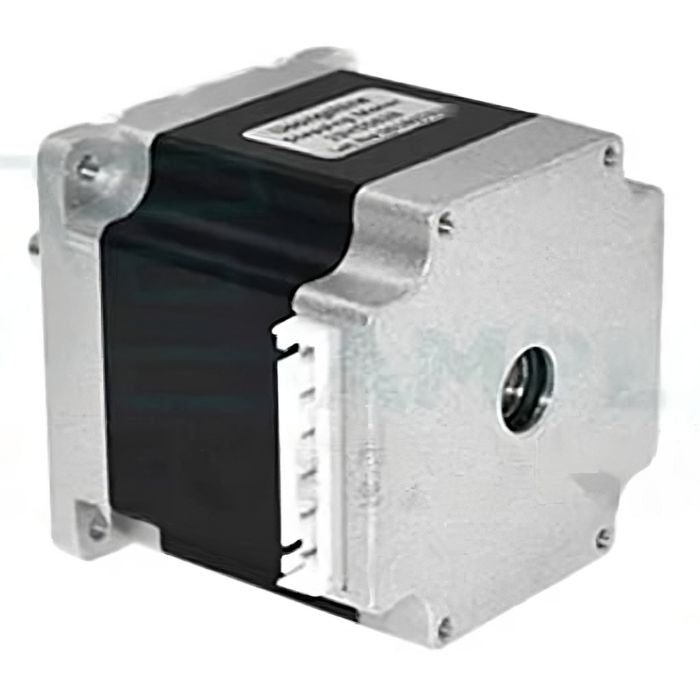

23HS5628 Nema23 Stepper Motor

23HS5628 Nema23 Stepper Motor

Low stock: 1 left

Regular price Rs. 1,139
Regular price Rs. 1,455 Sale price Rs. 1,139
Sale Sold out 22% off Best Price Guaranteed
You save Rs. 316 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 2 hours and 44 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is the 23HS5628 NEMA23 Stepper Motor
  • The shaft diameter of this NEMA23 Stepper Motor is 8mm.
  • The Rated Current of this Stepper motor is 2.5A.
  • The Step Angle of this Stepper Motor is 1.8 degrees.
  • The Holding Torque of this Stepper Motor is 12.6 Kg.cm
  • This Stepper Motor is widely used in 3D printers, surveillance equipment, medical / textile / packaging machinery and stage lighting, etc.
Trust Badge 1 Trust Badge 2 Trust Badge 3

23HS5628 Nema23 Stepper Motor

The 23HS5628 Nema23 Stepper Motor is a prodigious contraption of unparalleled power and reliability, perfectly suited for a multitude of applications. Its uncanny ability to deliver smooth and consistent torque at high speeds, thanks to its bipolar configuration and Nema23 frame size, sets it apart from its peers. The motor's compact size makes it effortless to integrate into your pre-existing setup, while its unyielding construction ensures its resilience in the most challenging operating conditions.

With a step angle of 1.8 degrees and a holding torque of 12.6 kg.cm, the Nema23 Stepper Motor proves itself as a versatile and tenacious taskmaster. Its noise and vibration profile are virtually imperceptible, ensuring that your machinery runs with the utmost serenity and fluency.

Without a doubt, the Nema23 Stepper Motor stands out as a paragon of excellence in the world of machinery. Its compact form belies its prodigious might, delivering a performance that leaves no room for mediocrity. Thus, if you're seeking a first-rate stepper motor that boasts precision and reliability in an astoundingly compact package, look no further than the 23HS5628 Nema23 Stepper Motor.

Features:

  • Widely used in 3D printers, surveillance equipment, medical / textile/packaging machinery and stage lighting, etc.

  • The motor wire is made of pure copper, with a uniform copper wire layout and corrosion resistance.

  • The motor adopts 4 pin cable outlet method, easy to connect.

  • Made of high-quality materials, durable and long service.

Package Includes:

  • 1 x 23HS5628 Nema23 Stepper Motor

Specifications:

Motor Type NEMA23
Step Angle 1.8
Operating Current (A) 2.8
Shaft Type Round
Shaft Diameter 8mm
Holding Torque 12.6Kg.cm
Motor Length 56mm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

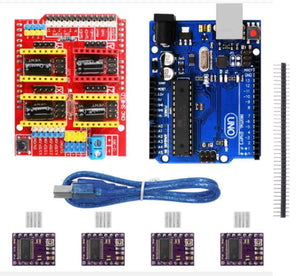

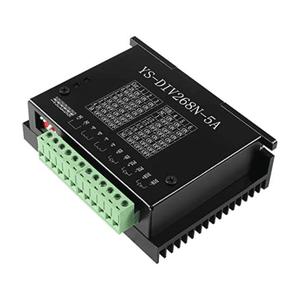

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What does NEMA 23 stand for?

  • The National Electrical Manufacturers Association establishes specifications for a wide range of electrical products, including step motors. In general, "size 11" refers to the motor's mounting face being 1.1 inches square. So, a Size 23 step motor is 2.3 inches square.

2. Are stepper AC or DC?

  • DC, A stepper motor is powered by a direct current voltage applied via a driver.

3. What is stepper motor used for?

  • The stepper motor is used in motorised devices that require precise positioning, such as hard disc drives, robotics, antennas, telescopes, and some toys. Stepper motors have a high holding torque but cannot run at high speeds.

4. Why it is called stepper motor?

  • Stepper motors get their name from the fact that each electrical pulse causes the motor to move one step. A driver controls stepper motors by sending pulses into the motor, causing it to turn.
