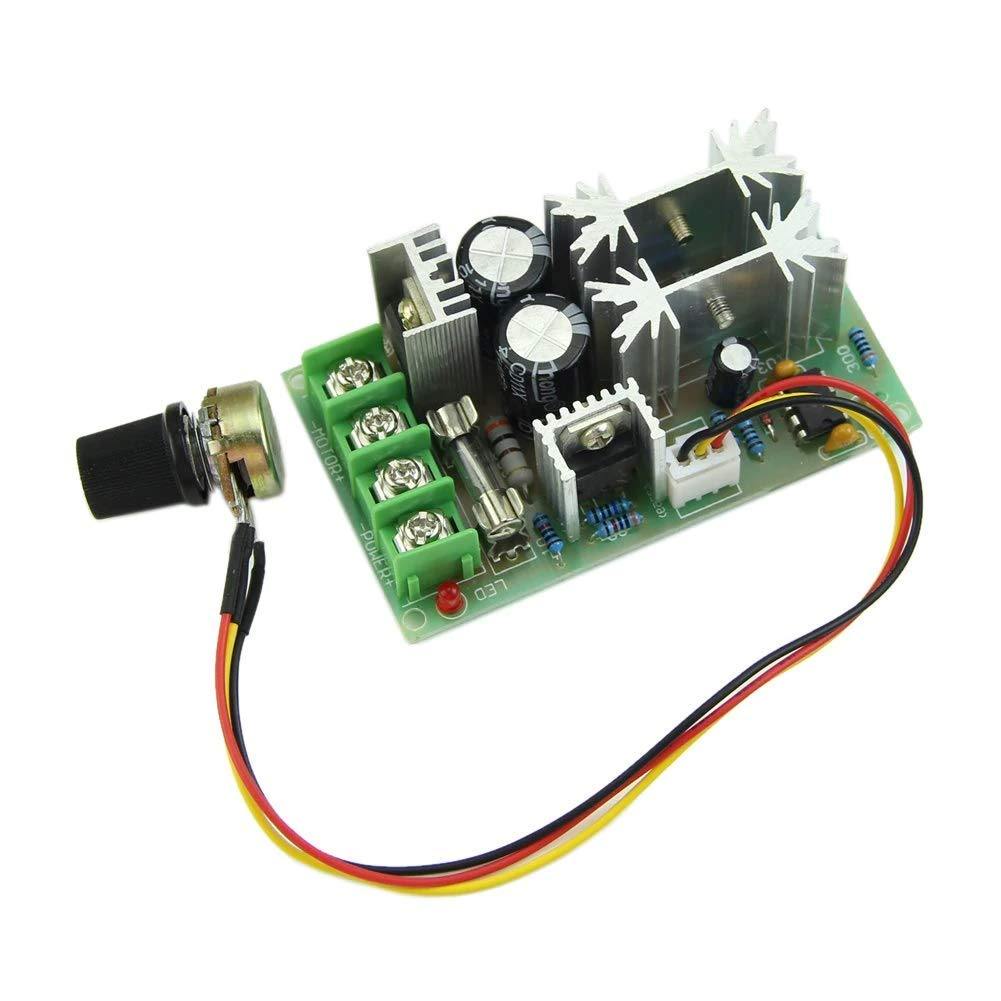

1200W PWM Motor Speed Controller with Potentiometer
1200W PWM Motor Speed Controller with Potentiometer
7
Regular price
Rs. 179
Regular price
Rs. 249
Sale price
Rs. 179
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 21 people are actively viewing.
Same Day Shipping
If Ordered within 9 Hours and 59 Minutes
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 1200W PWM Motor Speed Controller with Potentiometer
- The PWM speed controller is a useful DIY component that produces a power upto 1200W.
- This uses a linear potentiometer as a speed regulation method
- Well made with high quality circuit board, long service life
- The 1200W speed regulator uses a barrier terminal block as it's wiring type.
- The output voltage is linear under load and features a control frequency of 25KHz.
- Simple and easy-to-use DC motor speed controller
- Small size and elegant appearance. Performance is very stable
1200W PWM Motor Speed Controller with Potentiometer
This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance, and stable performance. It is made with a high-quality circuit board which ensures a longer service life.
The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment.
Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor.
Features:
- Maximum Power: 1200W
- The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM).
- The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed.
Package Includes:
- 1 x 1200W PWM Speed Controller
Specifications:
| Input voltage | DC10-60V |
| Output current | 0-20A |
| Power | 1200W |
| Speed adjustment range | 0-100% |
| Control frequency | 25KHZ |
| Wiring type | Barrier terminal block |
| Size | 7.7 x 7.3 x 4cms |
| Weight | 75 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V
7
Regular price
Rs. 576
Regular price
Rs. 649
Sale price
Rs. 576
Unit price
per
Incl. GST (No Hidden Charges)
Sale
TB6600 Stepper Motor Driver Controller 8~50V 4.5A
5
Regular price
Rs. 630
Regular price
Rs. 972
Sale price
Rs. 630
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Example product title
7
Regular price
Rs. 179
Regular price
Rs. 249
Sale price
Rs. 179
Unit price
per
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
1. Can a potentiometer be used to control motor speed?
- Yes, you can use a potentiometer to control motor speed. When used to vary voltage, a potentiometer can be connected to a motor and vary the voltage (and therefore power) delivered to a motor which will control its speed.
2. How do I slow down my motor speed?
- If you want to reduce rpm without compromising speed regulation then use a voltage regulator or PWM controller to lower the motor voltage. If you also want higher torque then use a gearbox (which increases torque by the same proportion as it reduces shaft rpm)
3. How does PWM control motor speed?
- Pulse width modulation speed control works by driving the motor with a series of "ON-OFF" pulses and varying the duty cycle, the fraction of time that the output voltage is “ON” compared to when it is “OFF”, of the pulses while keeping the frequency constant.
4. How does PWM reduce power?
- PWM reduces the average current (and in consequence the average power). In the case of LEDs, the voltage is unimportant; it is the current that can destroy them (both forward and reverse). As a result, you must be careful not to exceed their current peak rating.
