- This is the ULN2003 12V Stepper Motor Driver
- This has a 4-way signal indicator
- This has Chip all the pins already leads for easy connection to use
- The Voltage of this stepper motor is 12V.
- The Step angle of this Stepper Motor Driver is 5.625 x 1 / 64.
- The Reduction ratio is 1 / 64.
- 5 Line 4 phase can be driven by an ordinary uln2003 chip and can also be connected in the phase 2 development board used for. supporting the use of a direct plug and easy-to-use stepper motor used in the development board.
ULN2003 12V Stepper Motor Driver

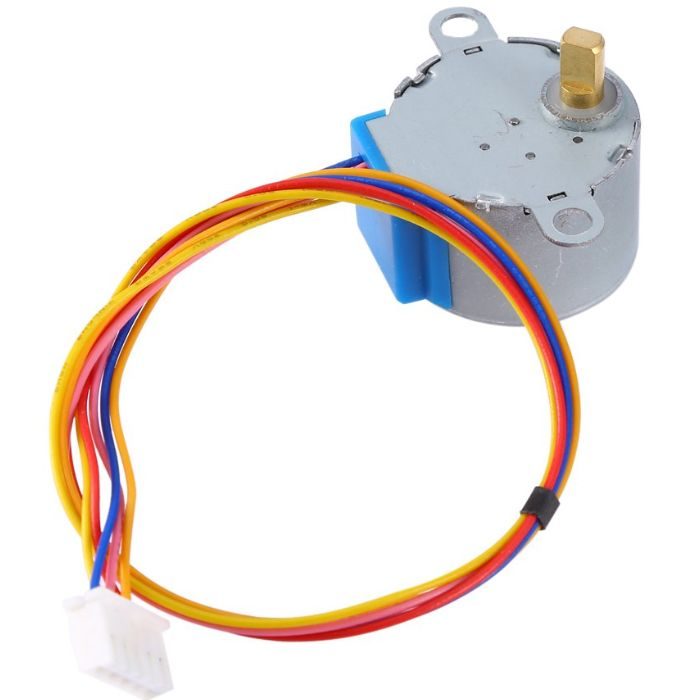

This 12V DC 28BYJ-48 Stepper Motor is a low-cost, high-quality geared stepper motor. Because of the system's stability and reliability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a popular combination of stepper motor and stepper driver.

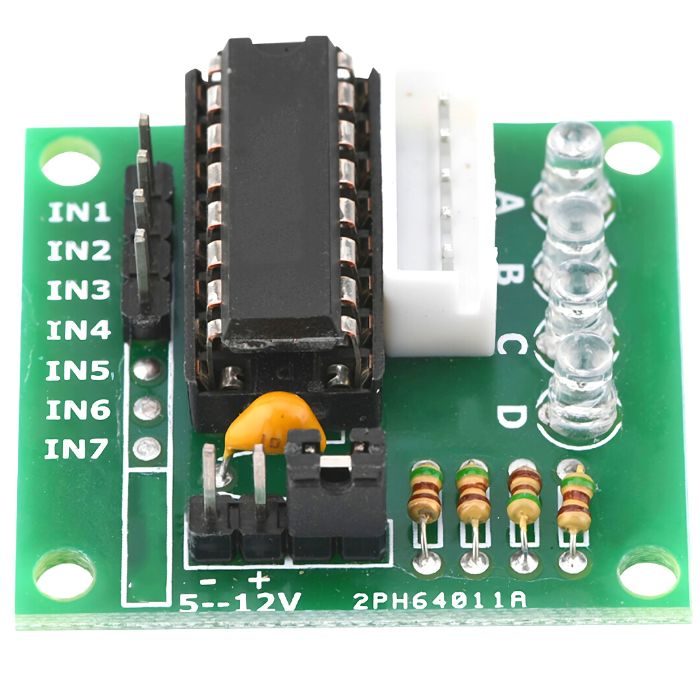

The pack includes the ULN2003 Stepper Motor Driver, which is a Mini Stepper Motor Driver. The main function of the ULN2003 is to amplify the control signals from the Arduino so that they can be used to drive the 28BYJ-48 Stepper Motor.
If you want to control the stepper motor with the stepper motor driver, for that you will need a few essential components like
Features:
- Stepper motor with a standard interface, when used directly pluggable.
- A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work.
- Compact-size stepper motor perfect for small robotics applications.
Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.

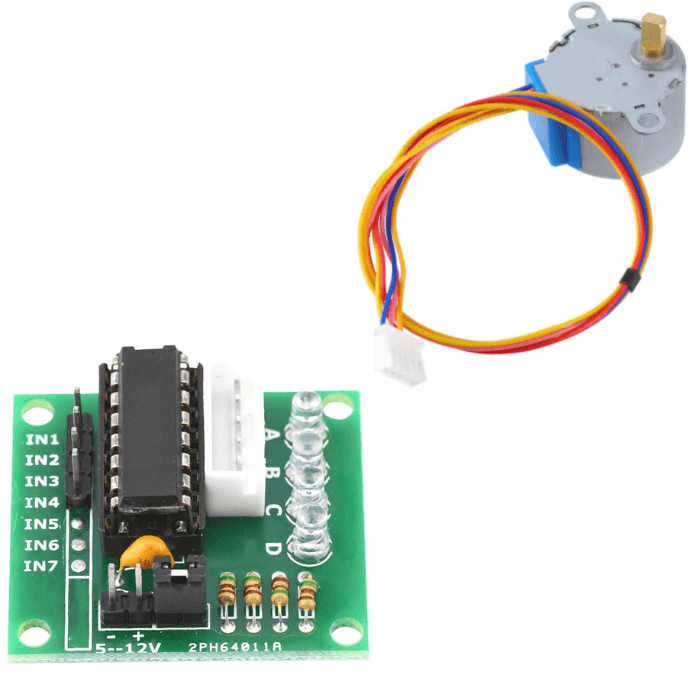

Package Includes:
1 x 28BYJ-48 12V Valve DC Gear Stepper Motor
1 x ULN2003 Stepper Motor Driver
Specifications:
| Model | 28BYJ-48 |
| Voltage supply |
12V |
| No of phase | 4 |
| Stride Angle | 5.625x1/64 |
| Dimensions (mm) | 44 x 44 x 28 (L x B x H) |
| Driver Model | ULN2003 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
DRV8825 Stepper Motor Driver Module
8
Regular price
Rs. 104
Regular price
Rs. 199
Sale price
Rs. 104
Unit price
per
Incl. GST (No Hidden Charges)
Sale
HG7881 H-Bridge 4CH DC - 2CH Stepper Motor Driver Board
6
Regular price
Rs. 195
Regular price
Rs. 346
Sale price
Rs. 195
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
TB6560 Stepper Motor Driver
7
Regular price
Rs. 440
Regular price
Rs. 773
Sale price
Rs. 440
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. How does 28BYJ-48 stepper motor work?
- The 28BYJ-48 stepper motor has four phases in total. The red wire is always pulled HIGH. The phase is energised when another lead is pulled LOW. The stepper motor only rotates when the phases are energised in a logical sequence known as a step sequence.
2. What is ULN2003 motor driver?
- The ULN2003 is a popular motor driver IC that consists of an array of seven Darlington transistor pairs, each of which can drive loads of up to 500mA and 50V. On this board, four of the seven pairs are used.
3. What is the purpose of ULN2003?
- The ULN2003 IC is a popular motor driver IC that is used when we need to drive high current loads with digital logic circuits such as Op-maps, Timers, Gates, Arduino, PIC, ARM, and so on.
