TB6560 Stepper Motor Driver
TB6560 Stepper Motor Driver
Regular price
Rs. 440
Regular price
Rs. 773
Sale price
Rs. 440
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 7 hours and 30 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Overheating Protection: The TB6560 Stepper Motor Driver features a new original chip with overheating protection, ensuring optimal performance.
- Adjustable Current Level: Adjust the current level to meet your specific application requirements, making it versatile for various uses.
- High-Speed Optocoupler: Equipped with a 6N137 high-speed optical coupling, this driver guarantees high-speed operation without losing steps.
- Semi-Flow Modes: Offers semi-flow mode and current adjustment, allowing for precise control.
- Wide Compatibility: Suitable for 2-phase motors, 4-phase motors, and various stepper motor configurations.
- Easy to Use: Simple setup with printed instructions on the board for hassle-free operation.

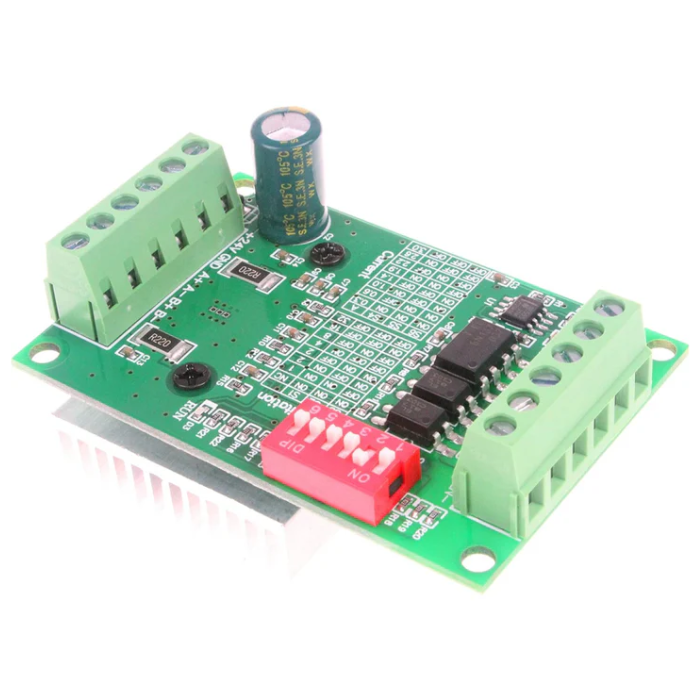

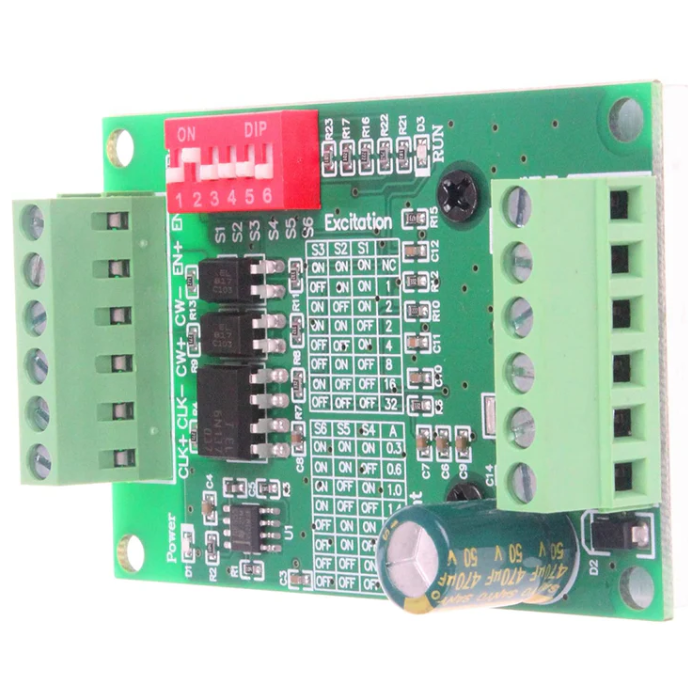

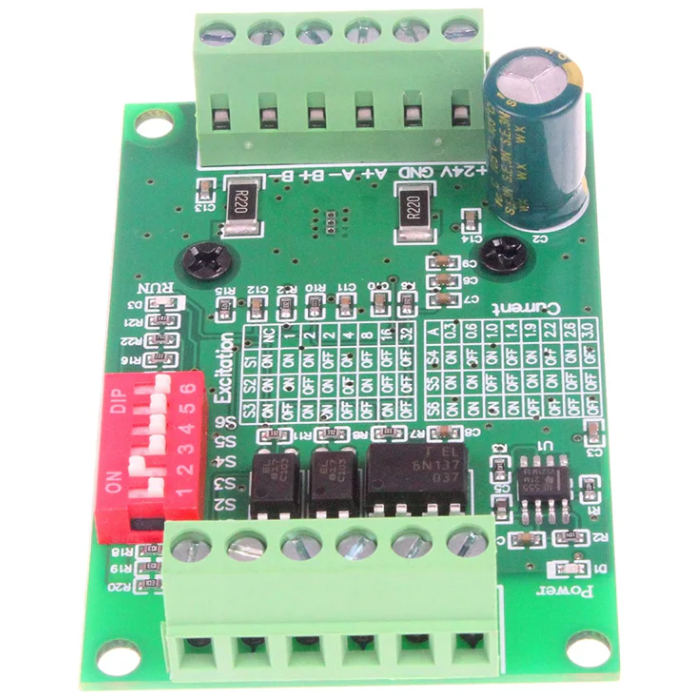

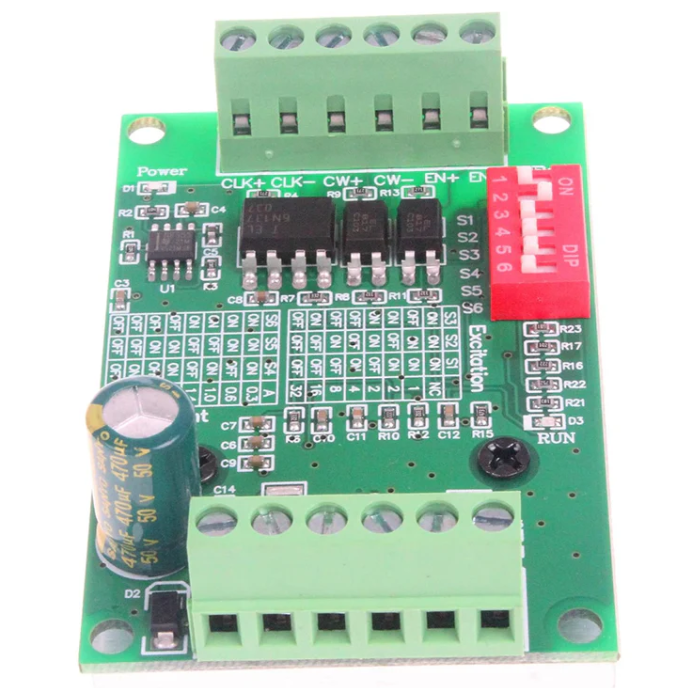

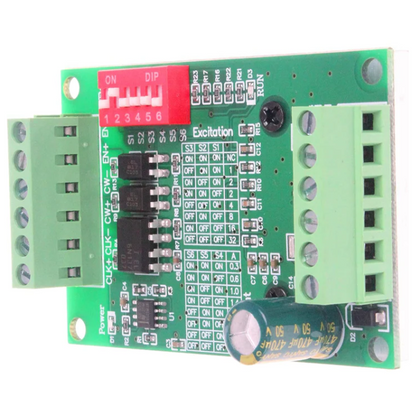

TB6560 Stepper Motor Driver
The TB6560 Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, and a large heat sink to ensure good heat dissipation. The Stepper motor driver is Semi-flow mode adjustable, and semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions. It is very easy to use and requires no special instructions. The module features Semi-flow mode adjustable, and semi-flow current adjustable, not the general design on the market, with a variety of semi-flow models and semi-flow current setting functions.
This stepper motor driver is featuring a TB6560AHQ new original chip. The TB6560AHQ has a low voltage shutdown, overheating stop, and overcurrent protection circuit to ensure optimal performance. The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2-phase motor (10 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications, or precision mechanical systems.
If you want to use this TB6560 Stepper Motor Driver in your project, for that you will need Arduino, jumper wires, and batteries or a power supply.
Features:
- Adjusts the current level to meet the needs of your specific application.
- Semi-automatic flow control.
- 6N137 high-speed optical coupling is used to ensure high speed without losing a step
- Setup instructions are printed on the board.

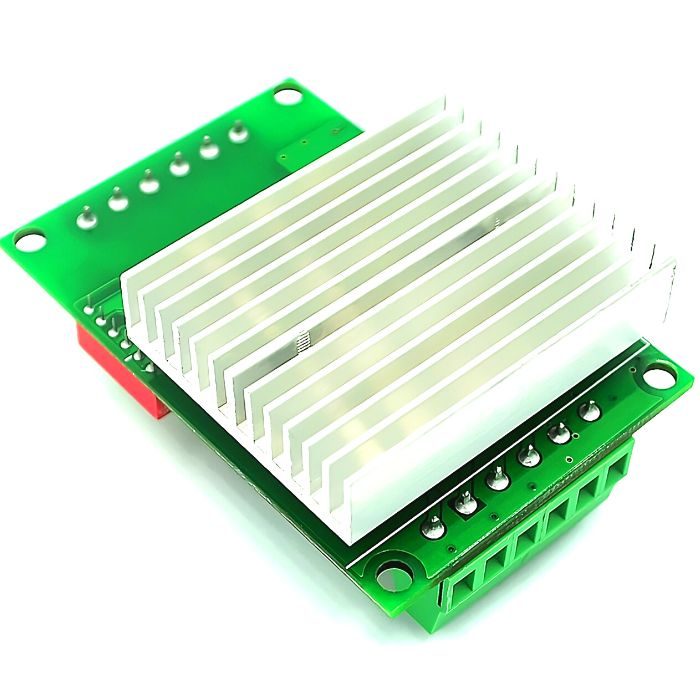

- Heat dissipation is improved by using a thick fine-toothed radiator.
- For 42,57,86 stepper motors up to 3A 2/4-phase / 4 wire / 6 wire, not suitable for motors higher than 3A.
- Synchronizing, half step, 1/8 step, 1/16 step, up to 16 segments.
- Half-decay occurs automatically.
Applications:
- Micro-positioning and robotics
- Conveyors or OEM equipment
- CNC Machines
Package Includes:
- 1 x TB6560 Stepper Motor Driver Board
Specifications:
|
Operating Voltage (VDC) |
10 to 35 |
|
Nominal Voltage (V) |
24 |
|
Driver IC |
TB6560AHQ |
|
Rated Output Current (A) |
3 |
|

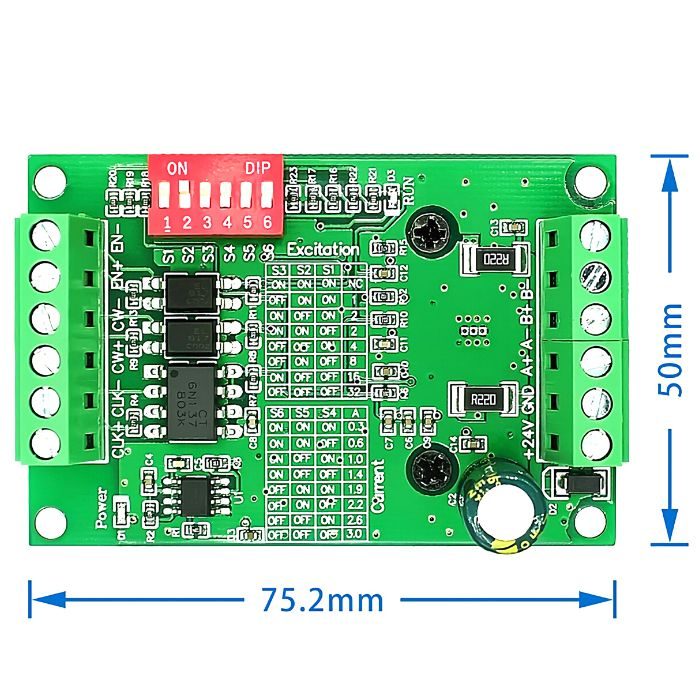

Length (mm) |
50 |
|
Width (mm) |
75 |
|
Height (mm) |
35 |
| Weight |
72 |
