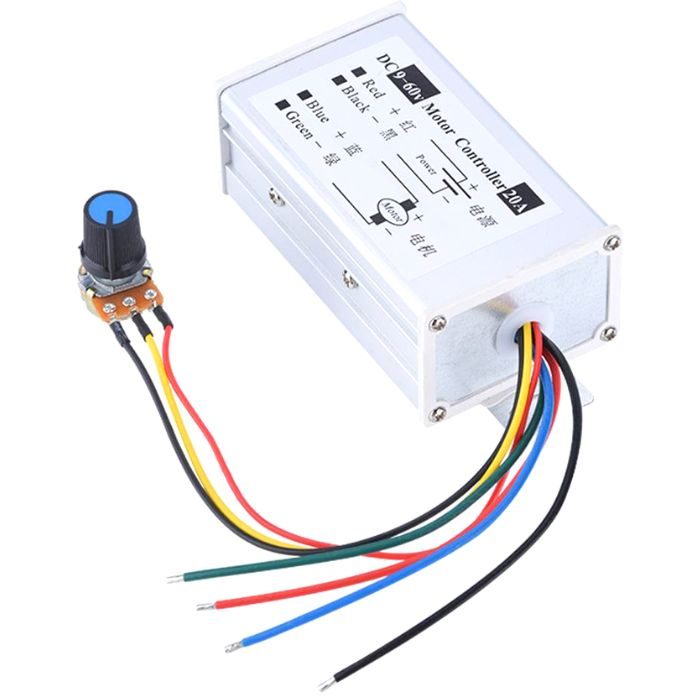

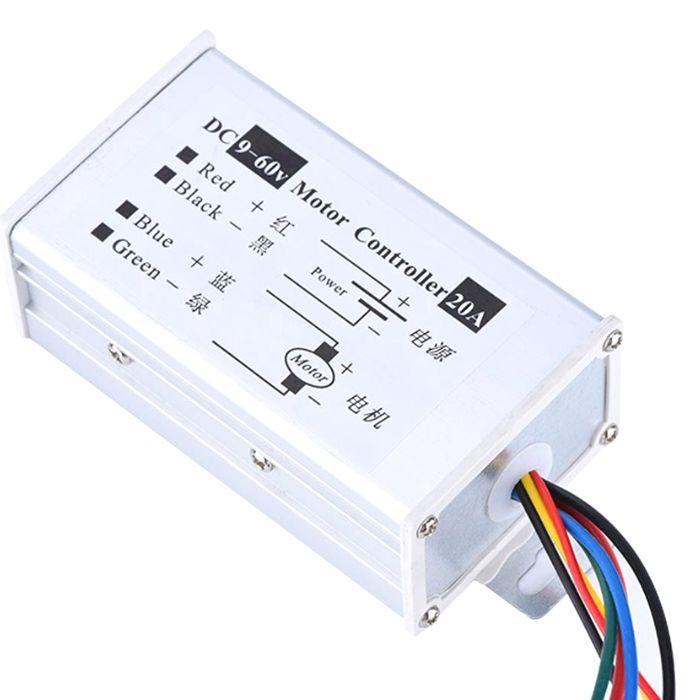

9-60V 20A DC Motor Speed Controller
9-60V 20A DC Motor Speed Controller
Low stock: 6 left
Regular price
Rs. 315
Regular price
Rs. 487
Sale price
Rs. 315
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 11 hours and 5 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 9-60V 20A DC Motor Speed Controller
- The DC Motor Controller has an input voltage DC9-60V and produces a output linear load.
- Input Current: require large than the motor operating current. Output Current: determine load size.
- The DC Motor operates with a frequency of 25KHZ.
- This can protect itself from reverse polarity conditions.
- Sustained current: 20A within.Maximum power: 600W. Quiescent Current: 0.01ma
- Package Includes: 1 Piece DC Speed Controller.
9-60V 20A DC Motor Speed Controller
Experience precise control with our DC Motor Speed Controller - a versatile and reversible PWM switch featuring a metal shell and user-friendly connective label for effortless installation. The DC Motor regulator has a linear potentiometer with adjust speed switch function, and button switch function. The controller has an operating frequency of 25KHZ and reverses polarity protection. The motor running condition adjustment is given by: Forward, Stop and Reverse. The Input Current required is usually larger than the motor's operating current and the output current is determined by load size.
Note:
1. This governor is used for DC brushed motors.
2. Not suitable for DC brushless motor speed; can not be used as a regulator or regulator!
3. The motor can be divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER. TO CHANGE THE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF THE MOTOR.
Reminder:
The DC motor governor is connected to the DC power supply.
Never connect directly to home 110V AC.
Before you attempt to wire the controller, make sure the power is off.
Features:
- Fine-tune your projects with the DC Motor Speed Control featuring an adjustable speed range from 0%-100% and a user-friendly potentiometer for seamless speed adjustments.
- Output voltage: Linear under load.
- Speed control type: Basins.
- Output voltage: Load Linear
- Type: Adjusting flow
- The motor running condition adjustment: Forward / Stop /Reverse
- Reverse polarity protection: Yes.
- Suitable Motor: DC brush motors.
- Have Thermal protection
Package Includes:
- 1 x 9-60V 20A DC Motor Speed Controller
Specifications:
| Operating Voltage (VDC) | 9 ~ 60 |
| Continuous power | 1200W |
| PWM frequency | 25KHz. |
| Dimensions (mm) | 90 x 50 x 35 |
| Weight (gm) | 135 |
| Peak current | 20A |
| No. of channels | 1 |
| Thermal protection | Yes |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
TB6600 Stepper Motor Driver
Regular price
Rs. 299
Regular price
Rs. 449
Sale price
Rs. 299
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Ultra-silent 4-layer Substrate MKS-LV8729 Stepper Motor Driver with Heat Sink
Regular price
Rs. 595
Regular price
Rs. 882
Sale price
Rs. 595
Unit price
per
Incl. GST (No Hidden Charges)
Sale
TB6600 Stepper Motor Driver Controller 8~50V 4.5A
Regular price
Rs. 632
Regular price
Rs. 972
Sale price
Rs. 632
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. Does a DC motor need a speed controller?
- Brushed DC motors generate electrical and acoustic noise, and require frequent maintenance because their brushes and commutator are both consumable parts. But, they also feature a simple design and can operate without an electronic drive circuit if speed control is not needed.
2. How does a DC motor speed controller work?
- The DC Motor Speed controller is a reversible PWM switch that includes a connective label and metal shell, making it simple to install and operate. The DC Motor regulator has a linear potentiometer with adjust speed switch function, and button switch function. The controller has an operating frequency of 25 KHZ and reverses polarity protection. The motor running condition adjustment is given by: Forward, Stop and Reverse.
3. What is the difference between a motor driver and a motor controller?
- The main difference between a motor controller and a motor driver is, The motor controller is in charge of regulating the motor's speed, torque, and direction, whereas, a motor driver is in charge of giving the motor the necessary amount of electrical power.
4. Do I need a speed controller for DC motor?
- A motor controller is recommended for most applications involving a DC or BLDC (brushless DC) motor; in fact, if you are using a brushless (electrically commutated "EC") motor, you must use a controller to fire the correct phase winding at the correct time.
