Arduino MKR IoT Bundle

Arduino MKR IoT Bundle

The Arduino MKR IoT Bundle comes with the most optimum set of components to get started with building various projects right from a beginner level all the way up to advanced IoT projects. This Arduino kit helps you get practical hands-on experience in the embedded systems and IoT domain. It is the perfect kit for the everyday hobbyist and tinkerer.

The Arduino MKR IoT bundle ships with the Arduino MKR1000 board which combines the functionality of the Zero and the Wi-Fi Shield. It offers a practical and cost-effective solution for makers seeking to add Wi-Fi connectivity to their projects. It is based on the Atmel ATSAMW25 SoC (System on Chip), which is part of the SmartConnect family of Atmel Wireless devices, specifically designed for IoT projects and devices.

The design includes a Li-Po charging circuit that allows the Arduino/Genuino MKR1000 to run on battery power or external 5V, charging the Li-Po battery while running on external power.

Pinout Of Arduino MKR IoT Bundle

Applications:

• I Love You Pillow

• Puzzle Box

• Pavlov's Cat

• The Nerd

• Plant Communicator

Warning: Unlike most Arduino & Genuino boards, the MKR1000 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.

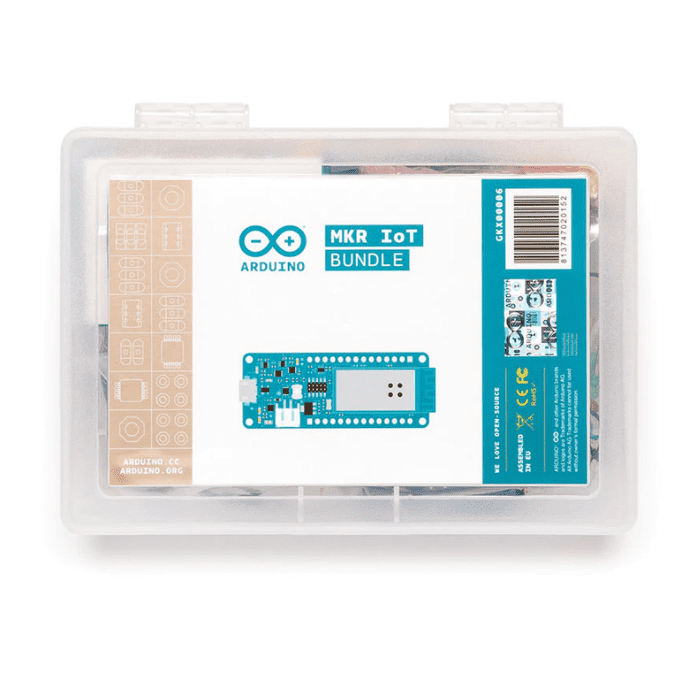

Note: The Arduino MKR IoT kir comes in a 22x15cms package and weighs about 200 grams. Robocraze is the authorized seller of Arduino in India. Therefore, even if you are in Bangalore, Hyderabad, Mumbai, or Pune, you can order and buy Arduino MKR IoT Kit online from the comfort of your home.

Please note, don't connect 9V to the board, as it will be damaged.
You can use the 9v Battery strip to supply an external component.

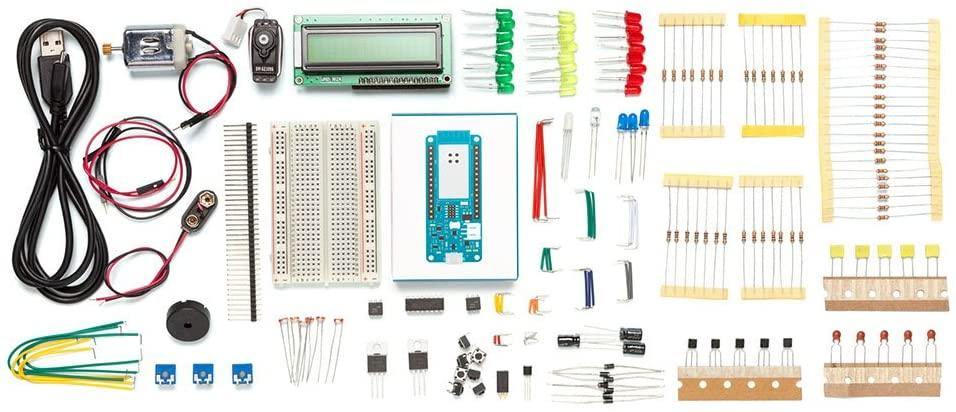

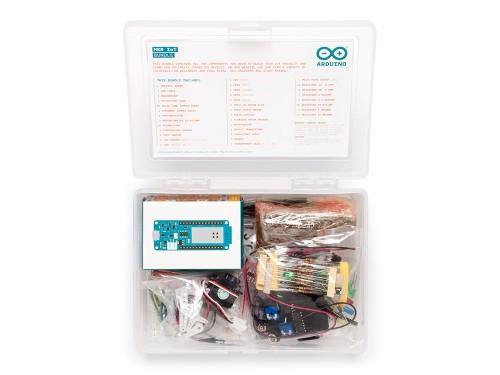

Package Includes:

• 1 x Arduino MKR1000 board, with header soldered.
• 1  x micro USB cable,
• 1  x 400-point breadboard,
• 70  x solid-core jumper wires,
• 1 x 9V battery snap,
• 1 x stranded jumper wire
• 1 x stranded jumper wire,
• 6 x phototransistors,
• 3 x potentiometers (10 kilohm),
• 10 x pushbuttons,
• 1 x temperature sensor (TMP36),
• 1 x tilt sensor,
• 1 x alphanumeric LCD (16 x 2 characters),
• 1 x bright white,
• 34 x LEDs (5 ldr bright white, 1 RGB, 8 red, 8 green, 8 yellow, 3 blue),
• 1 x small DC motor (6/9V),
• 1 x small servo motor,
• 1 x piezo capsule (PKM17EPP-4001-B0),
• 1 x H-bridge motor driver (L293D),
• 1 x octocouplers (4NE5),
• 2 x MOSFET transistors (IRF520),
• 5 x capacitors (100uF),
• 5 x diodes (1N4007),
• 3 x transparent gels (R,G,B)
• 1 x male pin strip (40 x 1),
• 20 x resistors (220 ohm),
• 5 x resistors (560 ohm),
• 5 x resistors (1 kilohm),
• 5 x resistors (4.7 kilohm),
• 20 x resistors (10 kilohm),
• 5 x resistors (1 megohm),
• 5 x resistors (10 megohm)
