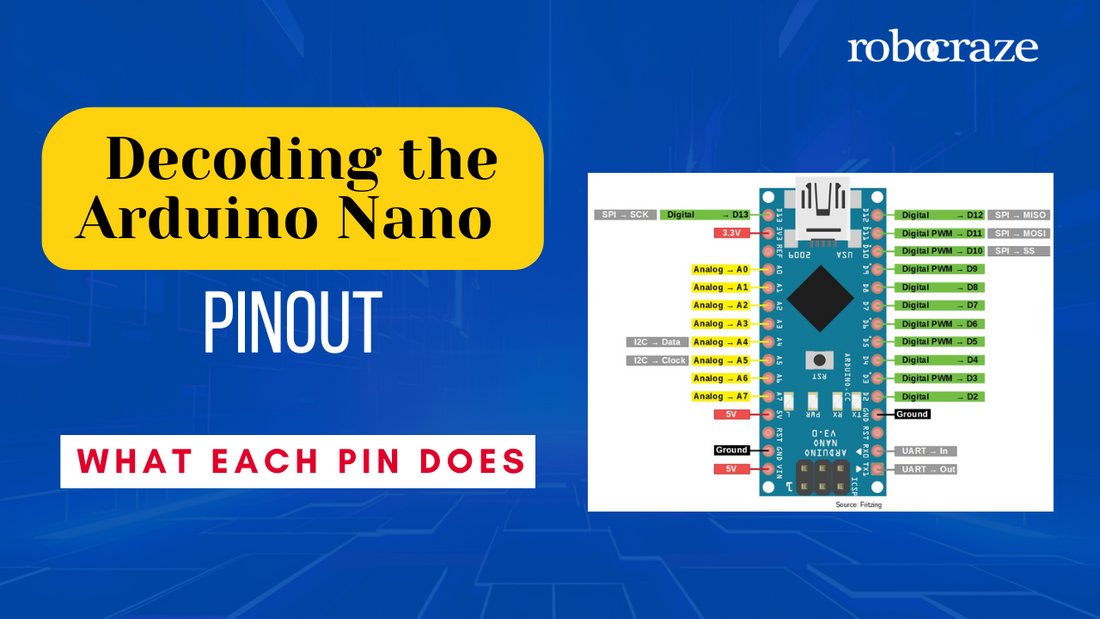

Decoding the Arduino Nano Pinout: What Each Pin Does

Summary

Through years of prototyping everything from smart home sensors to robotic control systems, I've witnessed firsthand how the right microcontroller choice can make or break a project.

The Arduino Nano consistently emerges as my go-to solution when space constraints meet functionality demands.

What initially drew me to this miniature powerhouse wasn't just its size – it was the realization that every single pin had been purposefully designed to maximize utility without sacrificing the beginner-friendly approach that made Arduino legendary.

The evolution of embedded electronics has reached a fascinating crossroads where professional-grade capabilities now fit in packages smaller than a USB thumb drive.

This transformation has democratized hardware development, enabling creators to build sophisticated systems that would have required entire engineering teams just a decade ago.

In this detailed exploration, we'll systematically decode each pin's purpose and potential, revealing how this compact board manages to pack the functionality of much larger systems into such a tiny footprint.

Whether you're transitioning from larger Arduino boards, designing your first IoT prototype, or seeking to understand the intricate balance between size and capability, this guide will illuminate every connection point that makes your projects possible.

Introduction to Arduino Nano

The Arduino Nano is a great example of engineering optimization. It’s a board that emerged from the practical need to bring full Arduino capabilities into projects where every millimeter matters.

Built around the proven ATmega328P microcontroller, this development board demonstrates how intelligent design can compress functionality without compromise.

What immediately becomes apparent is the meticulous attention to pin accessibility. Unlike many compact boards that sacrifice usability for size, the Nano maintains the 0.1-inch pin spacing that breadboard enthusiasts depend on.

The Arduino Nano pin configuration reflects years of community feedback, positioning frequently used pins for maximum convenience while ensuring power and ground connections remain logically placed.

The board's success stems from solving a fundamental problem in the maker community: the gap between basic microcontroller modules and full-sized development boards.

Traditional Arduino Uno boards excel in learning environments but often prove too bulky for final projects. Conversely, bare microcontroller modules demand extensive support circuitry that intimidates newcomers.

This platform bridges that divide perfectly, offering complete Arduino compatibility in a package that fits naturally into permanent installations.

The Arduino Nano board layout demonstrates how thoughtful engineering can eliminate trade-offs, delivering professional capabilities while preserving the accessibility that made Arduino a global phenomenon among makers, students, and professional developers alike.

Arduino NANO Board Features

After spending countless projects working with the Arduino Nano, I've discovered features that genuinely surprised me, and a few that left me wondering why other development boards haven't figured this out yet.

The ATmega328P at its heart provides the same functionality as the Arduino Uno with hardware-optimized performance, but it's the thoughtful engineering around this microcontroller that really sets this development board apart.

• Breadboard-Friendly Design: The platform's small footprint doesn't compromise on pin accessibility or functionality. The 0.1-inch pin spacing ensures perfect compatibility with standard breadboards, making prototyping effortless without requiring additional breakout boards.
• Comprehensive I/O Options: Multiple digital pins, analog inputs, PWM outputs, and communication interfaces provide flexibility for various project requirements. The Arduino Nano board layout supports direct sensor integration and actuator control without requiring additional interface circuitry.
• USB Programming Interface: The integrated USB-to-serial converter eliminates the typical complexity associated with microcontroller programming. This mini development platform includes essential programming capabilities ready for immediate use with the Arduino IDE.
• Professional Build Quality: Surface-mount components, robust power management, and comprehensive pin labeling ensure reliable operation in demanding applications. The platform meets hobbyist standards while remaining accessible to educational users.
• Flexible Power Options: Multiple power input methods accommodate various project scenarios, from USB-powered desktop development to battery-operated portable applications. Different power configurations support both prototype development and final project deployment.
• Compact Form Factor: Advanced miniaturization maintains full Arduino compatibility without active cooling requirements, extending component accessibility while ensuring consistent performance during intensive processing tasks.

Arduino NANO Specifications

Let's talk numbers, because while marketing descriptions are helpful, what really matters is whether the Arduino Nano can actually handle your most demanding projects without compromising functionality.

After running everything from simple sensor readings to complex communication protocols, I can confidently say these specifications translate into real-world performance that'll make you rethink what's possible in such a compact package.

Arduino Nano Pinout Diagram

Understanding the Arduino Nano pin diagram is crucial for successful project implementation. The attached pinout diagram clearly shows the intelligent organization of pins around the board's perimeter, making every connection accessible while maintaining the compact form factor that makes this board so versatile.

The diagram reveals how the ATmega328P's capabilities are mapped to physical pins, with each pin serving multiple functions depending on your project requirements.

Digital pins occupy one side of the board, while analog pins and power connections are strategically positioned for optimal breadboard compatibility.

This thoughtful Arduino Nano board layout ensures that common pin combinations remain easily accessible during prototyping.

What's particularly impressive is how the designers managed to expose nearly every microcontroller pin while maintaining such a small footprint.

Communication pins are grouped logically, power pins are clearly labeled, and the reset functionality remains easily accessible for debugging purposes.

Digital Pins on Arduino Nano

The Arduino Nano provides 14 digital I/O pins (D0-D13) that form the backbone of most projects.

These pins can be configured as either inputs or outputs through software, making them incredibly versatile for controlling LEDs, reading button states, driving motors, or interfacing with digital sensors.

• Pin Functionality: Each digital pin can source or sink up to 40mA of current, sufficient for driving LEDs directly or controlling small relays through appropriate transistor circuits. The pins operate at 5V logic levels, ensuring compatibility with most common electronic components and sensors.
• Special Function Pins: Several digital pins serve dual purposes beyond basic I/O. Pins D0 and D1 function as the serial communication interface (RX and TX), connecting to the USB-to-serial converter for programming and debugging. These pins should generally be avoided for other purposes unless serial communication isn't required.
• Internal Pull-up Resistors: Every digital pin includes optional internal pull-up resistors that can be enabled through software. This feature eliminates the need for external resistors when reading button states or interfacing with open-collector sensors, significantly simplifying circuit design.
• Interrupt Capability: Pins D2 and D3 support external interrupts, allowing your program to respond immediately to external events without constantly polling pin states. This capability is essential for applications requiring precise timing or immediate response to critical events.

Analogue Pins on Arduino Nano

The Arduino Nano's eight analog input pins (A0-A7) provide the gateway between the digital microcontroller world and analog sensors that measure real-world phenomena.

These pins utilize the ATmega328P's built-in 10-bit analog-to-digital converter (ADC) to transform continuous voltage signals into discrete digital values.

• ADC Resolution and Range: The 10-bit ADC provides 1024 discrete levels (0-1023) across the 0-5V input range, offering approximately 4.9mV resolution per step. This resolution proves sufficient for most sensor applications, from temperature monitoring to light level detection.
• Reference Voltage Options: The analog pins can use different reference voltages for improved accuracy in specific applications. The default 5V reference works well for general purposes, while the internal 1.1V reference provides better resolution for small signal measurements.
• Dual-Purpose Capability: Analog pins A0-A5 can also function as digital I/O pins (D14-D19) when analog functionality isn't required. This flexibility effectively increases the available digital pins for projects that don't fully utilize all analog inputs.
• Input Impedance Considerations: The ADC input impedance of approximately 100MΩ allows direct connection to most sensors without buffer amplifiers. However, high-impedance sources may require attention to settling time and noise considerations for accurate measurements.

PWM (Pulse Width Modulation) Pins

Six digital pins on the Arduino Nano (D3, D5, D6, D9, D10, D11) provide PWM output capability, marked with the "~" symbol on the Arduino Nano pinout.

These pins generate square wave signals with variable duty cycles, effectively creating analog-like outputs from digital pins.

• PWM Frequency and Resolution: The PWM signal operates at approximately 490Hz (pins D5 and D6) or 980Hz (pins D3, D9, D10, D11) with 8-bit resolution, providing 256 discrete output levels. This resolution proves adequate for LED brightness control, motor speed regulation, and simple audio tone generation.
• Timer Relationships: The PWM pins are grouped by their underlying timer circuits. Pins D5 and D6 share Timer0, pins D9 and D10 use Timer1, and pins D3 and D11 utilize Timer2. Understanding these relationships becomes important when multiple PWM outputs require synchronization or when timer conflicts arise with other libraries.
• Output Drive Capability: Each PWM pin can source or sink the same 40mA as regular digital pins, making them suitable for directly driving LEDs or controlling small motors through appropriate driver circuits. For higher current applications, external amplification remains necessary.
• Servo Control Applications: The PWM functionality makes these pins ideal for servo motor control, where precise pulse width timing determines servo position. Most servo libraries utilize these pins automatically, simplifying servo integration into projects.

Power and Ground Pins

The Arduino Nano's power architecture provides multiple options for supplying and distributing power throughout your projects.

Understanding these pins is essential for reliable operation and proper system design.

• VIN Pin: The voltage input pin accepts 7-12V DC (recommended range) and feeds the onboard voltage regulator. This pin allows battery or wall adapter power while maintaining stable 5V regulation for the microcontroller and connected components.
• 5V Pin: This regulated output provides clean 5V power for external components, with current capability limited by the input voltage and onboard regulator specifications. When powered via USB, this pin can supply approximately 500mA after accounting for the microcontroller's consumption.
• 3.3V Pin: The 3.3V output supplies low-power sensors and components that require lower voltage operation. This pin typically provides up to 50mA, sufficient for most modern sensors but inadequate for power-hungry devices.
• Ground Pins: Multiple ground pins (GND) ensure reliable ground connections throughout your circuit. These pins connect directly to the microcontroller ground and provide the reference point for all voltage measurements and digital logic levels.
• Power Considerations: The onboard regulator dissipates excess voltage as heat, making lower input voltages more efficient for battery-powered applications. USB power provides the most stable option for development and testing scenarios.

Communication Pins

The Arduino Nano incorporates several communication interfaces that enable interaction with sensors, displays, other microcontrollers, and external systems. These specialized pins follow industry-standard protocols for reliable data exchange.

• UART Serial Communication: Pins D0 (RX) and D1 (TX) provide asynchronous serial communication capability, primarily used for programming and debugging through the USB connection. These pins can also interface with other serial devices like GPS modules, Bluetooth modules, or other microcontrollers.
• SPI Interface: The Serial Peripheral Interface utilizes pins D10 (SS/Slave Select), D11 (MOSI/Master Out Slave In), D12 (MISO/Master In Slave Out), and D13 (SCK/Serial Clock). SPI enables high-speed communication with devices like SD cards, display controllers, and sensor modules.
• I2C/TWI Protocol: Pins A4 (SDA/Serial Data) and A5 (SCL/Serial Clock) implement the Two-Wire Interface for multi-device communication on a shared bus. This protocol proves ideal for sensor networks where multiple devices share common data lines.
• Communication Protocol Selection: Each protocol offers distinct advantages: UART for simple point-to-point communication, SPI for high-speed single-master applications, and I2C for multi-device networks with minimal wiring requirements.

Reset and Reference Pins

Two specialized pins on the Arduino Nano serve critical functions for system operation and analog accuracy.

• Reset Pin (RST): This active-low pin restarts the microcontroller when pulled to ground. The onboard reset button connects to this pin, and external reset circuits can utilize it for automatic or manual system restart functionality. An internal pull-up resistor keeps this pin high during normal operation.
• Analog Reference Pin (AREF): This pin allows external reference voltage specification for analog-to-digital conversions. By default, the internal 5V supply serves as the reference, but connecting a precision voltage reference to AREF can improve analog measurement accuracy for specific applications.

How to Read and Use Arduino Nano Pins in Your Projects

Successfully implementing Arduino Nano pins in your projects requires understanding both the hardware capabilities and software interface methods.

The Arduino programming environment provides intuitive functions for pin manipulation while maintaining flexibility for advanced applications.

• Digital Pin Operations: Use digitalWrite() and digitalRead() functions for basic digital I/O operations. Pin mode configuration through pinMode() determines whether pins function as inputs or outputs, with optional internal pull-up resistor activation.
• Analog Pin Interface: The analogRead() function converts analog voltages to digital values, while analogWrite() generates PWM signals on compatible pins. Understanding the relationship between voltage levels and digital values ensures accurate sensor interfacing.
• Pin Mapping Considerations: The Arduino Nano pin configuration uses both digital pin numbers (D0-D13) and analog pin identifiers (A0-A7). Analog pins can be referenced as digital pins (A0 = D14, A1 = D15, etc.) when digital functionality is required.
• Communication Protocol Implementation: Arduino libraries simplify communication protocol usage. The Wire library handles I2C communication, SPI library manages Serial Peripheral Interface operations, and Serial library controls UART communication through pins D0 and D1.

Conclusion

The Arduino Nano's intelligent pin layout and comprehensive functionality make it an exceptional choice for compact embedded projects.

From basic LED control to complex sensor networks, understanding each pin's capabilities unlocks the full potential of this remarkable development platform.

The thoughtful Arduino Nano pinout design ensures that whether you're building your first project or developing sophisticated applications, every pin serves a clear purpose in bringing your ideas to life.

The combination of digital I/O flexibility, analog sensing capability, PWM output options, and multiple communication protocols provides the foundation for virtually any embedded project you can imagine.

With proper understanding of pin functions and limitations, the Arduino Nano becomes not just a microcontroller board, but a gateway to endless creative possibilities in the world of electronics and programming.
