Robocraze

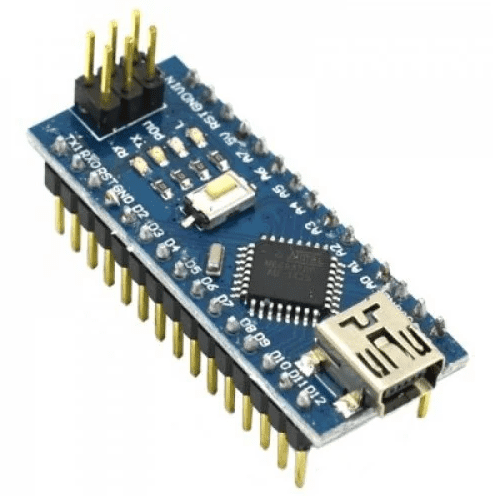

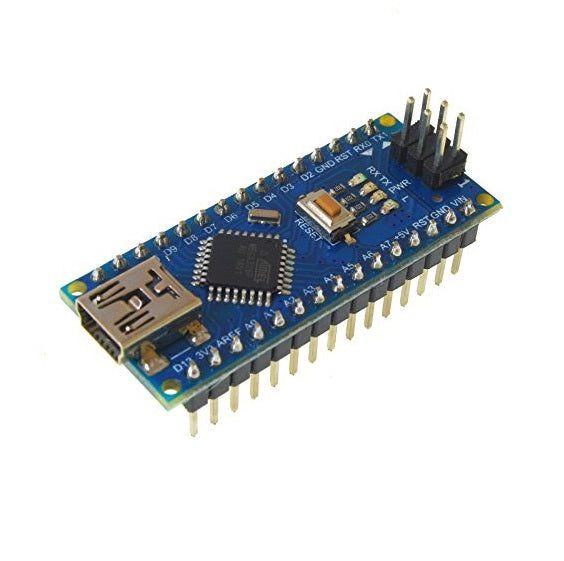

Arduino Nano R3 Development Board Compatible
Arduino Nano R3 Development Board Compatible
Regular price
Rs. 188
Regular price
Rs. 399
Sale price
Rs. 188
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 12 hours and 8 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is the Nano Development Board compatible with Arduino
- The Nano board compatible with Arduino has an operating voltage of 5V.
- This comes with soldered connectors and 8 analog inputs ports: A0 ~ A7.
- The Nano board has 14 Digital input / output ports: TX, RX, D2 ~ D13.
- This Nano microcontroller is compatible with Arduino uses Atmel Atmega328P-AU MCU.
- You can buy Nano Arduino microcontroller board at Robocraze for best prices.
Note: User need to download CH341S64.SYS driver and use it with old bootloader settings in the arduino IDE.
Arduino Nano R3 Development Board Compatible with Arduino
The CH340 Soldered Nano Board R3 chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint.
The Nano board compatible with Arduino equips a low-cost USB-Serial Chip that makes it reliable and suitable for projects based around Arduino. The Nano microcontroller board is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3).
The CH340 Nano microcontroller board can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected as the highest voltage source.
The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm. It comes with 6 PWM I/O from a total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed, and 32kB of flash memory.
read more : Node to Node communication on LoRa with Arduino Nano and ESP32
Note: User need to download CH341S64.SYS driver and use it with old bootloader settings in the arduino IDE.
Key Features:
- Based on the Arduino platform, compatible with Arduino Uno but with a smaller footprint.

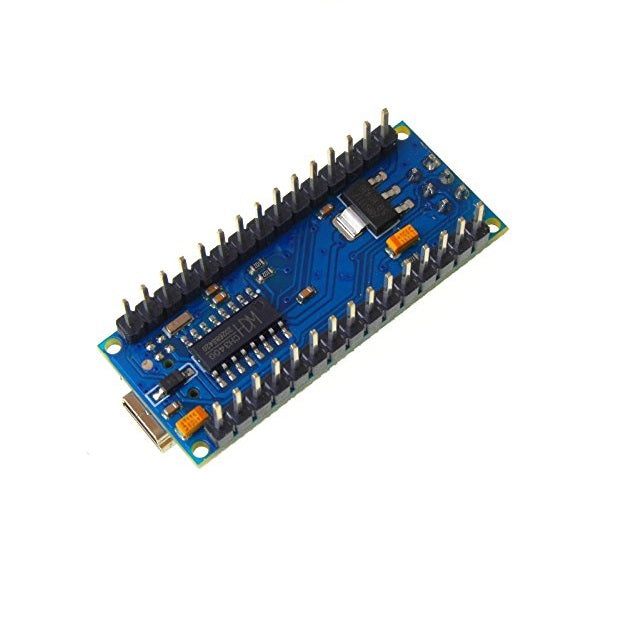

- Equipped with a CH340 USB-Serial Chip for reliability.
- Powered via mini-USB connection, 6-20V unregulated external power supply, or 5V regulated external power supply.
- Features 6 PWM I/O and 22 digital I/O pins.
- Provides 8 analog inputs.
- Operates at a clock speed of 16MHz with 32KB flash memory.
- Supports node-to-node communication on LoRa with Arduino Nano and ESP32.
- Requires downloading CH341S64.SYS driver and using old bootloader settings in Arduino IDE.
- Compatible with Nano 328P Expansion Adapter Breakout Board IO Shield for expanded access to pins.
check out : Arduino Nano BLE Sense (Rev-2) with Headers
Also check the Nano 328P Expansion Adapter Breakout Board IO Shield available on Robocraze. it serves as a breakout board for the Arduino Nano microcontroller. The shield is compatible with Arduino Nano v2.x and v3.x, providing expanded access to all digital and analog pins for easy sensor or servo connections.
read more : Sending data from Arduino nano to Raspberry Pi using lora communication
Package Includes:
- 1 x Nano Board compatible with Arduino
- 30 x Soldered Pins
Specifications:
|
Analog I/O Pins |
8 |
|
Architecture |
AVR |
|
Clock Speed |
16 MHz |
|
Color |
Blue |
|
DC Current per I/O Pin |
40 mA |
|
Digital I/O Pins |
22 |
|
EEPROM |
1KB |
|
Flash Memory |
32 KB of which 2 KB used by the bootloader |
|
Input Voltage(Recommended) |
7-12 V |
|
Microcontroller |
ATmega328 |
|
Operating Voltage |
5 |
|
Power Consumption |
19 mA |
|
PWM Output Pins |
6 |
|
SRAM |
2KB |
|
Weight (gm) |
8g |
|
Shipment Weight |
0.105 kg |
|
Shipment Dimensions |
6 × 5 × 3 cm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Uno R3 Board compatible
Regular price
Rs. 489
Regular price
Rs. 849
Sale price
Rs. 489
Unit price
per
Incl. GST (No Hidden Charges)
Sale

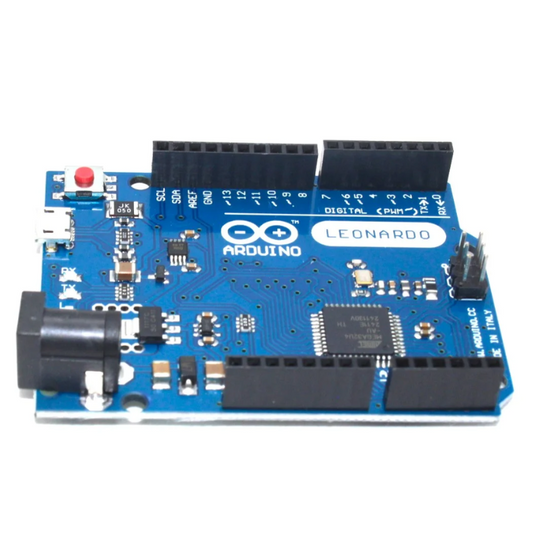

Arduino Leonardo R3 compatible board
Regular price
Rs. 460
Regular price
Rs. 649
Sale price
Rs. 460
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino Nano R3 Compatible Board with CH340 Chip
Regular price
Rs. 169
Regular price
Rs. 399
Sale price
Rs. 169
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the difference between Uno and Nano?
The difference between these two is the size. Because the Arduino Uno board is twice the size of the Arduino Nano board. As a result, Uno boards take up more room on the system. UNO can be programmed using a USB cable, whereas Nano requires a mini USB cable. The most notable difference between the two is that the Uno has 1.5 kB more available program memory due to a smaller boot section.
2. Should I buy Uno or Nano?
If the project is simple with low cost and a small profile it is better to go with Nano and it can be used in portable electronics and sensor gathering. Uno is the best choice for desktop prototyping with ethernet shields, and they can also be used in IoT sensors.
3. What is Nano Arduino?
The Nano is a small, complete, and breadboard-friendly board based on the ATmega328P released in 2008. It has the same connectivity and specifications as the Arduino Uno board but in a smaller form factor.
4. What is Nano R3 Development Board?
The Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3. x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It only has a DC power jack and uses a Mini-B USB cable rather than a standard one.
5. How many digital pins are there on the Nano board?
Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts.
6. Is this Nano Development board compatible with the official Arduino?
The Nano development board is the smallest, most complete, and breadboard-friendly board and 100% compatible with the official Arduino Nano card, and fully compatible with Windows, Mac, and Linux operating systems. It uses the chip ATmega328P CH340 instead of FT232RL. You can start with various electronic projects by using the Arduino software (IDE)
7. Is Bluetooth available on the Nano Development Board?
Yes. The Arduino Nano's main microprocessor is an ATmega328P, which communicates with the serial port to send and receive Bluetooth packets from the CC2540 BLE chip. This results in a Bluetooth-enabled Arduino device housed in a Nano-sized circuit board!
