Robocraze
PICKit 3.5 Programmer
PICKit 3.5 Programmer
Regular price
Rs. 2,430
Regular price
Rs. 2,999
Sale price
Rs. 2430
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Full-speed USB support using Windows standard drivers.
- Low voltage to 5V (1.8 to the 5V range)
- Read/write program and data memory of the microcontroller
- It is a program up to 512K byte flash.
- The PICKit 3.5 programmer works at a full speed of 12 Mbits/s and interfaces to host PC.
- It features real time execution and is MPLAB IDE compatible.
- The PICKit 3.5 programmer has a built in over-voltage/short circuit monitor for protection.

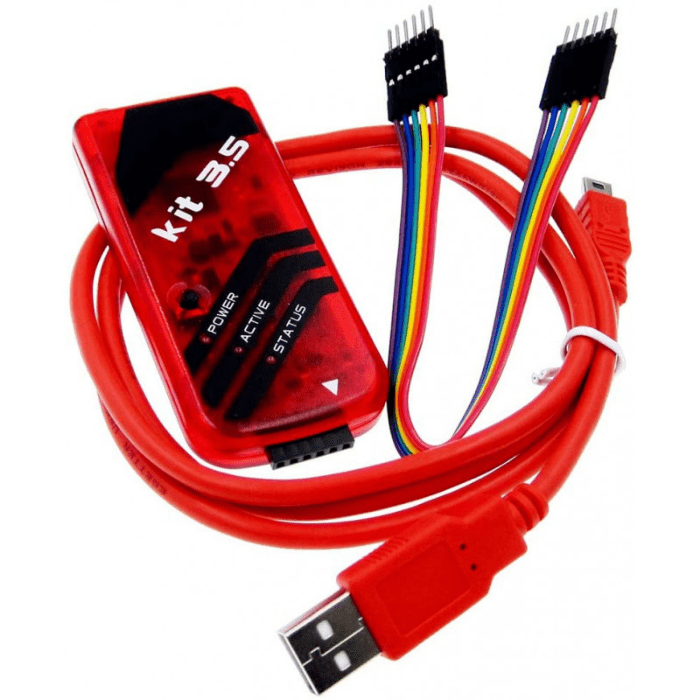

PICKit 3.5 Programmer
The PICkit 3.5 programmer allows debugging and programming of PIC and dsPIC Flash microcontrollers at the most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE).
The MPLAB PICkit 3 is connected to the design engineer's PC using a full-speed USB interface and can be connected to the target via a Microchip debug (RJ-11) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming.
Also check the SMD IC Adapters Set for Programmers, consisting of 9 pieces. The set includes various adapters such as SOP28-DIP28, SOP8-DIP8, PLCC44-DIP44, and more, allowing users to convert SMD components into DIP format for easier mounting.
PICKit 3.5 Programmer Pinout
Key Features:
- Includes features like real-time execution, breakpoints, and single-stepping.
- Enables programming and debugging in-circuit or in-system.
- Offers fast and reliable programming and debugging experience.
- Supports a wide range of PIC microcontrollers for programming and debugging.
- Provides an easy-to-use graphical interface for seamless operation.
Applications:
- Debugging programs

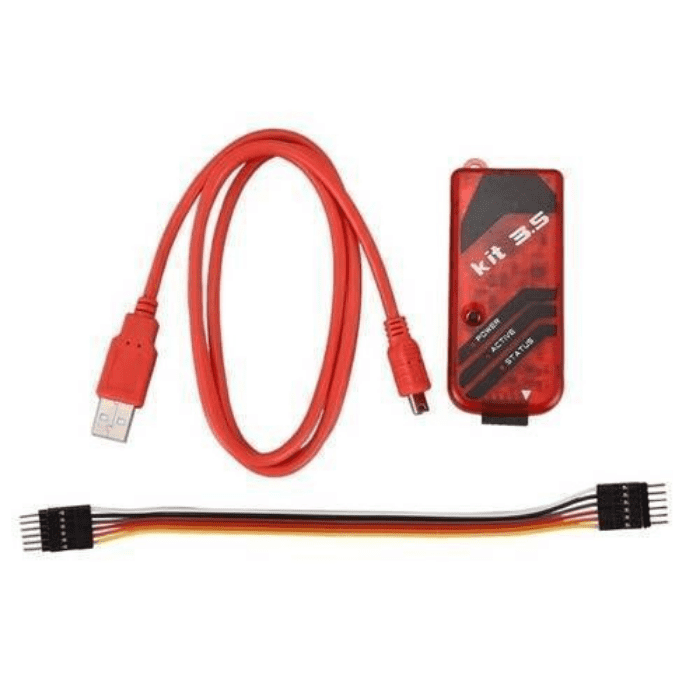

Package Includes:
- 1 x PiICKit 3.5 Programmer
- 1 x 6-Pin flat cable
- 1 x Mini USB cable
- 1 x Driver CD
Specifications:
| Model | PiICKit 3.5 Programmer |
| Product Dimensions | 12 x 10 x 4 cm |
| Weight | 40 grams |
| Speed | 12 Mbits/s |
| Compatibility | MPLAB IDE |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
ST-Link V2 Programmer and Debugger
Regular price
Rs. 418
Regular price
Rs. 680
Sale price
Rs. 418
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Universal Programmer TOP2013
Regular price
Rs. 8,999
Regular price
Rs. 9,499
Sale price
Rs. 8999
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
TL866 - Universal IC Programmer
Regular price
Rs. 6,334
Regular price
Rs. 7,632
Sale price
Rs. 6334
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
- You can download MPLAB IDE software from link.
1. What is PICKit 3.5 Programmer?
- The PICkit 3.5 programmer is a simple, low-cost, in-circuit PC controlled debugger running MPLAB IDE software (v8.20 or later) on Windows platforms. The PICkit 3.5 programmer/debugger is an integral part of the development engineer's tool suite.
2. What are the applications of PICKit Programmer?
- The PICkit 3.5 Programmer/Debugger is a debugger system for hardware and software development of microcontrollers (MCUs) and digital devices. Signal Controller (DSC) based on serial in-circuit programming and enhanced in-circuit serial programming 2-wire serial port. In addition to the debugger functionality, the PICkit programmer/debugger system can also be used as a development programmer. The PICkit Programmer/Debugger is not intended for use as a production programmer.
3. What is the difference between PICkit 2 and PICkit 3.5?
- PICkit 3 and PICkit 3.5 differ mostly in terms of features and functionality. As an online debugger coder, the PICkit 3.5 provides authentic and reliable performance. It is adaptable, appropriate for programming in different contexts, and able to burn PIC files with hash values. Also, a firmware self-recovery feature is added to the PICkit 3.5, an enhancement over the PICkit 3 model. All things considered, both devices function as in-circuit debugger programmers; nevertheless, many users prefer the PICkit 3.5 because to its improved capabilities and dependability.
4. Can the PICKit 3.5 Programmer be used with other development environments apart from MPLAB IDE?
- The PICKit 3.5 Programmer may work with different development environments that accept Microchip microcontrollers, though its primary purpose is to be used with the MPLAB IDE. To ensure compatibility with their preferred development environment, users must verify its specific requirements.
5. Can the PICKit 3.5 Programmer be used for programming and debugging simultaneously?
- Yes, you can simultaneously perform debugging and programming tasks using the PICKit 3.5 Programmer. The microcontroller may be programmed with new code, and users can debug current code to find and solve bugs.
6. What software is compatible with the PICKit 3.5 Programmer?
- The MPLAB Integrated Development Environment (IDE), which offers a robust graphical user interface for programming and debugging microcontroller code, is compatible with the PICKit 3.5 Programmer. Users can communicate with the programmer using the MPLAB IDE on their PC.
