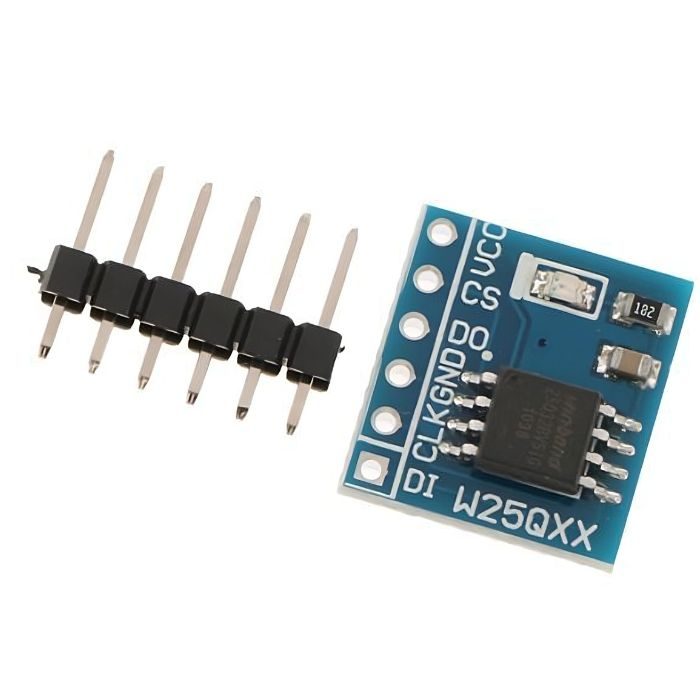

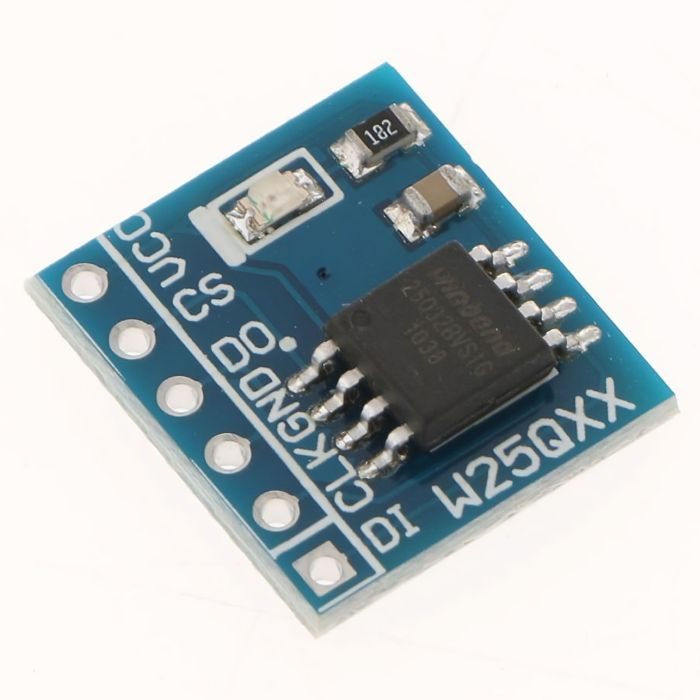

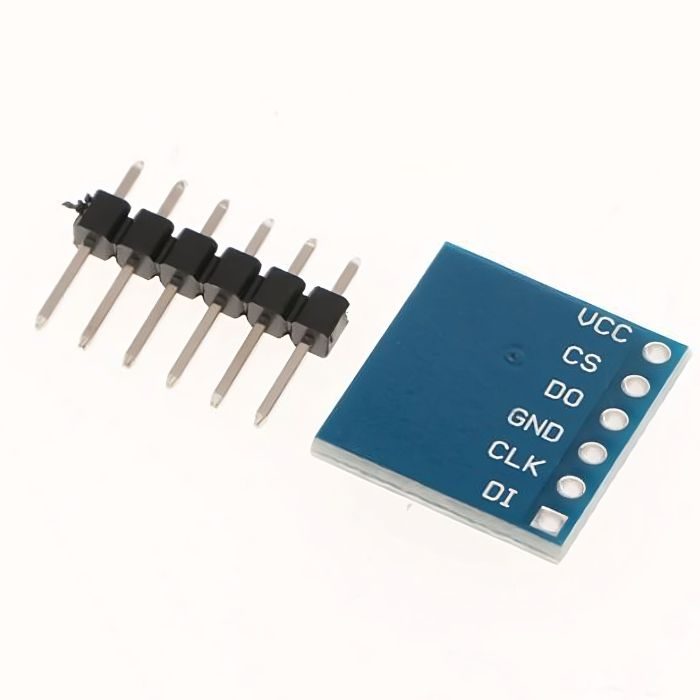

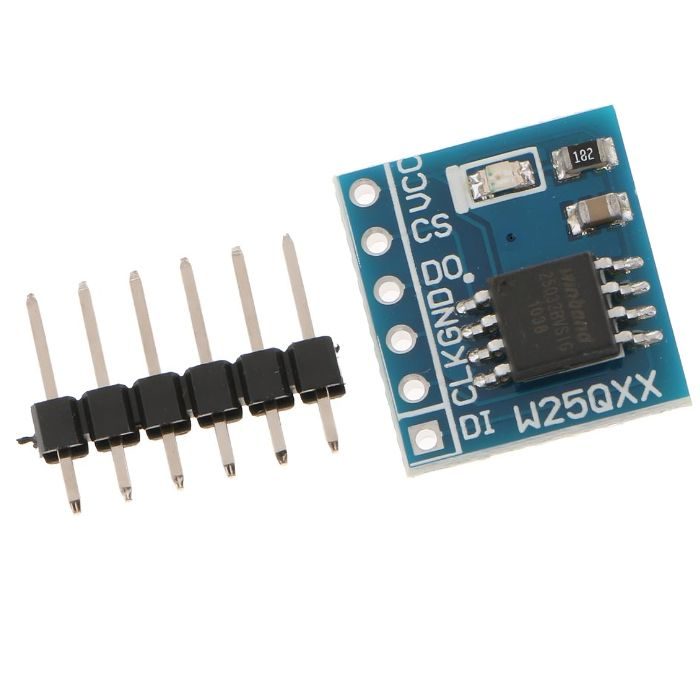

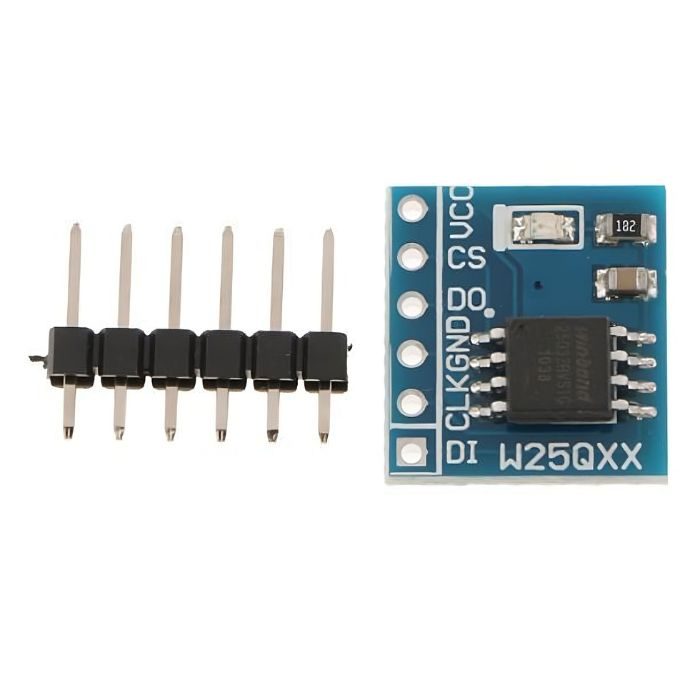

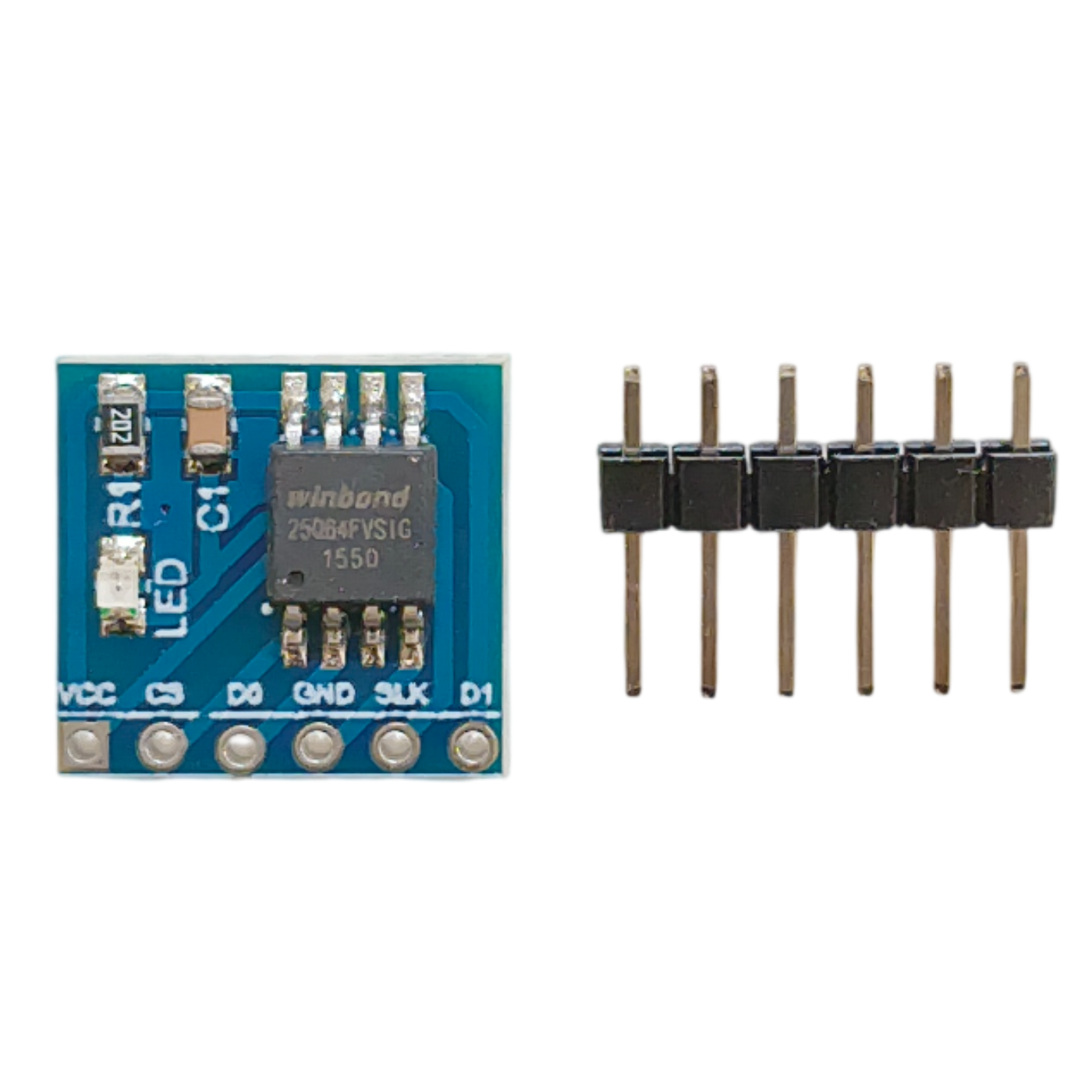

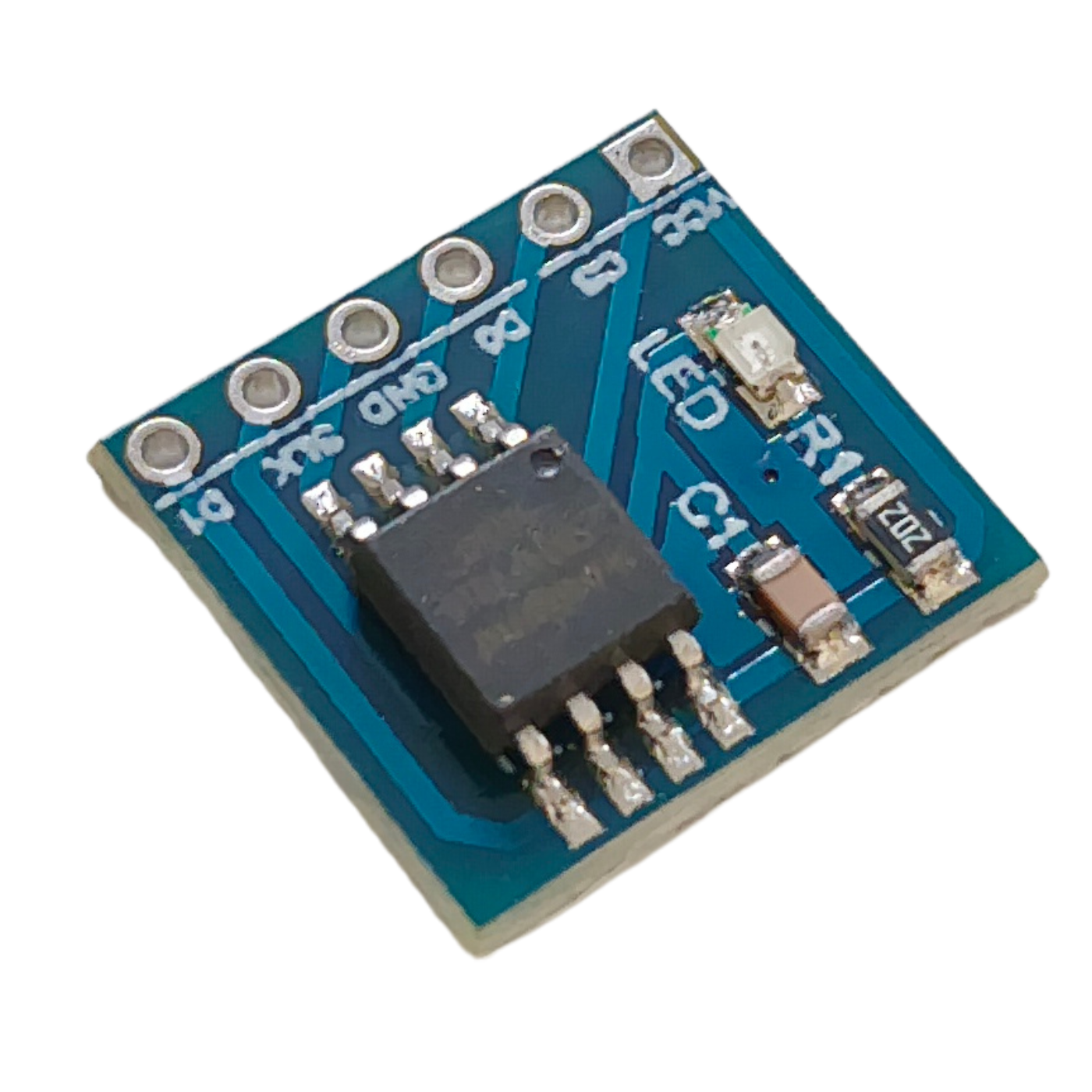

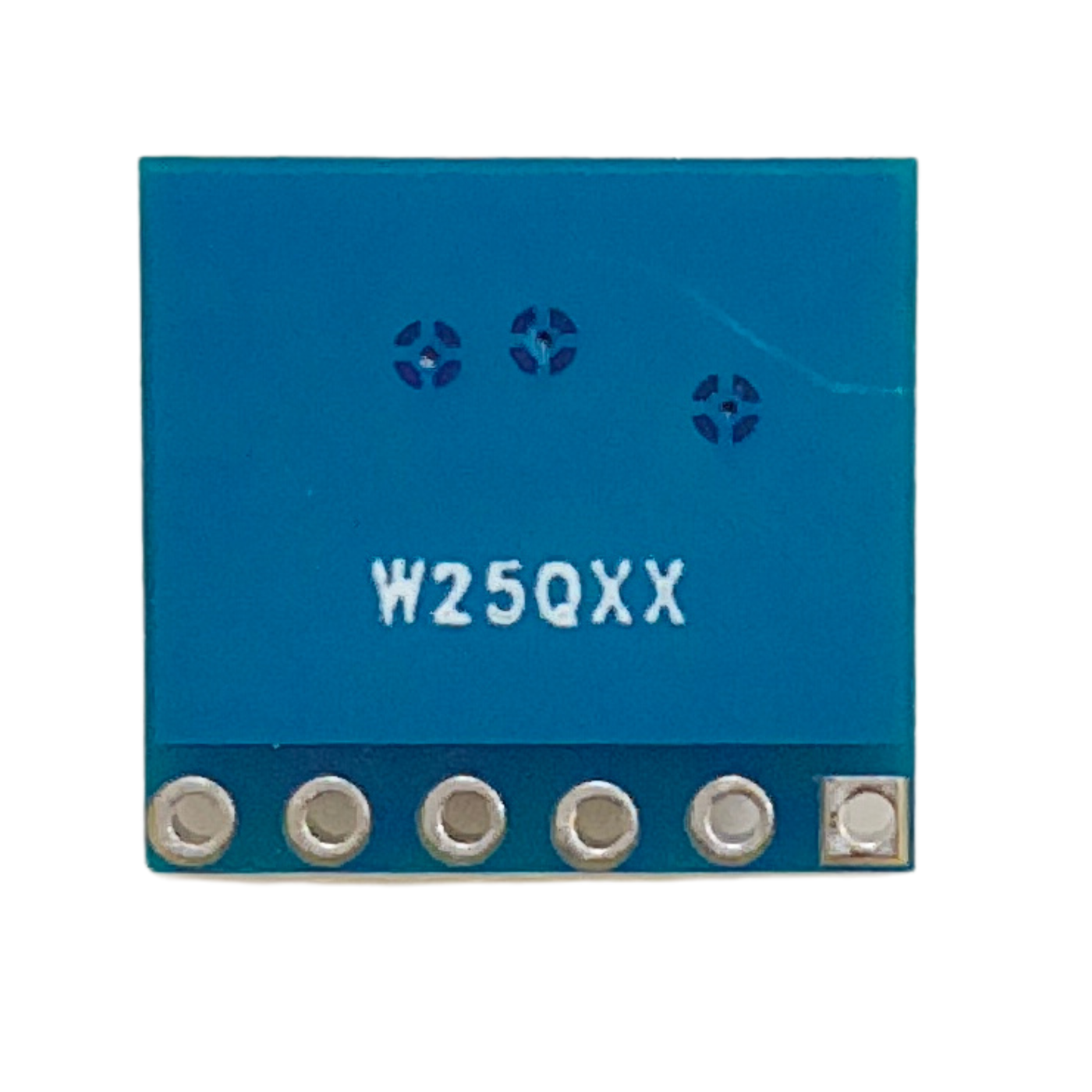

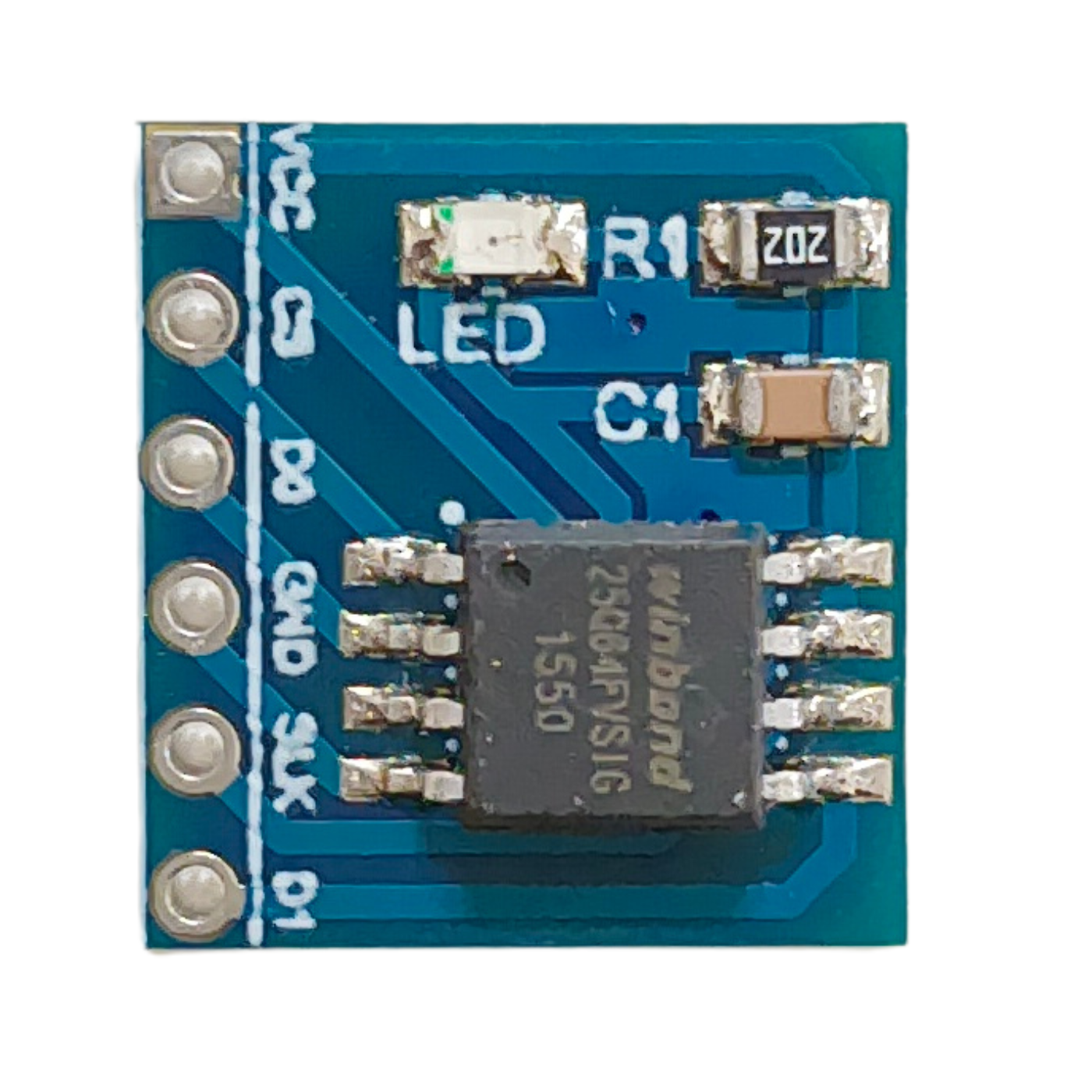

W25Q64 NorFlash Storage Module 64Mbit

W25Q64 NorFlash Storage Module 64Mbit

Regular price Rs. 81
Regular price Rs. 99 Sale price Rs. 81
Sale Sold out 18% off Best Price Guaranteed
You save Rs. 18
Incl. GST (No Hidden Charges)
  • This is W25Q64 NorFlash Storage Module 64Mbit
  • The Working voltage is  2.7V ~ 3.6V
  • The Capacity is 64M-bit / 8M-byte.
  • The Clock frequency is <104MHz.
  • This has Greater flexibility and performance.
  • This has Low energy consumption.
  • It accompanies pin bar

W25Q64 NorFlash Storage Module 64Mbit

The 64Mbit 8MByte Data Flash module SPI Interface BV/FV solves the problem of insufficient storage space on systems with limited space. When compared to common Serial Flash devices, the 25Q series is very efficient and provides high flexibility and performance. As a result, this module is an excellent choice for temporary data storage.

This integrated circuit is of high quality, has a large memory capacity, and consumes very little power. The module has numerous applications. For example, you can use to build devices that you can carry with you and store data with GPS (geographical location store) or acceleration in specific situations in the car.

It can be used for data storage in the same way that a computer's hard disc is; it is not volatile, and because it is solid-state, there is no risk of moving parts being damaged. The main benefit of the 25Q64FWSIG-1935Flash Memory Module is that it is already soldered onto a board, eliminating the need for the user to solder and making the doors accessible via DIP pins (attached to a pin bar). The matrix is organised efficiently into 32,768 programmable pages of 256 bytes each, where up to 256 bytes can be programmed at a time. Pages can be erased completely (entire chip) or in groups of 16 (4 KB in the industry), 128 (32 KB in block), or 256.

It also has the ability to delete 2,048 sectors and 128 blocks. Smaller 4KB sectors allow for greater flexibility in applications requiring parameter and data storage.

Features:

  • Capacity: 64M-bit / 8M-byte.
  • Clock frequency: <104MHz.
  • Greater flexibility and performance.
  • Low energy consumption.
  • It accompanies pin bar.

Package Includes:

  • 1 x W25Q64 NorFlash Storage Module 64Mbit

Specifications

Operating Voltage 2.7V - 3.6V
Current Consumption 4 mA
IC Model W25Q64FV
Capacity 64M-bit / 8M-byte
Clock Frequency (MHz) <104
Weight 2 gm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is W25Q64 nor flash storage module?

  • The W25Q64 is a NOR flash memory storage module. NOR flash is a non-volatile storage technology that stores data using floating-gate transistors. It is known as "NOR" flash because it allows data to be accessed in a random manner, similar to how RAM data is accessed (random-access memory). Winbond's W25Q64 is a specific type of NOR flash module. It has a storage capacity of 64 megabits (8 megabytes) and is intended for use in a wide range of electronic devices. It is capable of storing data such as programme code, images, and other types of data. NOR flash is well-known for its fast read speeds and low power consumption, making it a popular choice for use in a wide range of applications. The W25Q64 is frequently used in consumer electronics, industrial equipment, and other applications that require fast read speeds and low power consumption.
