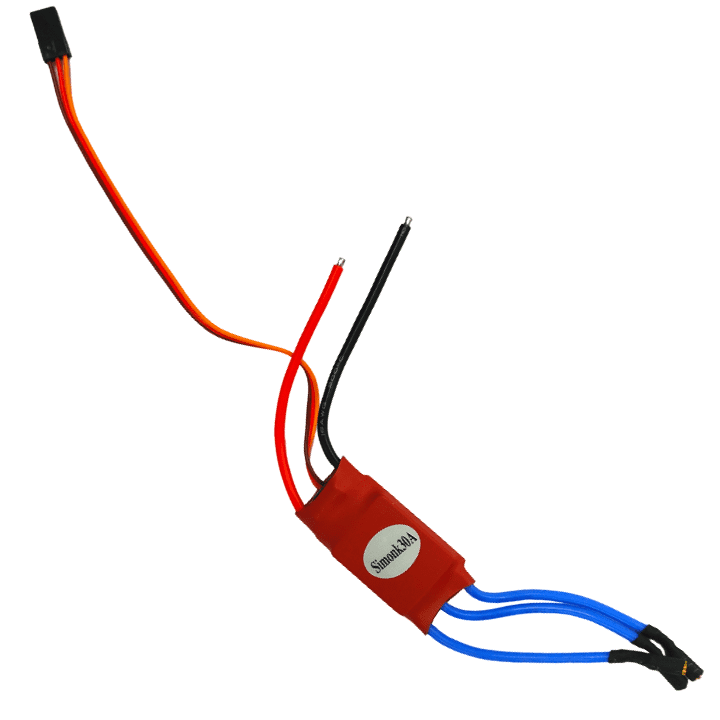

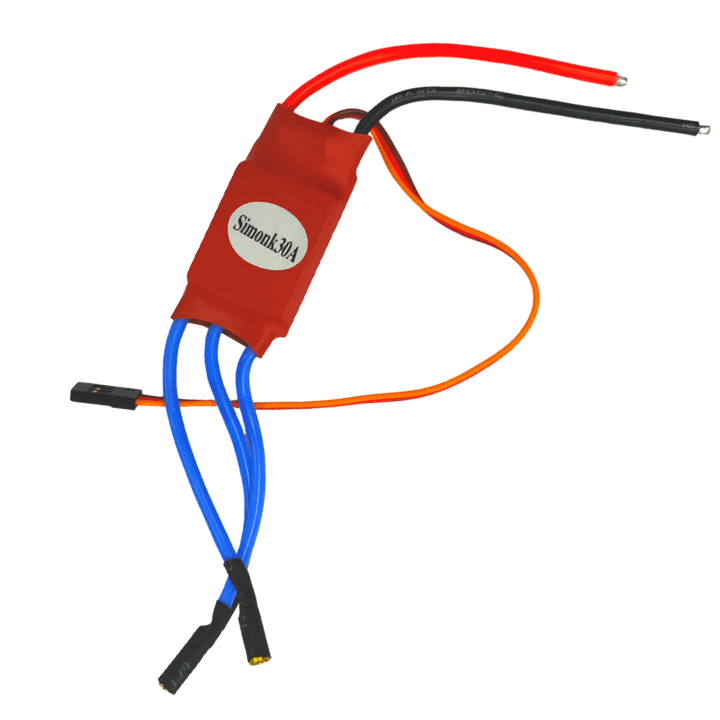

30A Simonk ESC Controller (With only bullets) for Drones

30A Simonk ESC Controller for Drones

The Simonk 30A ESC is an Electronic Speed Controller (ESC) which is used to drive brushless DC motors and is capable of supplying current up to 30A. The 30A Simonk controller is made for quadcopters and multicopters to provide faster and better motor speed control. Suited for quads up to 2.5kg, octos up to 5kg. The ESCs do not overheat, burn or lock out - unline many other ESCs flashed with the SimonK firmware. The ESC motor leads are reduced to simple bullet connectors, this allows for quick and clean installation inside your multi rotor. Compatible with 2S to 3S battery

This 30A ESC features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery to power those is not needed. These electronic speed controllers are best used with A2212 BLDC motors of 1000kv, 1400kv, and 2200kv.

Warning: When we connect BLDC ESC directly to the remote control receiver; never ever switch off the remote control before switching off power to the BLDC ESC. Depending on the model of the remote control; it may result in full throttle applied to the motor and it will rotate at full speed.

Connections:

• Power: Red - 7.4V to 14.8V
               Black - GND
• Servo: Yellow - Throttle Input
              Red - 5V, 2Amp Out
              Brown - GND
• BLDC Motor: 3 Blue Wires - BLDC ESC Connections

SAFE POWER FUNCTION OF THE SIMONK 30A ESC MOTORS

• High-quality MOSFETs for BLDC motor drive.
• The throttle calibration function of the Simonk ESC motor helps you to adapt to different remote throttle travel differences and improve throttle response smoothly.
• It provides low voltage protection as well as reverse polarity protection.
• It provides protection on the 5v lines.
• High-performance heat sink for better thermal management.

Features:

• Current Rating: 30A, suitable for driving motors that consume up to 30A of current.

• Voltage: Compatible with 2S-3S LiPo batteries (7.4V to 11.1V).

• BEC Output: Provides 5V and 2A to power the flight controller and other onboard modules.

• Firmware: Flashed with SimonK firmware for improved motor speed control and performance.

• Protection Features: Includes low-voltage protection, over-heat protection, and throttle signal loss protection.

• Connections: Features bullet connectors for easy and quick installation.

• Compatibility: Works well with A2212 brushless motors (1000kv, 1400kv, 2200kv).

• Applications: Ideal for use in quadcopters, multi-rotor drones, and RC planes.

Application:

• BLDC Motors in Quadcopters.
• Multirotor drones.
• RC Planes etc.

PACKAGE INCLUDES:

• 1 x Simonk Red ESC 30A without Connector

Specifications:
