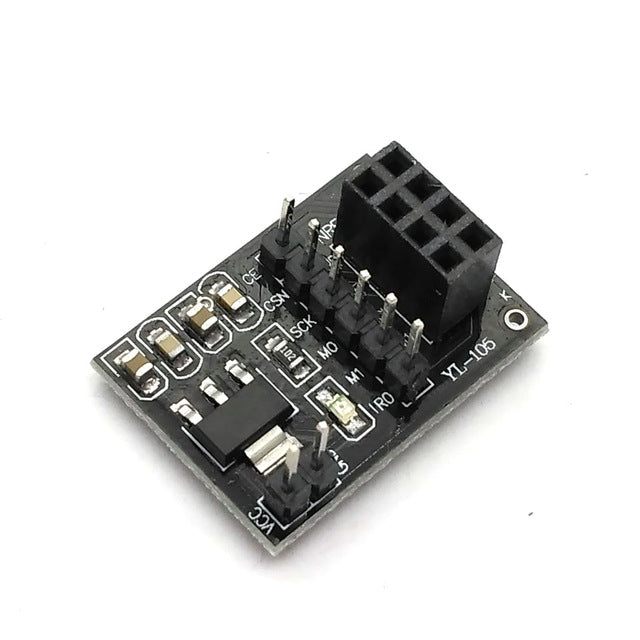

NRF24L01 Adapter Board

NRF24L01 Adapter Board

Regular price Rs. 33
Regular price Rs. 37 Sale price Rs. 33
Sale Sold out 11% off Best Price Guaranteed
You save Rs. 4
Incl. GST (No Hidden Charges)
  • This is NRF24L01 Adapter Board
  • NRF24L01 Transceivers plug into this small module
  • Works with low or medium power (with Power Amplifier) nRF24L01 transceivers
  • Easy to connect to nRF24L01 signals
  • 3.3V regulator provides adequate current to run nRF24L01
  • Bypass capacitors improve transceiver stability

NRF24L01 Adapter Board

With the 3.3V VCC Adapter Board, you can utilize NRF24l01 type transceivers on 5V systems, such as Arduino. It functions by regulating the 3.3V input to 1.9~3.6V DC and includes bypass capacitors for dependable operation.

This adapter board is particularly designed to work with the NRF24L01 transceiver module and features the Enhanced ShockBurst (ESB) protocol. It supports two-way data packet communication with packet buffering, packet acknowledgement, and automatic re-transmission of lost packets.

Features

  • It can be used with NRF24L01 wireless module
  • Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
  • Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
  • Allows for easy connection to nRF24L01+ modules
  • Small power on SMD LED indicator
  • On-Board Voltage Regulator:
  • Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
  • Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)

Package Includes:

  • 1 x 3.3V Adapter Board for 24L01 Wireless Module

Specifications

On-board chip AMS1117-3.3
Input Voltage 5V DC
Output Voltage 1.9~3.6 DC
Operating Current 12 mA
Dimensions  26 x 19 x 12mm
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. Can I use NRF24L01 without Arduino?

Yes, you can use NRF24L01 without an Arduino. The NRF24L01 is a wireless transceiver module that uses SPI (Serial Peripheral Interface) to communicate with a microcontroller. You can connect the NRF24L01 to any microcontroller with an SPI interface, such as an STM32, PIC, or AVR microcontroller, to send and receive data wirelessly.

To use the NRF24L01 with a microcontroller, you will need to write code to configure and control the module. The NRF24L01 datasheet provides detailed information on the module's registers and commands, which you can use to program the module. You can also find libraries and example code online that can help you get started with using the NRF24L01 with a microcontroller.

Note that the NRF24L01 operates at 2.4GHz frequency, which is a crowded band and may be affected by interference from other devices. To ensure reliable communication, you may need to implement error-checking and packet verification mechanisms in your code.

2. How does nRF24L01 work?

The nRF24L01 is a wireless transceiver module that uses the 2.4 GHz ISM band to transmit and receive data wirelessly. To communicate with each other, modules need to be on the same frequency channel within the band. The module can operate with baud rates ranging from 250 kbps to 2 Mbps, and its range can go up to 100 meters when used in open space with lower baud rate. The nRF24L01 is a popular choice for wireless control applications and is compatible with any microcontroller.

3. What can you do with nRF24L01?

The nRF24L01 is a versatile 2.4GHz RF transceiver that can be utilized for wireless control in various applications. Being a transceiver, it can both transmit and receive data. It is compatible with any microcontroller and can be employed for wireless PC peripherals, remote sensors, robot control and monitoring, among other scenarios. To utilize the nRF24L01, it needs to be connected to an Arduino board and paired with the RF24 library to simplify programming. The nRF24L01 is particularly useful in projects that require wireless transmission, such as using a remote sensor to relay data to a controlling microcontroller without the use of wires.
