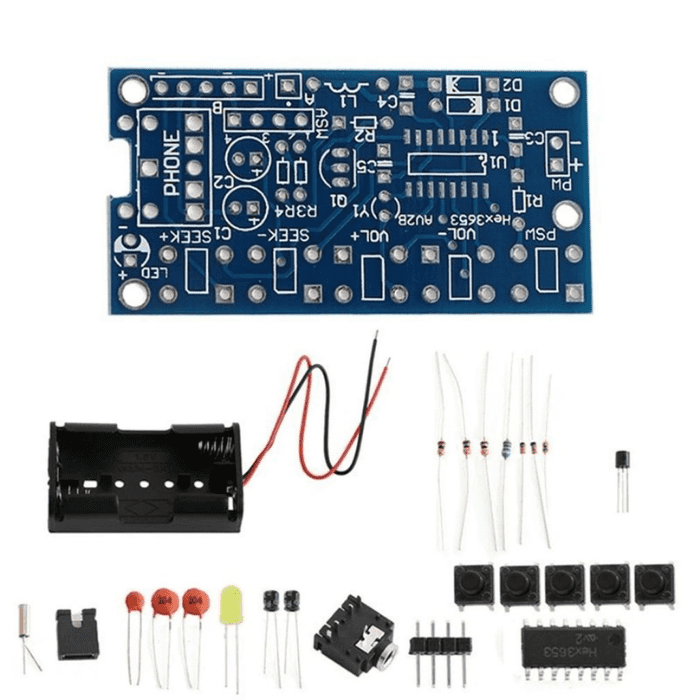

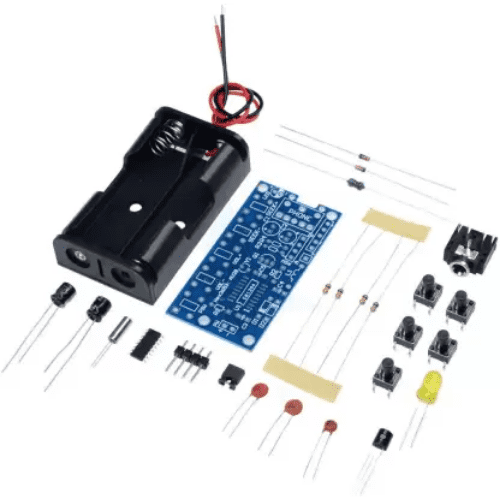

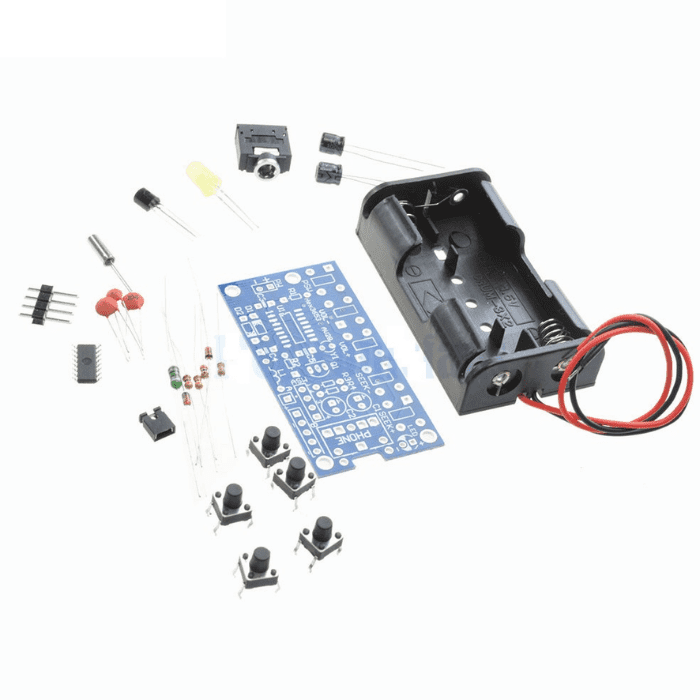

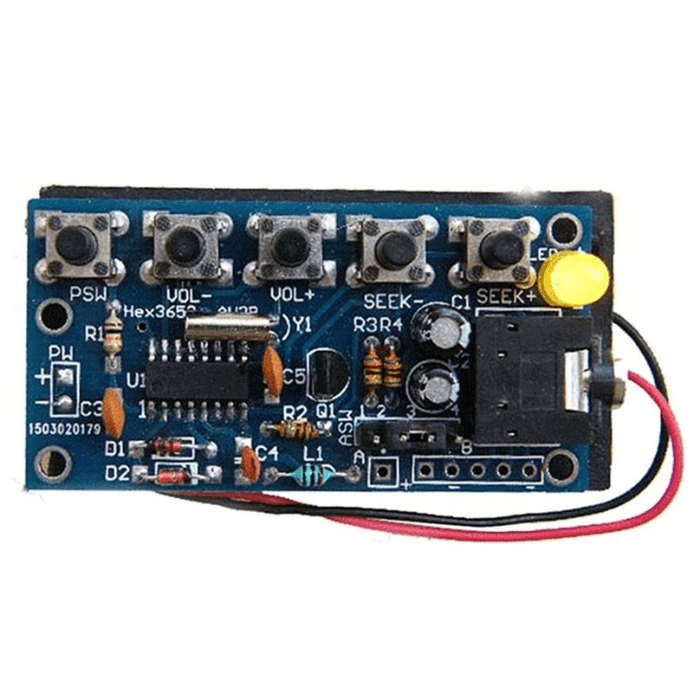

76MHz-108MHz Wireless Stereo FM Radio Kit
76MHz-108MHz Wireless Stereo FM Radio Kit
Regular price
Rs. 198
Regular price
Rs. 249
Sale price
Rs. 198
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 40 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 76MHz-108MHz Wireless Stereo FM Radio Kit
- Suite variety of electronic components: a plurality of electronic components, resistors, capacitors, inductors, diodes, integrated circuits, headphone jack, buttons, etc., many kinds of basic components.
- Suitable for use epoxy PCB welding students use rather than for general use paper-based board! Frequency range: FM 76-108MHz .
- Make it your favourite radio and take it anywhere you want.
- The kit FM scan radio pocket computers using special blocks, a 16-pin dual flat package.
76MHz-108MHz Wireless Stereo FM Radio Kit
This DIY electronics kit is perfect for both electronics hobbyists and beginners. The Wireless Stereo FM Radio Receiver Module PCB DIY Electronic Kits 76MHz-108MHz Kit has been optimized for easy element arrangement and high success rates during manufacturing and installation. It has even been used in schools, so its performance is trusted.
This RF kit is not just a simple welding assembly. It allows for hands-on adjustment of the coiled-coil and more fun than other simple assembly kits. The main advantage of using a headset is that it takes into account the noise in student classrooms. The FM radio program provides rich and good sound quality, making it possible to launch your own FM radio station.
The kit includes an FM scan radio pocket computer using special blocks, including the RDA5807FP FM radio module, a 16-pin dual flat package, and a working voltage of 1.8-3.6V. The circuit includes an FM radio receiver from the antenna to the frequency discriminator output audio signals, with features like a search tuning circuit, a signal detection circuit, a mute circuit, and a compression frequency offset of the frequency-locked loop (FLL) circuit.
The IF frequency of the circuit is designed to be 70KHZ, with peripheral circuits without an intermediate frequency transformer. The frequency is selected by an internal RC circuit IF filter to complete. The circuit also includes digital radio tuner buttons for electrical tuning (SEEK +, SEEK-) and volume control buttons (VO). Get started with electronics and DIY radio with this Electronic kit for beginners.
Features
- Functional and high quality, Receives at 76MHz - 108MHz
- The perfect DIY and practice kit for hobbyist and electronic professionals
- An excellent tool to educate young pioneers.
Applications
- DIY kit for building a wireless stereo FM radio receiver
- Can receive frequencies between 76MHz and 108MHz with stereo sound
- Easy to assemble, suitable for educational or DIY projects
- Once assembled, can be used to listen to FM radio stations
- Available for purchase on Amazon and other online retailers
Package Includes:
- 1 x Wireless Stereo FM Radio Kit
Specifications
| Model | RDA5807FP |
| frequency | 76- 108 mhz |
| Supply voltage | 1.8-3.6V |
| Dimensions | 11 x 9 x 5cms |
| Weight | 100 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

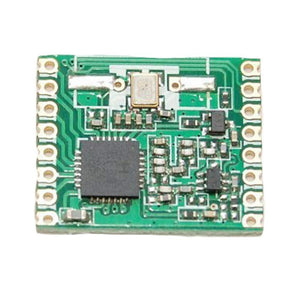

RFM69 FSK Transceiver Module
