Beginners Digital Electronics Kit

Regular price
Rs. 749
Sale price
Rs. 749
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • The Beginners Digital Electronics Kit has been designed to introduce students, beginners and enthusiaists to the amazing world of digital electronics.
  • This kit consists of logic gate ICs, LEDs and buttons to allow you to create circuits and understand their working.
  • This will help you learn the basic concepts of boolean logic and boolean algebra.
  • Along with the components, a Beginners Digital Electronics Manual is also included to guide you through the concepts and the various experiments possible using the logic gates.

The BeginnersĀ Digital Electronics kit consists of a plethora ofĀ logic gate ICs along with buttonsĀ andĀ LEDsĀ which can be used to give input to the gates and visualize their outputs.

Note: The package dimensions are 22x15cms and weghs about 50 grams.

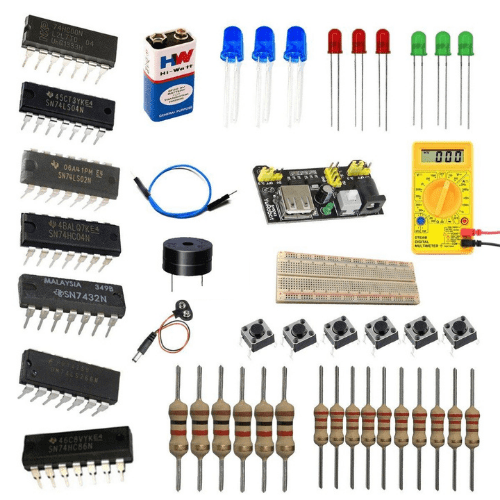

Package Includes:

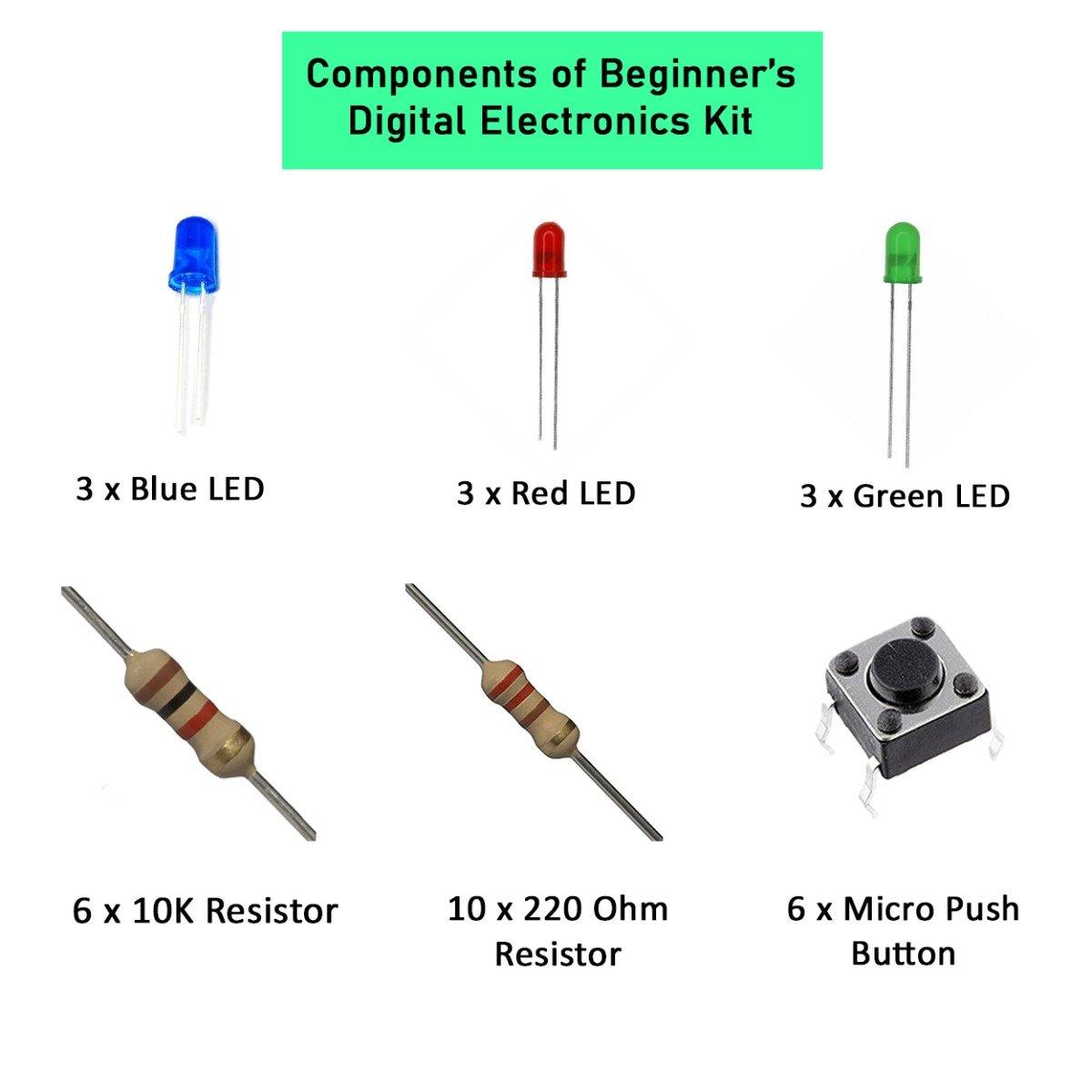

LED Red 3
LED Blue 3
LED Green 3

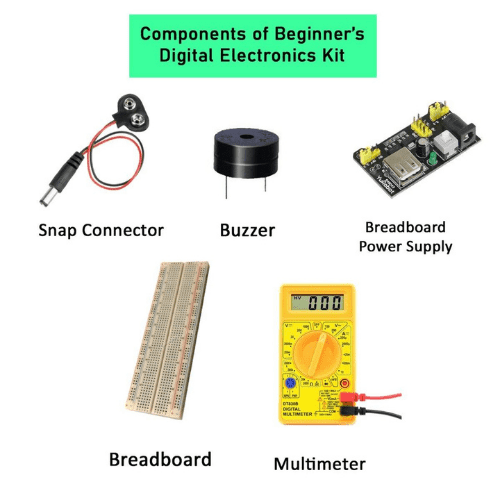

Bread Board - Full Size MB102 1
Buzzer- Goli 1

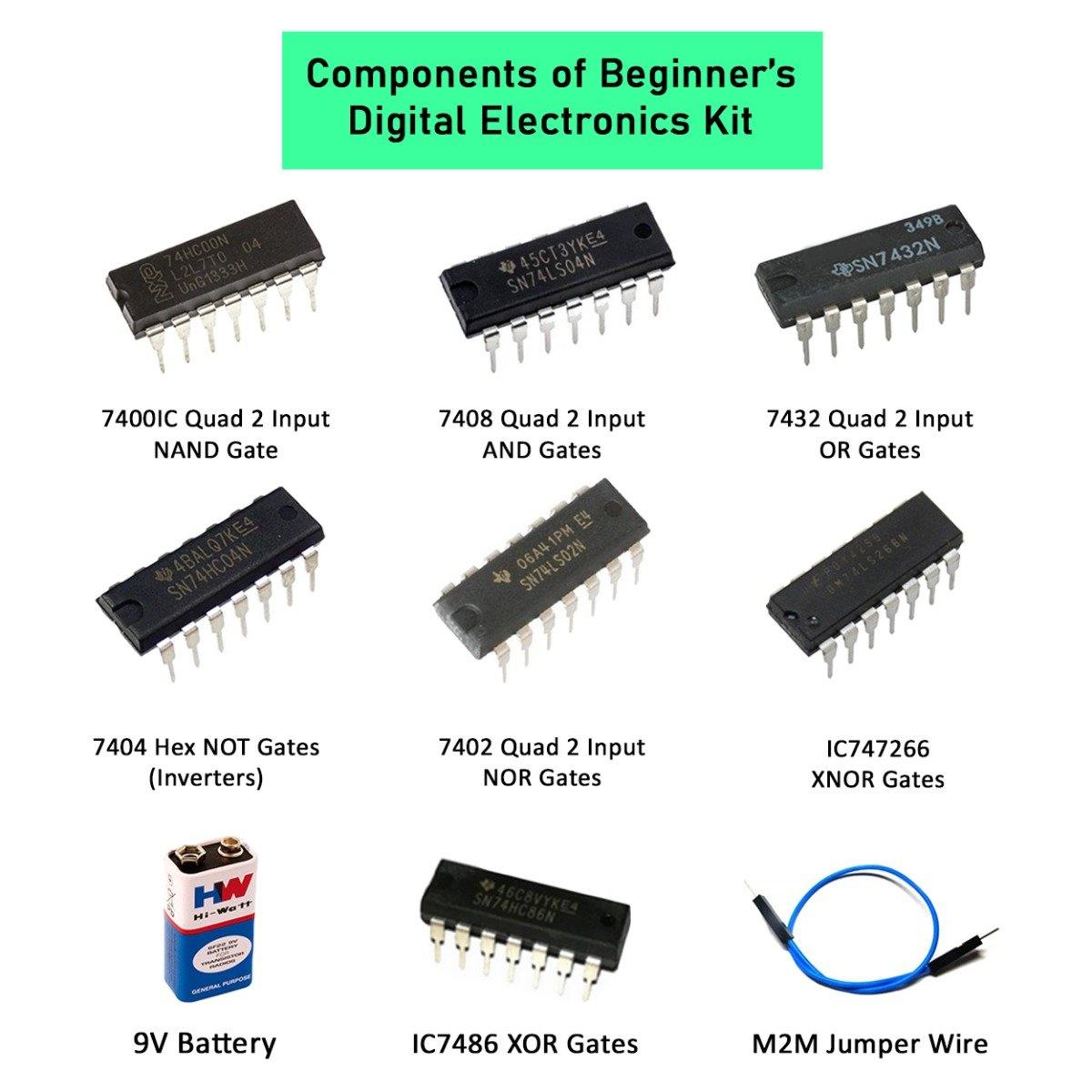

7400 Quad 2 input NAND gates 1
7402 Quad 2 input NOR gates 1
7404 Hex NOT gates (Inverters) 1
7408 Quad 2 input AND gates 1
7432 Quad 2 input OR gates 1
IC7486 XOR gates 1
IC747266 XNOR gates 1
M2M Jumpers setĀ  1
9V Battery 1
Breadboard Power Supply 1
Battery Snap with DC jackĀ  1
Micro push button 6
10K resistors 6
Multimeter 1
220 ohm resistor 10

Ā

Applications of this kitĀ

The Beginners Digital Electronics kit can be used to build various circuits such as half and fullĀ adders, subtractors, flip flops etc. It can also be used to build circuits that evaluate certainĀ boolean expressions.

Ā

Sample Experiment

Building a half adder

An adder is a digital logic circuit that is extensively used for the addition of numbers. These circuits are extensively used in very low-level hardware in computers to add numbers.

Ā

Material Required:

  1. Breadboard Power Supply
  2. 9V Battery
  3. DC Barrel Jack
  4. Breadboard
  5. IC7486 XOR gate
  6. IC7408 AND gate
  7. IC7432 OR gate
  8. Jumper Wires

Ā

Procedure:

With the help of half adder, we can design circuits that are capable of performing simple addition with the help of logic gates. The truth table for the half adder is given below:

INPUT

OUTPUT

A

B

SUM

CARRY

0

0

0

0

0

1

1

0

1

0

1

0

1

1

0

1

Ā

Logical Expression for SUM in the above table

Aā€™B + ABā€™ (XOR operation)

Logical Expression for C-OUT (Carry) in the above table

AB (AND operation)

From the output, it is clear that the SUM can be obtained using an XOR gate while carry can be obtained using AND gate. Hence the circuit looks like below
