XL6009 Boost Module
XL6009 Boost Module
Low stock: 1 left
Regular price
Rs. 62
Regular price
Rs. 99
Sale price
Rs. 62
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 10 hours and 18 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

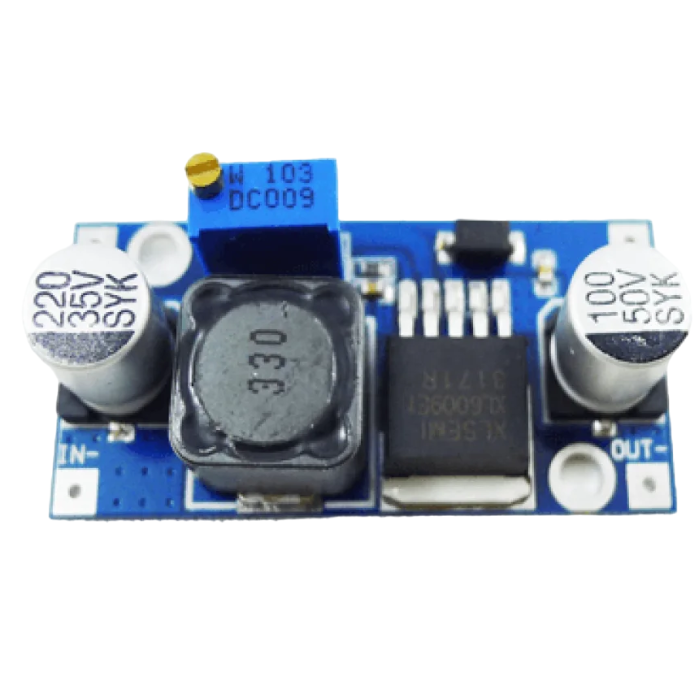

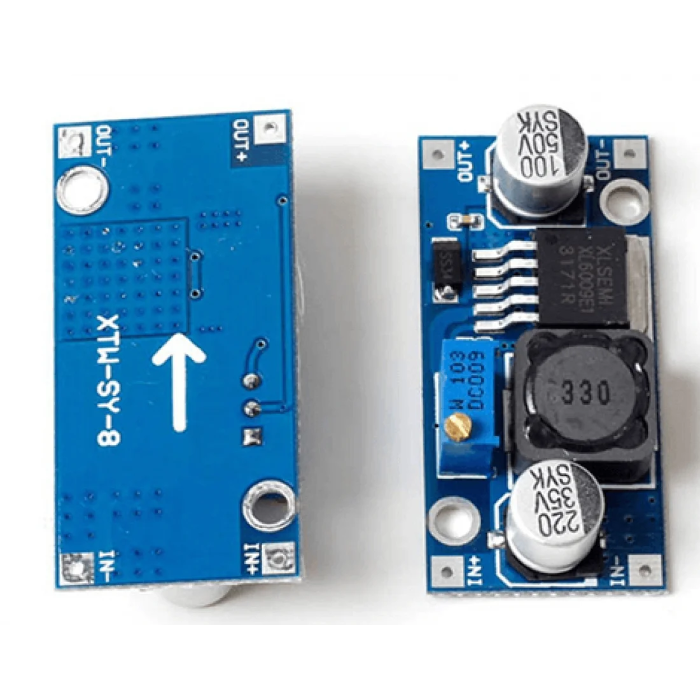

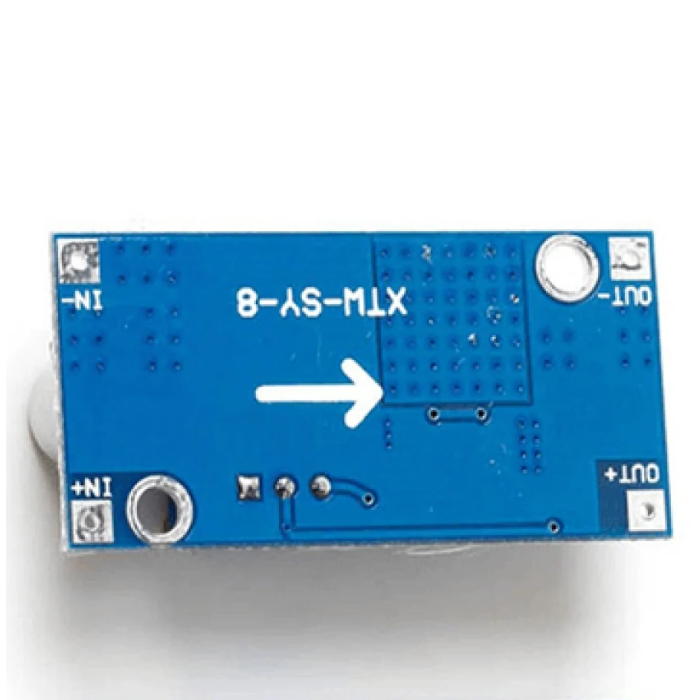

- This is XL6009 Boost Module
- This is Non-isolated step-up boost voltage converter
- Adjustable output voltage and high efficiency
- Converts input voltage of 5-32V DC to an output voltage of 4-38V DC
- Output current may be lower than input current
- Output current greater than 2.5A (or output power greater than 10W) requires heat sink
- Suitable for solar cell, car regulator, and wind power applications.
XL6009 Boost Module
The XL6009 Step Up module is one of the widely used modules, where there is a requirement of having a specific fixed output voltage, even when the input voltage is below or above the required output voltage.
XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage and high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC.
Note: When using these modules remember that the output current will be a lot less than the input current, (remember - W = VA). For example, if you have a 10V output at 1A from a 5V input, the input current will be around 3.6A. The real-life maximum amount of power you can get out of these things is around 10W.
Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add a heat sink.
Features
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Applications:
- Solar Cell
- Car Regulator
- Wind Power
Package Includes:
- 1 x XL6009 Boost Module
Specifications
| Input Voltage (V) | 5 to 32V |
| Input Current(A) | 4A |
| Output Voltage(V) | 5 ~ 35V |
| Dimensions | 4.3 x 2 x 1.2cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
LM2577 DC-DC Step-up Power Converter Module
Regular price
Rs. 144
Regular price
Rs. 199
Sale price
Rs. 144
Unit price
per
Incl. GST (No Hidden Charges)
Sale
LM2596S & LM2577S DC-DC Adjustable Step-Up and step-down Power Supply Module
Regular price
Rs. 256
Regular price
Rs. 371
Sale price
Rs. 256
Unit price
per
Incl. GST (No Hidden Charges)
Sale
XL4015 DC-DC Step Down Adjustable Power Supply Module
Regular price
Rs. 83
Regular price
Rs. 144
Sale price
Rs. 83
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is the XL6009 boost module? Where is it used?
The XL6009 boost module is a non-isolated step-up boost voltage converter featuring adjustable output voltage and high efficiency. It converts an input voltage of 5-32V DC to an output voltage of 4-38V DC.
The XL6009 boost module is used mainly used in Solar Cell, Car Regulator, and Wind Power
2. How do I use the step-up XL6009 boost module?
The XL6009 Step Up Down module is an automatic Buck-Boost Converter. And as a result, the output voltage of the module can be fixed at a specific voltage, and the input can be higher or lower than the output voltage. The power module has a potentiometer to adjust the output voltage according to the user needs. Users can adjust the potentiometer to get the output voltage from 5V to 35V. However, the higher input voltage offers higher load current capabilities.
The interfacing of the XL6009 module is quite easy. Connect the regulated or unregulated input across the IN+ and IN- pin and use the potentiometer to adjust the output voltage. Connect the load directly at OUT+ and OUT- pins.
3. What are the advantages of the XL6009 boost module?
Below are the advantages of the XL6009 boost module
- Gives a high output voltage.
- Low operating duty cycles.
- The lower voltage on MOSFET.
4. What is the difference between buck and boost converter?
The buck converter is a voltage step-down converter, and the boost converter is a voltage step-up converter. The voltage transformation ratio depends on the source voltage and the required load voltage.
