Easy to use
It is easy to use prototyping board
Witty Fox
Witty Fox - ESP32 Storm Board with Support for Battery Charging & Wireless Programming
Witty Fox - ESP32 Storm Board with Support for Battery Charging & Wireless Programming
Out of stock
Regular price
Rs. 624
Regular price
Rs. 849
Sale price
Rs. 624
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

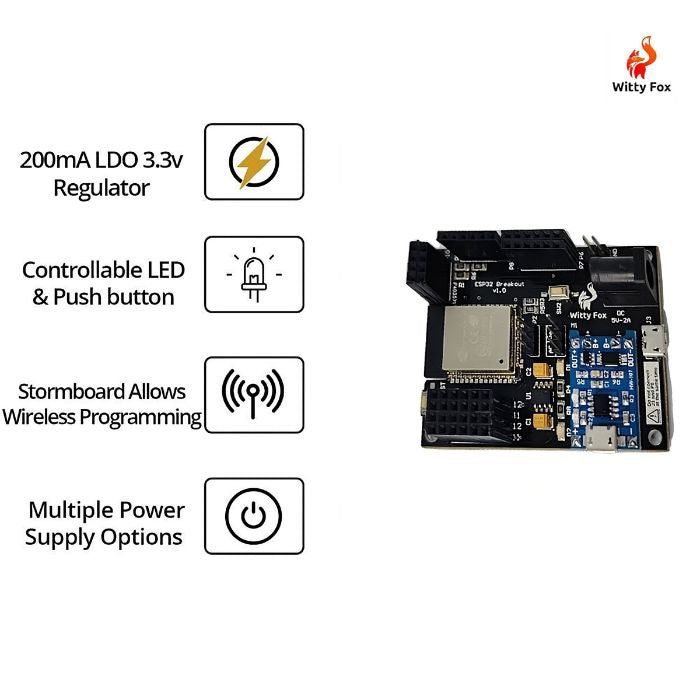

- This is Witty Fox - ESP32 Storm Board with Support for Battery Charging & Wireless Programming
- This has Inbuilt battery protection and a charge-discharge module. Selectable power switch (Battery not included).
- [Advanced Technology]: Storm board enables users to wirelessly program the board by default(OTA).
- This has multiple power supply options (micro USB, DC Jack, Battery, Headers).
- 200mA LDO 3.3v regulator for a wide operating voltage range.
- The onboard Controllable LED & push button connected to GPIO.

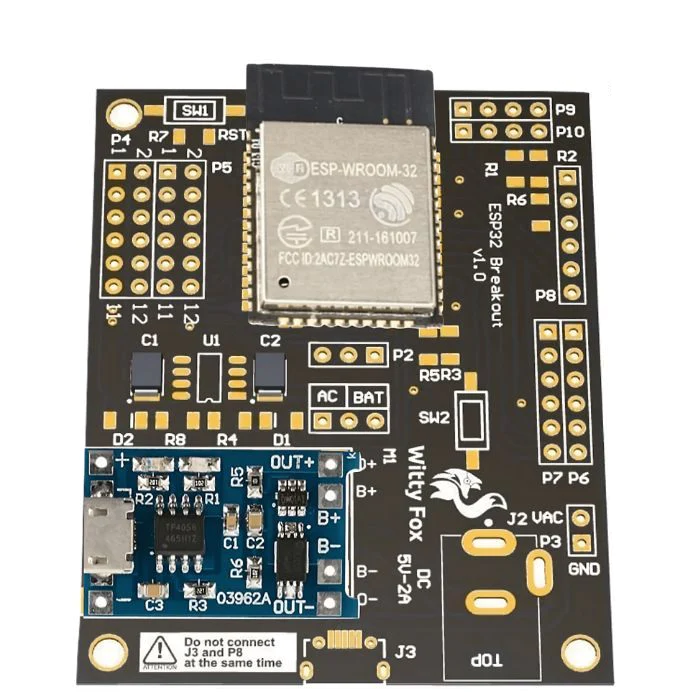

Witty Fox - ESP32 Storm Board
The WittyFox ESP32 Storm board is easy to use prototyping board developed specially keeping IoT Applications in mind. It allows users to upload their program wirelessly (OTA) by default or connect to the laptop using Witty Fox ESP Programmer. Mostly all usable GPIO breakouts of ESP 32 are neatly organized with power pins to aid the user in quick prototyping.
If want you can make NFC based security door lock and for that you will need a few essential components like:
- Witty Fox NFC board
- 1000mAh Li-ion battery
- 12V Solenoid lock
- 5V relay module
- Jumper Wires
- 5V micro USB Power adapter
- 12V Power adapter
It also has multiple breakouts for both SPI and I2C interfaces, as well as a dedicated breakout for the PIR sensor. The in-built battery charging and protection board can be easily replaced by the user in case of any damage to the product caused during prototyping. It features a low dropout on-board linear regulator by Microchip Technology[TM] for operation with Li-Ion batteries. (Battery not included).
Video Tutorial for Witty Fox - ESP32 Storm Board
Over the Air (OTA) Wireless programming
Applications:
- Programmable Logic Controllers (PLCs)
- Wearable health monitors
- HVAC and thermostats
- Including surveillance cameras
- Smart locks
Package Includes:
- 1 X Witty Fox ESP Storm Board
Specifications:
| Brand | Witty Fox |
| Model | ESP Storm Board |
| Dimensions | 12.7 x 9.91 x 5.08 cm |
| Weight | 100grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Witty Fox - ESP32 Storm Board with On-Board Li-ion Battery & Wireless Programming
Regular price
Rs. 889
Regular price
Rs. 1,099
Sale price
Rs. 889
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Arduino MKR IoT Bundle
Regular price
Rs. 6,299
Regular price
Rs. 7,997
Sale price
Rs. 6,299
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
ESP32 (38 Pin) WiFi + Bluetooth NodeMCU-32 Development Board
Regular price
Rs. 354
Regular price
Rs. 519
Sale price
Rs. 354
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. How do I charge my ESP32 Storm board?
- To charge the ESP32 you need to connect the micro-usb cable to the micro-usb port on the TP4056 battery charger as highlighted in the below image. Note that it requires 5v so do not connect adapters with a higher or lower voltage rating.
- Powering a ESP32 Storm board. As shown in image below, the esp32 storm board can be powered in two ways either through a Micro USB to USB Adapter or through a 3.7V lithium Ion Battery.
Fig: Ways to power ESP32 Storm Board.
2. What is an ESP32 Storm Board used for?
- The ESP32 storm board is used to build any embedded solution or prototype embedded applications. It is also a good platform for a beginner who wants to get a quick start in learning about embedded systems and IoT.
3. What programming languages can I use to program the ESP32 Storm Board?
- You have several options here as the ESP32 Storm Board supports multiple programming languages. The two most widely used frameworks are the ESP-IDF and Arduino Framework.
