- The WeMos D1 microcontroller board is vased on the ESP-8266EX.
- It is a wifi development board that is compatible with Arduino IDE.
- The WeMos D1 board is also compatible with Node MCU.
- You can buy the WeMos D1 development board online at best prices.
WeMos D1 Board compatible with Arduino

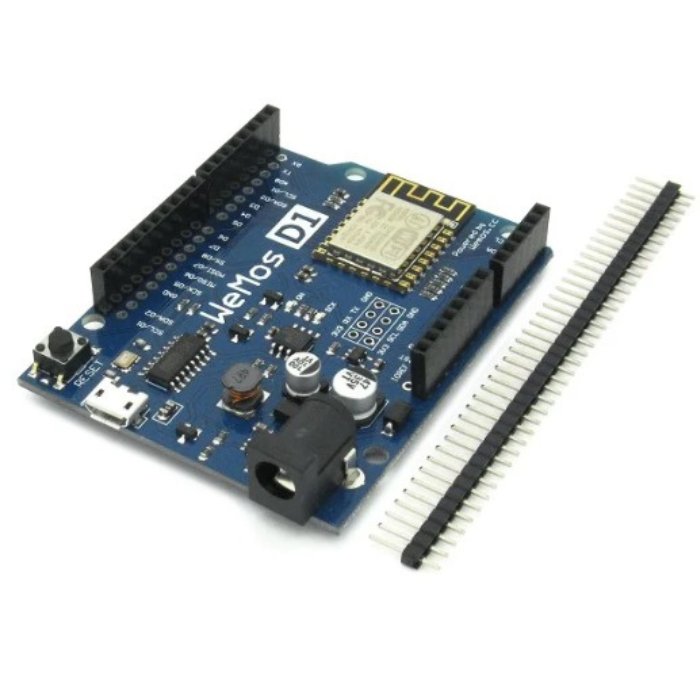

This is WeMos ESP8266 D1 R2 V2.1.0 WiFi Development Board. The WeMos D1 is an ESP8266 WiFi based board that uses the Arduino layout with an operating voltage of 3.3V.
the board is controlled by the ESP8266 chip (a 32-Bit processor) and has a larger flash memory compared to an Arduino Uno. It consists of 11 digital I/O pins and 1 analog (input) pin. the board can be connected using a Micro-B type USB cable.

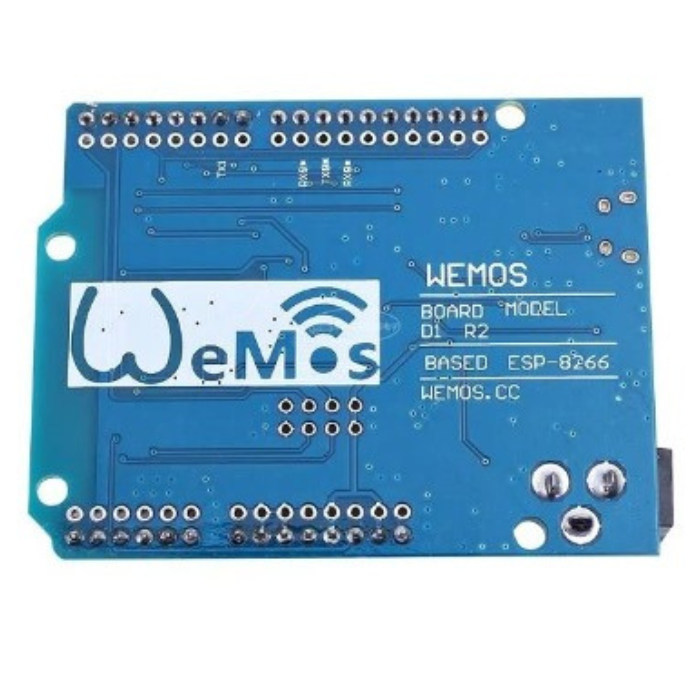

The D1 R2 is a WiFi capable ESP8266EX based development board in the form of the Arduino UNO board format. This board is compatible with the Arduino IDE and with NodeMCU.
The D1 R2 also features an onboard switching power supply which allows you to power the board from a power supply up to 12V.
- 1 x WeMos D1 Board
Features of WeMos D1 Board compatible with Arduino
|Board Type||Wifi Developmet Board|
|Digital I/O Pins||11 (all I/O pins have interrupt/PWM/I2C/one-wire capability, except for D0)|
|Analog Input Pins||1|
|Input Voltage Range||9V to 12V|
|Output Voltage||5V at 1A Max|
|Dimensions||5 x 4 x 3cms|
