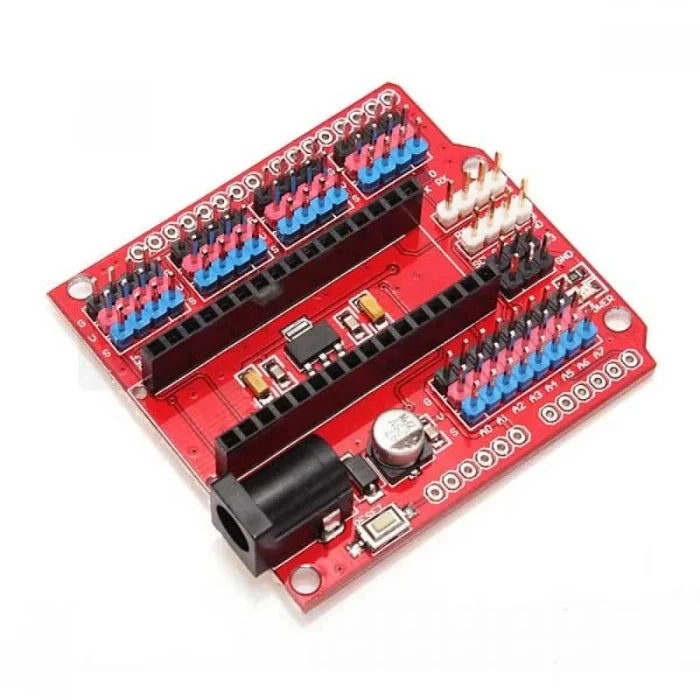

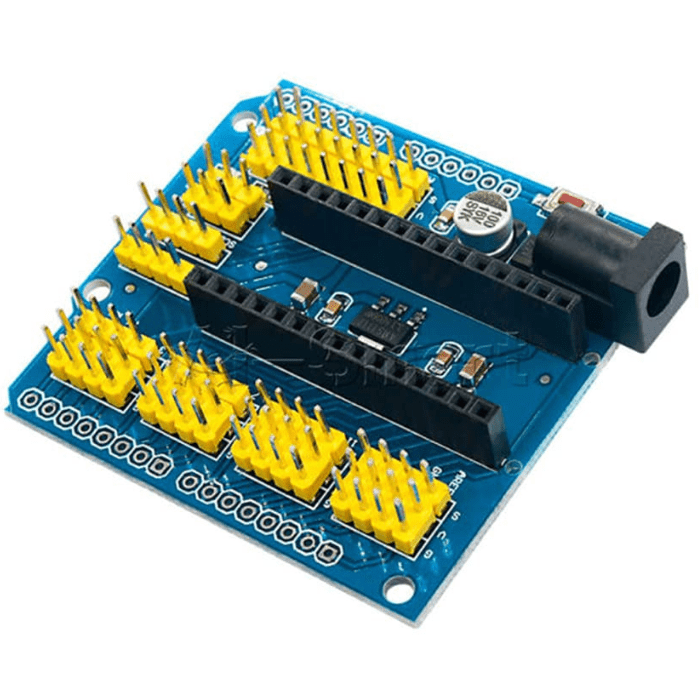

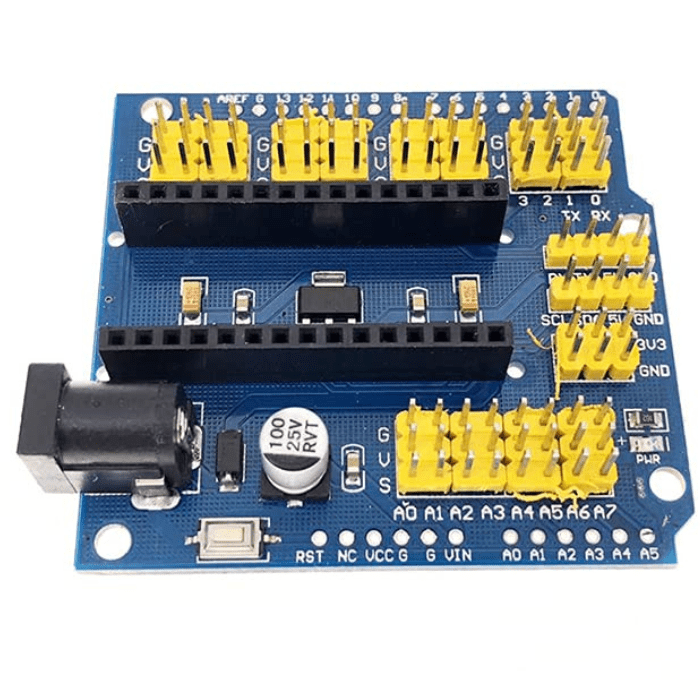

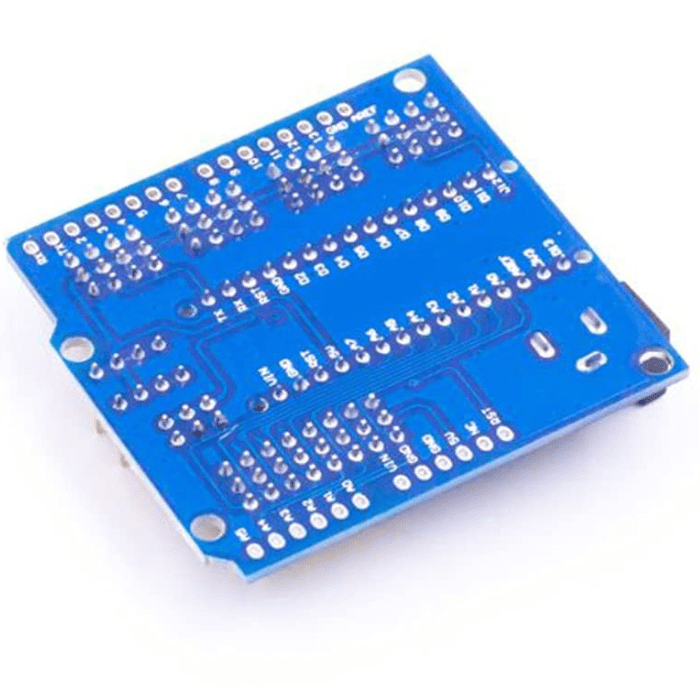

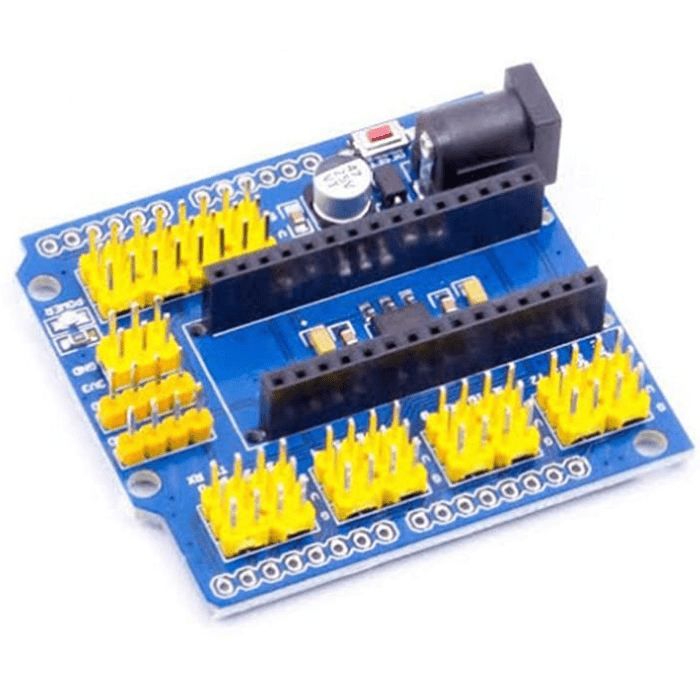

Nano Expansion Shield
Nano Expansion Shield
Regular price
Rs. 78
Regular price
Rs. 199
Sale price
Rs. 78
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 30 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is Nano Expansion Shield
- Acts as a breakout board for the Arduino Nano microcontroller.
- Compatible with Arduino NANO and expands all digital and analog pins for easy connection to sensors or servos.
- Offers multiple power input options and supports external power supply current.
- Compact size with the same footprint as the Arduino Duemilanove.

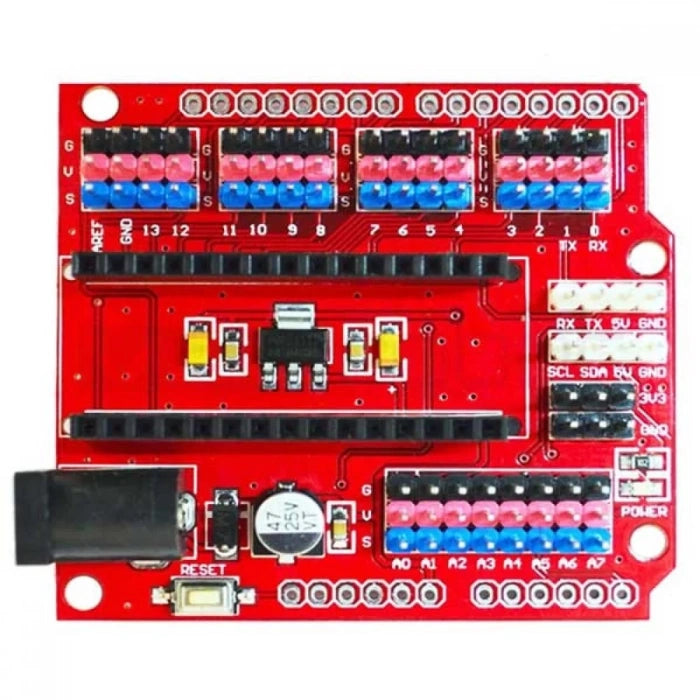

- All 14 I/O pins (servo type with GND, power, and signal), 8 analog pins with power output and GND, and 6 PWM pins are available for convenient wiring and experimentation.
- Comes fully assembled and is a perfect companion for Nano breadboard and compatible with both Arduino Nano v2.x and v3.x.
Related Tags
Nano Expansion Shield
Introducing the Nano 328P Expansion Adapter Breakout Board IO Shield – your ultimate companion for seamless connections with the Arduino Nano microcontroller. Designed to simplify and enhance your Arduino projects, this breakout board acts as a bridge between the Arduino Nano and various other devices, making your experimentation and prototyping process a breeze.
The expansion adapter breakout board shares the same footprint as the Arduino Duemilanove, ensuring compatibility and easy integration. With multiple power input options, you have the flexibility to power your projects using various sources. Each pinout includes 5V and GND pins, providing convenient connections to sensors and servos.
What sets this breakout board apart is its comprehensive pin configuration. Featuring 14 I/O pins in servo type, each equipped with GND, power, and signal connections, you have the freedom to interface with a wide range of peripherals. Additionally, there are 8 analog pins with power output and GND, along with 6 PWM pins, allowing precise control of various components. The board also includes 1 Servo power input, 5 I2C expansion pins, 1 AREF output, and 1 3.3V output, making it a versatile choice for all your Arduino projects.
The Nano 328P breakout board comes fully assembled, so you can start experimenting right away. Its compact size and convenient pinout design ensure easy wiring and hassle-free experiments. Whether you're a hobbyist, student, or professional, this shield is an essential tool for unleashing your creativity with Arduino projects.
It's fully compatible with both Arduino Nano v2.x and v3.x, ensuring seamless integration with existing setups. Whether you're a seasoned Arduino enthusiast or just starting, this expansion shield is your go-to companion.
Get ready to take your Arduino projects to the next level with the Nano 328P Expansion Adapter Breakout Board IO Shield. Explore endless possibilities and create innovative solutions with this feature-packed shield. Get yours now and experience the power of Arduino at your fingertips.
Package Includes:
- 1 x Nano 328P Expansion Adapter Breakout Board IO Shield
Specifications:
| Input Voltage(V) | 3.3 ~ 5 |
| Number of Analog Pins | 8 |
| Number of PWM Pins | 6 |
| Length (mm) | 58 |
| Width (mm) | 54 |
| Height (mm) | 12 |
| Weight (gm) | 15 |
