ADXL335 Triple-Axis Accelerometer

ADXL335 Triple-Axis Accelerometer

Rs. 439
Rs. 649 Rs. 439
Sale Sold out 32% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 10 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Onboard LDO Voltage regulator and Power LED
  • Can be interfaced with 3.3V or 5V Microcontroller.
  • Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V
  • Features Tap/Double Tap Detection and Free-Fall Detection
  • Built-in onboard filters, which reduce noise from the motor and other high current electronics
  • The appropriate bandwidth can be selected according to the application. The bandwidth of the X and Y axis ranges from 0.5 Hz to 1600 Hz, and the bandwidth of the Z axis ranges from 0.5 Hz to 550 Hz.

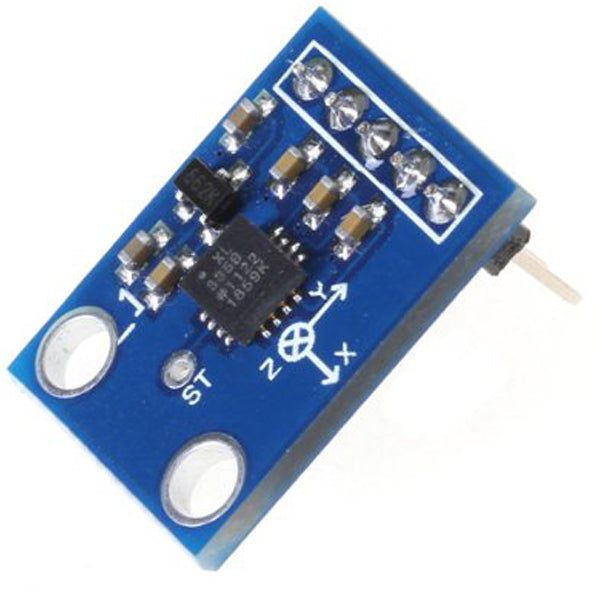

ADXL335 Triple-Axis Accelerometer

The ADXL335 Triple-Axis Accelerometer is a breakout board for Analog Devices analog 3-axis accelerometer. The ADXL335 is a small, thin, low-power, complete 3-axis accelerometer with signal-conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

The user selects the bandwidth of the accelerometer using the CX, CY, and CZ capacitors at the XOUT, YOUT, and ZOUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for the X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.

Key Features:

  • Measures acceleration in X, Y, and Z axes.
  • Offers a full-scale measurement range of ±3 g.
  • Customizable bandwidth for X and Y axes from 0.5 Hz to 1600 Hz.
  • Customizable bandwidth for the Z axis from 0.5 Hz to 550 Hz.
  • Consumes only 350 μA.
  • Capable of surviving G shock up to 10,000 g.
  • Operates on a voltage range of 1.8 V to 3.6 V.

ADXL335 Triple-Axis Accelerometer Pin Diagram:

ADXL335 Triple-Axis Accelerometer Pin Diagram

Applications:

  • Tilt-sensing applications
  • Mobile devices
  • Gaming systems
  • Disk drive protection
  • Image stabilization
  • Sports and health devices

Package Includes:

  • 1 x ADXL335 Triple-Axis Accelerometer

Specifications:

Low power 350 μA (typical)
Single-supply operation 1.8 V to 3.6 V
Full-scale range ±3 g
G shock survival 10000
Dimensions  3 x 2 x 1cms
Weight  5 grams
