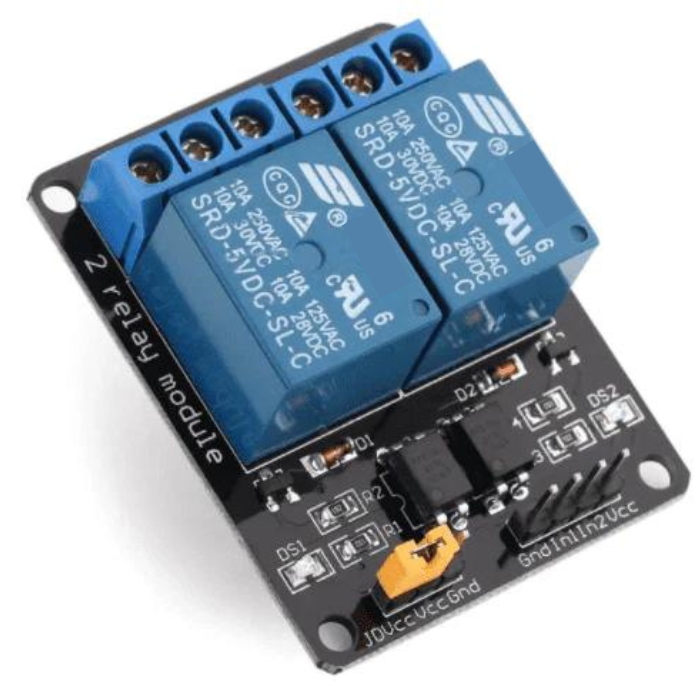

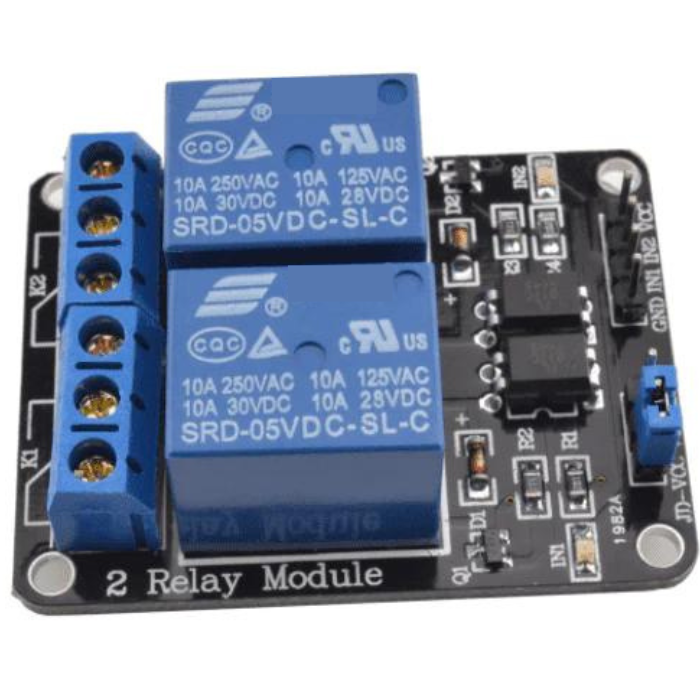

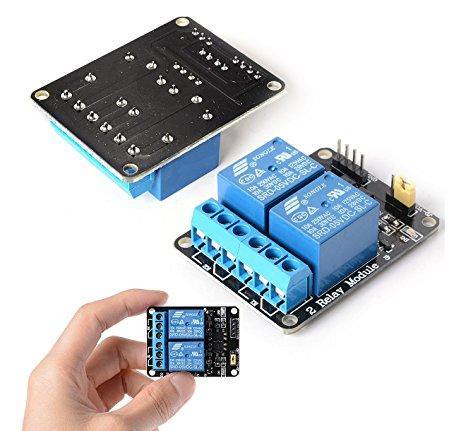

2-Ch 5V relay Board

2-Ch 5V relay Board

Rs. 68
Rs. 107 Rs. 68
Sale Sold out 36% off
or ₹ 65 + alt-pay-logo 3 points
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 18 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • 5V 10A 2-channel relay module for Arduino, ARM, PIC, AVR
  • Features 4 mounting holes (3.1mm diameter) for easy installation
  • High-quality SPDT relay
  • Status LED: On when active, off when released
  • Can control high load currents: 250V 10A or 125V 15A

2 Channel 5V Relay Module with Optocoupler

This is a 2-channel 5V relay module 10A. It can be used to control various appliances and other equipment with a large current. This 5V 2 channel Relay interface board can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).



Also check SLA-05VDC-SL-A 4Pin 30A Power Relay

Also, check 12V 2 channel relay board sold by Robocraze. The board has two channels and can be used for various applications. It has a working voltage of 12V.

Key Features:

  • 5V relay interface board.
  • Compatible with microcontrollers like Arduino, AVR, PIC, and ARM.
  • Controlled by a low-level trigger (3.3-5VDC).
  • Activates normally open (NO) or normally closed (NC) contacts.

Applications:

  • Home automation
  • Robotics Control
  • Control doors and windows via the windows system

Read our blog explaining the relay operation, which provides a comprehensive overview of the working principles of relays in electronic circuits.

Package Includes:

  • 1 x 2-Ch 5V relay Board

Specifications

Number of Channels   2
Operating voltage  5V
Compatibility  Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic
Dimensions  50. 6Mm (l) x 38. 8Mm (w) x 19. 3Mm (h)
Weight  5 grams
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-54%
1 CH 5V Active Low Relay Board - Robocraze

1 CH 5V Active Low Relay Board

Rs. 32
Rs. 69 Rs. 32
Incl. GST (No Hidden Charges)
Sale
-25%
2 CH 12V Relay Board-Robocraze

2 CH 12V Relay Board

Rs. 74
Rs. 99 Rs. 74
Incl. GST (No Hidden Charges)
Sale
-37%
4-Channel 5V Relay Board

4-Channel 5V Relay Board

Rs. 129
Rs. 204 Rs. 129
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What is a 2-channel 5V relay?

  • 2-Channel 5V Relay Module is a relay interface board, it can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on. It uses a low-level triggered control signal (3.3-5VDC) to control the relay. Triggering the relay operates the normally open or normally closed contacts.

2. How does a 2-channel relay work?

  • The relay has two outputs-normally open and normally closed (NO and NC). When the IN1 or IN2 pin is connected to the ground, NO will be open and NC will be closed, and when IN1 or IN2 is not connected to the ground the opposite occurs.

3. How do I connect a 2-channel relay?

  • Start by connecting the VCC pin of the relay to 5V on the Arduino and the GND pin of the relay to the GND of the Arduino. Connect the digital pin 6 to the IN1, and IN2 input pin for controlling the first and second relay. You'll also need to place the relay module in line with the AC-powered device (lamp in our case) you're attempting to control
