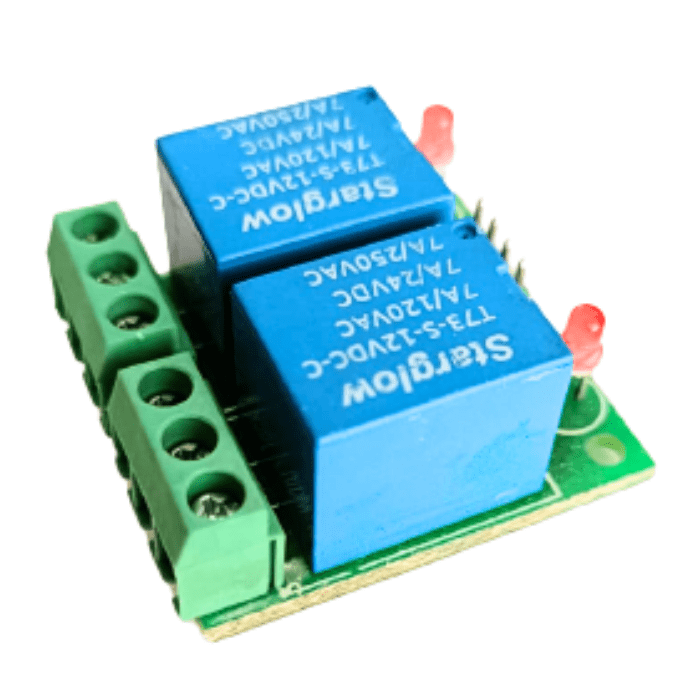

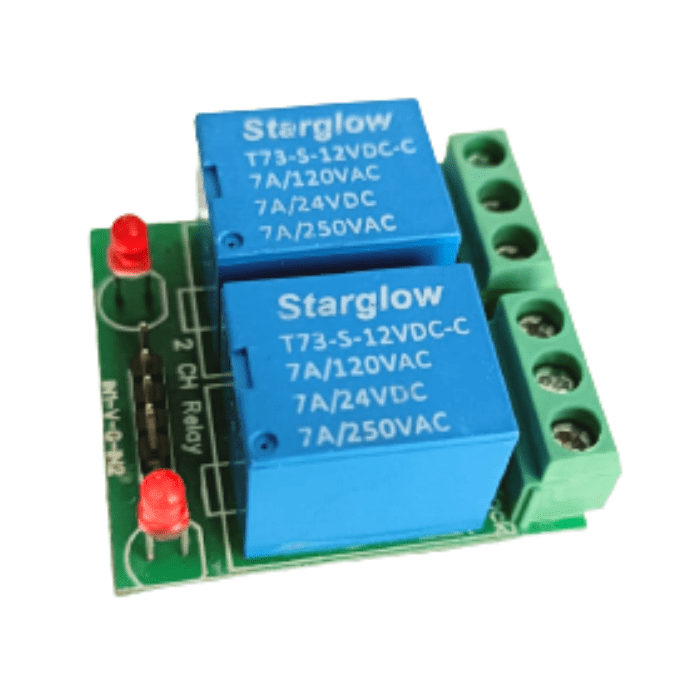

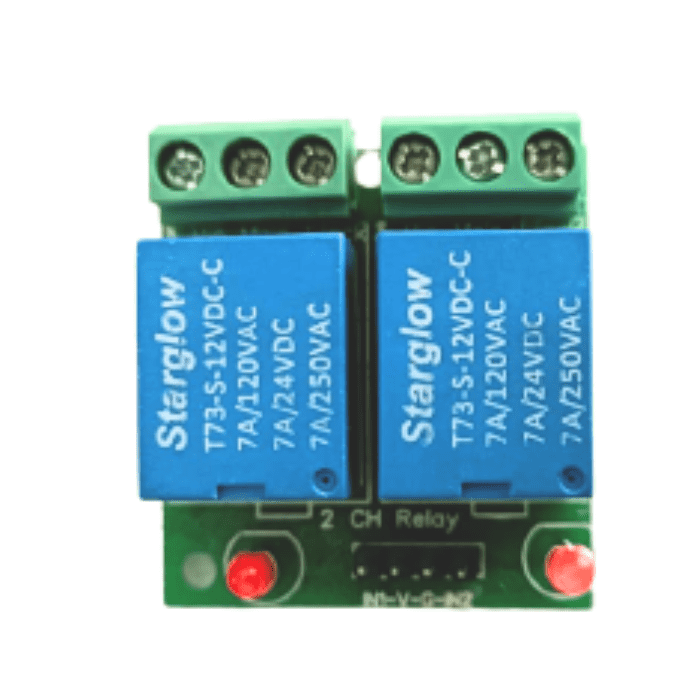

2 CH 12V Relay Board

2 CH 12V Relay Board

Regular price Rs. 72
Regular price Rs. 99 Sale price Rs. 72
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 27 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 42 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • The board is a 2 channel relay which works on 12V.
  • The input signal can come directly from a microcontroller.
  • Each relay can switch the variety of AC or DC high voltage.
  • Current loads working at 110V or 220V AC mains like lights, fans, motors and such.
Trust Badge 1 Trust Badge 2 Trust Badge 3

2 CH 12V Relay Board

This 2 Road/Channel Relay Module (with light coupling) 12V module meets the safety standard as control areas and load areas have the isolation groove. It is important that the microcontroller share ground with the relay board along with other control signals else it will not able to control the relay.  Very useful project for applications like Micro-Controller based projects, Remote controllers, Lamp on Off, and any circuits which required isolated high current and high voltage switching by applying any TTL or CMOS level voltage.

read more : What is Relay? - Working, Applications & Types

Features:

  • Dual Channels: Allows control of two separate devices.
  • High Power Handling: Each relay can handle up to 10A at 120V AC or 7A at 240V AC.
  • Optocoupler Isolation: Provides electrical isolation between the control circuit and the high-power devices.
  • Compatibility: Can be used with various microcontrollers like Arduino, AVR, PIC, and ARM.
  • Screw Terminals: Easy connection for the relay outputs.
  • LED Indicators: Visual feedback for relay status.
  • Compact Design: Small and lightweight, making it easy to integrate into projects.
  • Wide Range of Applications: Suitable for controlling AC and DC appliances such as lights, fans, motors, and solenoids.

Applications:

  • Widely used for all MCU control, industrial sector, PLC control, smart home control
  • Can be controlled directly by a wide range of microcontrollers

Package Includes:

  • 1 x 2 CH 12V Relay Board

Specifications

Number of Channels  2
Operating Voltage  12V
Dimensions  3 x 2 x 1cms
Weight 5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is 2 channel relay module?

  • The 2 Channels Relay Module is a handy board for controlling high voltage, high current loads such as motors, solenoid valves, lamps, and AC loads. It is intended to communicate with microcontrollers such as Arduino, PIC, and others.

2. What is the use of a 2-channel relay?

  • The relays can switch higher voltage and current loads than a microcontroller can typically do. It is intended to communicate with microcontrollers such as Arduino, PIC, and others.

3. What is a relay board?

  • Relay boards are computer boards that contain a number of relays and switches. They are designed to control the voltage supply and have input and output terminals. Relay boards provide independently programmable, real-time control of multiple onboard relay channels.

4. Where can I use the  2-channel relay?

  • The 2-channel relay is very useful for applications like Micro-Controller based projects, Remote controllers, Lamp on Off, and any circuits which required isolated high current and high voltage switching by applying any TTL or CMOS level voltage.
