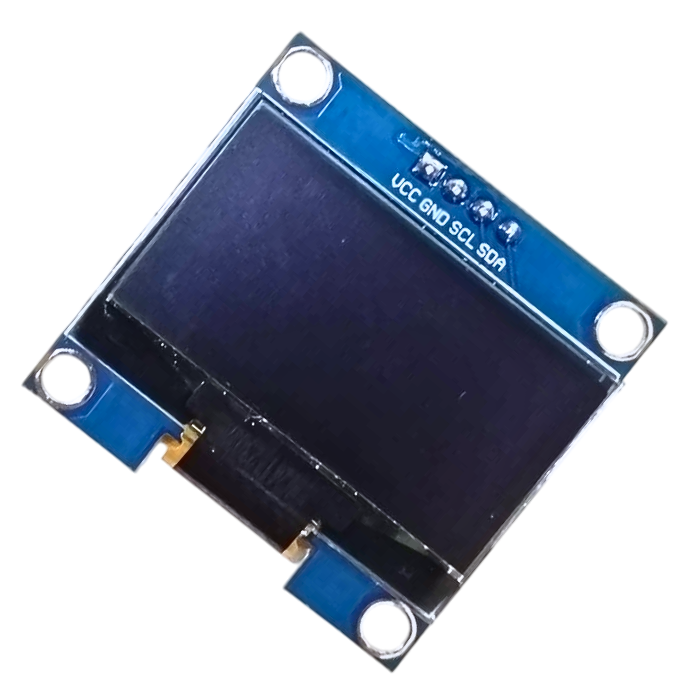

1.3 inch I2C OLED Display Module 4pin Blue Color

1.3 inch I2C OLED Display Module 4pin Blue Color

This is the 1.3-inch blue OLED display module. Using I2C protocols, the display module can communicate with any microcontroller. It has a resolution of 128x64. OLED (Organic Light-Emitting Diode) is a self-lighting technology that consists of a thin, multi-layered organic film sandwiched between an anode and a cathode.

OLED, unlike LCD technology, does not require a backlight. This has a wide range of applications and is widely regarded as the ultimate technology for the next generation of flat-panel displays.

The basic structure of an display module is made up of organic materials sandwiched between the cathode and the anode, which is made of electric conductive transparent Indium Tin Oxide (ITO).

The organic materials combine to form a multi-layered thin film that includes the Hole Transporting Layer (HTL), Emission Layer (EML), and Electron Transporting Layer (ETL) (ETL). By applying the appropriate electric voltage, holes and electrons from the anode and cathode are injected into the EML.

Inside the EML, holes, and electrons combine to form excitons, which cause electroluminescence. The key factors that determine the quality of OLED components are the transfer material, emission layer material, and electrode selection.

If you want to use this 1.3 inch OLED display module in your Arduino project, that you will need a few essential components like

• Jumper wires
• Breadboard
• Batteries or power supply

Also check: Best 0.96” OLED Display Module – 4-Pin, I2C/SPI Compatible

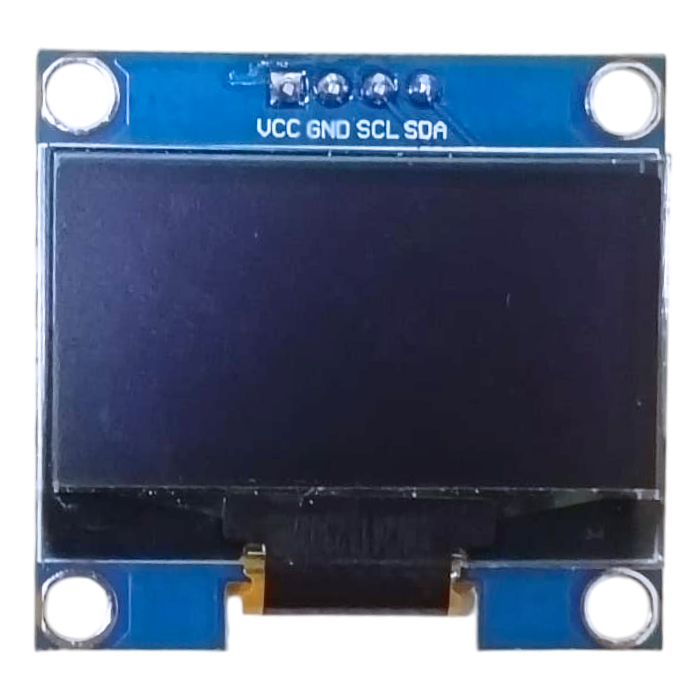

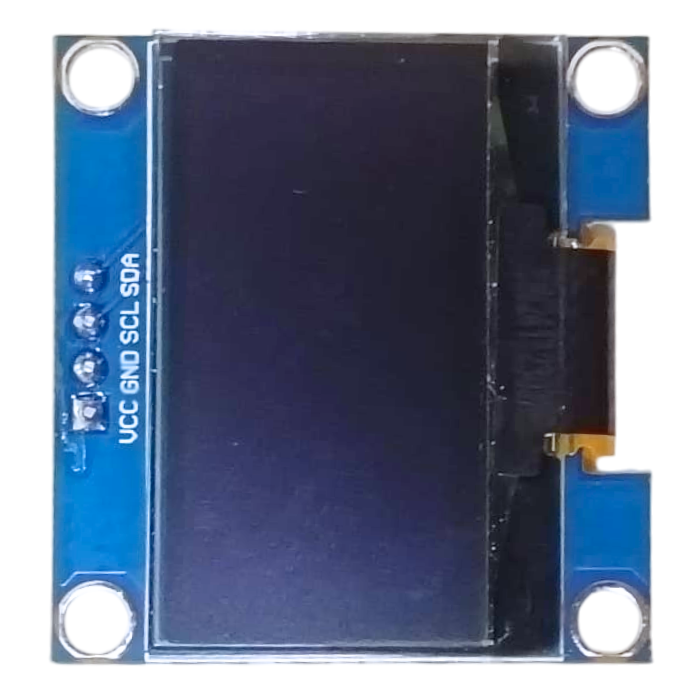

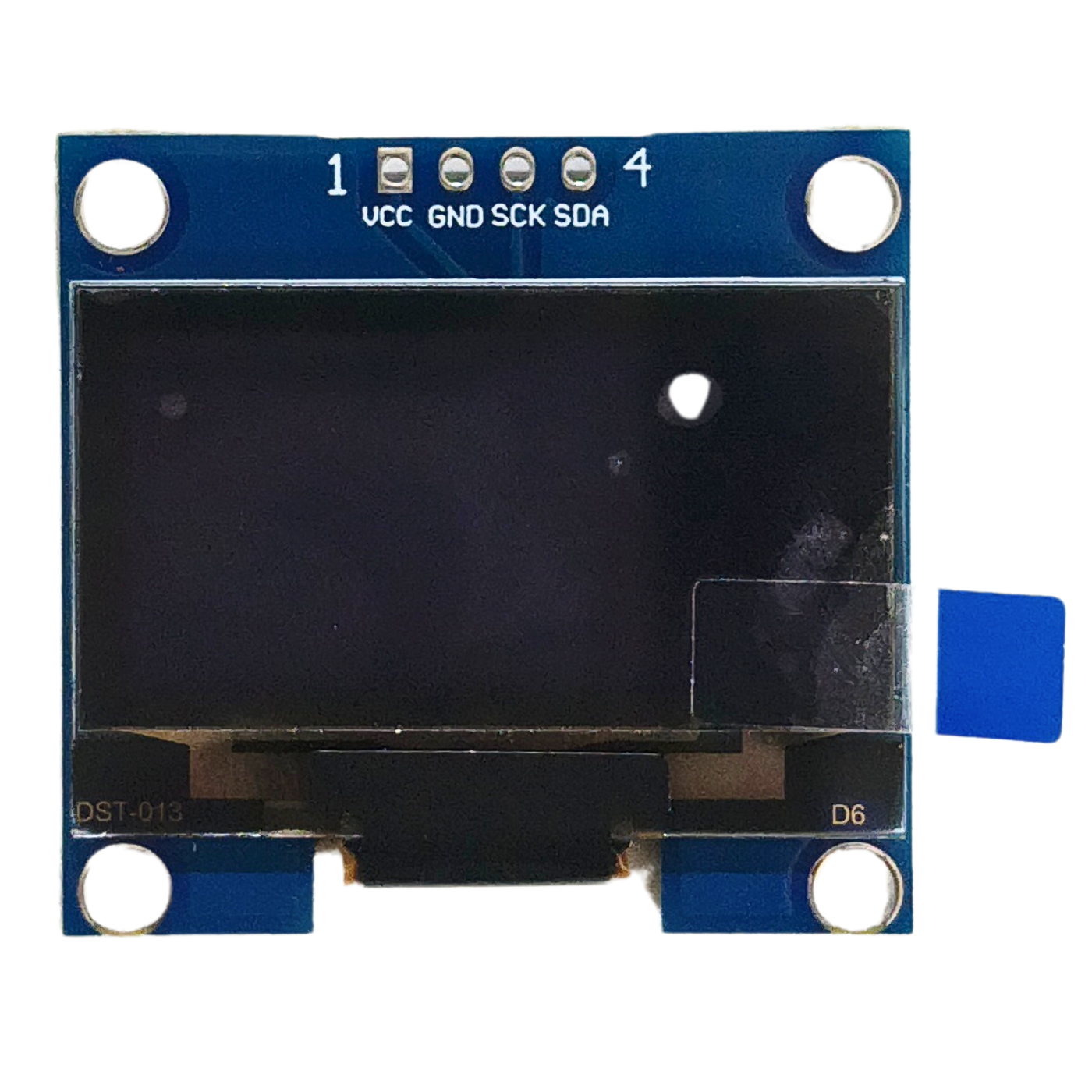

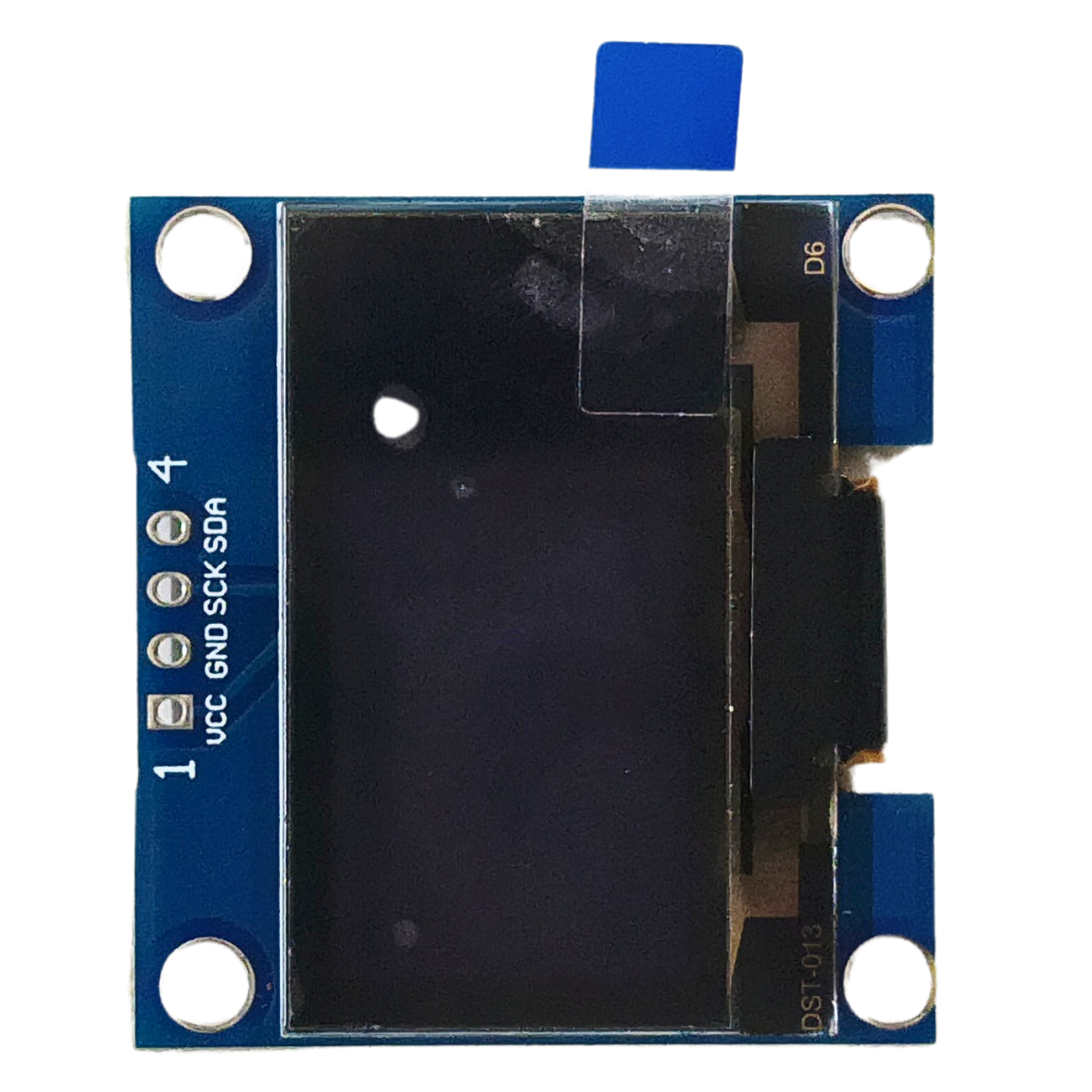

Pin Description:

• GND: Power ground
• VCC: Power positive
• SCL: Clock wire
• SDA: Data wire.

Features:

• Offers a compact yet clear display.
• Requires only 2 I/O ports for control.
• Comes pre-configured for SPI protocol
• Provides detailed and sharp images and text with 128x64 pixels.
• Uses the I2C protocol for easy and efficient communication with microcontrollers.
• Compatible with a voltage range of 3.3V to 5V.
• Uses Organic Light-Emitting Diode technology.
• Can be easily integrated into Arduino and other microcontroller projects.

Check out our wide range of collection of OLED display modules which are reliable, durable, and top-performing displays every time.

Applications:

• Fitness trackers, smartwatches, and other wearable technology.
• IoT initiatives to show status updates and visualize sensor data.
• Tools for diagnosis, testers, and portable meters.
• DIY electronics projects and prototypes for designing unique user interfaces.
• Medical equipment such blood glucose meters, patient monitoring systems, and pulse oximeters.
• Other electrical devices.

Package Includes:

• 1 x 1.3 inch I2C OLED Display Module

Specifications:

How to Interface with Raspberry Pi:

How to Interface with Arduino:
