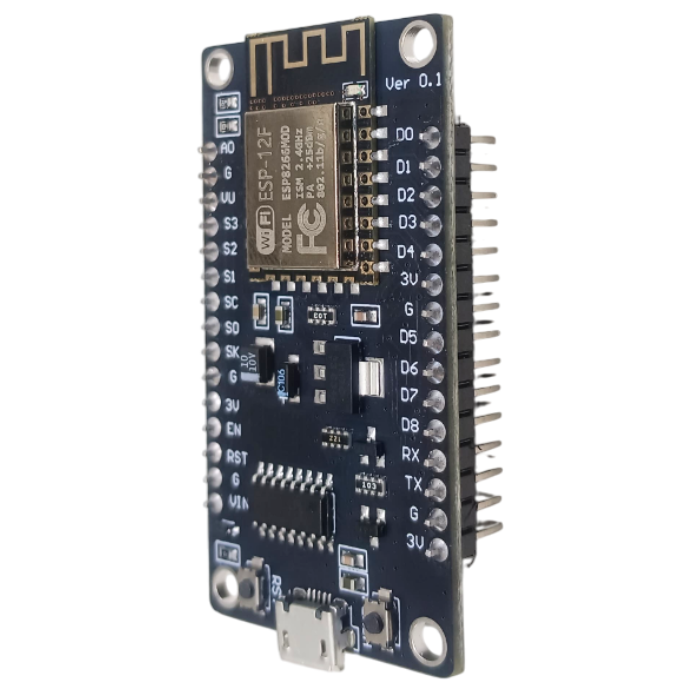

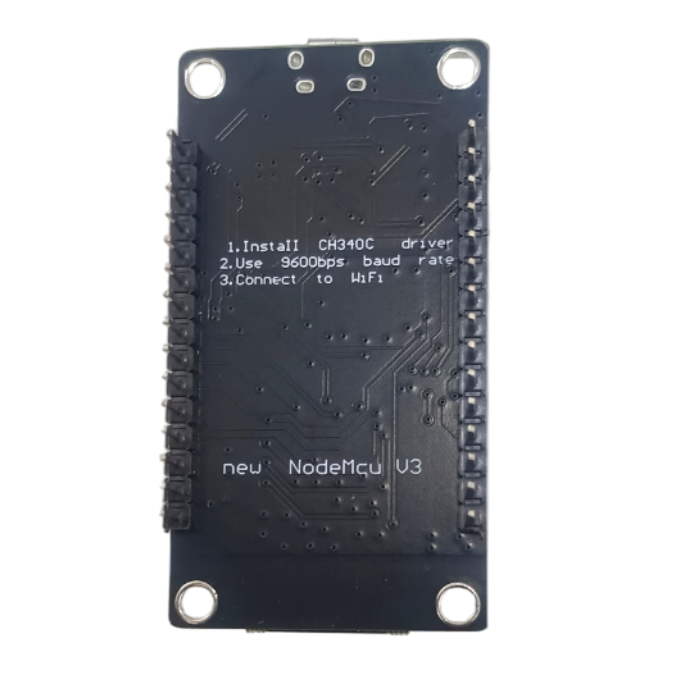

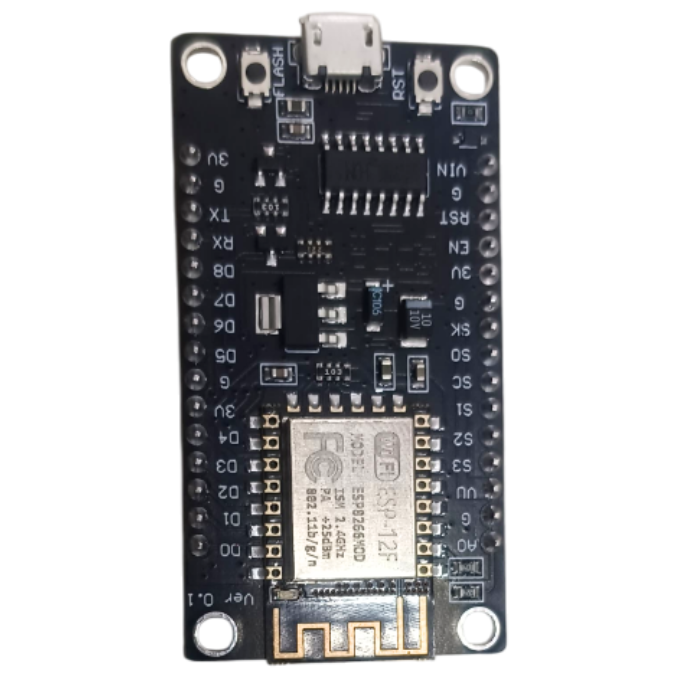

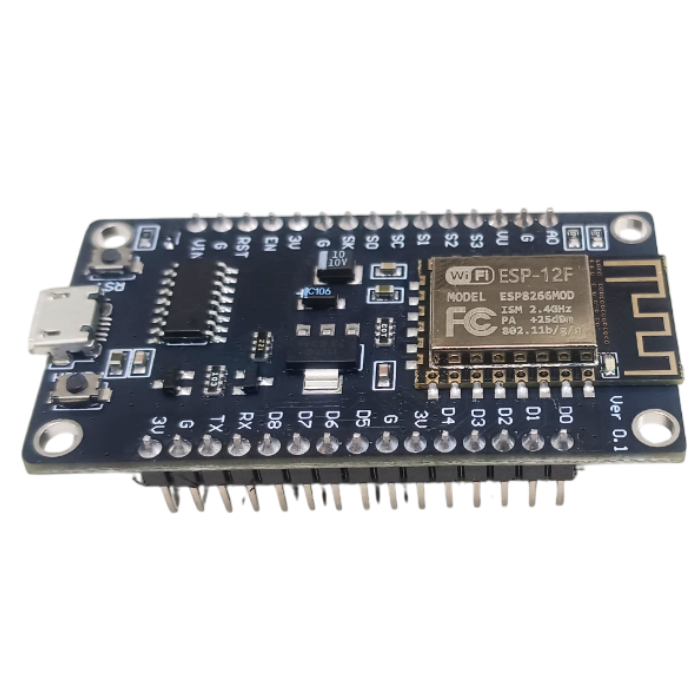

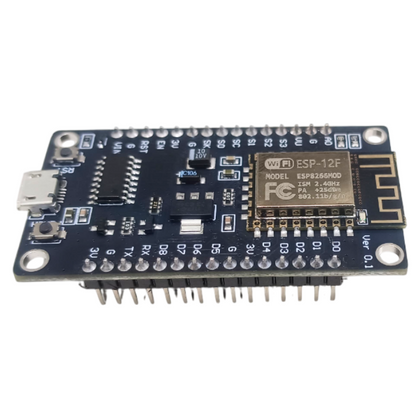

ESP12F ESP8266 Amica NodeMCU Wifi Module
ESP12F ESP8266 Amica NodeMCU Wifi Module
Regular price
Rs. 278
Regular price
Rs. 349
Sale price
Rs. 278
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 7 hours and 49 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- NodeMCU is built based on the mature ESP8266 technology to take advantage the abundant resources available on the web.
- 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
- 1 analog input(3.3V max input)
- A Micro USB connection
- The microcontroller integrates a Tensilica L106 32-bit RISC processor, which achieves extra-low power consumption and reaches a maximum clock speed of 160 MHz.
ESP12F ESP8266 Amica NodeMCU Wifi Module
A great set of tools to develop ESP8266. NodeMCU is built based on the mature ESP8266 technology to take advantage of the abundant resources available on the web. NodeMCU has ESP-12-based serial WiFi integrated onboard to provide GPIO, PWM, ADC, I2C, and 1-WIRE resources at your fingertips, built-in USB-TTL serial with super reliable industrial strength CH340 for superior stability on all supported platforms.
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or offload all Wi-Fi networking functions from another application processor.ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during run-time. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy a minimal PCB area.
NodeMCU is an open-source IoT platform. It includes firmware that runs on the ESP8266 Wi-Fi SoC from Espressif Systems, and hardware that is based on the ESP-12 module. The term “NodeMCU” by default refers to the firmware rather than the dev kits. The firmware uses the Embedded C scripting language.
Add Internet to your next project with an adorable, bite-sized WiFi microcontroller, at a price you like! The ESP8266 processor from Espressif is an 80 MHz microcontroller with a full WiFi front-end (both as a client and access point) and TCP/IP stack with DNS support as well.
Pinout:
Pinout Of ESP12E ESP8266 Amica NodeMCU Wifi Module
Difference Between ESP12E and ESP12F:
| Features | ESP12E | ESP12F |
| Frequency Range | 2.412 - 2.484 GHz | 80 MHz and 160 MHz |
| PWM | Yes | Yes |
| ADC | 1 channel | 10-bit ADC |
| Wireless Network Type | STA / AP / STA + AP | STA/AP/STA+AP |
| Security Type | WEP / WPA-PSK / WPA2-PSK | WPA/WPA2 |
| Operating Voltage | 3.3V | 3.3V |
| Onboard PCB Antenna | Yes | Yes |
| Operating Temperature | -40 C to +125 C | 40 C to +125 C |
| Output Power | 72.2Mbps: 16.5dBm typical & 11b: 20.5dBm typical | 72.2Mbps: 15dBm typical & 11b: 18.5dBm typical |
The Major difference between ESP12E and ESP12F is that ESP12E has Relatively poor transmission power than ESP12F.
Applications:
- To set up wireless communication between two applications
- Mobile phone-controlled robots
- Home automation System
- IoT Projects
- Data Sharing
- Weather station
- Wireless control systems
- Security ID tags
Package Includes:
- 1× ESP12E Amica NodeMCU
Specifications:
| Max Input Voltage | 3.3V |
| Digital Pins | 11 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is ESP12E Amica NodeMCU?
- The NodeMcu is an open-san handle more complex tasks and calculation compared to regular Arduino. This module contains WiFi as well, making it suitable for board with an ESP-12E WIFI module integrated. With 512kb of memory and a 40Mhz processor, this module is pretty fast for IoT (Internet of Things) applications.
2. Why is NodeMCU used?
- NodeMCU is an open-source platform based on ESP8266 which can connect objects and let data transfer using the Wi-Fi protocol. In addition, by providing some of the most important features of microcontrollers such as GPIO, PWM, ADC, etc, it can solve many of the project's needs alone.
3. How do I program esp12e?
- Make sure the ESP8266 boards are installed in Arduino IDE
- Select the Board type “NodeMCU 1.0 (ESP12-E Module)”
- Select the port number of the NodeMCU (Tools->Port)
- Click upload.
4. Can we connect multiple sensors to NodeMCU?
- Yes the NodeMCU boasts multiple GPIO pins allowing you to connect multiple sensors to the board.
5. Does ESP12E have Bluetooth?
- ESP12E does not have bluetooth. ESP32 on the other hand has both WiFi and Bluetooth capability.
