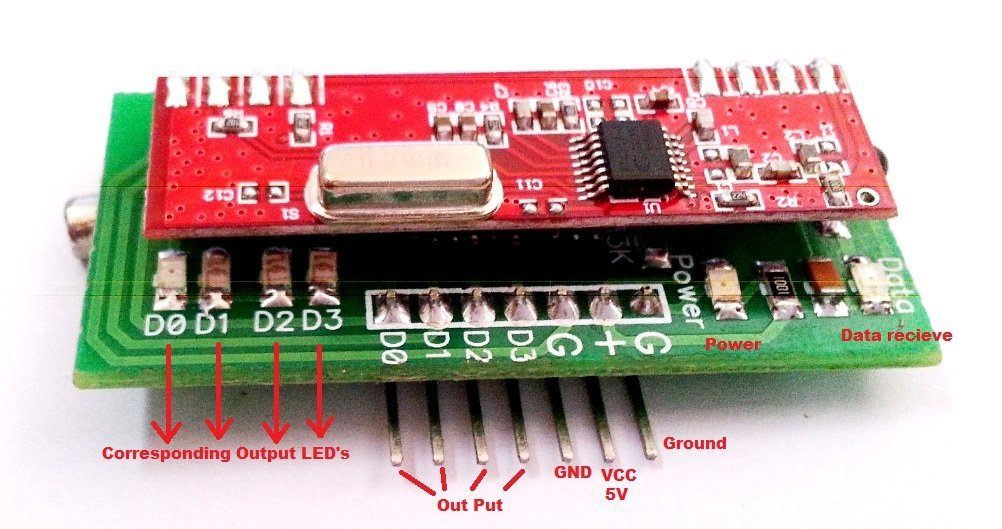

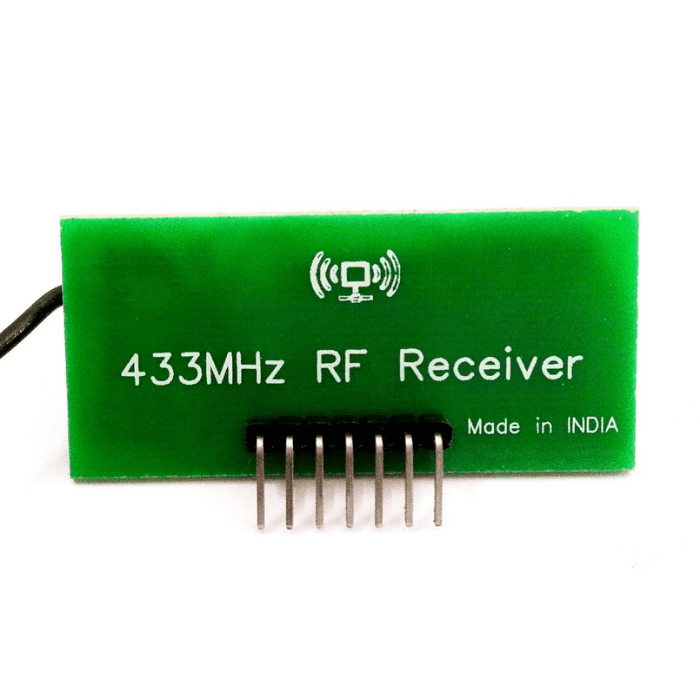

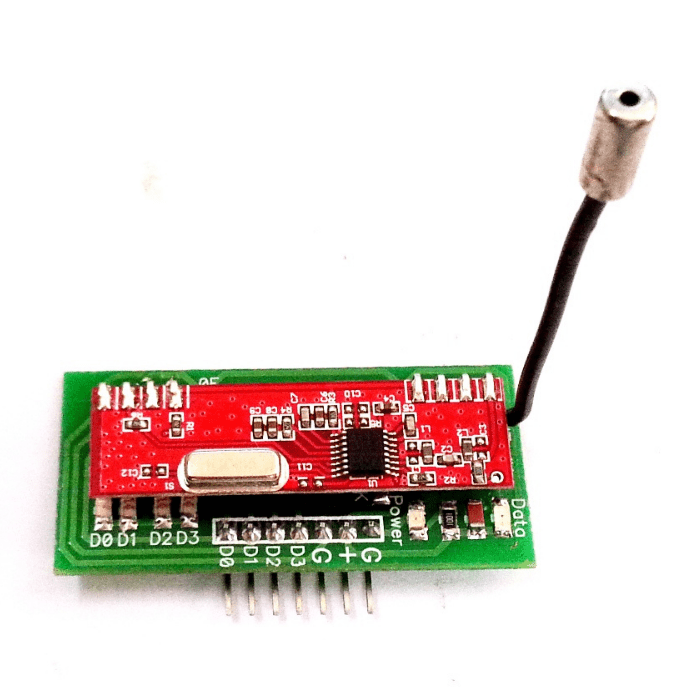

433 MHz RF Transceiver Module

433 MHz RF Transceiver Module

This RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size, and simple to use for designing.

Video tutorial of 433 MHz RF Transceiver Module

RF 433 MHz Transmitter and Receiver (With Demonstration)

Features:

• Low Power Consumption.
• Easy For RF-based Application.
• Complete Radio Transmitter.
• Transmit Range Up To 50m.
• CMOS / TTL Input.
• No Adjustable Components.
• Very Stable Operating Frequency
• Low Current Consumption (Typ 11mA)
• Wide Operating Voltage (1.5-5v)
• ASK Modulation

Applications:

• Remote Controls
• Automation System
• Wireless Security System
• Sensor Reporting
• Car Security System
• Remote Keyless Entry

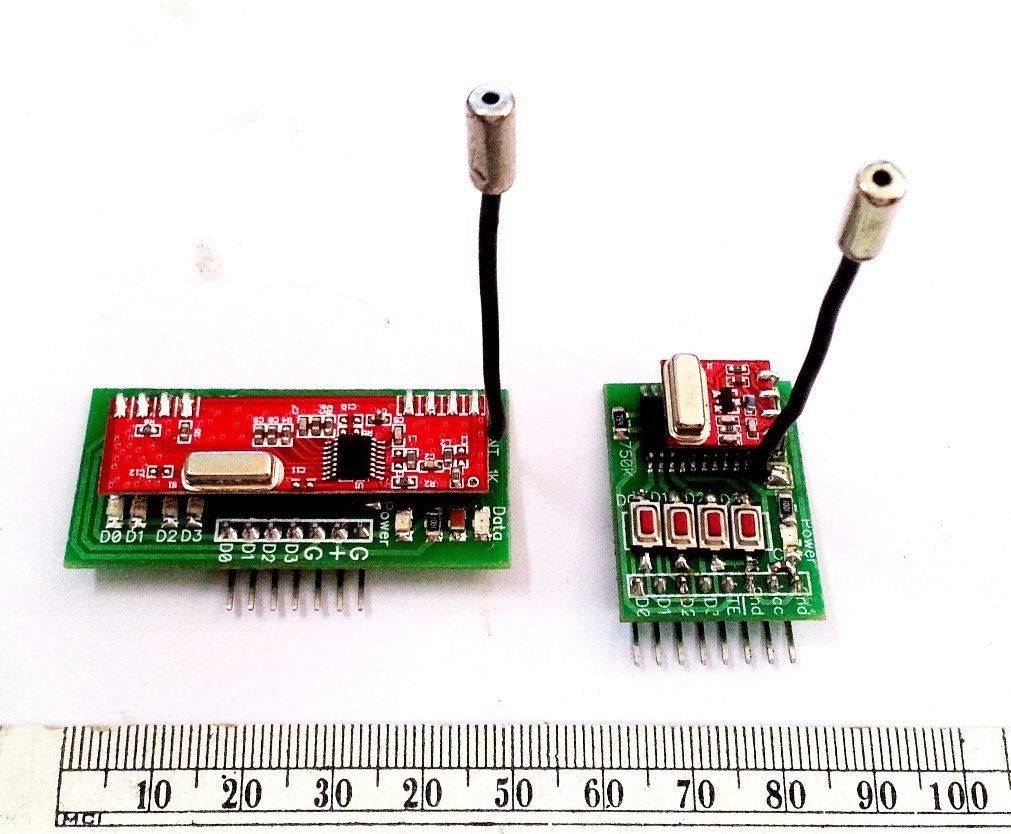

Package Includes:

• 1 x Transmitter
• 1 x Receiver

Specifications:
