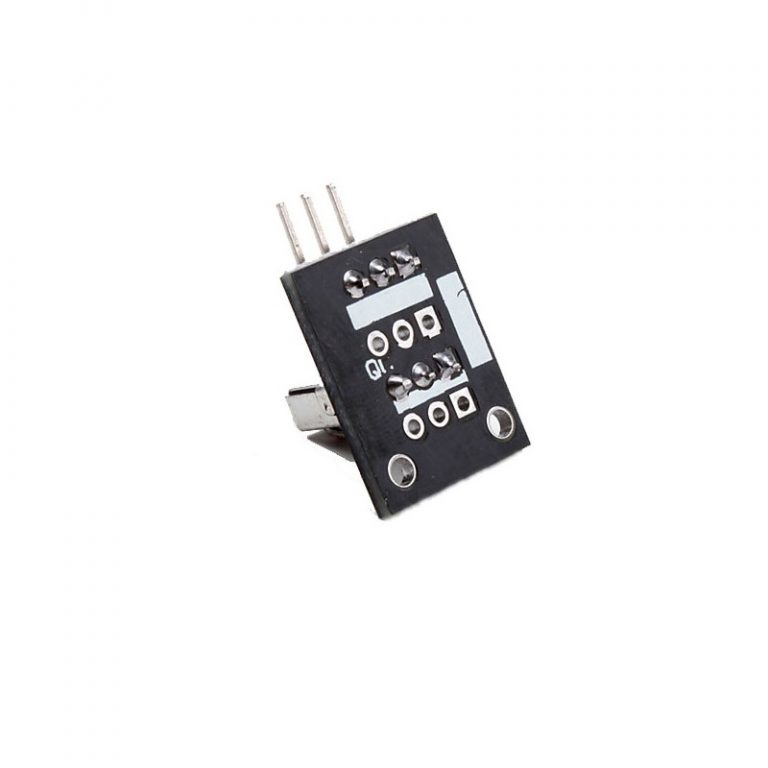

TSOP Module

Regular price
Rs. 60
Sale price
Rs. 60
Regular price
Sold out
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 1000/-
  • 💰 Earn LOYALTY POINTS on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Photo detector and preamplifier in one package
  • Internal filter for PCM frequency
  • Improved shielding against electrical field disturbance
  • TTL and CMOS compatibility
  • Output active low
  • Low power consumption
  • High immunity against ambient light
  • Continuous data transmission possible (1200 bit/s)
  • Suitable burst length ≥10 cycles/burst

Related Tags
Infrared
IR Proximity/Motion
Motion
Obstacle sensor
Proximity
Sensor
Sensors
TSOP
TSOP 1738
TSOP Module

TSOP Module

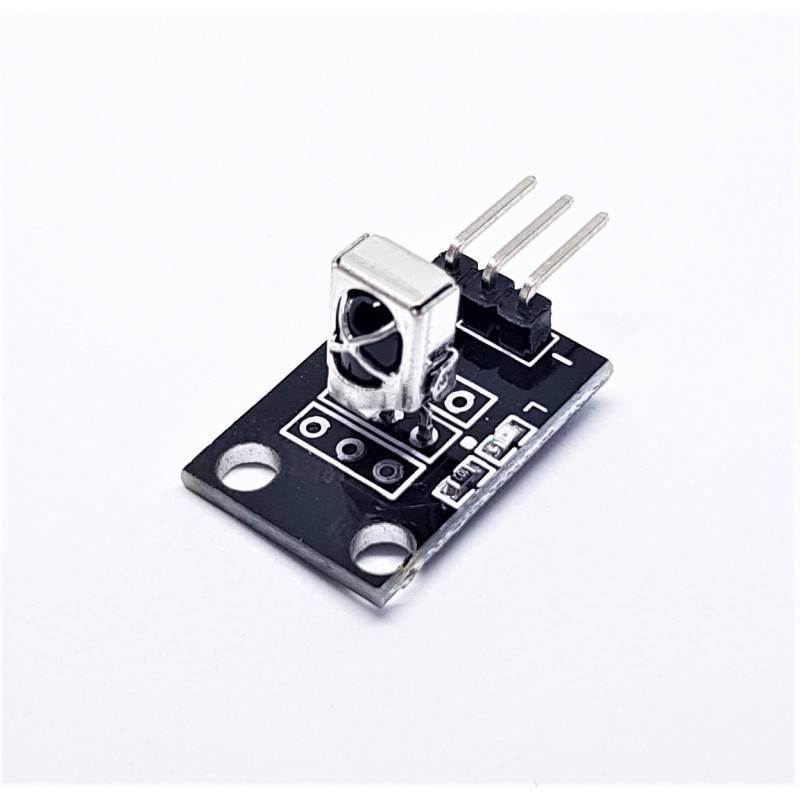

Infrared IR Sensor Receiver Module for Arduino adopts an 1838 infrared receiving head. Light resistance, strong electromagnetic interference, built-in infrared dedicated IC, can work under 500 lux light intensity.

Widely used in stereo, TV, video machine, disc machine, set-top boxes, digital photo frame; car stereo, remote control toys, satellite receivers, hard disk player, air conditioner, heater; electric fan, lighting, and other home appliances.

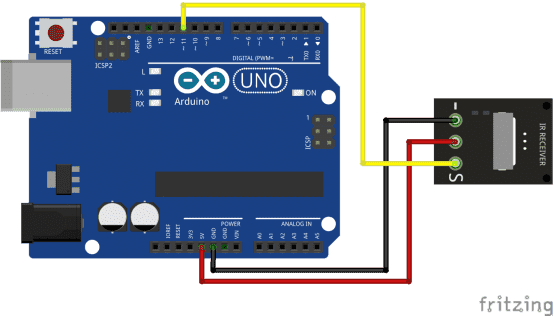

IR Receiver Module is a 38KHz infrared receiver module that is Arduino compatible. It can receive the standard 38KHz modulated remote controller signal. Through programming the Arduino, you can realize the decoding of the remote controller signal. Using this item, you can make a universal remote controller with the learning function.

APPLICATIONS:

  • Receive IR signals
  • Decode Remote signals
  • Analyze, re-create or duplicate remote Signals
  • Wireless control applications
  • Receiver circuit for IR remote controls
  • IR Remote tester circuits

Package Includes:

  • 1 x Infrared IR Sensor Receiver Module for Arduino.

Specifications

Receiving angle 90 °
Working voltage  2.7 ~ 5.5V
Frequency 37.9KHz
Dimensions  2.5 x 1.5 x 1.5 cm
Weight  5 grams

Frequently Asked Questions

1. What is TSOP? What does 1738 mean?

  • TSOP is the standard IR remote control receiver series, supporting all major transmission codes. It has Low power consumption and High immunity against ambient light.
    1738 in TSOP 1738 indicates infrared receiver is tuned to receive IR of frequency 38 kHz only.

2. How does TSOP 1738 sensor work?

  • The (+) and the (-) are the supply pins of the IC and are specified to be connected across a 5V typical supply level, to be precise any voltage between 3 and 6V may be applied here, although 5V works the best. The curved lens which can be seen over the central portion of sensor body is where the infrared signal from a remote control handset is focused for enabling the TSOP to initiate its sensing operations.

3. Where to use TSOP-1738 Sensor?

  • The TSOP sensor has the ability to read the output signals from home remotes like TV remote, Home theatre remote, AC remote etc.. All these remotes will work with a frequency of 38kHz and this IC can pick up any IR signals process them and provide the output on pin 3. So if you are looking for a sensor to analyze, re-create or duplicate the functions of a remote then this IC will be the perfect choice for you.

ADDITIONAL RESOURCES
