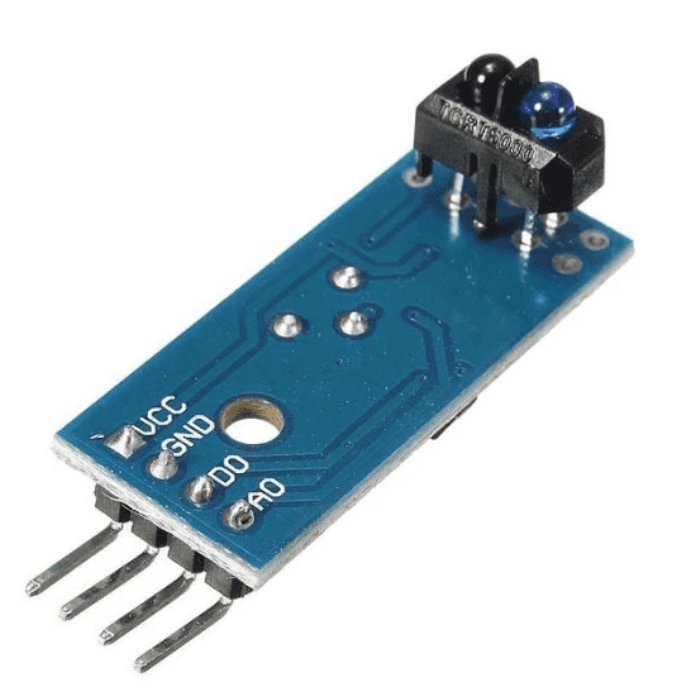

TCRT5000 IR Sensor
The TCRT5000 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package that blocks visible light. The package includes two mounting clips. This sensor is often used for line-follower robots. TCRT5000 Reflective Optical Sensor IR Infrared Switch is perfect for line tracking robot car like DIY projects

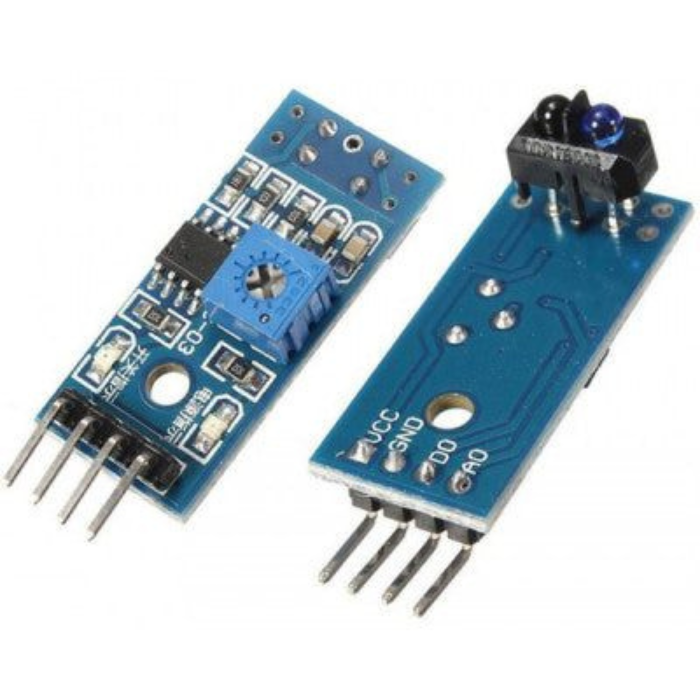

When the infrared transmitter emits a beam of light to a piece of paper, if the rays shine on a white surface, they will be reflected and in turn, be received by the Infrared detector, and pin S on the module will output a low-level; If the beam of light encounters a black line, they will be absorbed, thus the Infrared detector gets nothing, and pin S will output a high level. So this module basically acts like a simple switch when it gets close to a white/black object. You can adjust the sensitivity with the potentiometer on the module.
Applications of TCRT5000 IR Sensor:
- Position sensor for shaft encoder.
- Detection of reflective material such as paper, IBM cards, magnetic tapes, etc.
- Limit switch for mechanical motions in VCR.
Package Includes:
- 1 x TCRT5000 IR Sensor (Pack of 5)
Specifications:
Model | TCRT5000 |
Detecting range | 0.591″ (15mm) |
Detecting method | Reflective |
Collector-Emitter | 70V |
Collector Current | 100mA |
Forward Current | 60mA |
Output Type | Phototransistor |
Dimensions | 4 x 3 x 1cms |
Weight | 5 grams |
ADDITIONAL RESOURCES
1. What is an IR Sensor and why is it not visible?
- An infrared (IR) sensor is an electronic device that measures and detects infrared radiation in its surrounding environment. Infrared radiation was accidentally discovered by an astronomer named William Herchel in 1800. While measuring the temperature of each color of light (separated by a prism), he noticed that the temperature just beyond the red light was highest. IR is invisible to the human eye, as its wavelength is longer than that of visible light. Anything that emits heat gives off infrared radiation
2. What are the types of IR sensor and their difference?
- There are two types of infrared sensors: active and passive.
Active infrared sensors both emit and detect infrared radiation.
Passive infrared (PIR) sensors only detect infrared radiation and do not emit.
