SG90 Micro Servo Motor (Pack of 25)
SG90 Micro Servo Motor (Pack of 25)
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits

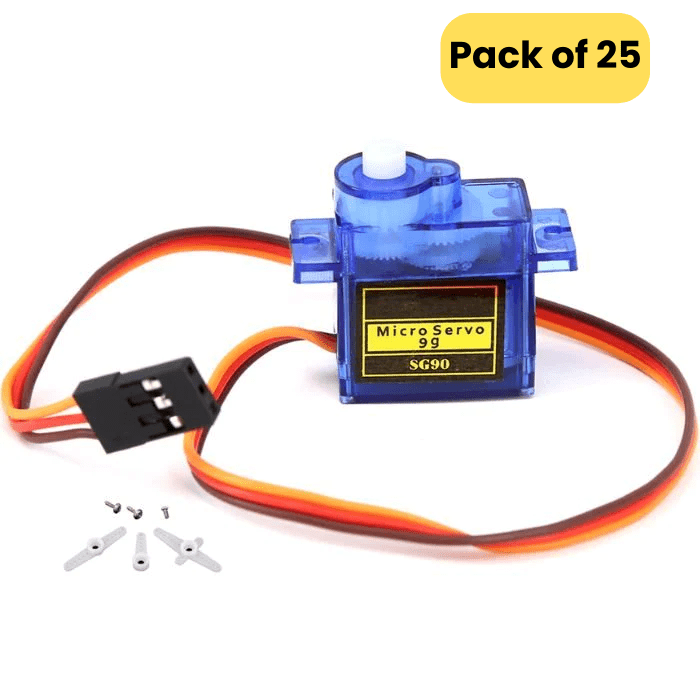

- This is SG90 Micro Servo Motor (Pack of 25)
- Operating Speed of this servo motor at 4.8V with no load) is 0.12sec/60 degrees.
- While it features a Stall Torque of about 1.2kg / 42.3oz at 4.8V and 1.6 kg / 56.4oz at 6.0V.
- The temperature ranges from -30 to +60°C
- Dead Band Width: 7usec
- Operating Voltage range of this motor is 3.0-7.2 Volts
- It comes with all nylon gear
- It has a connector wire which has a length of 150mm

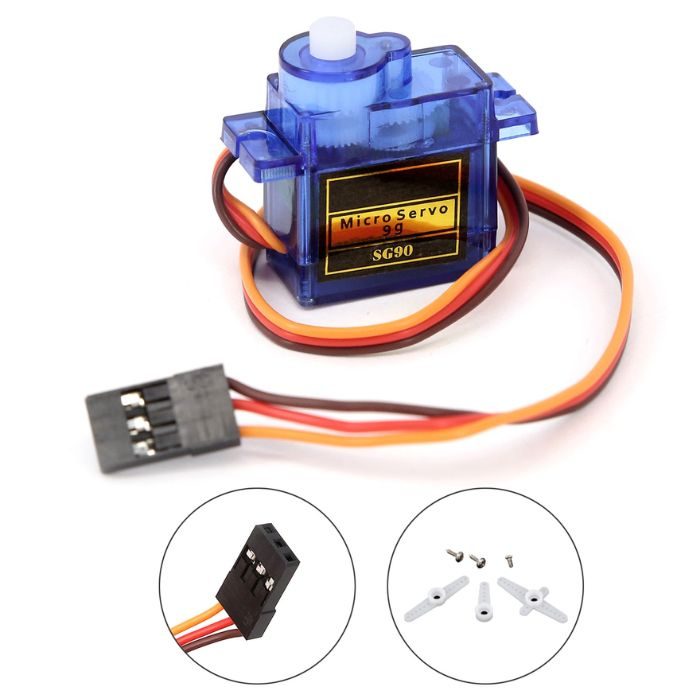

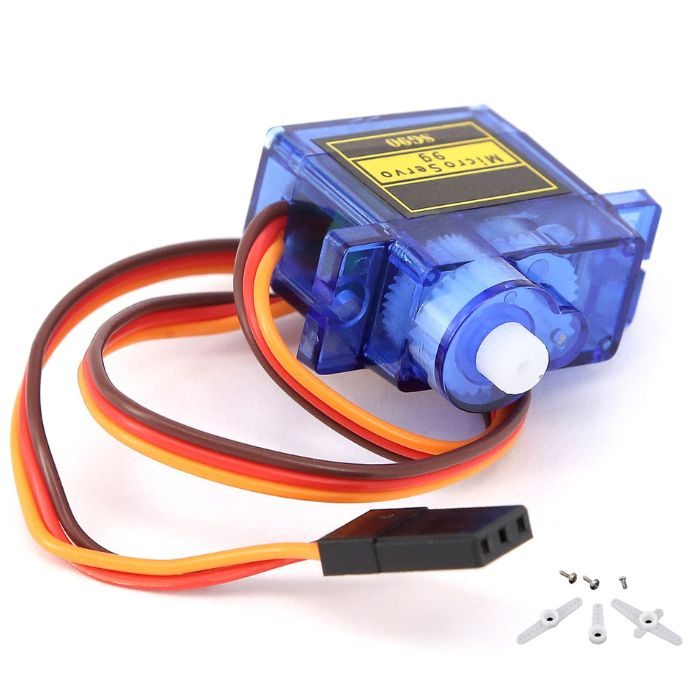

SG90 Micro Servo Motor
The TowerPro SG90 1.2kg 180 Degree Rotation Servo Motor rotates 90° in each direction making it a 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signals faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.
The servo sg90 are packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.
The sg90 servo motor equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors.

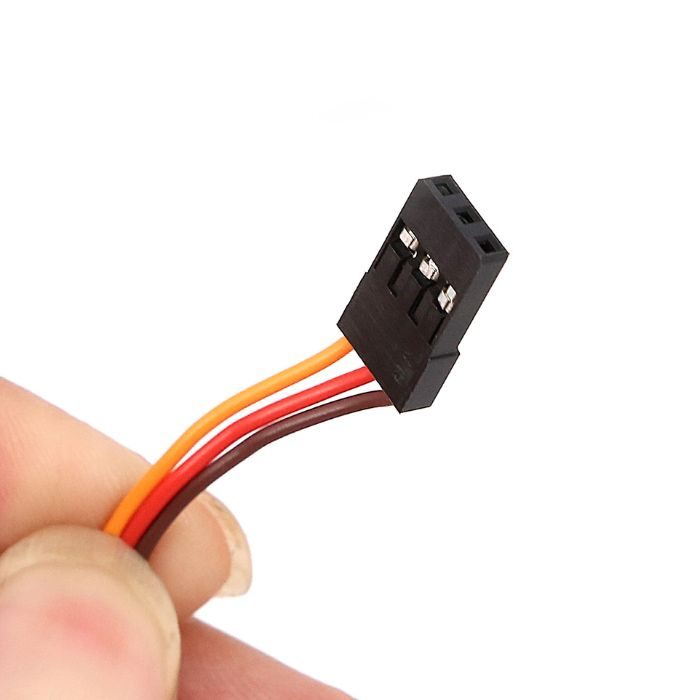

Wire Description:
Red – Positive
Brown – Negative
Orange – Signal
Features:
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Applications:
- Robotic arm
- CNC machine
- Steering systems
- RC cars
- Automatic door opener
- Home automation applications
Package Includes:
- 25 x SG90 Micro Servo Motor
Specifications:
| Model | SG90 |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed (4.8V) | 0.10sec/60° |
| Dimensions | 22.8 x 12.6 x 34.5 |
| Weight(gm) | 9 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
MG995 High Speed Servo Motor(180 Degree)
MG90S Mini Servo Motor(180 Degree)
MG996R Metal Gear Servo Motor - 180 Degree
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the maximum weight that an SG90 servo can support?
- The SG90 micro servo motor has a torque of 2.5kg/cm means it can draw weight of 2.5kg when suspended at a distance of 1cm. So if you suspend the load at 0.5cm, the motor can pull a load of 5kg, but if you suspend it at 2cm, the motor can only pull 1.25kg.
2. What is the SG90 servo motor used for?
- The Micro Servo motor SG90 is a 9-gram servo motor also known as servo 9 g that rotates at a rate of about 0.3 seconds (0.1s/60 degrees) from 0 to 180 degrees (about). The sg90 servo motor price is low-cost and it can be used in multiple applications that include motorized vehicles and robotic arms.
3. How many degrees of rotation can a SG90 servo handle?
- The SG90 Servo motors can typically only rotate 90 degrees in either direction for a total of 180 degrees at a speed of about 0.3 seconds (0.1 sec/60 degrees).
4. How do servo motors get faster?
- The servos are controlled by sending variable width electrical pulses or pulse width modulation (PWM) through the control cable. The onboard controller is already driving the motors at full power. The only way to increase speed is to reduce the load on the servo output, increase the voltage, or change the servo. Of course, you can measure current by measuring the voltage drop across a possibly very small sense resistor.
5. How to interface servo motors with Arduino ?
- The following are the steps to connect a servo motor to the Arduino:
- The servo motor has a three-pin female connector. The ground is usually the darkest, if not completely black. Connect this to the Arduino GND.
- Connect the power cable that in all standards should be red to 5V on the Arduino.
- Connect the remaining line on the servo connector to a digital pin on the Arduino.
