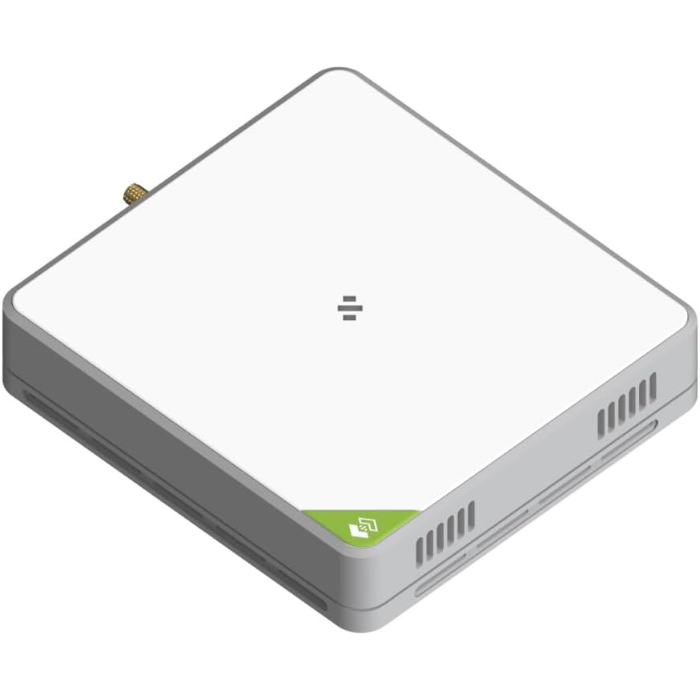

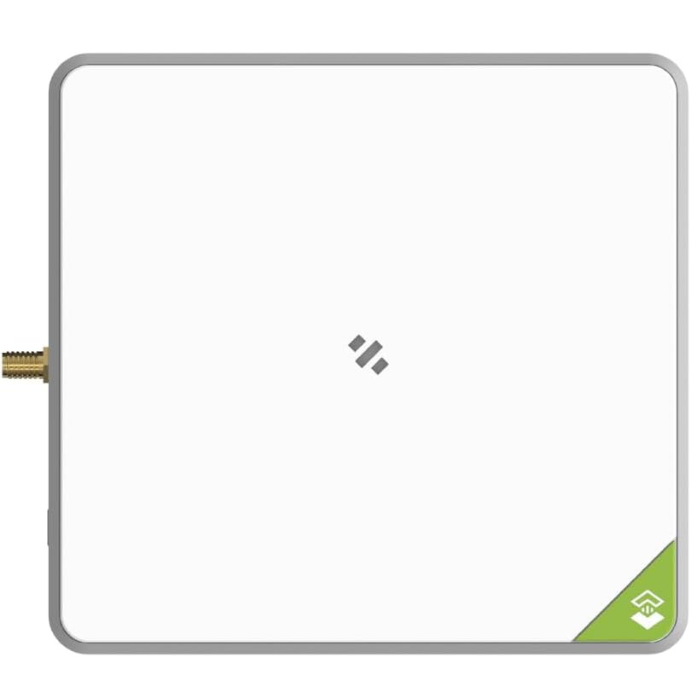

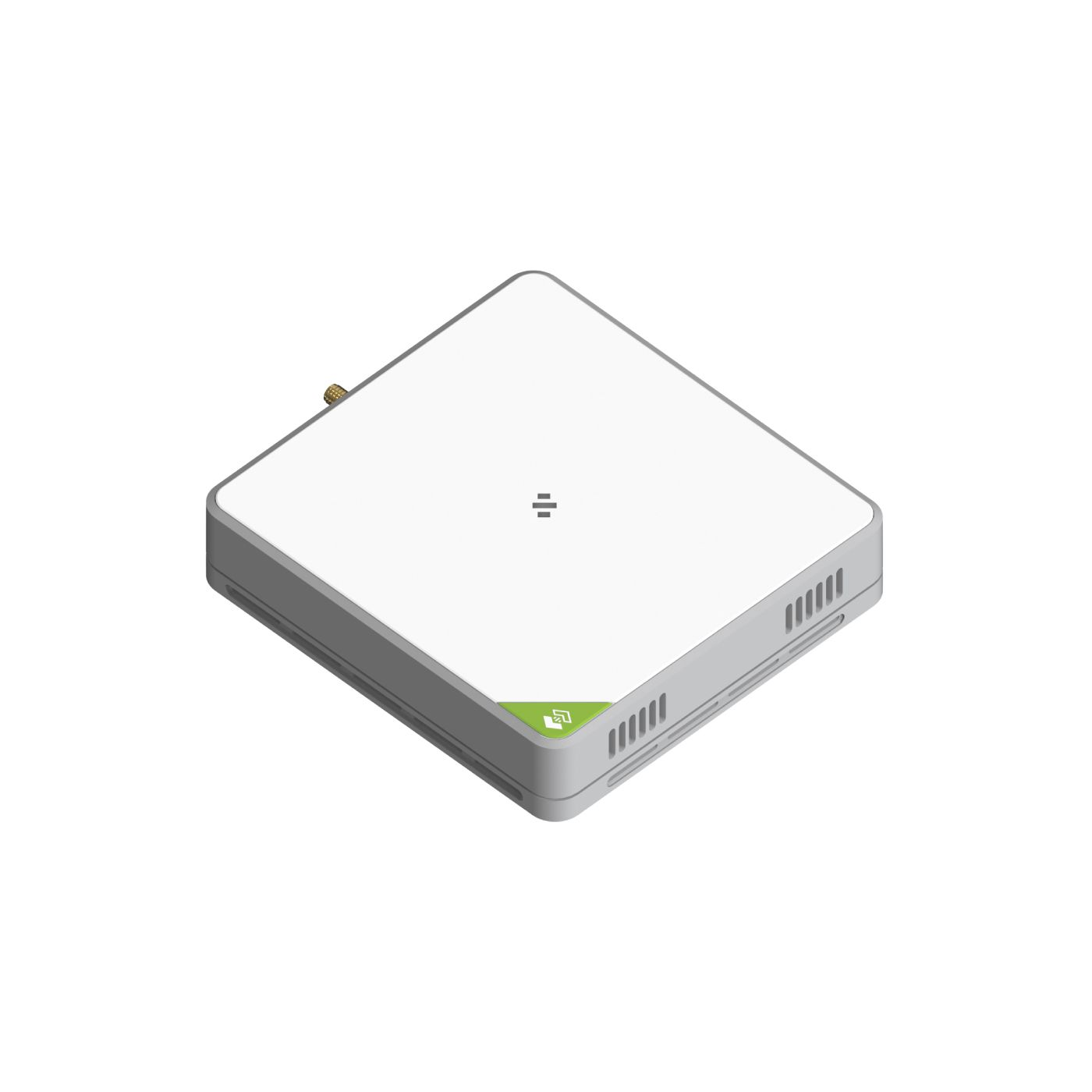

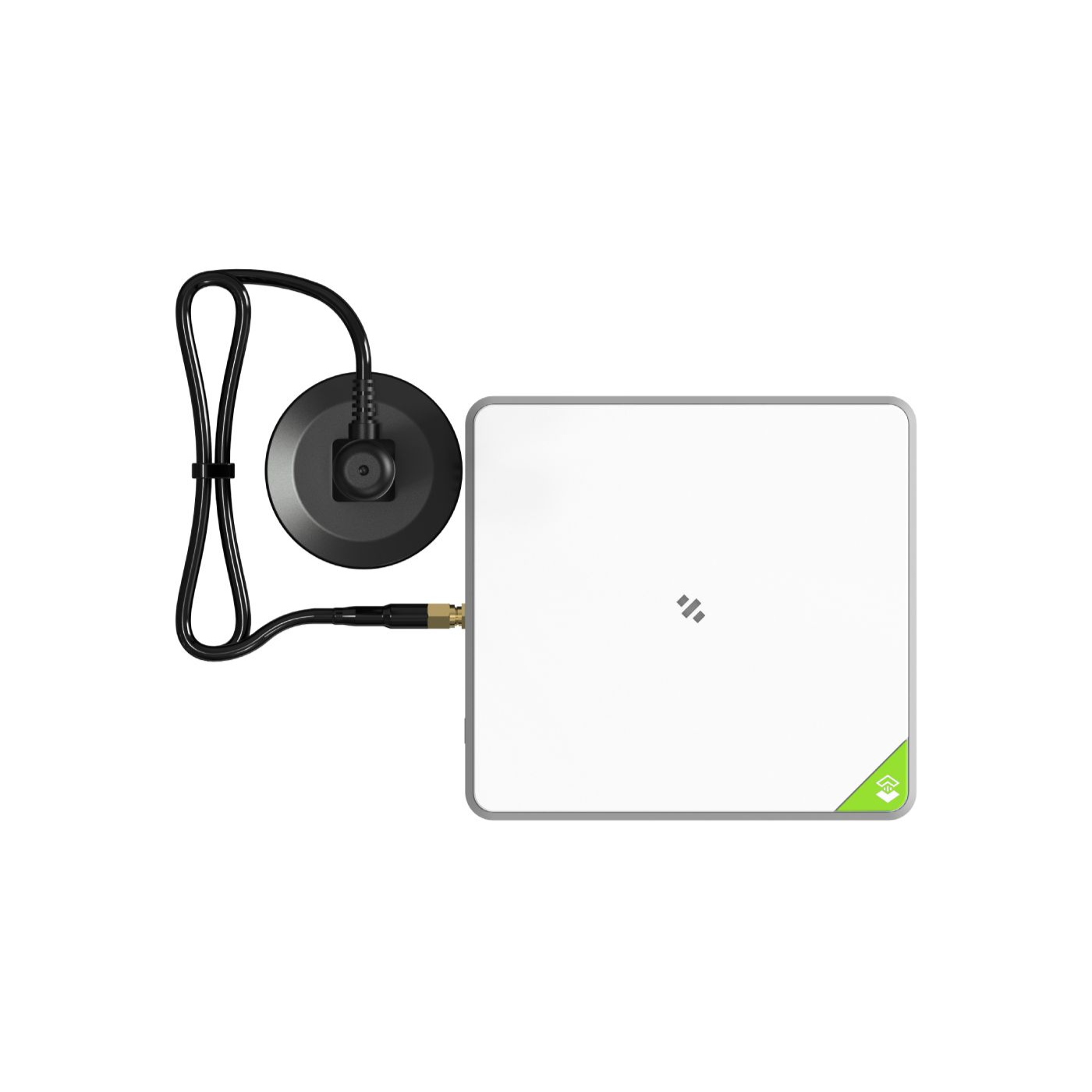

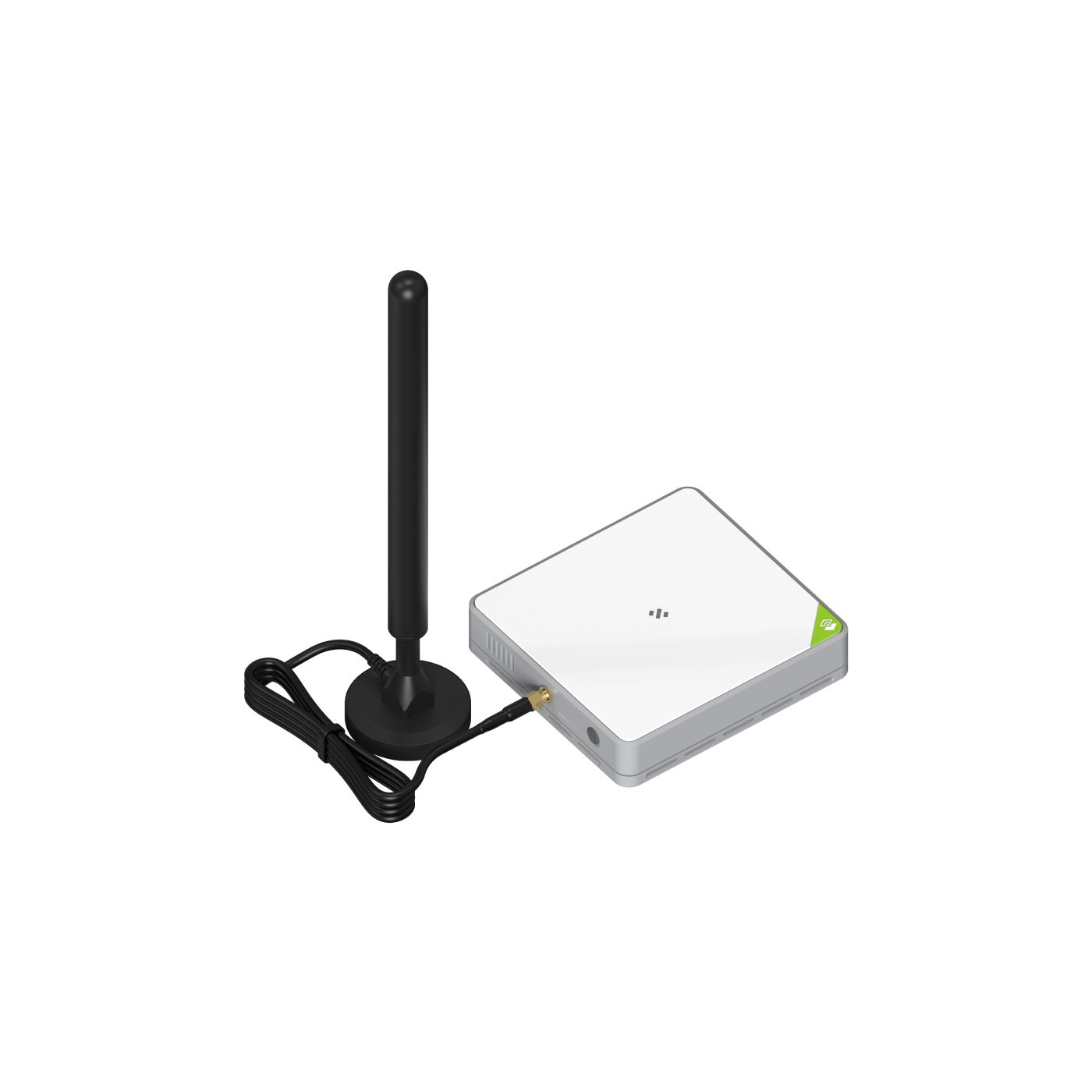

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868

Out of stock

Regular price Rs. 12,499
Regular price Rs. 15,999 Sale price Rs. 12,499
Sale Sold out 22% off Best Price Guaranteed
You save Rs. 3,500 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 1000/- OFF RC1000

When you shop for ₹ 20000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Connectivity Beyond Borders: SenseCAP M2 Multi-Platform LoRaWAN Gateway seamlessly connects to different network servers, supporting global LoRaWAN frequency plans.
  • Versatile Applications: Ideal for smart buildings, environmental monitoring systems, precision farming, and more, providing wide-range coverage and strong signal output.
  • Multiple Server Compatibility: Works with popular LNS like AWS, TTN, ChirpStack, etc., ensuring flexibility in network deployment.
  • Easy Setup and Configuration: Built-in SenseCAP Local Console allows simple device configuration via Web UI through Wi-Fi AP and Ethernet, supporting Power-over-Ethernet (PoE).
  • Long-Range Capabilities: With up to 10km of LoRaWAN coverage and robust signal transmission, it excels in data transmission over extended distances.
  • Professional Management Tools: Effortless gateway setup with SenseCAP Portal and SenseCAP Local Console for efficient monitoring and management.
  • Durable Design: Crafted with MT7628 and Semtech SX1302, offering excellent and stable performance for reliable IoT connectivity.

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868

The SenseCAP M2 Multi-Platform LoRaWAN® Gateway from Seeed Studio is the ultimate solution for seamless IoT connectivity. Designed to support global LoRaWAN® frequency plans, this gateway ensures compatibility across diverse applications.

With built-in network server support, easy configuration, and Power-over-Ethernet capability, it guarantees operational excellence. The gateway provides extensive coverage, strong signal output, and professional management tools for a reliable and efficient LoRaWAN network.

The SenseCAP M2 Gateway boasts a mature hardware solution powered by MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular (optional), Wi-Fi, and Ethernet internet connections, offering versatile connectivity options.

The gateway's dimensions, 143.6x135x34mm (connector not included) and 150.6x135x34mm (connector included), ensure a compact and efficient device. Ideal for applications like smart agriculture, smart buildings, and environmental monitoring systems, this gateway is a vital component for creating LoRaWAN network solutions.

Its ease of setup, wide coverage, and compatibility with various network servers make it a must-have for IoT enthusiasts and professionals alike.

Note :

  • The SenseCAP M2 Multi-Platform LoRaWAN® Gateway doesn't support the Helium network. It can not be connected with SenseCAP Hotspot APP and SenseCAP Dashboard.
  • Please contact the SenseCAP MX Team on the Official SenseCAP MX Community Discord Channel for tech support.

Features:

  • Support Multiple LoRaWAN® Network Servers: Compatible with multiple LNS like AWS, TTN, ChirpStack, etc. via using the Packet Forwarder / Basics™ Station mode.
  • Built-in LoRaWAN Network Server: Based on Chirpstack, provides a fast and reliable solution for launching a LoRaWAN network.
  • Built-in SenseCAP Local Console for Configuration: Provides a simple setup experience to configure the device on Web UI through Wi-Fi AP and Ethernet.
  • Support Power-over-Ethernet (PoE): For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added to this device, making your deployment more reliable and faster.
  • Wide-range Coverage and Strong Signal: Provides up to 10km of LoRaWAN® coverage and strong signal, allowing users to send data with extremely long ranges at low data rates.
  • Excellent and Stable Performance: The gateway is powered by the mature hardware solution MT7628 and Semtech SX1302 baseband Long Range chip. It supports Cellular(optional)、Wi-Fi and Ethernet internet connection.
  • Professional Management Tools and Cloud Services: Users could easily set up the gateway in a few simple steps via Web Interface. SenseCAP Portal and SenseCAP Local Console are also developed for users to monitor and manage the gateway efficiently and easily.

Applications:

  • Smart Agriculture,
  • Smart Buildings,
  • Environmental Monitoring,
  • Asset Tracking,
  • Utility Management,
  • Smart Cities,
  • Industrial IoT,
  • Remote Monitoring,
  • Security,
  • Healthcare.

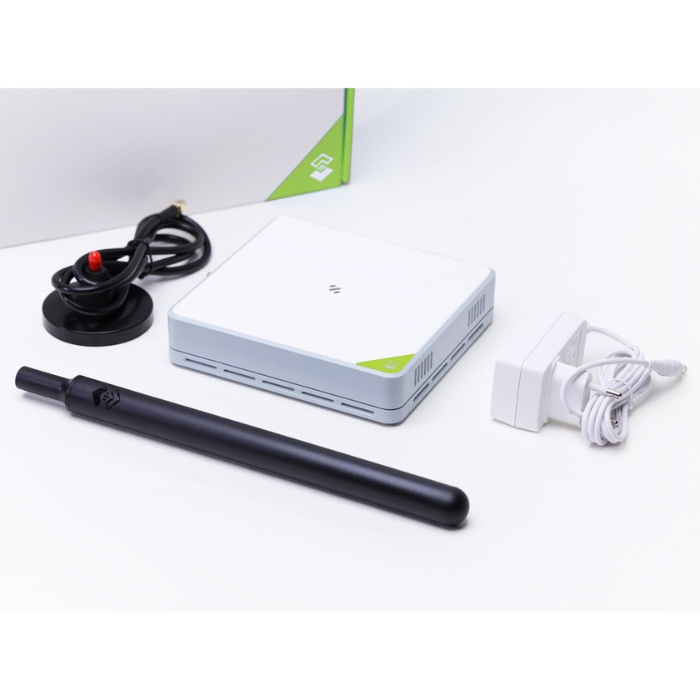

SenseCAP M2 Data Only LoRaWAN Gateway Unboxing and Onboarding

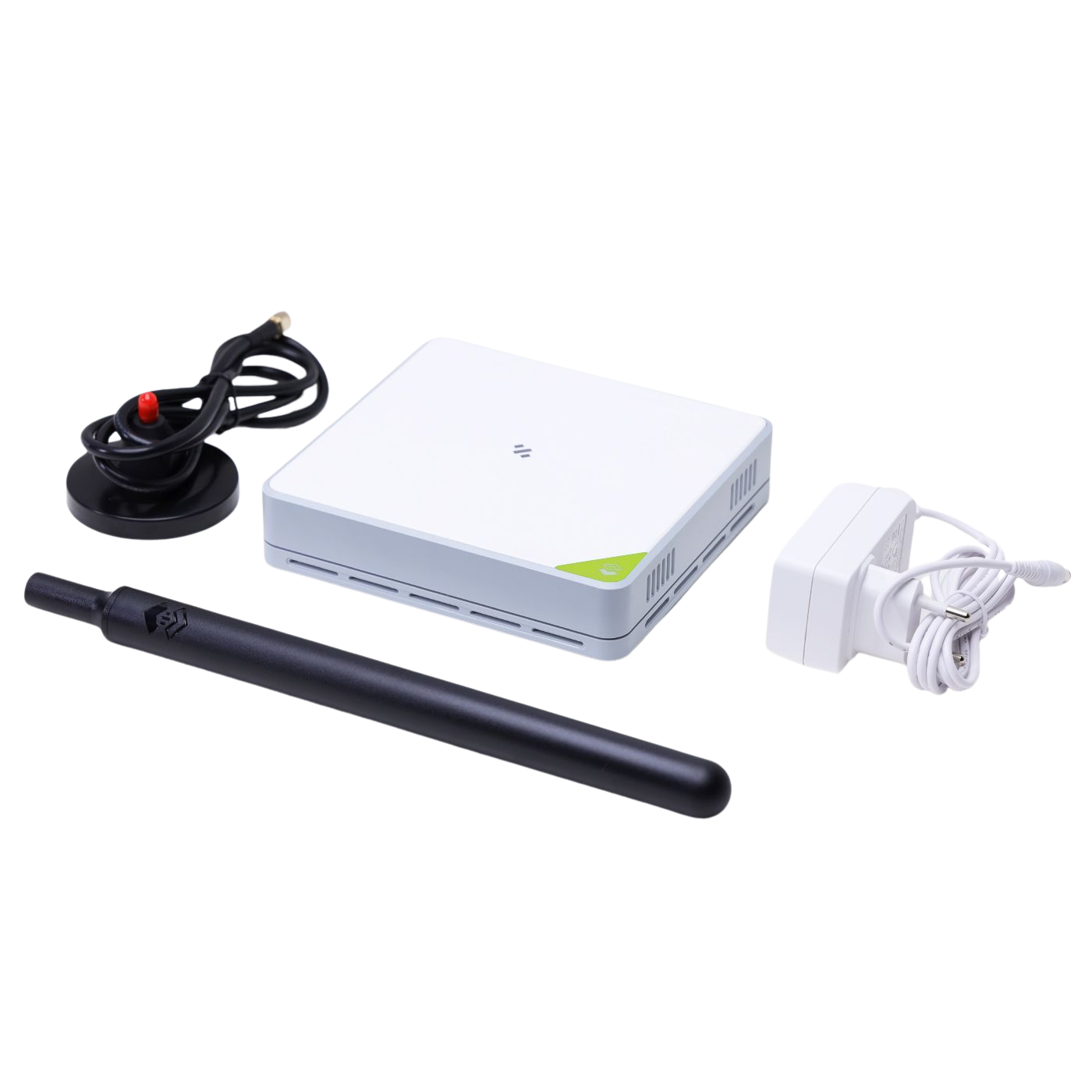

Package Includes:

  • 1 x SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868

Specifications:

Processor

MT7628(MIPS24KEc@580MHz)

RAM

DDR2 128MB

Flash

32MB

Long Range Gateway Chip

SX1302

Channel

8

LoRaWAN® Protocol

V1.0.3 Class A/Class B/Class C

Frequency Plan

IN865/EU868/RU864/US915/AU915/KR920/AS923

Long Range Sensitivity

-125dBm @125KHz/SF7

-139dBm @125KHz/SF12

Long Range TX Power

Up to 26 dBm

Antenna

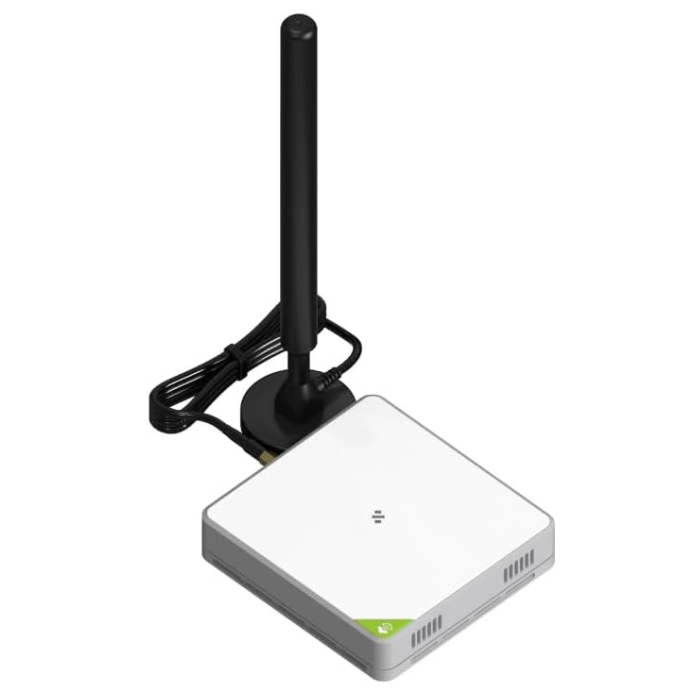

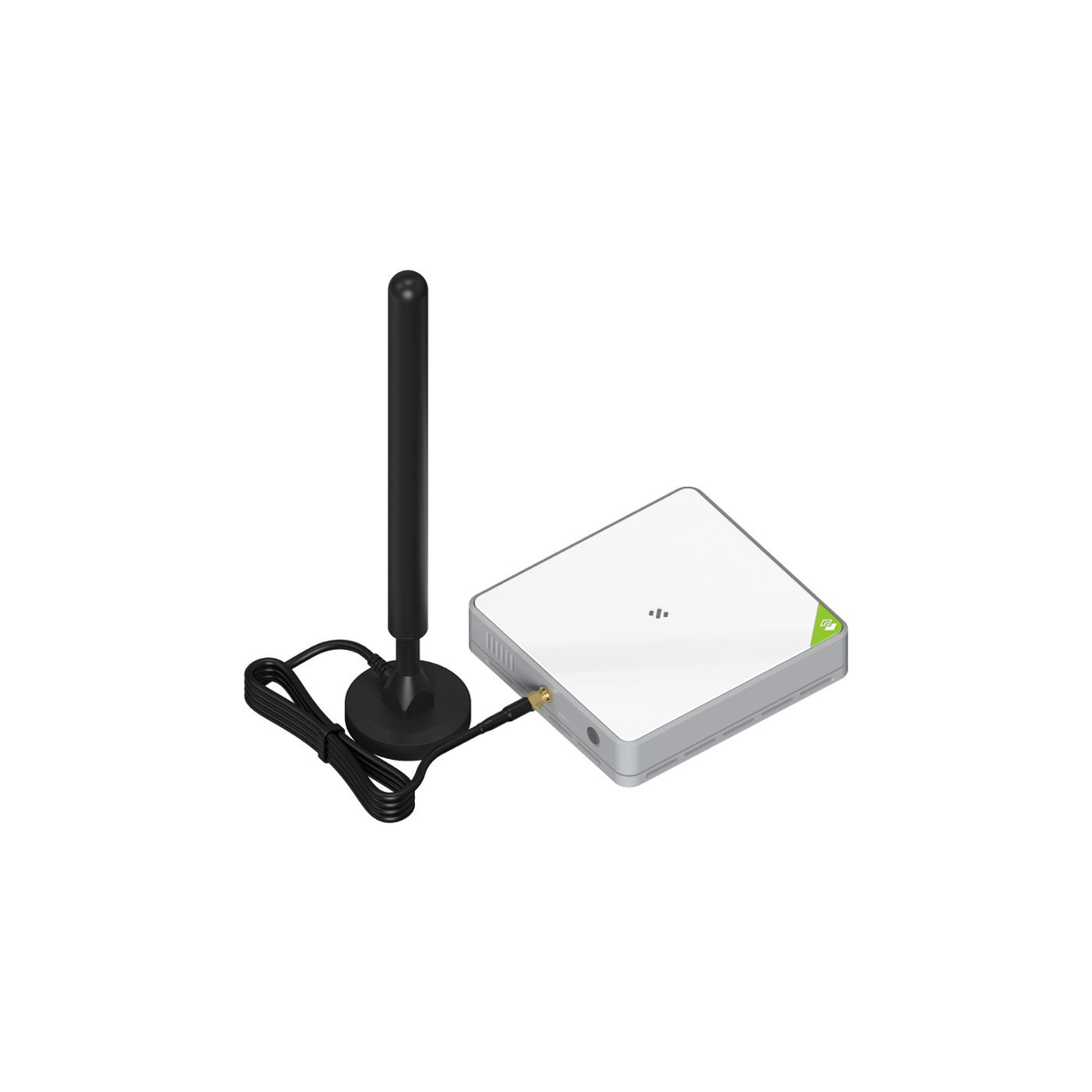

Long Range: 3dBi External Antenna with Base

Wi-Fi: Internal Antenna

Antenna Impedance

50 Ohm

Wi-Fi

Support 2.4 GHz 802.11 b/g/n

Ethernet

1xRJ45 (10M / 100 M), PoE PD support

Cellular(Optional)

Another version is optional, coming soon


Input Voltage


DC 12V - 2A

PoE (IEEE 802.3 af), 40V-57V DC

Interfaces

Ethernet RJ45 * 1

RP-SMA Female Antenna Connector * 1

Micro SD Card Slot (Future use)  * 1

USB Type-C (Console) * 1

Management Software

Web

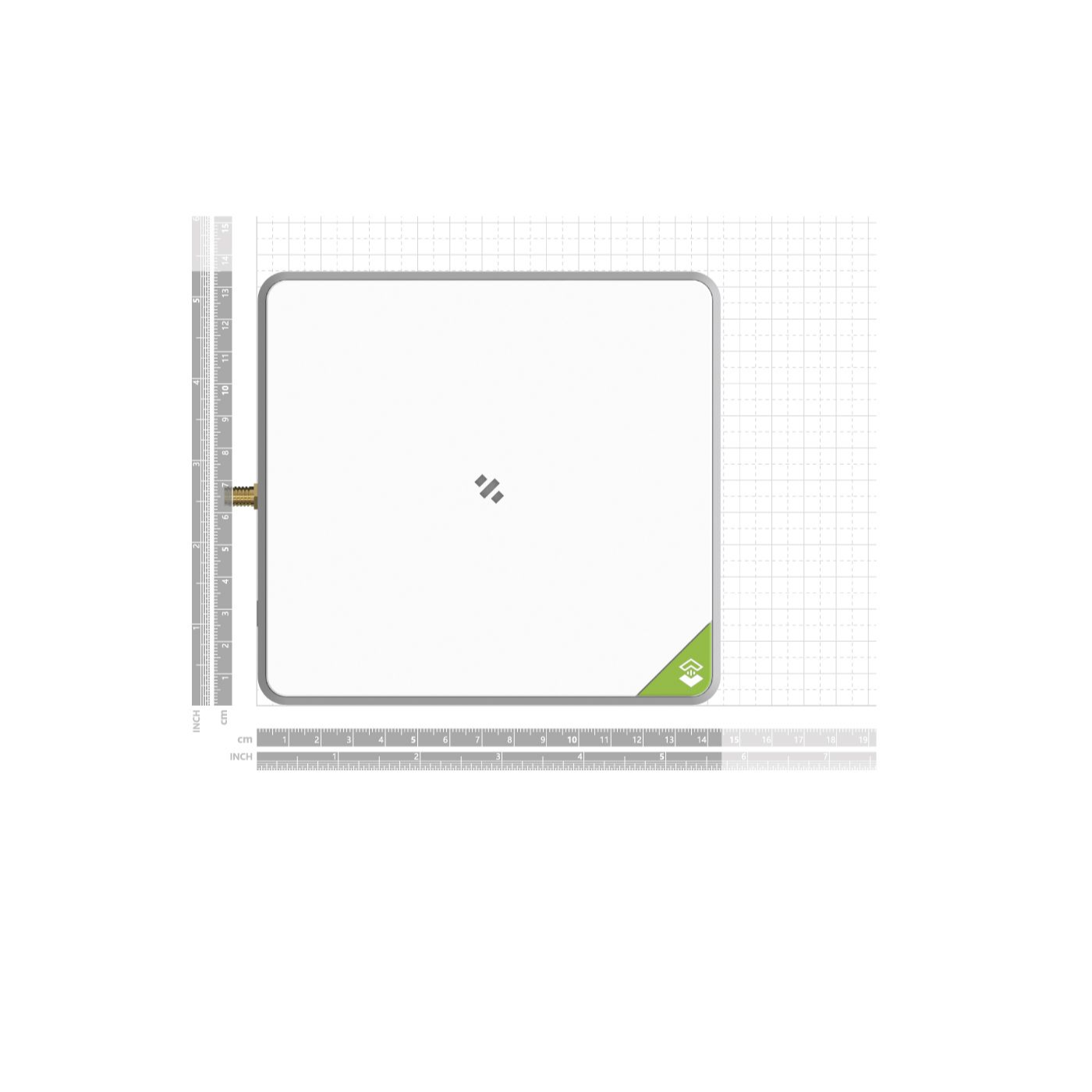

Dimension

143.6x135x34mm (connector not included)

150.6x135x34mm (connector included)

Package: 340*230*65mm

Operating Temperature

-20°C to 55°C

Relative Humidity

0% - 85% (non-condensing)
