SenseCAP T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning
SenseCAP T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning
Low stock: 6 left
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Seamless Indoor and Outdoor Positioning: Utilizes BLE, Wi-Fi, and GNSS technologies for pinpoint accuracy.
- Compact Design: Credit card size (6.5mm thick), fits into various scenarios effortlessly.
- Emergency Report: SOS mode with a panic button triggers frequent data transmission and alerts nearby individuals.
- Cost-Effective Data Transmission: Utilizes LoRaWAN for significantly lower communication costs compared to other networks.
- Long Battery Life: Months of usage after a single magnetic charge, with water-resistant design.
- Offline Data Storage: Never lose track with offline data storage during connection loss.
- Harsh Environment Endurance: Industrial-grade design with IP65 waterproof protection, operational from -20℃ to 60℃.
SenseCAP T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning

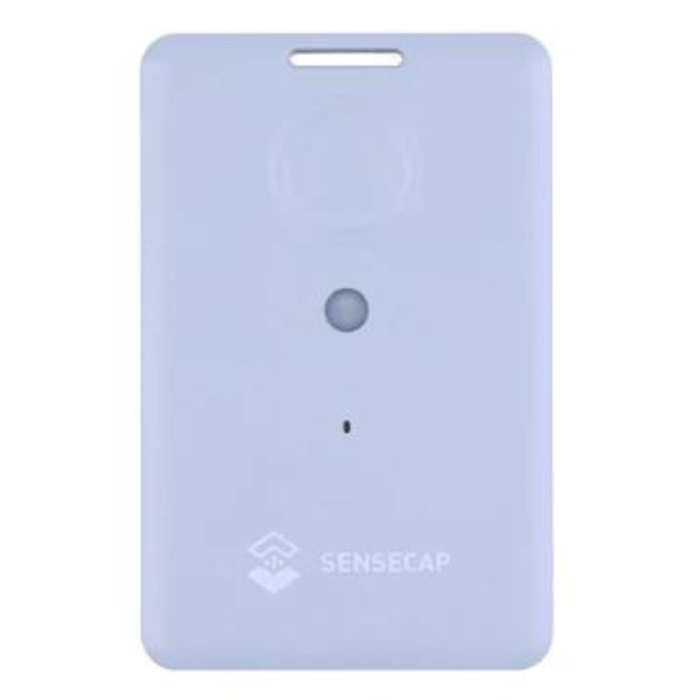

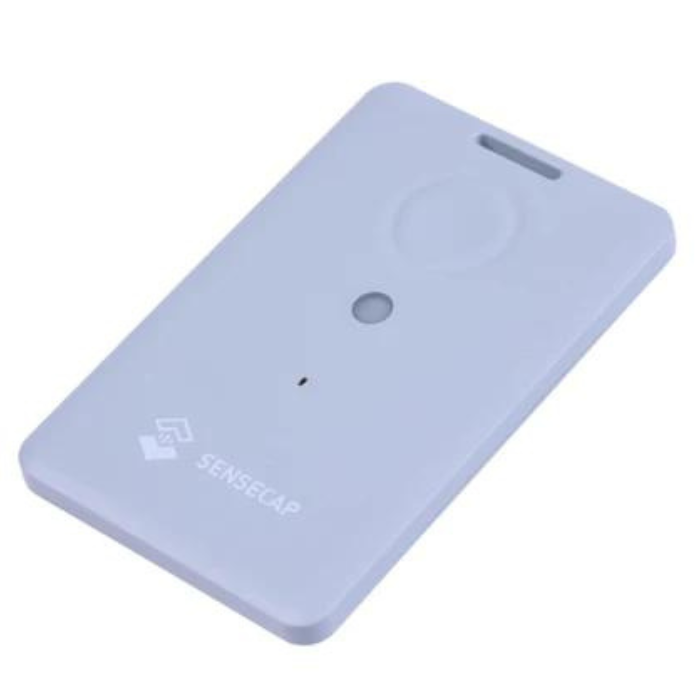

The Seeed Studio LoRaWAN Tracker, T1000-B, is your ultimate solution for seamless indoor and outdoor positioning. Measuring a mere 6.5mm thick, this credit card-sized tracker fits effortlessly into any application, offering precise tracking across various scenarios.
Ts emergency report feature, activated by a panic button, ensures frequent data transmission and alerts in case of emergencies. Cost-effective data transmission is achieved through LoRaWAN, significantly lowering communication costs compared to other networks. The T1000-B boasts months of battery life after a single magnetic charge, with a water-resistant design enhancing its durability. Even in offline situations, rest assured with the tracker's ability to store data, ensuring you never lose track.
Built to endure harsh environments, the T1000-B features an industrial-grade design with IP65 waterproof protection, operational in temperatures ranging from -20℃ to 60℃. Whether it's for tracking delivery routes, student movements on a campus, or monitoring a resort's attractions, the T1000-B is your optimal choice.
Features:
Seamless Indoor/Outdoor Tracking:
- Utilizes BLE and Wi-Fi for precise indoor positioning.
- Employs GNSS technologies (GPS, Beidou, Galileo, GLONASS) for accurate outdoor tracking.
Compact Design:
- Credit card size (6.5mm thick).
- Fits easily into various applications and spaces.
Emergency Report:
- Panic button activates SOS mode.
- Frequent data transmission alerts nearby individuals through a built-in buzzer.
Cost-Effective Data Transmission:
- Uses LoRaWAN for significantly lower communication costs compared to other networks.
Long Battery Life:

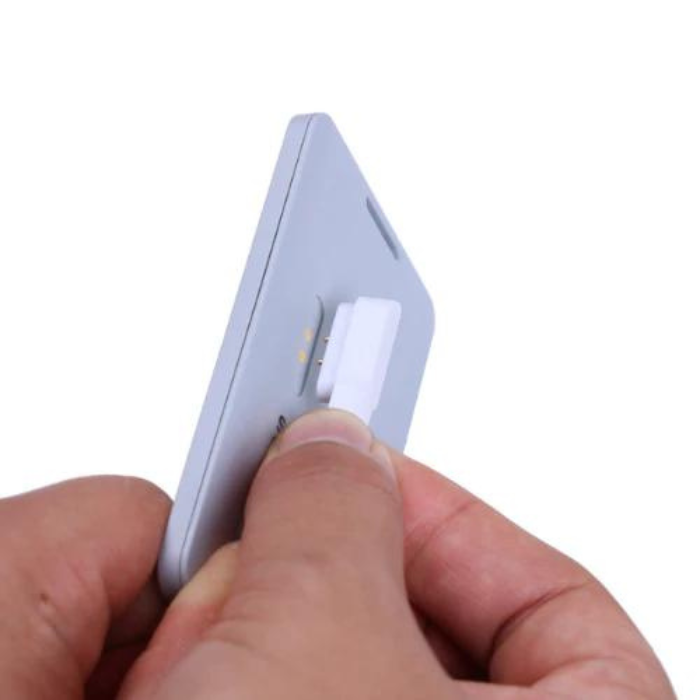

- Months of usage after a single magnetic charge.
- Magnetic charge design enhances water resistance.
Offline Data Storage:
- Stores data offline when out of connection.
Harsh Environment Endurance:
- Industrial-grade design.
- IP65 waterproof protection.
- Operational temperature range from -20℃ to 60℃.
Compatibility and Connectivity:
- LoRaWAN device compatible with global LoRaWAN networks.
- Over 150 LoRaWAN network operators globally.
- Compatible with SenseCAP Mate App for easy setup and configuration.
Flexible Network Expansion:
- Install LoRaWAN gateway for extended coverage.
- Flexible and cost-effective network expansion.
User-Friendly SenseCAP Mate App:
- Provides an easy hands-on experience.
- Allows configuration of tracker parameters.
- Offers a 3-month free plan for newly added trackers.
Open API and Integration:
- Open API for streamlined data integration into various platforms.
- Easily integrate into existing tracking platforms and systems.
Accessories and Customization:
- Includes snap hook and nylon lanyard for quick use.
- Customizable design services available through Seeed for unique tracking solutions.
Developer Community Support:
- Open-source development kit available (Wio Tracker 1110 Dev Kit).
- Emphasis on supporting the developer community for innovation.
Global Availability:
- LoRaWAN network available worldwide in over 160 countries.
- Supported by notable LoRaWAN network operators like Actility, Everynet, Helium, SenRa, The Things Network.
Applications:
- Tracking delivery routes for efficient logistics management.
- Monitoring student movements on campus for safety and security.
- Managing attractions and facilities at resorts for enhanced guest experiences.
- Asset tracking in industrial environments for inventory management.
- Supervising personnel in hazardous workplaces for safety compliance.
- Ensuring the safety of outdoor enthusiasts during recreational activities.
- Tracking vehicles and fleets for efficient fleet management.
SenseCAP Tracker T1000 Hands-on Guide

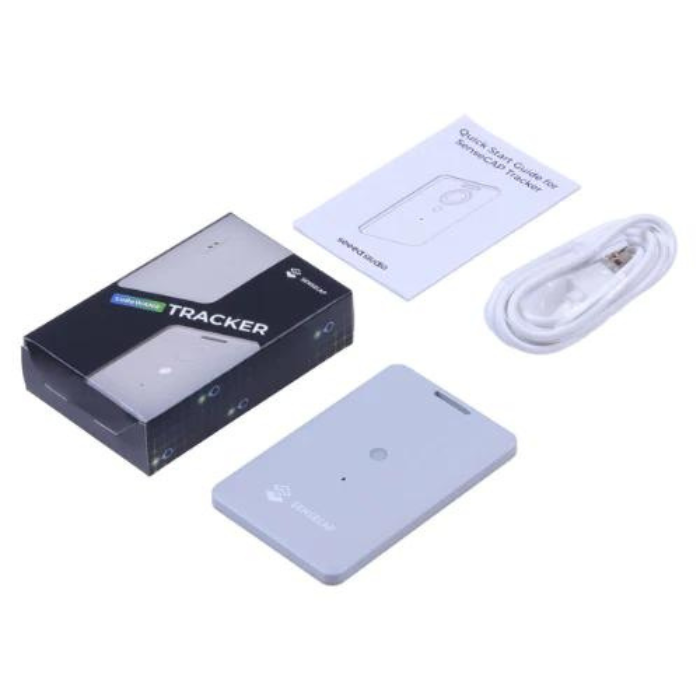

Package Includes:
- 1 x SenseCAP T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning
Specifications:
|
Backhaul |
LoRaWAN® (v1.0.4 Class A) |
|
Bluetooth |
Bluetooth v5.1, setting via App |
|
LoRaWAN Channel Plan |
IN865/EU868/US915/AU915/AS923/KR920/RU864 |
|
Temperature |
Range: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃ |
|
Light |
0 to 100% (0% is dark, 100% is brightest) |
|
3-Axis Accelerometer |
3-Axis Accelerometer to detect movement |
|
LED and Buzzer |
1*LED and 1* buzzer to indicate status |
|
Button |
1* Button to operate and trigger events (SOS) |
|
Antenna |
Internal (GNSS/LoRa/Wi-Fi/BLE) |
|
Communication Distance |
2 to 5km (depending on gateway antenna, installation, and environments) |
|
IP Rating |
IP65 |
|
Dimensions |
85 * 55 * 6.5 mm |
|
Device Weight |
32g |
|
Operating Temperature |
-20℃ to +60℃ |
|
Operating Humidity |
5% - 95% (No condensation) |
|
Certification |
CE /FCC /TELEC /RoHS /REACH |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
SenseCAP T1000-A LoRaWAN Tracker for Indoor and Outdoor Positioning
SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway(SX1302) - EU868
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is LoRaWAN tracker?
A LoRaWAN tracker is a device that utilizes LoRaWAN technology to monitor and transmit the location of objects or assets over long distances. It communicates with LoRaWAN gateways to relay location data, making it useful for tracking applications in various industries such as logistics, agriculture, and asset management.
2. What is LoRaWAN full form?
Full form of LoRaWAN is Long Range Wide Area Network.
3. How fast is LoRaWAN?
LoRaWAN offers variable data transfer speeds depending on the range and configuration. Its speeds range from 250 bits per second (bps) for long-range transmission to approximately 22 kilobits per second (Kbps) for shorter-range communication.
4. What is the difference between LoRa and LoRaWAN?
LoRa is a modulation technology that allows low-power wireless data transmission over vast distances. Long-distance communication is made possible by the underlying technology or physical layer. On the other hand, LoRaWAN is a protocol for communication that is based on top of LoRa technology. It describes the network's communication protocol and system architecture, including data rates, security, network topology, and device-to-gateway and network server connection. LoRaWAN makes it possible to build wide-area networks that link internet-connected sensors and devices.
