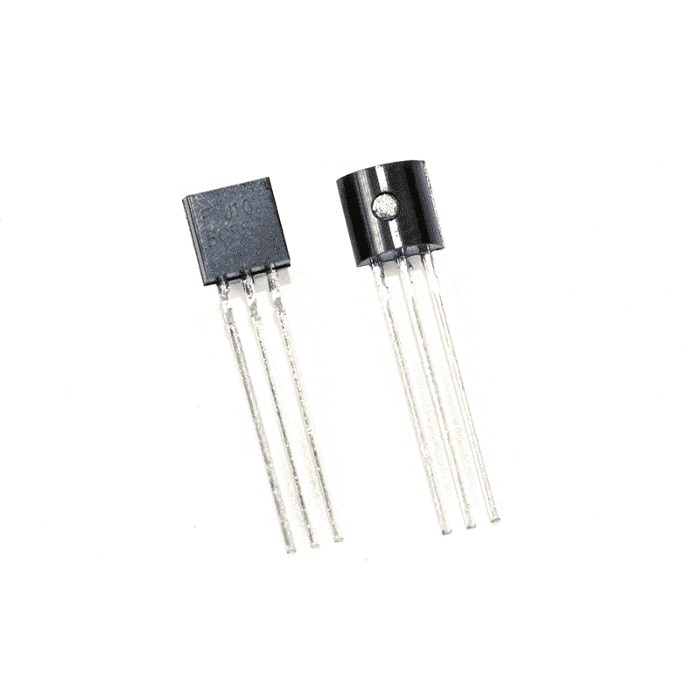

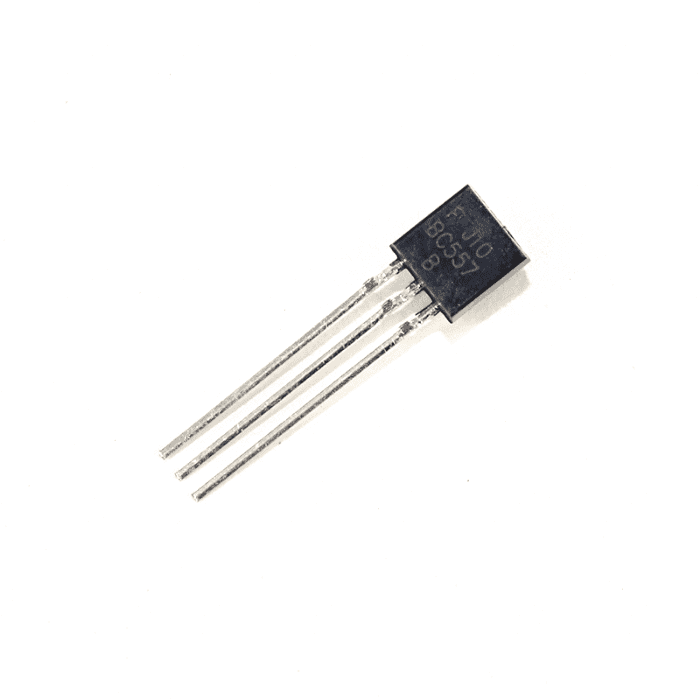

BC557 PNP Transistor - (Pack of 5)
BC557 PNP Transistor - (Pack of 5)
Regular price
Rs. 9
Regular price
Rs. 14
Sale price
Rs. 9
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 51 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Bi-Polar PNP Transistor
- DC Current Gain (hFE) is 300 maximum
- Continuous Collector current (IC) is 100mA
- Emitter Base Voltage (VBE) is 6V
- Base Current(IB) is 5mA maximum
- Available in To-92 Package
BC557 PNP Transistor - (Pack of 5)
A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal.
The BC557 (RM0385) is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector. A small current into the base controls a large current flow from the collector to the emitter. The current at the base is typically one-hundredth of the collector-emitter current. Moreover, the large current flow is almost independent of the voltage across the transistor from collector to emitter.
read our blog explaining the bc547 transistor pinout, which provides comprehensive information about the BC547 transistor, covering its role as a switch, working states, circuit diagrams, pin diagram.
Package Includes:

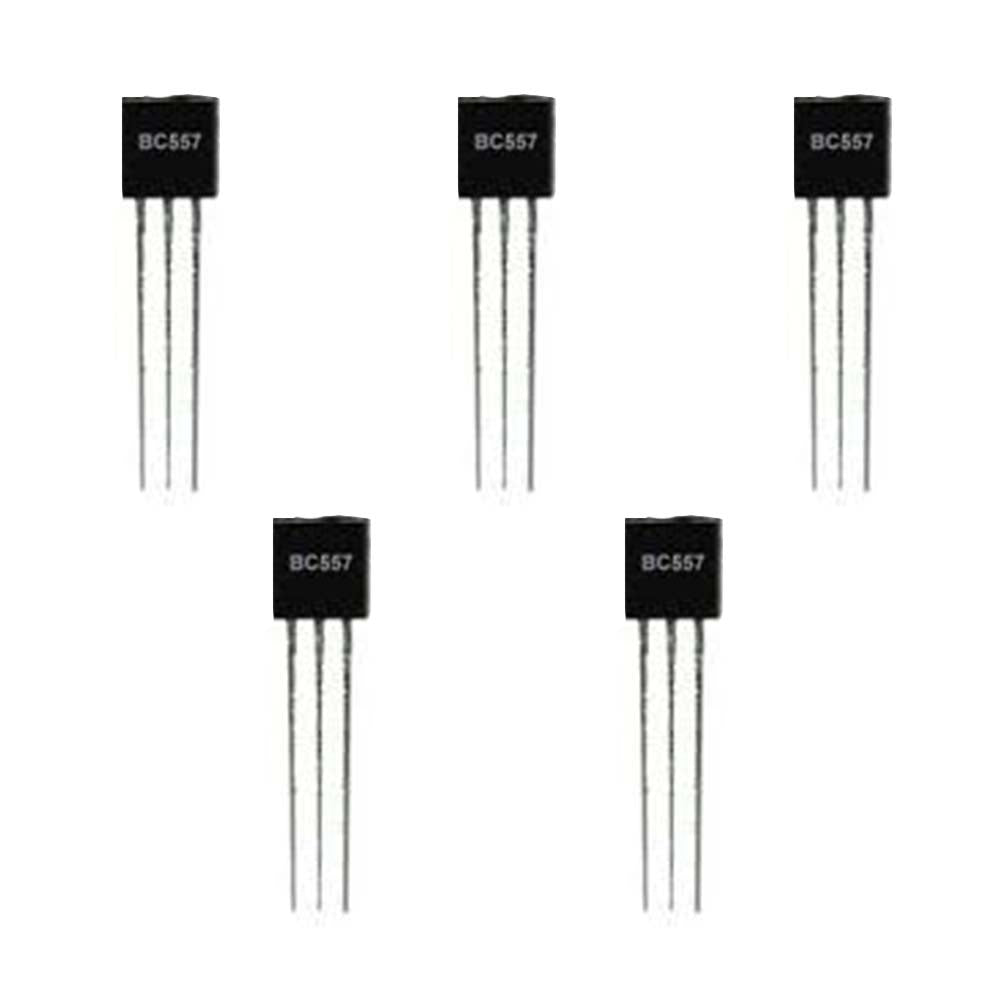

- 5 x BC557 PNP Transistor
Specifications:
| Collector-Base Voltage (Vcb) (V) | 50 |
| Collector-Emitter Voltage (Vce) (V) | 45 |
| Emitter-Base Voltage (Veb) (V) | 6 |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is a PNP-type transistor?
- PNP transistors are transistors that have one n-type material doped with two p-type materials. It is a device that is powered by a current. The small amount of base current-controlled both the emitter and collector currents.
2. Can I use BC547 instead of 2N2222?
- The 2N2222 and BC547 transistors are both general-purpose transistors that are frequently used in electrical circuits; the BC547 transistor is one of the best 2N2222 transistors equivalents.
3. How does a PNP transistor work?
- In a PNP transistor, the base current which enters the collector is amplified. The base is typically in charge of controlling current flow. In the base, the current flows in the opposite direction. In a PNP transistor, the emitter emits “holes”, and these holes are collected by the collector.
4. What is the BC557 PNP transistor?
- The BC557 (RM0385) is a PNP transistor and a heavy-duty drop-in replacement for a 2N2222 or 2N3906. The three terminals of a bipolar transistor are called the emitter, base, and collector.
