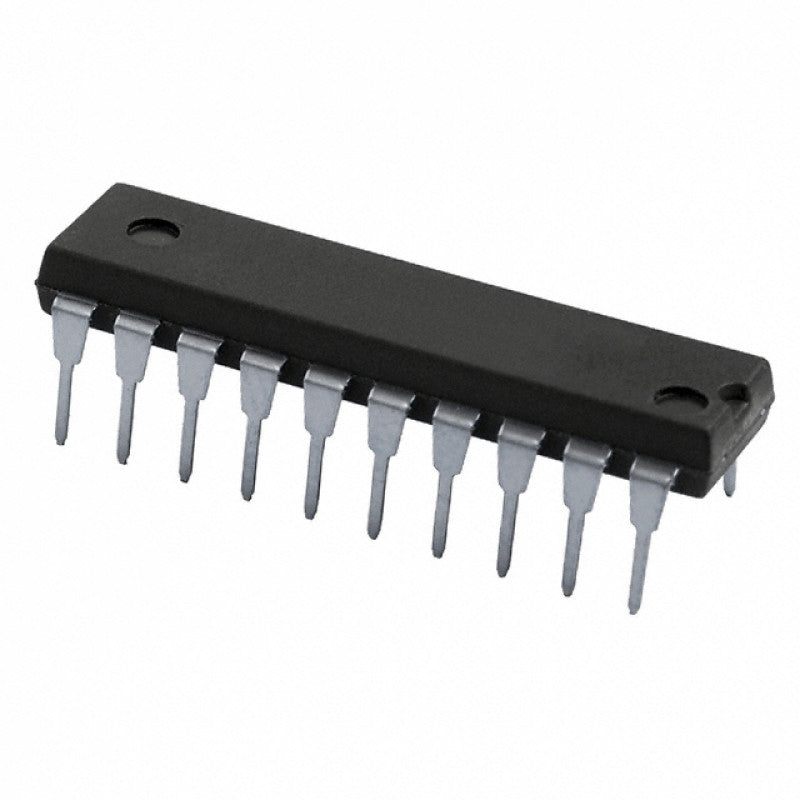

3-State Octal Bus Transceiver IC - 74HC245

Rs. 35
Rs. 39
Rs. 35
Save Rs. 4
(-10%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 10 left in stock
SKU: TIFIC0147
  • Bi-Directional bus transceiver in a high-density 20-pin package
  • 3-STATE outputs drive bus lines directly
  • PNP inputs reduce DC loading on bus lines
  • Hysteresis at bus inputs improve noise margins
  • Typical propagation delay times, port-to-port 8 ns
  • Typical enable/disable times 17 ns
  • IOL (sink current) 24 mA
  • IOH (source current) −15 mA
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
74HC245 3-State Octal Bus Transceiver – Octal bus transceiver IC for bidirectional data flow. -Robocraze
3-State Octal Bus Transceiver IC - 74HC245
Rs. 39 Rs. 35
74HC245 3-State Octal Bus Transceiver – Octal bus transceiver IC for bidirectional data flow. -Robocraze

3-State Octal Bus Transceiver IC - 74HC245

Rs. 39 Rs. 35
Description

3-State Octal Bus Transceiver IC - 74HC245

The 74HC Series 74HC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. The device allows data transmission from the A Bus to the B Bus or from the B Bus to the A Bus depending upon the logic level at the direction control (DIR) input. The enable input (G) can be used to disable the device so that the buses are effectively isolated.

Pinout:

Pinout Of 74HC245 IC

Pin Number

Pin Name

Description

1

Direction Control (DIR)

This pin decides the direction of the Data.

2 to 9

Data Input/output (A0-A7)

These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin

10

Ground (GND)

Connected to the ground of the system

11 to 18

Data Input/output (B0-B7)

These 8 pins can be used as 8-bit Input or 8-bit Output pins based on the state of DIR pin

19

Output Enable (OE)

Active Low pin – Used to Enable/Disable Input

20

Supply Voltage (Vcc)

Differential Analog input +. Connect to ADC input
Specifications

Package Includes:

  • 1 x IC - 74HC245

Specifications:

Supply Voltage (VCC) 7 V
Input Voltage (VI) 7 V
Operating free-air temperature range 0°C to +70°C
Storage temperature range –65°C to +150°C
Additional Resources
FAQ

1.What is the function of 74HC245?

  • The 74HC245 (74HCT245) is an 8-bit transceiver with three output states which is used for direction control, the device has output enable (OE) and send/receive (DIR) buttons. When OE is set to HIGH, the outputs enter a high-impedance OFF state. Clamp diodes are used as inputs.

2.What is 74HCT245?

  • The 74HC245 is an octal transceiver with non-inverting 3-state bus compatible send and receive outputs. The 74HC245 and 74HCT245 have an output enable input (OE) for simple cascading and a send/receive input (DIR) for direction control.
