- This is 4 Channel 3.3V-5V Bi-Directional Logic Level Converter
- Mutual transform between 5V TTL and 3.3V TTL
- Four channels of logic and high voltage low voltage logic can two-way transform
- Portable and lightness, with 2 rows 6 pin contact pins

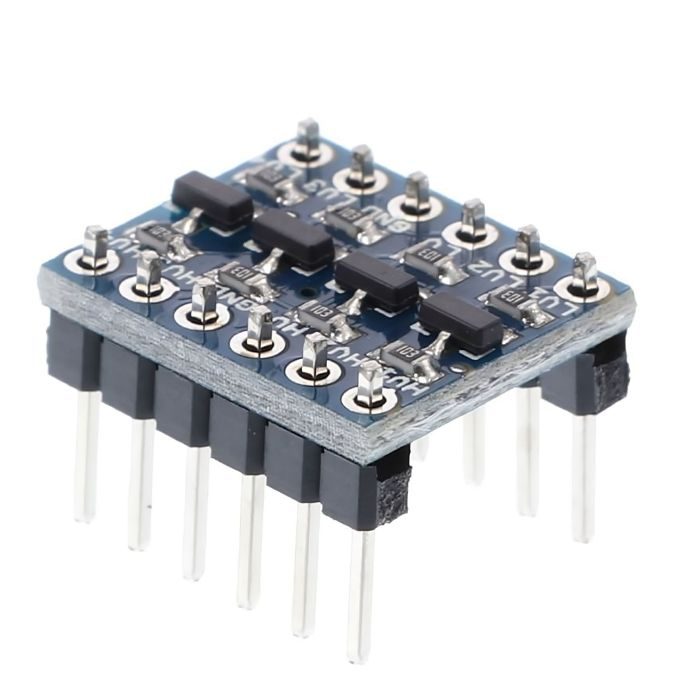

- Level Converter- 4 Channel Compatible with the bread plate, can be used directly put on the breadboard
- 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
- This is a great addition to your hobby craft tool kit Perfect product for your safety and lab supply Good for many applications include industrial, laboratory, personal and hobbies.

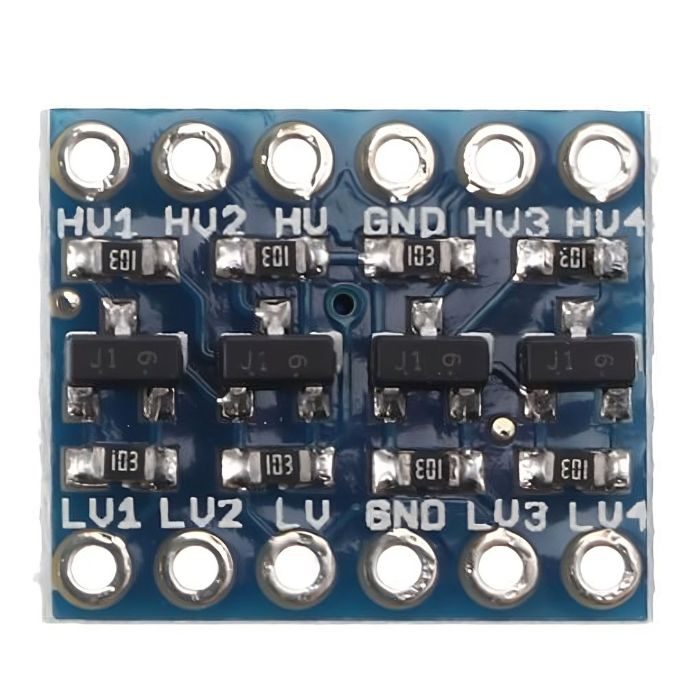

4 Channel (I2C or SPI) 3.3V-5V Bi-Directional Logic Level Converter
If you've ever tried to connect a 3.3V device to a 5v system, you know what a challenge it can be. The bi-directional logic level converter is a small device that safely steps down 5v signals to 3.3V and steps up 3.3V to 5v at the same time. This level converter also works with 2.8V and 1.8V devices. What separates this logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltage sources (high voltage and low voltage) that your system is using. High voltage (5v for example) to the 'hv' pin, low voltage (3.3V for example) to 'lv', and ground from the system to the 'gnd' pin logic level shifter bi-directional with 4 channels between high logic and low logic small module with 1.3Cm x 1.5Cm with 2 rows of 6 pin compatible with a breadboard, can be directly used in breadboard usage: for example, high voltage is 5v, low voltage is 3.3V hv connect with 5v power supply lv connect with 3.3V power supply and connect the power negative pole lvx input/output 3.3V TTL hvx input/output 5v ttl bi-directional transform between lvx and tvx
Features:
- Mutual transform between 5V TTL and 3.3V TTL
- Four channels of logic and high voltage low voltage logic can two-way transform
- Portable and light, with 2 rows 6 pin contact pins
- Level Converter- 4 Channel Compatible with the bread plate, can be used directly put on the breadboard
- 4 Channel Module (great for I2C or SPI) and will work with all microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed
Also check 2 Channel Logic Level Converter (I2C, UART, 5V-3.3V) available on the Robocraze website. It is a small device designed to safely step down 5V signals to 3.3V and simultaneously step up 3.3V to 5V. The converter is bi-directional and works with 2.8V and 1.8V devices as well. It has two inputs and two outputs for each side, allowing the conversion of 4 pins on the high side to 4 pins on the low side.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
2 Channel Logic Level Converter (I2C, UART, 5V-3.3V)
ST-Link V2 Debugger and Programmer USB
TB6560 Stepper Motor Driver
Found a better price?
Let us know!
We'll try to match the price for you
Package includes:

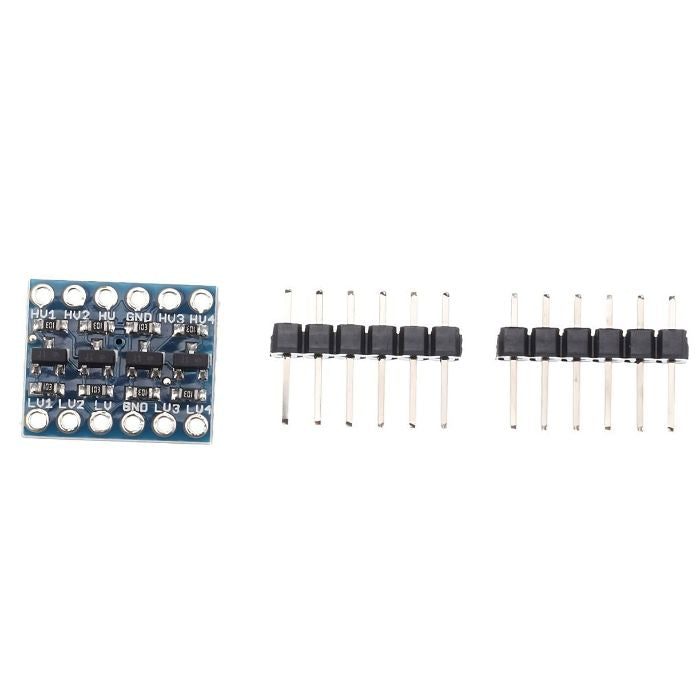

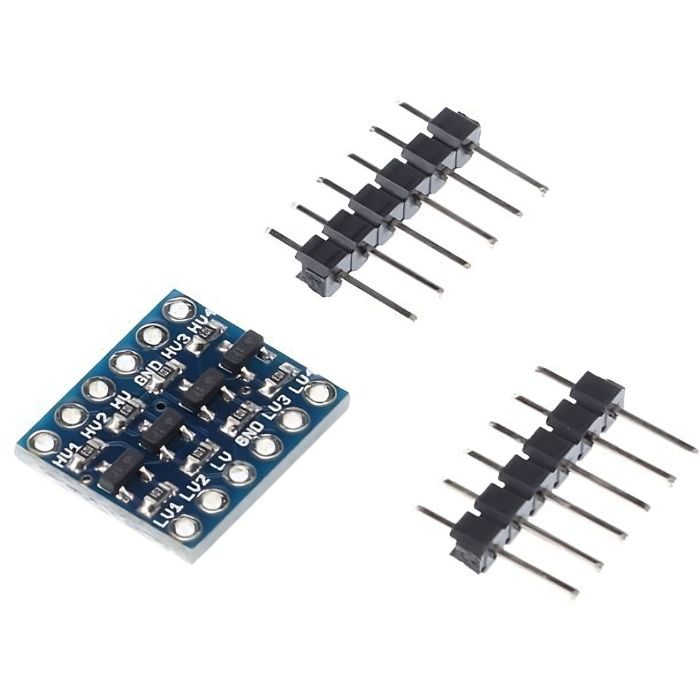

- 1 x bi-directional transform module 2 x rows of pins.
Specifications
| Number of channels | 4 |
| Operating Voltage | 2.8V - 6V |
| Length | 16mm |
| Width | 13mm |
| Height | 3mm |
| Weight | 2gm |
1. What is the use of a logic level converter?
- A 3.3 v to 5v level shifter converts a logic signal from one level to another. Typically this shift occurs between 5V and 3.3V, but other voltages can be used if desired. When connecting a 2.5V or 1.8V. 3.3V I2C or SPI sensor to a 5V device such as an Arduino that supports bi-directional communication, the solution is to use an external level shifter or logic level shifter IC. The logic level converter supports bidirectional level shifting using one MOSFET per bus line to protect the low side from high side spikes.
2. How do you shift from 3.3V to 5V?
- To convert 3.3V to 5V (or 5v to 3.3 v converter), apply 5V to the 'HV' side and 3.3V to the 'LV' input. Also make sure rest of the pins are grounded! The outer pins correspond to inputs and outputs for channels 1 and 2. Each channel has a voltage divider and a MOSFET shifter.
