16x2 LCD Module (Green)

16x2 LCD Module (Green)

Regular price
Rs. 125
Sale price
Rs. 125
Regular price
Rs. 236
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

Features:
• 5 × 8 and 5 × 10 dot matrix possible
• Low power operation support:
-      2.7 to 5.5V
• Wide range of liquid crystal display driver power
-      3.0 to 11V
• Liquid crystal drive waveform
-      A (One line frequency AC waveform)
• Correspond to high speed MPU bus interface
-      2 MHz (when VCC = 5V)
• 4-bit or 8-bit MPU interface enabled
• 80 × 8-bit display RAM (80 characters max.)
• 9,920-bit character generator ROM for a total of 240 character fonts
-      208 character fonts (5 × 8 dot)
-      32 character fonts (5 × 10 dot)

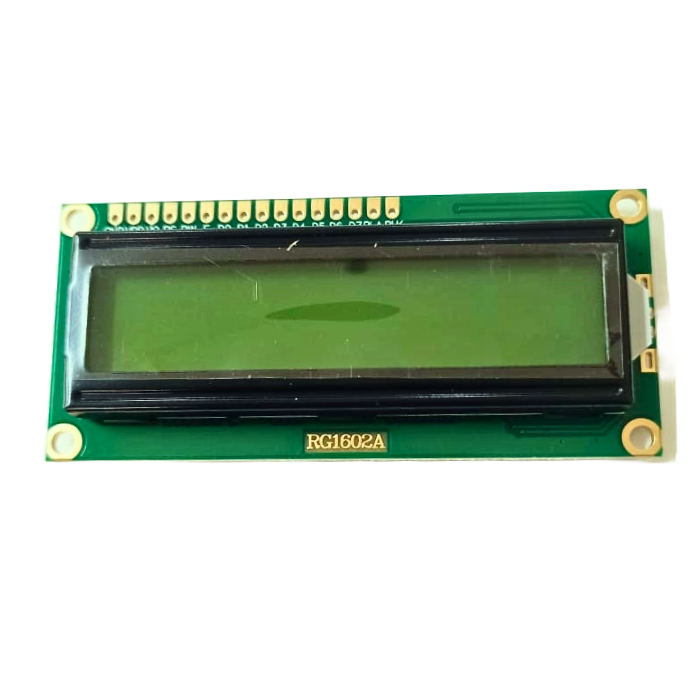

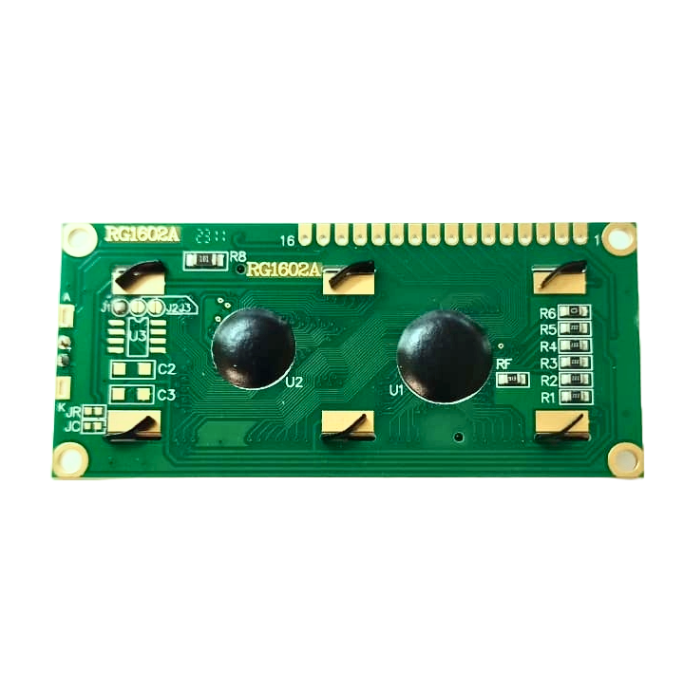

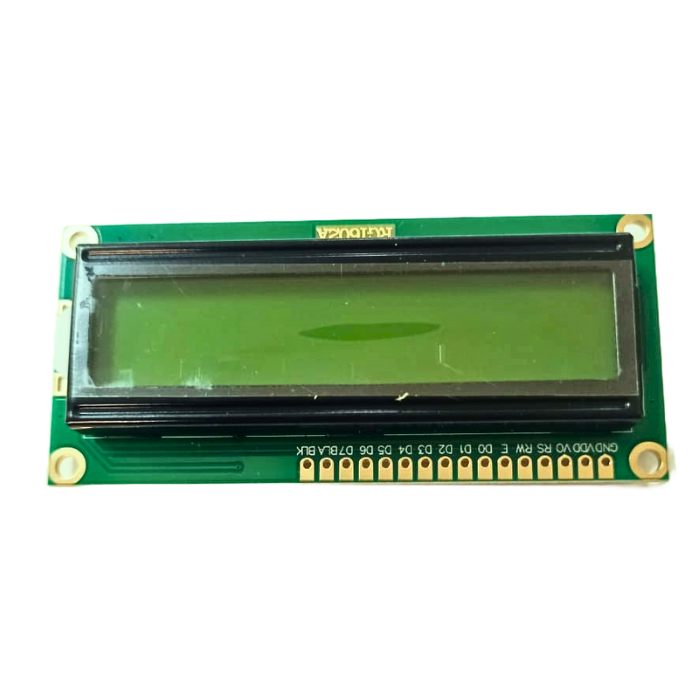

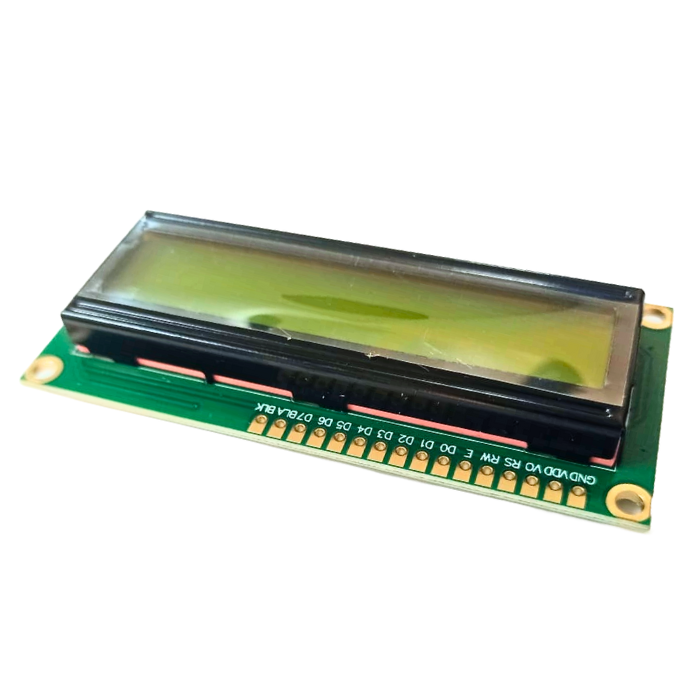

16x2 LCD Module (Green)

This is based on the most common Hitachi's HD44780 parallel interface chipset. The HD44780U dot-matrix liquid crystal display controller and driver LSI displays alpha numeric, Japanese kana characters, and symbols. It can be configured to drive a dot-matrix liquid crystal display under the control of a 4- or 8-bit microprocessor.

Since all the functions such as display RAM, character generator, and liquid crystal driver, required for driving a dot-matrix liquid crystal display are internally provided on one chip, a minimal system can be interfaced with this controller/driver.

This LCD display can be easily interfaced to a micro-controller in either 8 bit mode or 4 bit mode depending on the number of micro-controller pins you have to spare. The LCD only displays a text output however this is a user interface for display information about battery power or distance to an object.

Package Includes:

  • 1 x 16x2 Green LCD Module

Green LCD Module Specifications

Display Format 16x2 dots
Controller ST7920 or equivalent controller
Interface 8-bit parallel interface or serial SPI modes
Power Supply Voltage 5V
Operation temperature -20°C to +70°C
Package Dimensions  5 x 4 x 2 cm
Package Weight  50 grams
