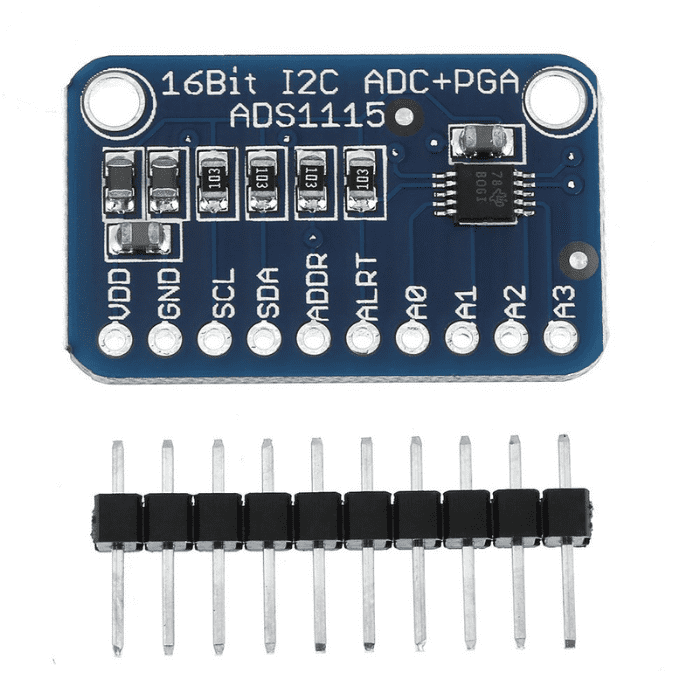

16 Bit I2C 4 Channel ADS1115 Module
16 Bit I2C 4 Channel ADS1115 Module
Regular price
Rs. 163
Regular price
Rs. 249
Sale price
Rs. 163
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 16 Bit I2C 4 Channel ADS1115 Module
- It has a wide supply range of 2.0v to 5.5v
- It has a programmable data rate of 8sps to 860sps
- It has an internal low-drift voltage reference
- This module has an i2c interface with pin-selectable addresses.
- It has four single ends or two differential inputs.
- This module is a programmable comparator.
Related Tags
16 Bit I2C 4 Channel ADS1115 Module
16 Bit I2C 4 Channel ADS1115 Module is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 16-Bit ADC- provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels.
Additionally, ADC also includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. It can run from 2V to 5V power/logic, can measure a large range of signals and it’s super easy to use. It is a great general-purpose 16-bit converter.
The ADS1115 chip is fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options so you can have up to 4 ADS1115 connections on a single 2-wire I2C bus for 16 single-end inputs.
Input range programmed control, 6 types input ranges:
- -0.256V +0.256V
- -0.512V - +0.512V
- -1.024V - + 1.024V
- -2.048V + 2.048V
- -4.096V +4.096 V
- -6.144V - + 6.144V
Applications:
- Portable instrumentation
- Consumer goods
- Battery monitoring
- Temperature measurement
- Factory automation and process controls
Package Includes:
- 1 x 16 Bit I2C 4 Channel ADS1115 Module
Specifications:
|
ADC Bit rate |
16 Bit |
|
Interface type |
12C |
|
Channels |
4 Channel ANO AN1 AN2 AN3 or 2 differential inputs |
|
Input voltage |
2.0-5.5v |
|
Channel input voltage |
0-VDD |
|
Continuous mode |
Only 150μA |
|
Single-shot mode |
Auto shut-down |
|
Programmable data rate |
8sps-860sps |
|
Dimensions |
18mm*28mm |
|
Weight |
5g |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Uno R3 Board compatible
Regular price
Rs. 477
Regular price
Rs. 849
Sale price
Rs. 477
Unit price
per
Incl. GST (No Hidden Charges)
Sale
M5 Stack COMMU Module Extend RS485/TTL CAN/I2C Port
Regular price
Rs. 1,151
Regular price
Rs. 1,499
Sale price
Rs. 1,151
Unit price
per
Incl. GST (No Hidden Charges)
Sale
NodeMCU ESP8266 AMICA CP2102 WiFi Development Board
Regular price
Rs. 270
Regular price
Rs. 329
Sale price
Rs. 270
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is ADS1115 Module?
- ADS1115 is a high-precision 4-channel 16-bit Analog-to-Digital converter that significantly boosts measurement accuracy over Arduino's built-in ADC. It can convert 4 analog signal to digital signal.
2. How many channels are there in ADS1115?
- There are total 4 channels in ADS1115 module. Thus, it can easily convert 4 analoge signals to digital signals.
3. How do I use ADS1115?
- Connection of a ADS1115 with Arduino:
- Connect the 4 analog pins of ADS1115 to any Analog Pins of Arduino
- Now connect the GND Pin to the GND of the Arduino and VDD to the voltage pin of the Arduino.
- Now, run the code and you can get the output.
